The Stripping Rectifier from Gaohui Rectifier removes defective coatings from racks and hangers efficiently. This Stripping Rectifier delivers controlled reverse current for electrochemical stripping. Furthermore, the Stripping Rectifier handles continuous duty in corrosive tanks. Therefore, shops recover racks quickly.
Cooling: Water-Cooled | Application: Rack/Hanger Stripping | Ripple: ≤3% | Polarity: Auto Reversal

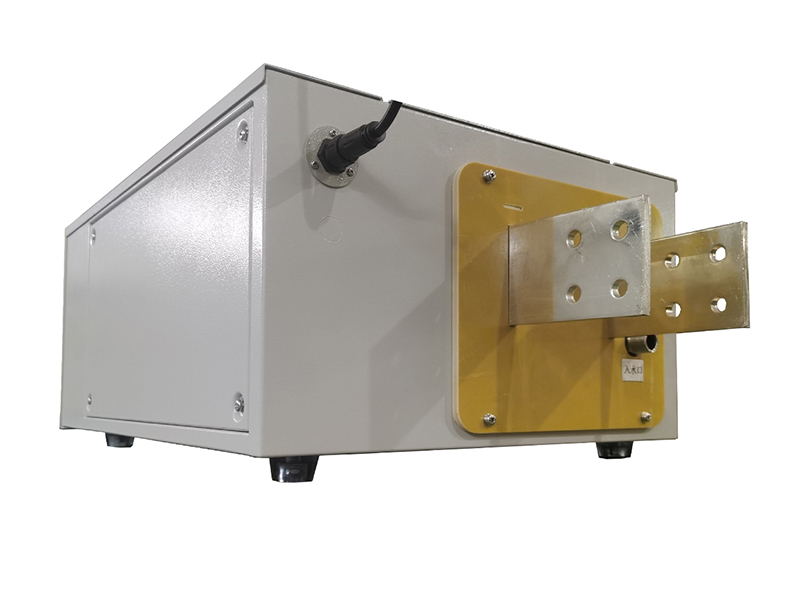

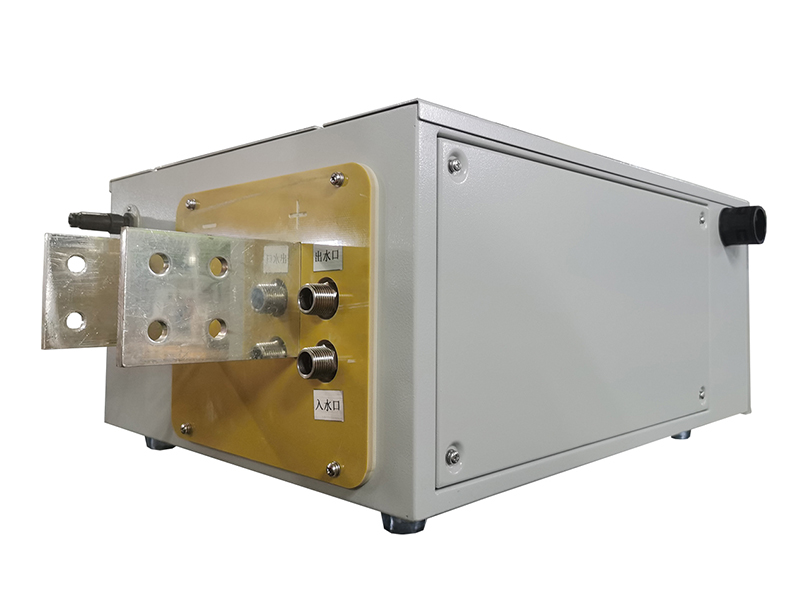

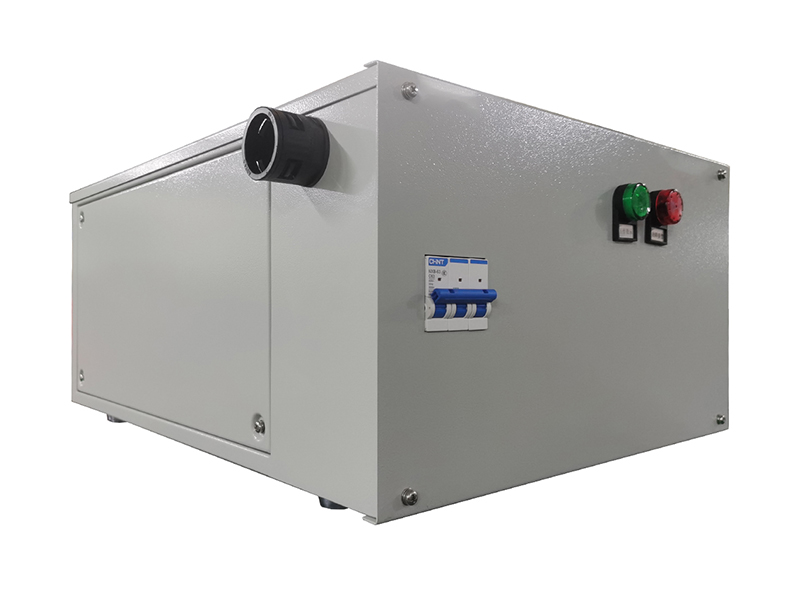

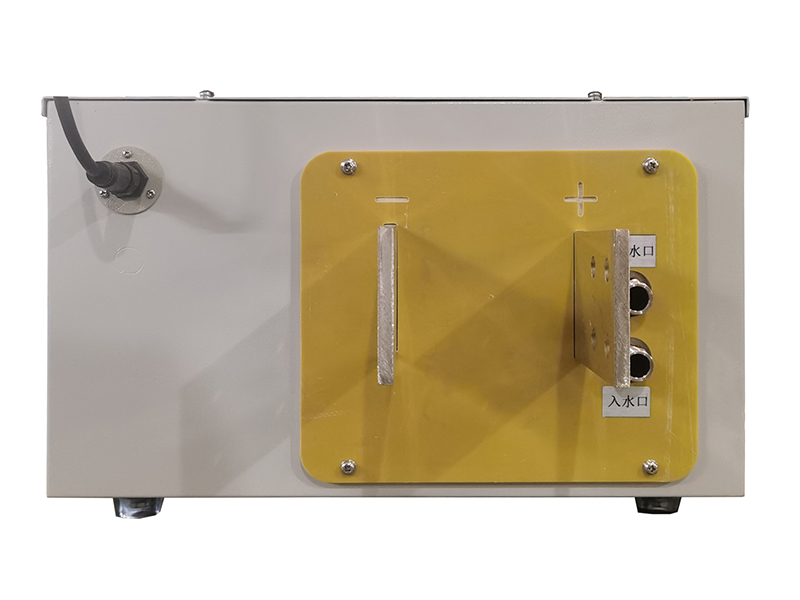

The 1000A 12V water-cooled rectifier is built for stripping tanks of 500L to 1000L. It removes chromium, nickel, and copper from steel racks and titanium hangers. Specifically, the reverse polarity runs at 500 to 1000A for 15 to 30 minutes per rack load. Furthermore, the water-cooled design fits in tight plating line corners.
Moreover, the rectifier alternates between reverse and forward automatically. This prevents copper or nickel deposition on racks during idle periods. For instance, a typical cycle runs reverse for 10 minutes, then forward for 1 minute. Consequently, rack life extends and manual scraping becomes unnecessary.
Furthermore, stripping chemistries vary by coating type. Our engineers help select the right current and time for chromium, nickel, or copper removal. Consequently, you do not damage the racks while stripping.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, 3-phase, 50/60Hz |
| DC Output Current | 0–1000A bidirectional |
| DC Output Voltage | 0–12V adjustable |
| Cooling Method | Water-cooled |
| Ripple Factor | ≤3% |
| Polarity Reversal | Automatic, timer-controlled |
| Protection | Over-current, over-heat, water-flow alarm |
| Flow Rate | 5 L/min minimum |
| Dimensions | 700 × 600 × 400 mm |
| Weight | 120 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
