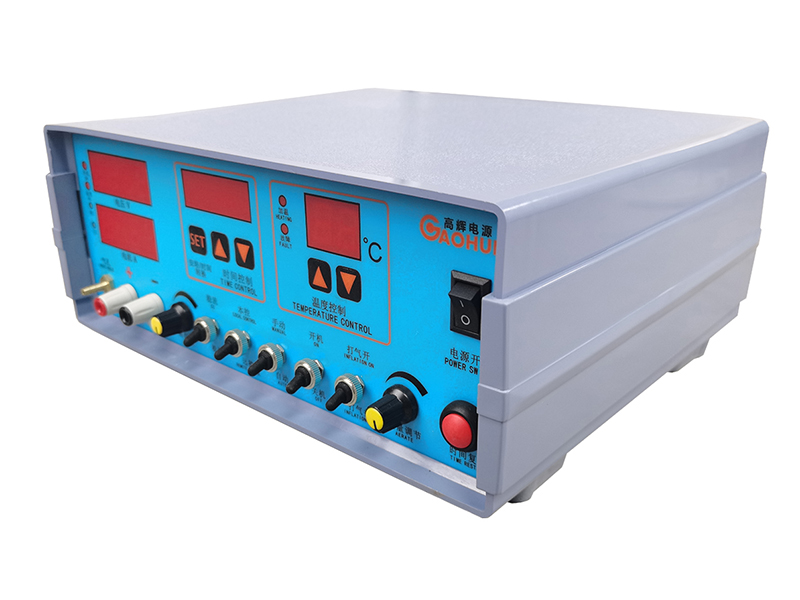

The Lab Plating Rectifier from Gaohui Rectifier delivers precise DC output for small-scale plating research and educational demonstrations. This Lab Plating Rectifier supports automated test cycles with stable current across small workpieces and lab-sized baths. Furthermore, the Lab Plating Rectifier features digital controls for fine parameter adjustment. Consequently, universities and R&D centers choose it for repeatable plating experiments.
Cooling: Forced Air | Application: University Labs & R&D | Ripple: ≤3% | Interface: RS485

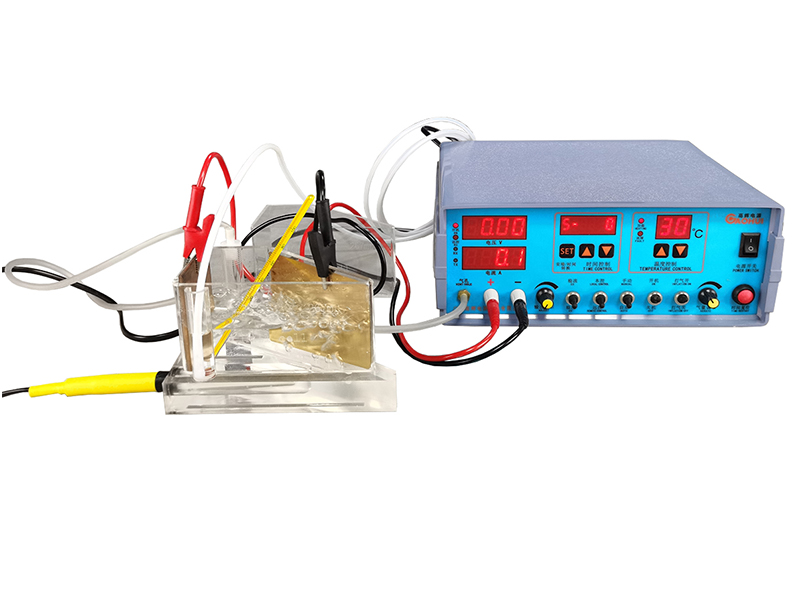

The 10A 18V rectifier is specifically engineered for laboratory plating cells with tank volumes between 5L and 50L. It is ideal for materials science research where current density must be controlled precisely. For example, a university might study nickel electrodeposition on small test panels. Furthermore, the 18V headroom supports multi-cell series arrangements for teaching demonstrations.
Moreover, this rectifier suits small-batch jewelry prototyping and electroforming. Specifically, art studios and invention labs use it for electrowinning and corrosion studies. Consequently, the rectifier bridges the gap between tiny bench supplies and production rectifiers.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 220V ±10%, single phase |
| DC Output Current | 0–10A adjustable |
| DC Output Voltage | 0–18V adjustable |
| Cooling Method | Forced air |
| Ripple Factor | ≤3% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | RS485 standard |
| Dimensions | 320 × 220 × 180 mm |
| Weight | 8 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
