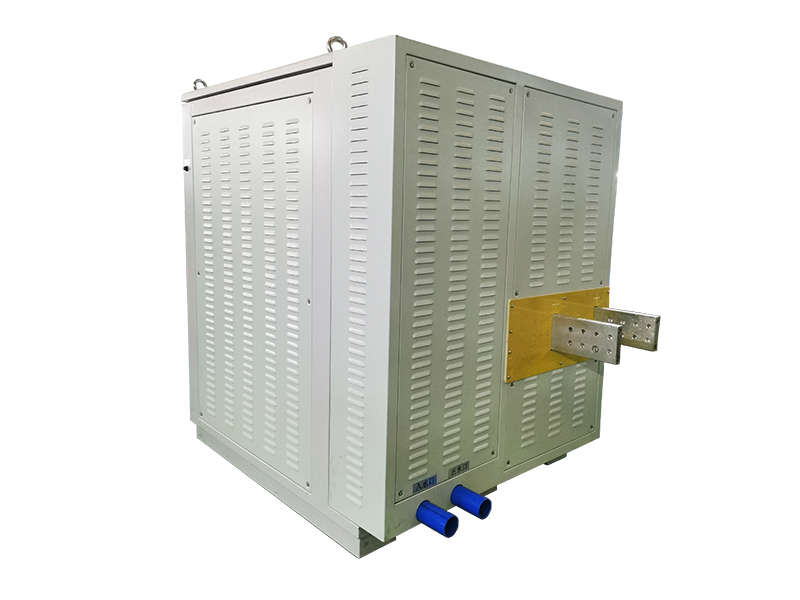

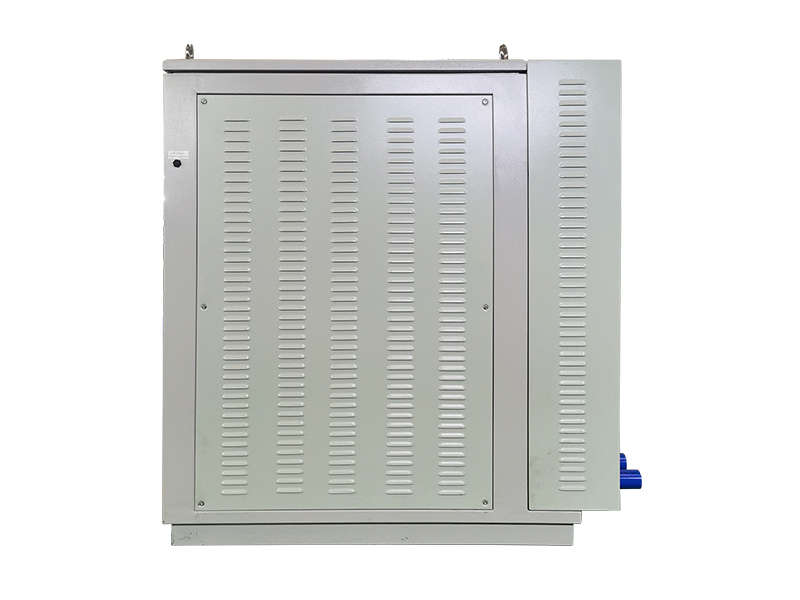

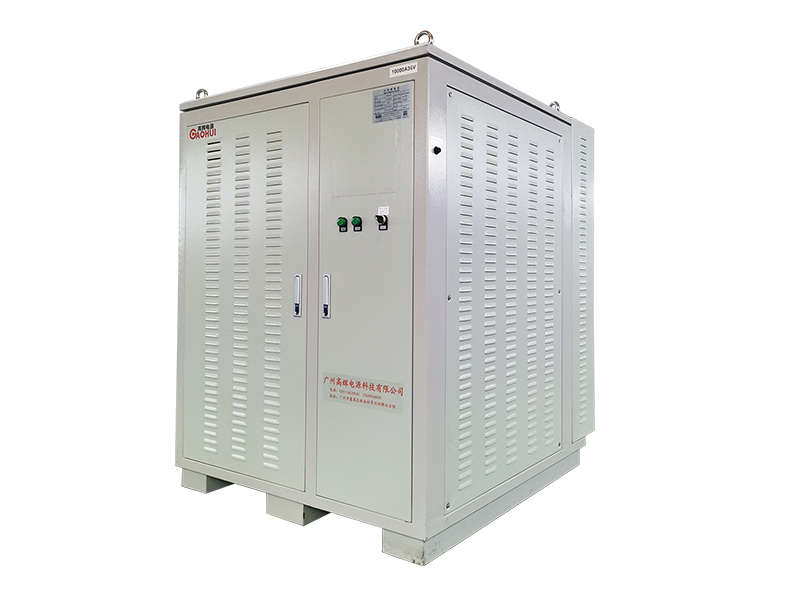

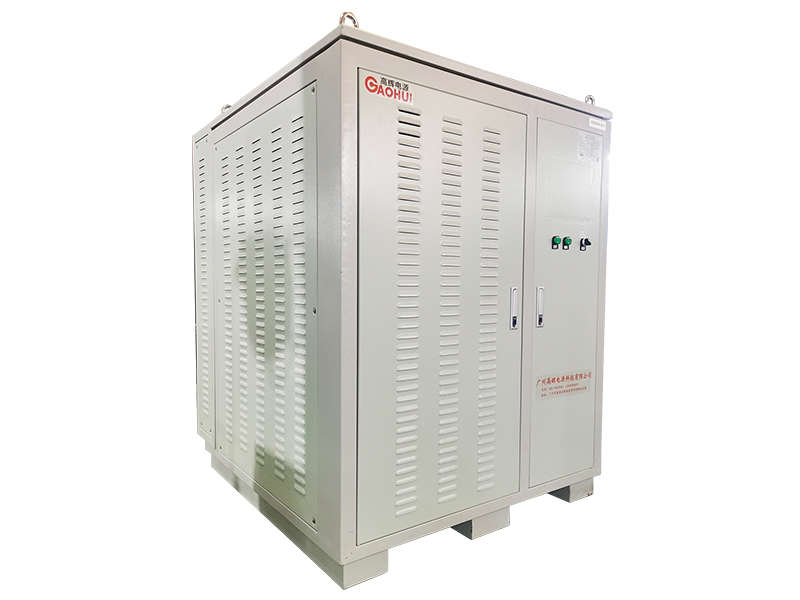

The High Voltage Chrome Rectifier from Gaohui Rectifier delivers 10000A at 36V for high-resistance bath configurations. This High Voltage Chrome Rectifier powers deep racks, narrow tanks and specialty chrome electrolytes that need extra voltage. Furthermore, the High Voltage Chrome Rectifier uses four paralleled N+1 modules for redundancy. Consequently, unusual plating geometries become feasible without compromising reliability. Moreover, high-voltage chrome facilities select this High Voltage Chrome Rectifier for its water cooled design and 10000A capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Water Cooled | Application: High-Voltage Chrome | Ripple: ≤5% | Interface: RS485/PLC
The 10000A 36V rectifier suits chrome lines with tall racks, long anodes and dilute or specialized electrolytes. It is ideal for plating deep cylinder bores, long internal surfaces and components where voltage drop is high. For example, a bore-plating line can push current through a 3-meter internal anode assembly. Furthermore, the 36V ceiling handles cold baths and heavy contact losses that defeat 15V supplies. Moreover, the 380V output range provides useful headroom for bus-bar losses, contact resistance and cooler electrolytes. In addition, the RS485, PLC port allows remote monitoring.
Moreover, the four-module parallel layout shares load and provides N+1 backup on a large scale. In addition, PLC supervision coordinates ramping across all four cabinets. Consequently, this rectifier opens up high-voltage chrome processes that standard lines cannot support. Moreover, operators appreciate the straightforward layout and clearly marked controls on this High Voltage Chrome Rectifier. Finally, the service team at Gaohui Rectifier responds to spare-part requests quickly, which keeps the line running.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, three phase |
| DC Output Current | 0–10000A adjustable |
| DC Output Voltage | 0–36V adjustable |
| Parallel Modules | 4 modules, N+1 configuration |
| Cooling Method | Water cooled |
| Ripple Factor | ≤5% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | RS485, PLC |
| Dimensions | 4 × 1200 × 800 × 1600 mm |
| Weight | 3400 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Need less power? View the 10000A 15V Parallel Chrome Rectifier.
Need standard voltage? Check the 12000A 18V Industrial Chrome Rectifier.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
