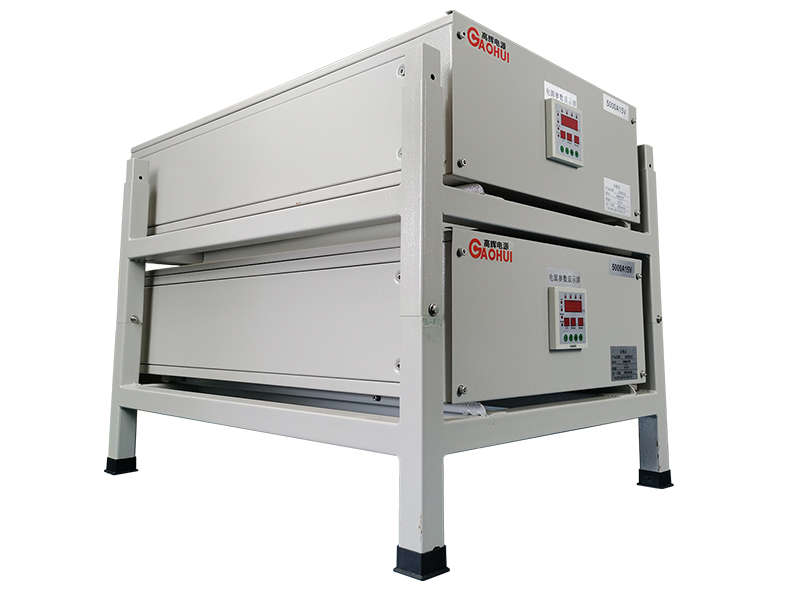

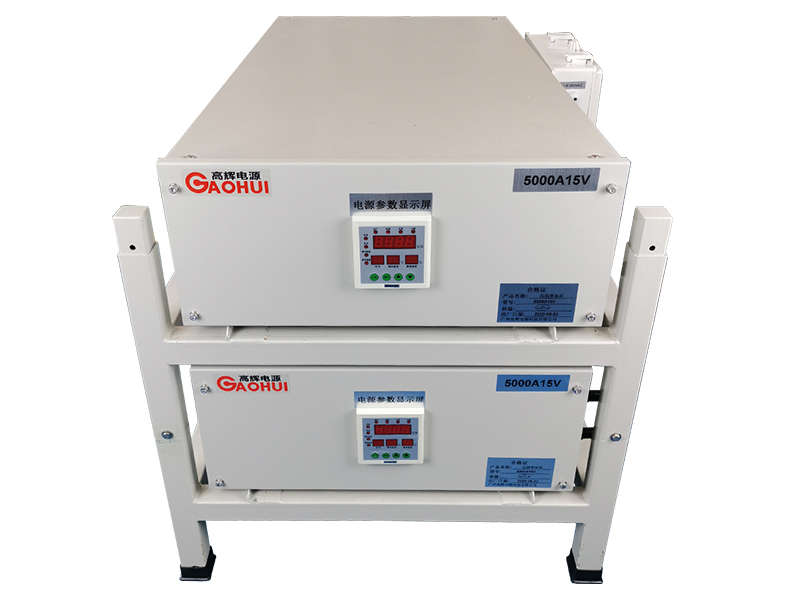

The Parallel Chrome Rectifier from Gaohui Rectifier achieves 10000A at 15V using two paralleled N+1 modules. This Parallel Chrome Rectifier shares load evenly so each module runs comfortably below its limit. Furthermore, the Parallel Chrome Rectifier keeps plating alive if one module needs maintenance. Consequently, continuous chrome lines avoid costly interruptions. Moreover, continuous chrome lines facilities select this Parallel Chrome Rectifier for its water cooled design and 10000A capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Water Cooled | Application: Continuous Chrome Lines | Ripple: ≤5% | Interface: RS485

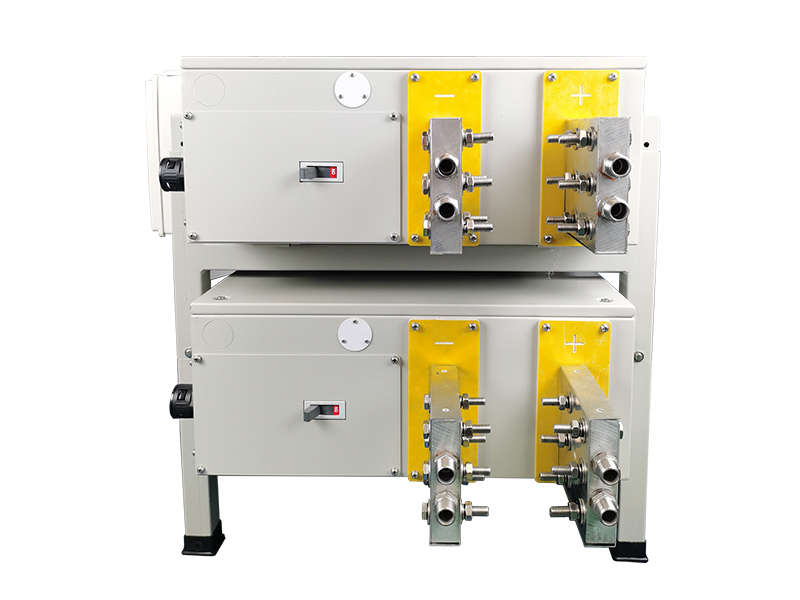

The 10000A 15V parallel system suits hard and decorative chrome tanks from 5000L to 9000L running continuously. It is ideal for roller lines, tube plating and high-volume trim production. For example, a tube line can maintain 10000A while a duty module is serviced on a scheduled break. Furthermore, automatic load sharing balances current between the two cabinets in real time. Moreover, the 380V output range provides useful headroom for bus-bar losses, contact resistance and cooler electrolytes. In addition, the RS485 shared port allows remote monitoring.
Moreover, the N+1 arrangement lets you expand capacity later by adding a third module. In addition, both cabinets share a single RS485 control point, simplifying operation. Consequently, the system grows with the business without replacing equipment. Moreover, operators appreciate the straightforward layout and clearly marked controls on this Parallel Chrome Rectifier. Finally, the service team at Gaohui Rectifier responds to spare-part requests quickly, which keeps the line running.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, three phase |
| DC Output Current | 0–10000A adjustable |
| DC Output Voltage | 0–15V adjustable |
| Parallel Modules | 2 modules, N+1 configuration |

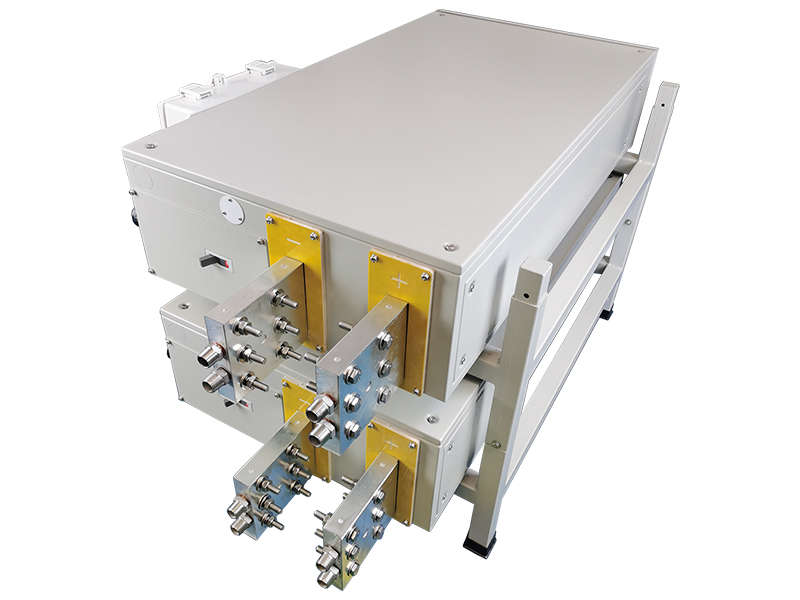

| Cooling Method | Water cooled |
| Ripple Factor | ≤5% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | RS485 shared |
| Dimensions | 2 × 1200 × 800 × 1600 mm |
| Weight | 1700 kg |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Need less power? View the 8000A 18V Switchable Chrome Rectifier.
Need more current? Check the 20000A 18V Parallel Reversing Chrome Rectifier.
