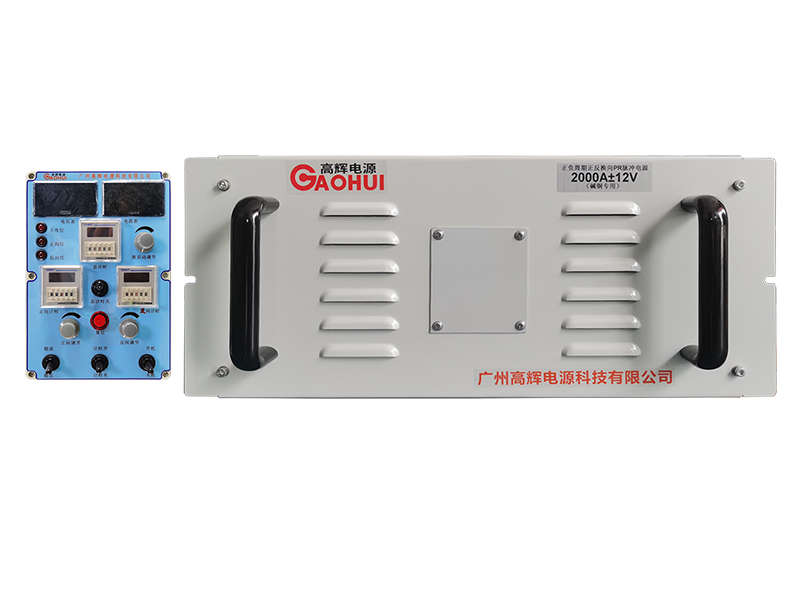

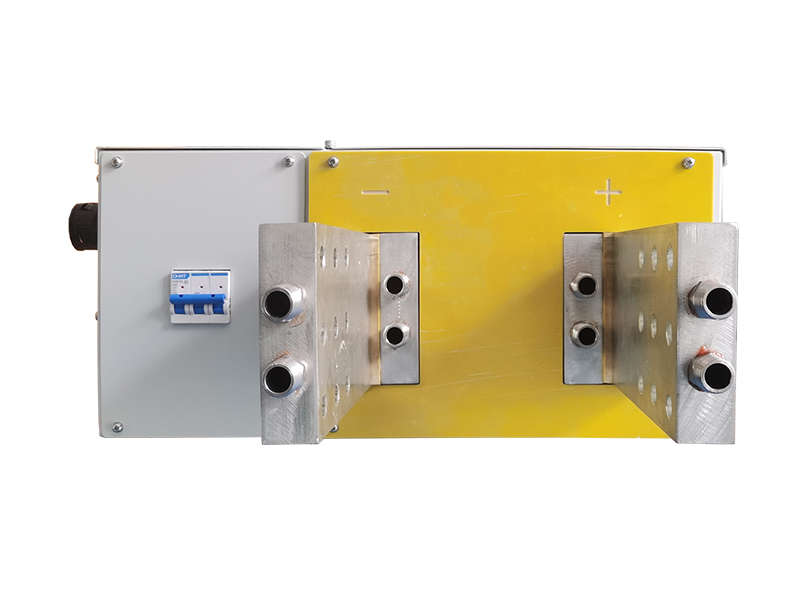

Pulse-Reverse Rectifier: Controllable Forward-Reverse Pulse Output

First and foremost, Gaohui launches a dedicated pulse-reverse rectifier for high-end plating and surface treatment. In general, this rectifier serves PCB factories, precious metal workshops and material research labs. To start with, conventional pulse rectifiers only supply one-way current. Sadly, static unidirectional pulse builds up edge overgrowth and internal coating stress. Worse still, uneven deposition raises reject rates on complex workpieces. For this reason, this rectifier supports precise positive-negative cycle commutation. As a result, brief reverse pulses level peaks and improve throwing power into recessed areas. Furthermore, operators tune forward time, reverse duration and pulse frequency freely. In turn, they match nickel, copper, gold and hard plating recipes separately. Meanwhile, the touchscreen stores multiple waveform presets for quick batch recall. Thus, production lines maintain consistent gloss and adhesion across runs. Lastly, facilities cut chemical consumption and reduce post-treatment labor. Simultaneously, they boost finished product qualification rates greatly.

Anti-Corrosion & Multi-Layer Safety Guards

Apart from superior waveform performance, this rectifier adapts to corrosive plating workshop environments. In particular, plating tanks continuously release acidic electrolyte mist. To solve this issue, the cabinet adopts fully sealed anti-corrosion coated panels. Accordingly, internal pulse and commutation circuits stay shielded from moisture and chemical erosion. Besides corrosion resistance, the pulse-reverse rectifier integrates full automatic protection. Specifically, it triggers instant power cut for overheat, overload and short-circuit faults. Once abnormal operating signals emerge, the control system reacts within milliseconds. Consequently, it prevents module burnout and eliminates on-site safety hazards. On top of these safeguards, optional water cooling enables stable 24-hour heavy-duty plating.

Modular Structure & Long-Term Process Value

In terms of workshop layout, this rectifier uses space-saving modular construction. Therefore, it occupies less floor space than separate pulse and reversing units. Meanwhile, unified wiring simplifies daily maintenance work. Moreover, technicians replace faulty modules without full production shutdown. Even better, routine calibration will not interrupt ongoing plating batches. Currently, precision coating standards grow stricter worldwide. Accordingly, more manufacturers replace older rectifiers with this pulse-reverse rectifier. Looking ahead, Gaohui will keep optimizing digital waveform control. Altogether, we supply stable, programmable pulse-reverse rectifier solutions for global precision electroplating enterprises.
