Output ±36V DC 0-100A Bidirectional
Power 3.6kW per polarity
Application Symmetrical Pulse Electrochemical Processes
Best For Research Laboratories Material Science Electrocatalysis Electrochemical Synthesis

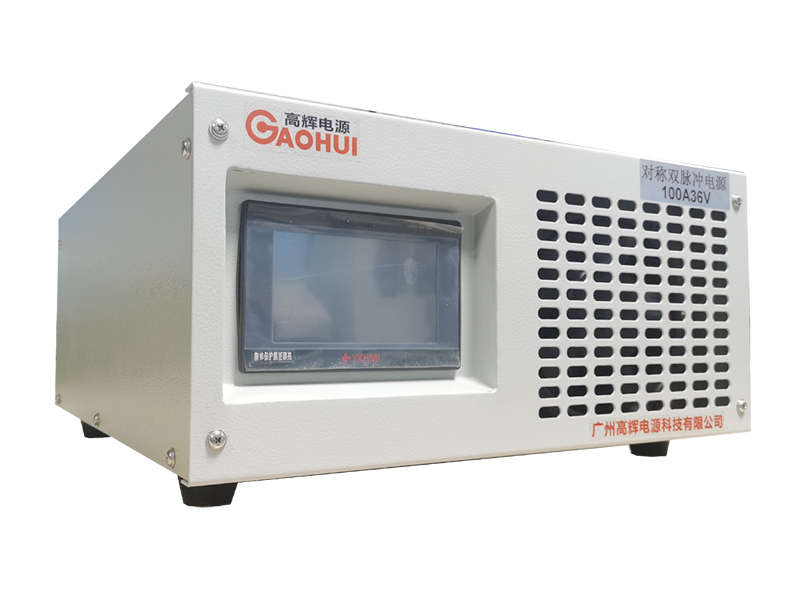

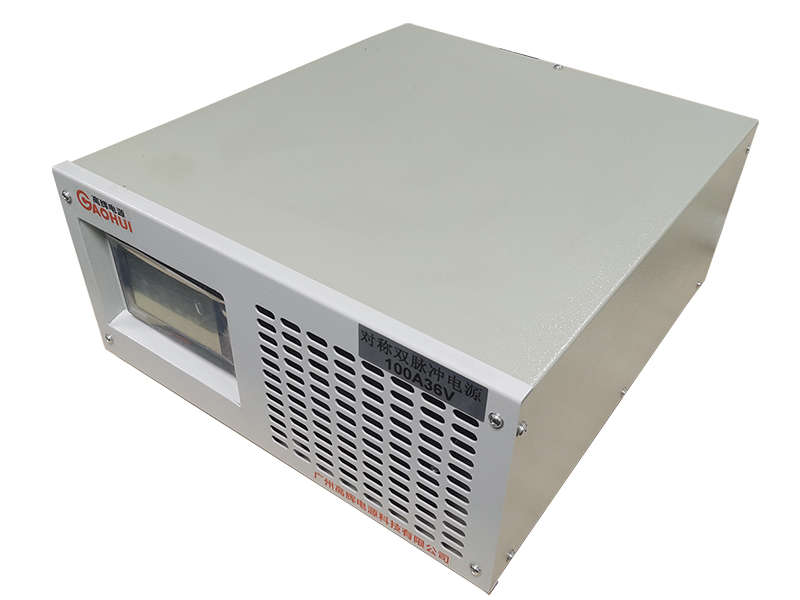

This symmetrical pulse rectifier delivers precisely balanced bidirectional pulses. It provides equal positive and negative current amplitudes. Consequently, net zero charge transfer is achieved over complete cycles.
Parameter Specification

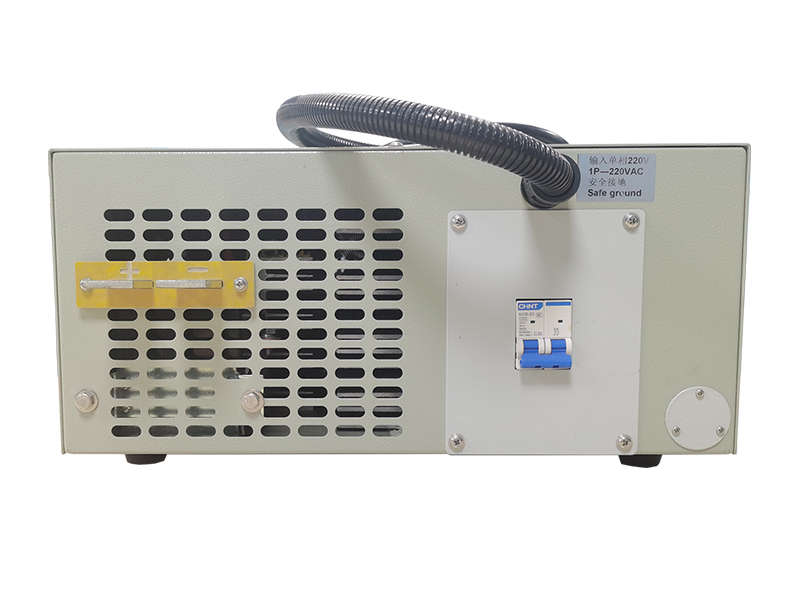

Input Power 220VAC Single-Phase
DC Output ±36V DC 0-100A Symmetrical
Pulse Symmetry ≤ ±1% Balance
Pulse Frequency 0.1-1000 Hz Adjustable
Pulse Width 10μs-1s Adjustable
Control Interface Research Touchscreen with Waveform Display
Special Features Symmetry Calibration Charge Balance Monitoring Waveform Library

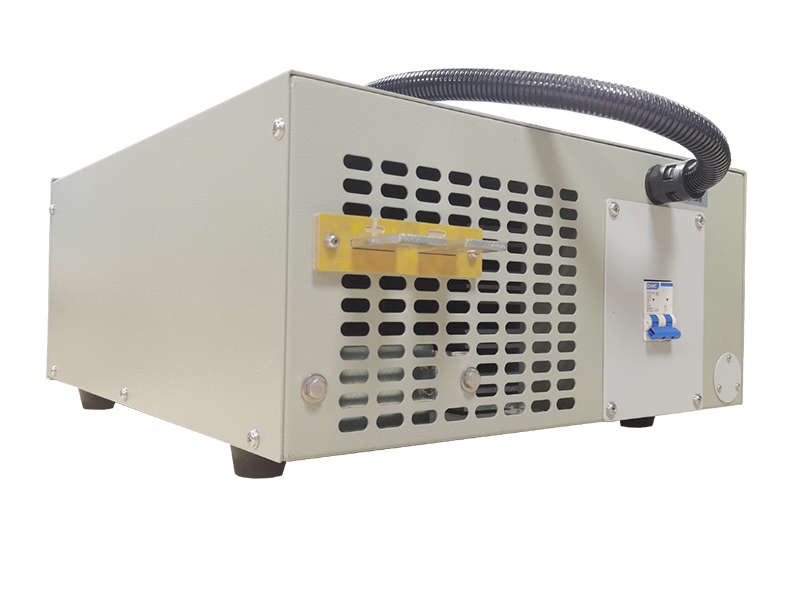

Cooling System Quiet Air Cooling
Protections OCP OVP Symmetry Fault Detection Polarity Protection
Perfect Symmetry Control
This symmetrical pulse rectifier maintains exact current balance. Therefore, net deposition or dissolution is precisely controlled. Moreover, experimental conditions remain consistent.
Wide Parameter Range
Flexible frequency and width settings accommodate various processes. Specifically, different electrochemical systems are supported. Thus, research versatility expands.
Precision Waveform Generation
Clean square pulses with fast transitions are produced. Furthermore, waveform distortion is minimized. Consequently, experimental accuracy improves.
Research-Optimized Interface
Intuitive controls simplify complex setups. Additionally, preset waveforms accelerate experimentation. Hence, research productivity increases.
This symmetrical pulse rectifier serves advanced electrochemical research.
In Fundamental Electrocatalysis
The system studies reaction mechanisms under pulsed conditions. Importantly, symmetry reveals kinetic information. Additionally, catalyst stability tests under realistic conditions.
For Electrochemical Synthesis
It enables controlled synthesis of nanomaterials. Similarly, pulse symmetry controls particle characteristics. Consequently, material properties tune precisely.
In Battery Material Research
The rectifier tests electrode materials under cycling conditions. Ultimately, symmetrical pulses simulate real usage. Therefore, performance predictions become more accurate.
For Corrosion Studies
It investigates metal behavior under alternating conditions. Specifically, symmetry prevents net material loss. Thus, fundamental processes are studied without sample consumption.
Experimental quality improves with precise control. Moreover, symmetry ensures reproducible conditions. Consequently, research validity enhances significantly.
Research efficiency increases with automated operation. Furthermore, preset protocols reduce setup time. Therefore, experimental throughput accelerates.
Equipment versatility supports diverse investigations. Additionally, wide parameter ranges accommodate future projects. Hence, long-term utility is maximized.
Operational simplicity reduces training requirements. Specifically, intuitive interfaces lower entry barriers. Thus, researcher adoption facilitates.
In summary, this symmetrical pulse rectifier provides advanced research capabilities. For this reason, it serves laboratories where precise pulse control, experimental accuracy, and research flexibility are essential requirements for scientific advancement.
