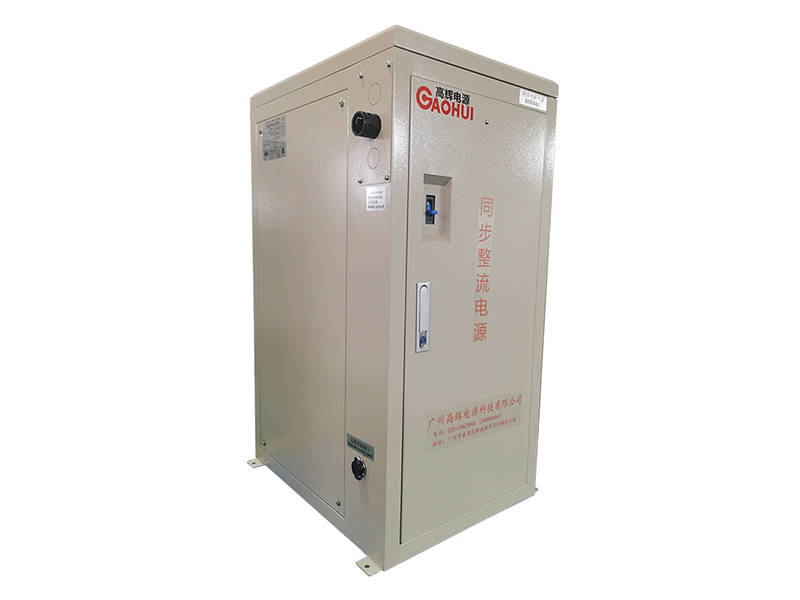

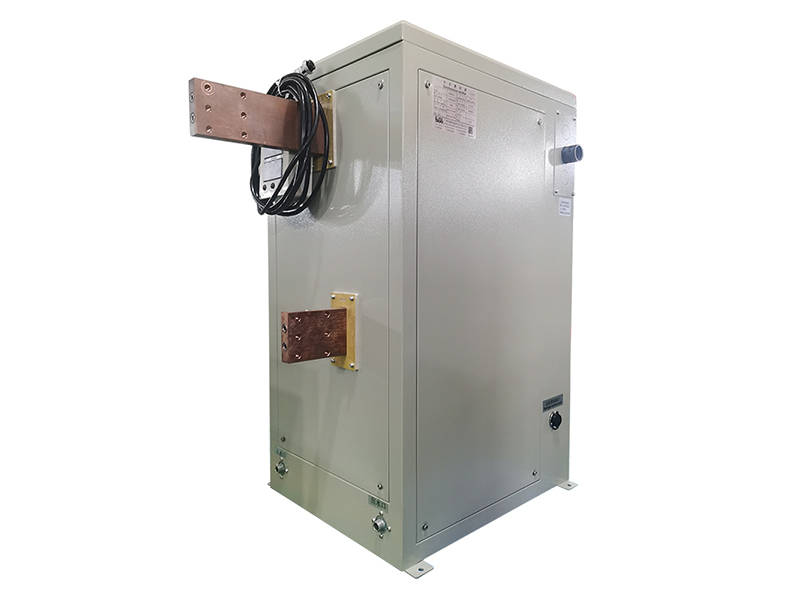

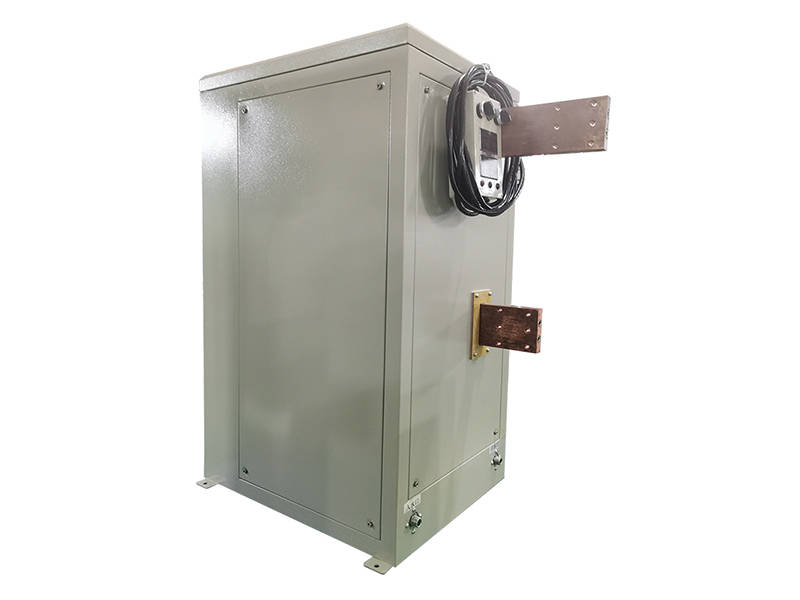

Built for uninterrupted large-volume metal deposition work, the Water‑Cooled Synchronous Electrodeposition Rectifier provides adjustable 6000A 6V low-loss DC power. Meanwhile, robust water cooling dissipates heavy heat loads under continuous full-load operation.
The Water‑Cooled Synchronous Electrodeposition Rectifier offers high-efficiency DC power engineered for heavy-duty industrial electrodeposition and large tank metal plating. Unlike conventional diode rectifiers, its synchronous topology cuts conduction losses and maintains consistent output through extended high-current production cycles. For example, it sustains stable performance when workpiece batches and electrolyte density shift during plating runs. Many air-cooled power supplies cannot handle such intense thermal stress. As a result, they trigger thermal protection shutdowns and cannot support 24-hour continuous electrodeposition manufacturing. Unstable power creates uneven plated layers and raises electrolyte consumption. These drawbacks increase operational costs and shorten the total service life of equipment.
The Water‑Cooled Synchronous Electrodeposition Rectifier supports full stepless adjustment from 0‑6000A and 0‑6V. It fits power requirements for bulk metal electrodeposition, heavy plating and other low-voltage ultra-high-current electrochemical workflows. In addition, its high-performance water cooling system removes heat steadily during extended full-load cycles. It keeps stable operating temperature even under continuous peak-current running. Its closed-loop synchronous control preserves precise DC output amid variable load changes. It boosts plating uniformity and stabilizes electrolyte working conditions. Furthermore, multi-layer safety safeguards protect internal hardware against overload, over-temperature and unexpected short-circuit events throughout long production shifts.
Delivers adjustable 6000A 6V low-loss DC output, purpose-built for heavy-duty electrodeposition and large-batch metal plating operations.
Adopts advanced synchronous circuit design. It reduces conduction heat loss and lowers overall energy expenditure during long continuous plating cycles.
Equipped with heavy-duty water-cooled heat dissipation. It removes large volumes of heat efficiently and supports round-the-clock ultra-high-current production.
Supports CC and CV dual operating modes. Operators can switch modes flexibly for bath preparation, metal deposition and electrolyte maintenance stages.
Built with complete industrial-grade multi-protection system. It withstands sudden current surges and maximizes uptime for continuous heavy-duty plating production lines.
Fitted with standard RS485 communication port. Operators monitor real-time process data and archive historical logs to fine-tune electrodeposition parameters.
In fact, many plating plants rely on traditional diode rectifiers for metal electrodeposition tasks. Those units generate excessive heat and waste more power under continuous heavy loads. Even so, the Water‑Cooled Synchronous Electrodeposition Rectifier works perfectly for large electroplating facilities and metal surface treatment workshops. Plenty of surface finishing factories run non-stop production with shifting bath conditions, and this unit adapts well to these real-world working scenarios. Our team carries out full-load and thermal stress testing on every unit before shipment. Therefore, each unit maintains stable energy-saving performance across repeated production batches.
Our closed-loop regulation system responds quickly to minor output deviations. Changing workpiece loads and cooling water inlet temperature create these small fluctuations. It maintains highly accurate current and voltage output under diverse working states. As a result, you cut energy waste and reduce long-term operating expenditure. The unit stores multiple groups of electrodeposition process parameters. Operators retrieve validated process recipes rapidly. This action shortens equipment setup cycles and improves overall workshop productivity.

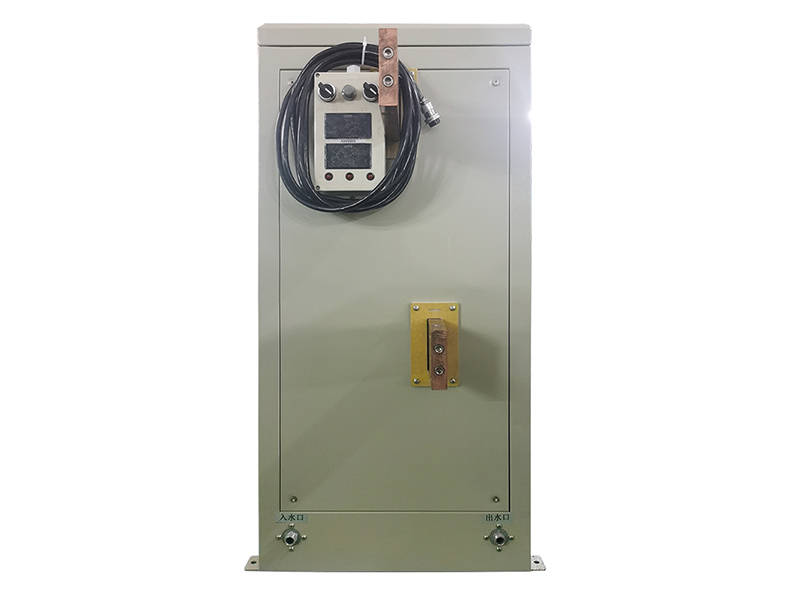

The reinforced integrated cabinet reserves dedicated ports for water pipeline installation. It suits fixed-installation mass-production workshop environments. You only need to arrange standard water inlet and outlet pipelines for regular operation. It effectively lowers hardware failure risks caused by overheating. Meanwhile, it operates reliably for long hours inside humid, corrosive plating workshop surroundings.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Rated Output | Rated Current | 6000A |
| Rated Output | Rated Voltage | 0‑6V |
| Working Mode | Operation Type | Constant Current / Constant Voltage, Low Loss DC |
| Cooling System | Cooling Method | High‑efficiency Water‑Cooled |
| Input Power | Input Voltage | Three‑phase AC Customized |
| Communication Interface | Data Port | RS485 |
| Safety Protection | Protection Functions | Over‑current, Over‑voltage, Over‑temperature, Short‑circuit, Surge Protection |
| Applicable Scenarios | Main Applications | Industrial electrodeposition, heavy metal plating, large tank electroplating, low-voltage ultra-high-current electrochemical processing |
Further, we back this rectifier with a 1‑year warranty and design it for over 10 years of service life. It supports constant-current and constant-voltage modes. It also provides programmable current and voltage ramp-up to suit different plating startup workflows. Notably, multi-segment parameter settings enable flexible process configuration. Its built-in RS485 port allows staff to view live data and connect with other workshop equipment. We supply optional custom function upgrades. These options satisfy special high-current electrodeposition process requirements. Reach out to us for tailored custom solutions.
The Water‑Cooled Synchronous Electrodeposition Rectifier serves large electroplating manufacturers, metal surface treatment plants and high-volume electrochemical workshops. Operators deploy it for large-scale metal electrodeposition and heavy plating for various metal substrates. It also supports process testing for newly developed plating bath formulas.
Moreover, the machine runs reliably through long-duration batch cycles and round-the-clock production runs. Its low-loss synchronous DC output cuts energy consumption and stabilizes production working conditions. For instance, it improves plating layer consistency and speeds up process iteration for custom heavy-duty electrodeposition projects.
We develop custom power-supply solutions for ultra heavy-current electrodeposition scenarios. In contrast to ordinary diode-based rectifiers, the Water‑Cooled Synchronous Electrodeposition Rectifier receives specialized tuning for low energy loss and continuous water-cooled mass-production conditions. It delivers excellent operational stability and corrosion resistance for harsh plating environments.
Our technicians complete load-simulation testing and full-load ageing checks for every unit before shipment. This step guarantees dependable real-world performance during continuous electrodeposition production. We accept non-standard parameter adjustments and custom-feature development. We also provide professional process guidance and complete after-sales support. In short, we deliver trustworthy power hardware for your mass-production and pilot-scale industrial projects.

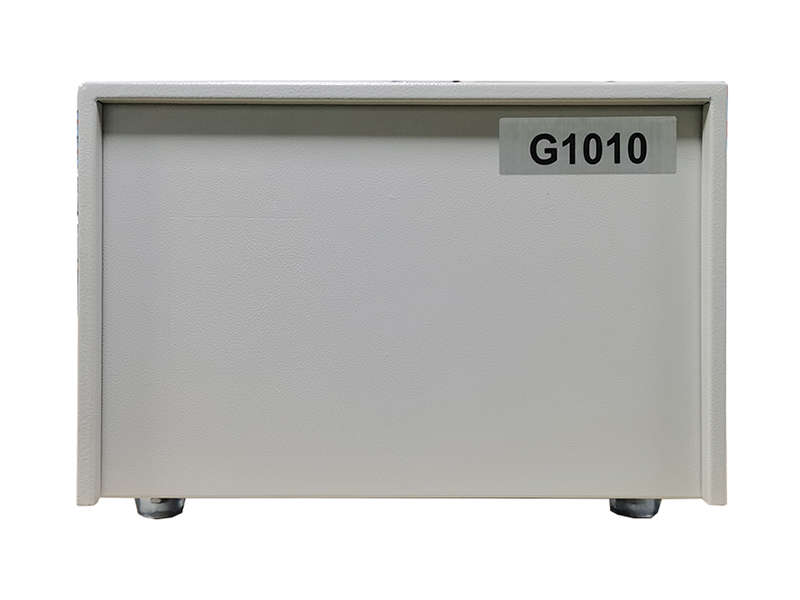

Learn more about related products：60A/60V rectifier module
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
