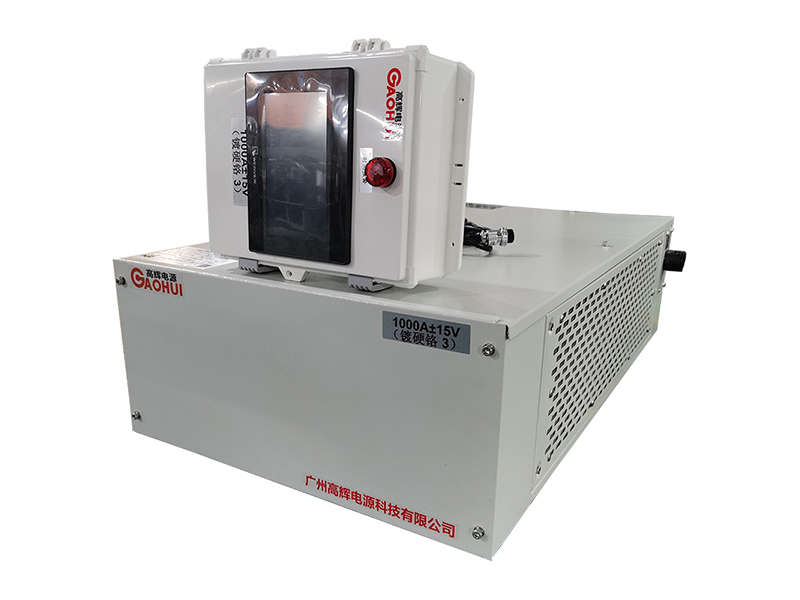

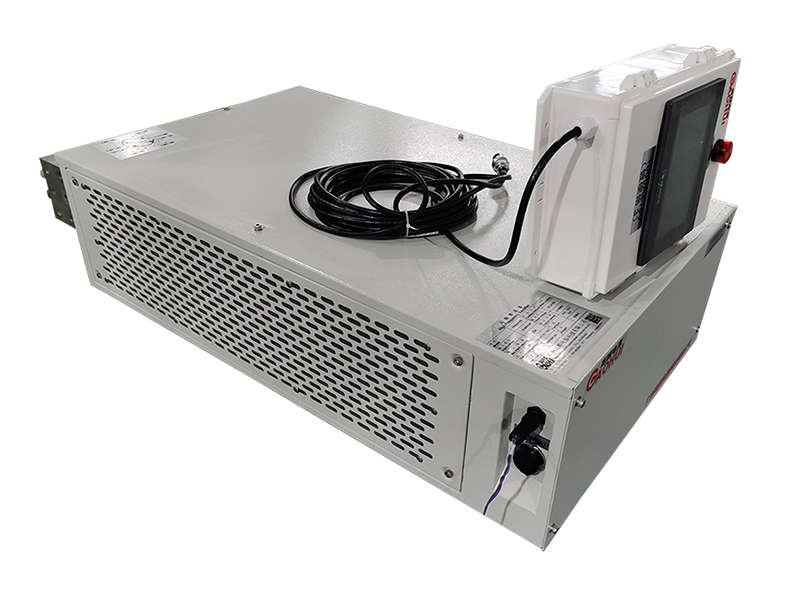

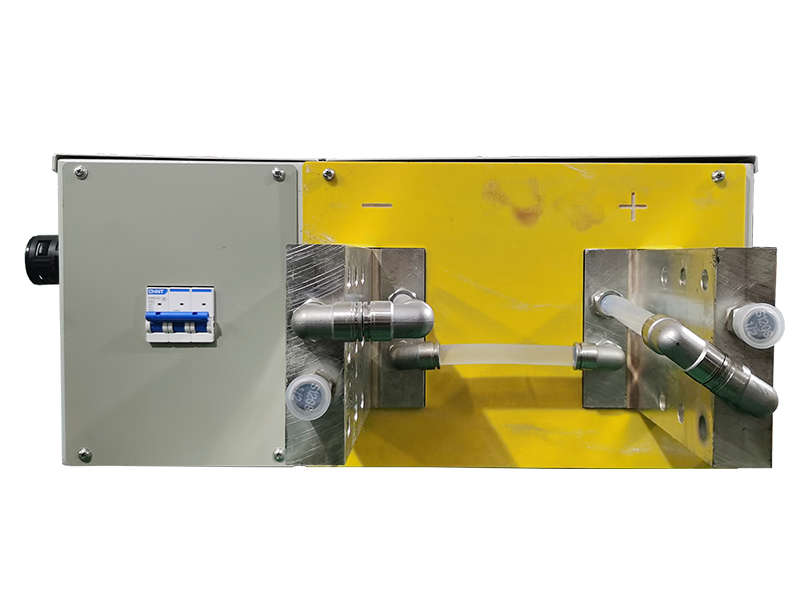

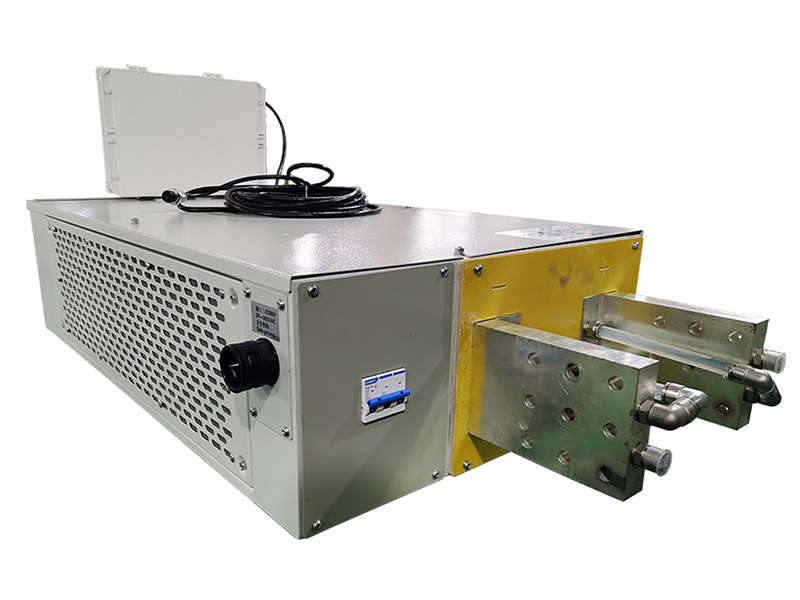

This water‑cooled hard chrome plating rectifier delivers 15kW stable DC output, purpose‑built for round‑the‑clock high‑current hard‑chrome plating with effective thermal management.
Large industrial plating plants running mass hard‑chrome production need power supplies that hold stable performance through lengthy working shifts. Air‑cooled units often hit thermal limits when facing sustained thousand‑amp load, so water‑cooled structures become the practical solution for such scenarios. The 1000A 15V Water‑Cooled Hard Chrome Plating Rectifier adopts liquid circulation cooling to draw away massive heat generated under full‑load operation. Operators finish water pipeline installation and main power connection, then configure current‑voltage values from the on‑board control panel to match bath chemistry requirements.
This water‑cooled hard chrome plating rectifier excels when processing hydraulic rams, heavy rotary shafts and large‑dimension mechanical refurbishment parts. Unlike air‑cooled counterparts, it maintains consistent output parameters across days‑long continuous production. Meanwhile integrated water‑flow detection cuts off power automatically once cooling circulation fails to prevent component burnout.
High‑frequency IGBT conversion sits at the core of this water‑cooled hard chrome plating rectifier and reaches operational efficiency above 94 percent. Since circulating water carries heat outside the cabinet, internal electronic components stay at moderate temperature; accordingly output drift drops significantly even after many hours of runtime. What is more, liquid cooling releases little waste heat inside workshop space, easing pressure on factory ventilation systems.
Dynamic dual‑loop regulation reacts quickly to load changes caused by workpiece hanging and removal. As a result, every batch obtains even chrome thickness and durable surface hardness for critical industrial components. Besides, modular power‑unit layout simplifies inspection and part swap during scheduled maintenance work.
Our engineering team fine‑tunes internal circuit parameters to lower output ripple for hard‑chrome process demands. Therefore plating quality improves noticeably and shops spend less time handling defective finished goods. In turn this dependable hardware minimises unplanned halt time for large‑scale plating workshops.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Input Parameters | AC Input Power Supply | Three‑phase AC 380V, ±10% tolerance, 50‑60Hz |
| DC Output Parameters | Output Voltage Range | 0‑15V adjustable |
| DC Output Parameters | Output Current Range | 0‑1000A adjustable |
| DC Output Parameters | Rated Output Power | 15kW |
| DC Output Parameters | Voltage Regulation Accuracy | ≤1% |
| DC Output Parameters | Current Regulation Accuracy | ≤1% |
| DC Output Parameters | Ripple Factor | ≤1% |
| Control and Automation Functions | Operating Modes | Constant Current, Constant Voltage |
| Control and Automation Functions | Auxiliary Hardware | Digital control panel, ampere‑hour counter, working‑hour logger |
| Control and Automation Functions | Programming Features | Output limit lock, historical alarm record storage |
| Physical and Communication Parameters | Cooling Method | Water‑cooled with water‑flow interlock protection |
| Physical and Communication Parameters | Protection Class | IP20 for indoor industrial plating workshop |
| Physical and Communication Parameters | Communication Interface | RS485 Modbus RTU |
| Physical and Communication Parameters | Operating Efficiency | Above 94% |
We can provide:
This water‑cooled hard chrome plating rectifier comes with one‑year factory warranty and supports more than 10‑year service life under compliant operating conditions. To start with, water‑flow monitoring module and complete digital monitoring functions belong to standard configuration. Furthermore modular power construction supports straightforward on‑site repair work. In addition multi‑dimensional safety protection responds rapidly to all abnormal operating conditions. Simply share your plating‑bath dimension and continuous‑production requirements, and we will offer practical configuration advice.
This water‑cooled hard chrome plating rectifier suits continuous heavy‑duty hard‑chrome plating, large‑size component surface finishing and high‑volume industrial refurbishment production. Above all else, it serves as dedicated power hardware for plating facilities handling hydraulic rams, heavy‑duty shafts and overhaul‑grade mechanical spare parts.
Likewise large‑capacity finishing factories select this water‑cooled rectifier for round‑the‑clock batch runs, rather than combining multiple lower‑capacity air‑cooled power supplies. In fact its liquid‑cooled design avoids performance drop when devices run under full load for extended periods.
It also works well for hard‑chrome process research and formula verification. Thanks to fine‑grained voltage‑current adjustment capability, technicians carry out parameter comparison tests conveniently. What is more, Modbus‑compatible data output assists operators to store production logs for full quality traceability.
We build custom‑focused rectifier hardware for heavy‑duty metal‑finishing production lines, and we specialise in water‑cooled high‑current power solutions for mass‑volume plating workflows. Most importantly our engineering crew adjusts cooling performance, protection thresholds and cabinet layout according to your on‑site workshop conditions and real production throughput.
On top of that every finished unit passes full‑load continuous aging test and ripple‑value inspection following ISO quality standards before shipment; hence you receive hardware validated for long‑term high‑current plating cycles.
Our full‑lifecycle support includes practical operation training, remote fault troubleshooting and spare‑parts supply. When your production output grows in the future, you may expand power capacity or activate parallel‑running function without complete reconstruction of existing plating‑tank infrastructure. In short, choose us for robust power solutions backing your high‑volume hard‑chrome plating operations.
