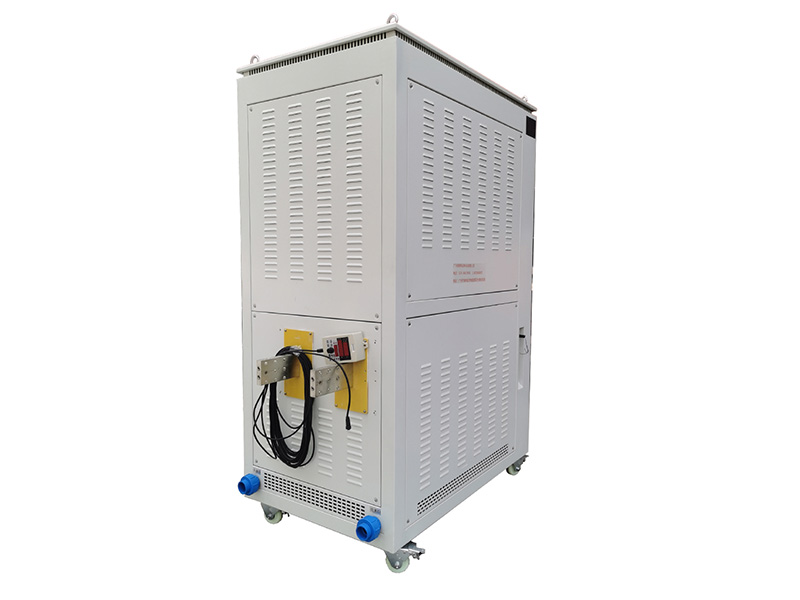

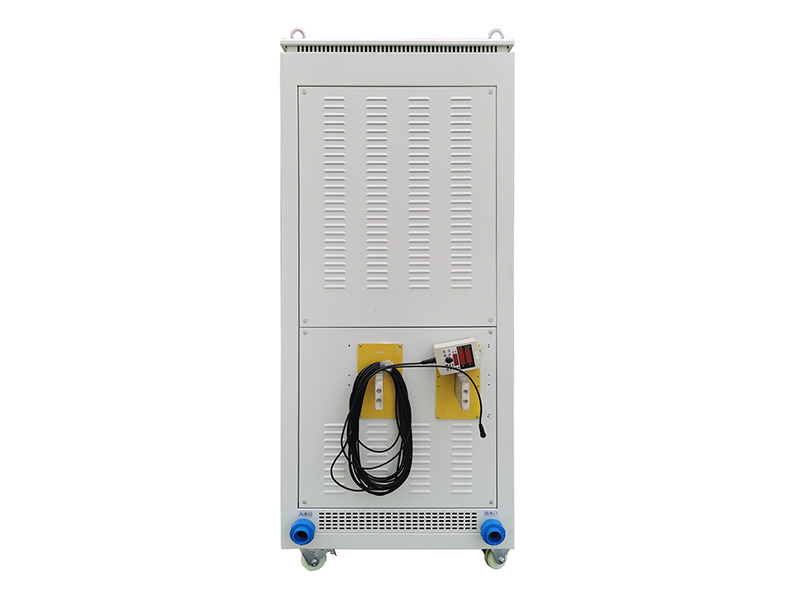

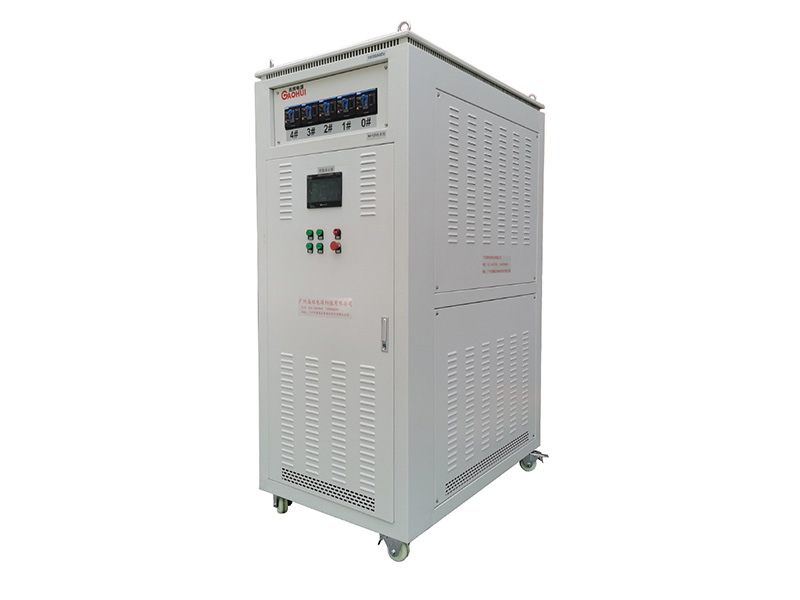

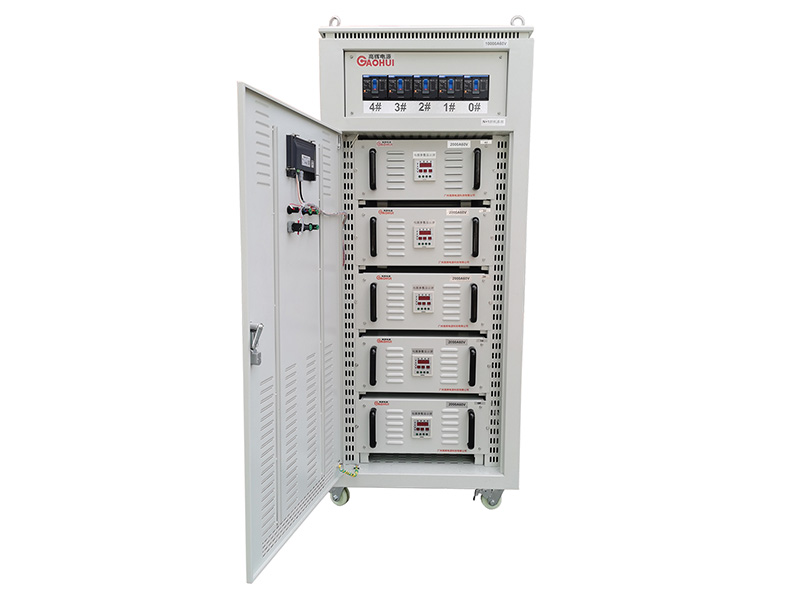

Built for large‑volume nickel electrolysis operations, the 10000A 60V Water‑Cooled Electrolytic Nickel Rectifier delivers massive stable DC output. Besides, its heavy‑duty water‑cooled architecture handles round‑the‑clock full‑load operation within corrosive plating shop environments.
The 10000A 60V Water‑Cooled Electrolytic Nickel Rectifier is a heavy‑duty industrial power source engineered for high‑scale nickel electrolysis and thick‑layer nickel deposition tasks. Mass‑volume nickel electrolysis imposes extreme demands on power stability; even minor current fluctuations can trigger uneven coating thickness, internal stress within nickel deposits, or surface defects across large‑size workpieces. Many general‑purpose rectifiers struggle under sustained 10000A output, suffering thermal drift and rising ripple after long production shifts, which directly undermines finished‑part consistency. That makes application‑specific rectifier hardware essential for reliable high‑volume nickel processing.
This 10000A 60V Water‑Cooled Electrolytic Nickel Rectifier adopts IGBT high‑frequency conversion tuned for nickel electrolytic load characteristics. It supports seamless stepless adjustment ranging from 0‑10000A and 0‑60V, fitting diverse bath chemistries, workpiece dimensions and deposition‑thickness targets. Its closed‑loop water‑cooled system efficiently dissipates huge heat generated at maximum output, preventing thermal‑induced output drift during multi‑day non‑stop production. Comprehensive multi‑layer protection safeguards hardware against over‑current, over‑voltage and over‑temperature events, cutting costly unplanned line stoppages.
Unlike standard electroplating power supplies built for smaller‑scale tasks, this 10000A 60V Water‑Cooled Electrolytic Nickel Rectifier gets waveform fine‑tuned specifically for heavy‑duty nickel electrolytic deposition. It maintains high energy efficiency even under extended full‑load running, helping production facilities bring down overall power expenditure. Every unit undergoes full‑load ageing and ripple‑performance validation before dispatch, so manufacturers achieve repeatable coating quality across huge production runs.
Dynamic closed‑loop feedback instantly offsets current‑voltage deviations brought by electrolyte temperature shifts or variation in total workpiece surface area. As a result, nickel deposition speed stays consistent, and reject rates caused by uneven plating drop significantly. Internal memory stores multiple groups of proven process profiles; operators can quickly recall saved settings instead of repeating tedious manual parameter setup.
Constructed to withstand corrosive fumes common within electrolytic workshops, the water‑cooled layout avoids performance decay caused by overheating. This rectifier works equally well for brand‑new production‑line deployment and retrofitting existing nickel‑electrolysis tank systems.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Rated Output | Rated Current | 10000A |
| Rated Voltage | 60V | |
| Working Mode | Operation Type | Constant Current / Constant Voltage |
| Cooling System | Cooling Method | Closed‑loop Water Cooling |
| Input Power | Input Voltage | AC 380V Three‑phase |
| Communication Interface | Data Port | RS485 |
| Safety Protection | Protection Functions | Over‑current, Over‑voltage, Over‑temperature, Short‑circuit Protection |
| Applicable Scenarios | Main Applications | Large‑scale nickel electrolysis, heavy‑thickness nickel deposition, industrial nickel plating, electrolytic process development |
We can provide: The product comes with a one‑year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp‑up function for current or voltage settings. For time‑sensitive applications, you can use the timed operation mode. Moreover, the multi‑segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute‑level timing function. If you need customization, please contact us for further details.
This 10000A 60V Water‑Cooled Electrolytic Nickel Rectifier finds wide deployment within large‑scale electroplating plants, heavy‑duty surface‑treatment workshops and metallurgical process‑research institutes. Operators deploy it for functional heavy‑build nickel deposition, large‑batch component nickel plating, as well as formula testing for new nickel‑electrolyte solutions.
It performs reliably for non‑stop mass‑production cycles as well as process‑optimisation trial runs. Stable adjustable DC output helps plants stabilise deposition results, lower defect ratios and raise overall production throughput.
We specialise in developing high‑current water‑cooled rectifiers for demanding nickel‑electrolysis production environments. Unlike general‑purpose power hardware, the 10000A 60V Water‑Cooled Electrolytic Nickel Rectifier is calibrated for the unique load characteristics of large‑tank nickel electrolysis.
Each unit completes strict waveform calibration and full‑load ageing testing before leaving the factory. Custom adjustments for output ratings, cooling configurations and auxiliary functional modules are available upon request. Backed by practical process‑relevant technical guidance and comprehensive after‑sales support, we deliver robust power solutions for your industrial nickel‑electrolysis projects.
