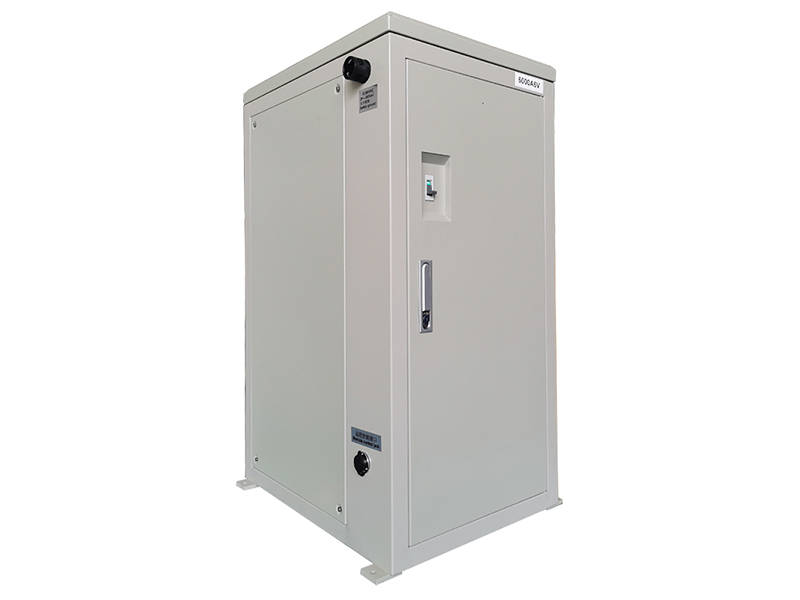

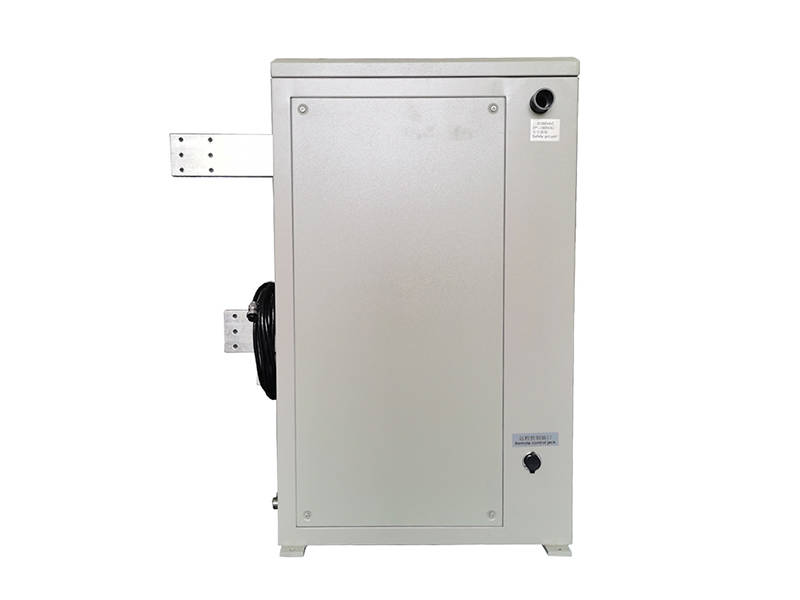

Built for continuous large-batch metal plating tasks, the Water‑Cooled Electrodeposition Rectifier supplies adjustable 6000A 6V steady DC output. Meanwhile, high-efficiency water cooling removes massive heat during long full-load operation.
The Water‑Cooled Electrodeposition Rectifier provides reliable high-current DC power built for heavy-duty industrial electrodeposition and large tank metal plating. Unlike conventional diode rectifiers, this unit maintains steady power output under sustained high-current operation. For example, it keeps consistent performance when workpiece loading and electrolyte concentration change during plating cycles. Many air-cooled power supplies cannot withstand such heavy thermal loads. As a result, they trigger thermal protection shutdowns and cannot support 24-hour continuous electrodeposition manufacturing. Unstable power will cause uneven plating layers and increase electrolyte consumption. These issues raise operating expenses and shorten the machine’s overall working lifespan.
The Water‑Cooled Electrodeposition Rectifier supports full stepless adjustment from 0‑6000A and 0‑6V. It meets power requirements for bulk metal electrodeposition, heavy plating and other low-voltage ultra-high-current electrochemical workflows. In addition, its robust water cooling system dissipates heat steadily during extended full-load cycles. It maintains stable operating temperature even under continuous peak-current running. Its closed-loop control retains precise DC output amid variable load changes. It improves plating uniformity and stabilizes electrolyte working conditions. Furthermore, multi-layer safety safeguards protect internal hardware against overload, over-temperature and unexpected short-circuit events throughout long production shifts.
Offers adjustable 6000A 6V stable DC output, purpose-built for heavy-duty electrodeposition and large-volume metal plating applications.
Adopts optimized power conversion design. It reduces power loss effectively and cuts electricity costs during long continuous plating runs.
Equipped with heavy-duty water-cooled heat dissipation. It removes large volumes of heat efficiently and supports round-the-clock ultra-high-current production.
Supports CC and CV dual operating modes. Operators can switch modes flexibly for bath preparation, metal deposition and electrolyte maintenance stages.
Built with complete industrial-grade multi-protection system. It resists sudden current surges and maximizes uptime for continuous heavy-duty plating lines.
Fitted with standard RS485 communication port. Operators monitor real-time process data and archive historical logs to fine-tune electrodeposition parameters.
In fact, many plating factories use traditional diode rectifiers for metal electrodeposition work. Those units generate excessive heat and waste more power under continuous heavy loads. Even so, the Water‑Cooled Electrodeposition Rectifier works perfectly for large electroplating plants and metal surface treatment facilities. Plenty of surface finishing factories run non-stop production with shifting bath conditions, and this unit adapts well to these practical working scenarios. Our team carries out full-load and thermal stress testing on every unit before shipment. Therefore, each unit maintains stable performance across repeated production batches.
Our closed-loop regulation system responds quickly to minor output deviations. Changing workpiece loads and cooling water inlet temperature create these small fluctuations. It maintains highly accurate current and voltage output under diverse working states. As a result, you cut energy waste and reduce long-term operating expenditure. The unit stores multiple groups of electrodeposition process parameters. Operators retrieve validated process recipes rapidly. This action shortens equipment setup cycles and improves overall workshop productivity.

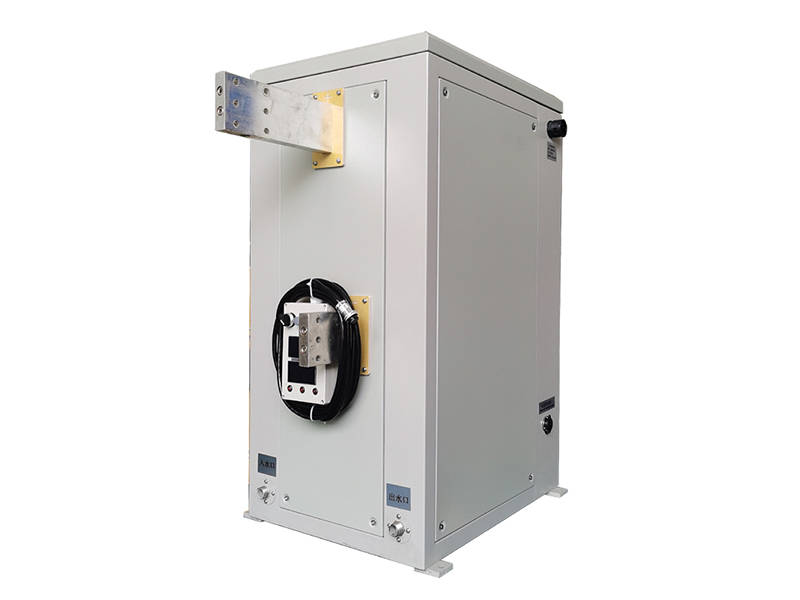

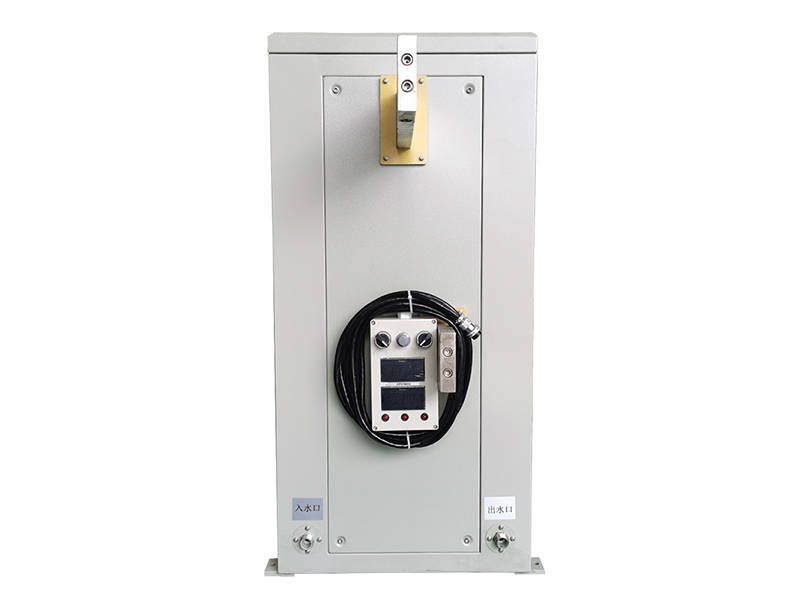

The reinforced integrated cabinet reserves dedicated ports for water pipeline installation. It suits fixed-installation mass-production workshop environments. You only need to arrange standard water inlet and outlet pipelines for regular operation. It effectively lowers hardware failure risks caused by overheating. Meanwhile, it operates reliably for long hours inside humid, corrosive plating workshop surroundings.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Rated Output | Rated Current | 6000A |
| Rated Output | Rated Voltage | 0‑6V |
| Working Mode | Operation Type | Constant Current / Constant Voltage, Stable DC |
| Cooling System | Cooling Method | High‑efficiency Water‑Cooled |
| Input Power | Input Voltage | Three‑phase AC Customized |
| Communication Interface | Data Port | RS485 |
| Safety Protection | Protection Functions | Over‑current, Over‑voltage, Over‑temperature, Short‑circuit, Surge Protection |
| Applicable Scenarios | Main Applications | Industrial electrodeposition, heavy metal plating, large tank electroplating, low-voltage ultra-high-current electrochemical processing |
Further, we back this rectifier with a 1‑year warranty and design it for over 10 years of service life. It supports constant-current and constant-voltage modes. It also provides programmable current and voltage ramp-up to suit different plating startup workflows. Notably, multi-segment parameter settings enable flexible process configuration. Its built-in RS485 port allows staff to view live data and connect with other workshop equipment. We supply optional custom function upgrades. These options satisfy special high-current electrodeposition process requirements. Reach out to us for tailored custom solutions.
The Water‑Cooled Electrodeposition Rectifier serves large electroplating manufacturers, metal surface treatment plants and high-volume electrochemical workshops. Operators deploy it for large-scale metal electrodeposition and heavy plating for various metal substrates. It also supports process testing for newly developed plating bath formulas.
Moreover, the machine runs reliably through long-duration batch cycles and round-the-clock production runs. Its low-loss power design cuts energy consumption and stabilizes production working conditions. For instance, it improves plating uniformity and speeds up process iteration for custom heavy-duty electrodeposition projects.
We develop custom power-supply solutions for ultra heavy-current electrodeposition scenarios. In contrast to ordinary diode-based rectifiers, the Water‑Cooled Electrodeposition Rectifier receives specialized tuning for stable plating output and continuous water-cooled mass-production conditions. It delivers excellent operational stability and corrosion resistance for harsh plating environments.
Our technicians complete load-simulation testing and full-load ageing checks for every unit before shipment. This step guarantees dependable real-world performance during continuous electrodeposition production. We accept non-standard parameter adjustments and custom-feature development. We also provide professional process guidance and complete after-sales support. In short, we deliver trustworthy power hardware for your mass-production and pilot-scale industrial projects.
Learn more about related products：30A/12V rectifier specifically for thick gold plating
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
