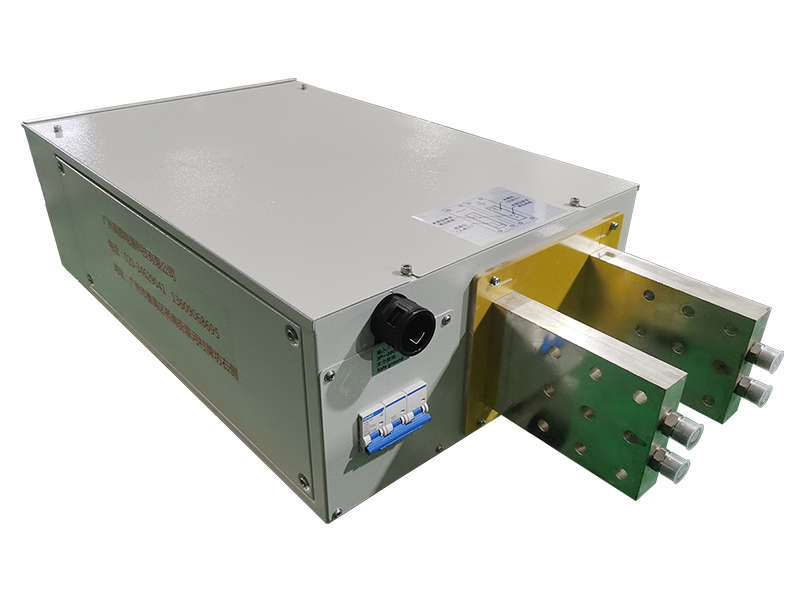

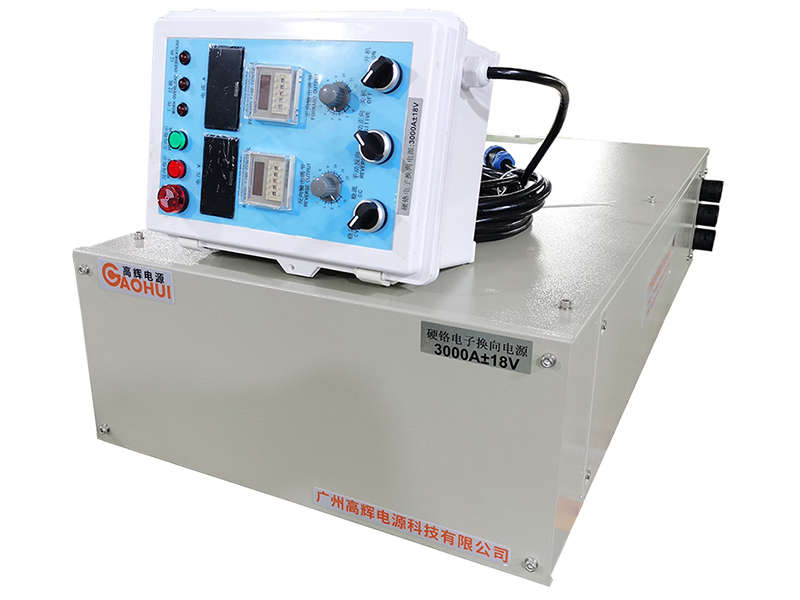

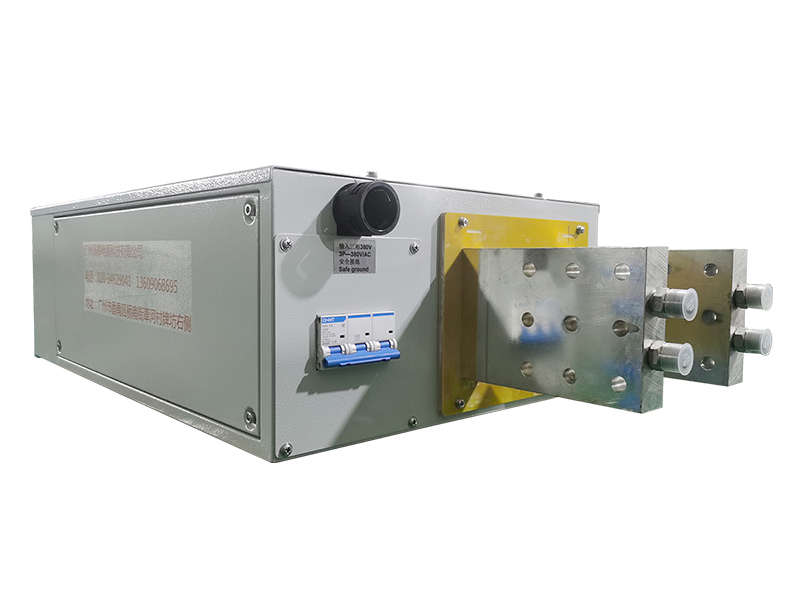

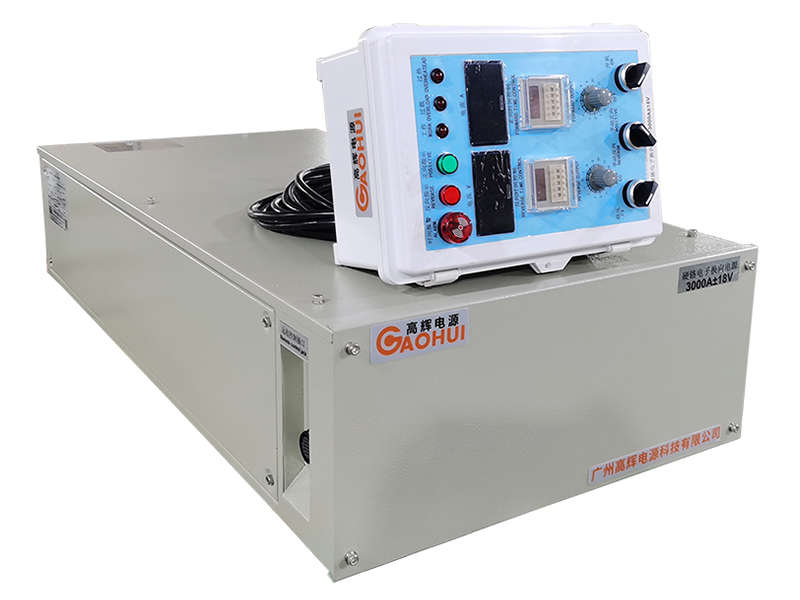

This water‑cooled chrome plating power supply delivers 54kW regulated DC output, integrating electronic commutation function for demanding heavy‑load hard‑chrome production cycles.
Heavy‑volume hard‑chrome production for large workpieces often needs periodic current reversal to optimize coating quality, alongside the capacity to sustain extreme amperage around‑the‑clock. The 3000A 18V water‑cooled chrome plating power supply adopts liquid circulation cooling paired with built‑in electronic commutation logic. Operators complete heavy‑duty power wiring and connect cooling water pipelines, then set output magnitude and commutation timing from the front‑panel interface before launching plating batches.
This water‑cooled chrome plating power supply excels for surface finishing of large calendar rollers, heavy hydraulic rams and oversized mining mechanical parts. Its water‑cooled architecture dissipates massive heat during non‑stop full‑load runs, while electronic commutation removes requirements for extra external reversing control cabinets. Meanwhile water‑flow interlock protection safeguards internal modules once cooling conditions go beyond safe limits.
High‑frequency IGBT conversion forms the core of this water‑cooled chrome plating power supply and holds operational efficiency above 93 percent. Because electronic commutation sits inside the main unit, factories skip purchasing separate reversing devices; accordingly users shrink overall equipment footprint and reduce auxiliary wiring work. What is more, circulating‑water heat removal keeps cabinet internal temperature steady even under round‑the‑clock full‑load conditions.
Dynamic real‑time correction adapts quickly when workers hang or unload components. As a result, finished workpieces gain uniform chrome deposition and enhanced surface adhesion thanks to precise reversal timing control. Besides, modular internal assembly supports straightforward inspection and component swap during routine maintenance intervals.
Our engineering team fine‑tunes commutation timing algorithm together with water‑cooling thermal paths for ultra‑high‑current scenarios. Therefore the power supply maintains reliable commutation action without performance drop under heavy loads. In turn this all‑in‑one unit brings greater convenience for large‑scale metal‑finishing plants.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Input Parameters | AC Input Power Supply | Three‑phase AC 380V, ±10% tolerance, 50‑60Hz |
| DC Output Parameters | Output Voltage Range | 0‑18V adjustable |
| DC Output Parameters | Output Current Range | 0‑3000A adjustable |
| DC Output Parameters | Rated Output Power | 54kW |
| DC Output Parameters | Voltage Regulation Accuracy | ≤1% |
| DC Output Parameters | Current Regulation Accuracy | ≤1% |
| DC Output Parameters | Ripple Factor | ≤1% |
| Control and Automation Functions | Operating Modes | Constant Current, Constant Voltage, Electronic Commutation Mode |
| Control and Automation Functions | Auxiliary Hardware | Digital control panel, ampere‑hour counter, commutation time setting, fault event recorder |
| Control and Automation Functions | Programming Features | Output limit lock, commutation cycle adjustment, historical alarm storage |
| Physical and Communication Parameters | Cooling Method | Water‑cooled with water‑flow interlock protection |
| Physical and Communication Parameters | Protection Class | IP20 for indoor industrial plating workshop |
| Physical and Communication Parameters | Communication Interface | RS485 Modbus RTU |
| Physical and Communication Parameters | Operating Efficiency | Above 93% |
We can provide:
This water‑cooled chrome plating power supply comes with one‑year factory warranty and achieves more than 10‑year service life under compliant operating conditions. To begin with, water‑flow detection module and native electronic commutation function belong to standard delivery scope. Furthermore modular power layout supports easy on‑site servicing work. In addition multi‑dimensional alarm protection responds rapidly toward all abnormal runtime states. Simply share your plating bath parameters and commutation cycle requirements, and we can deliver targeted configuration advice.
This water‑cooled chrome plating power supply applies to continuous heavy‑duty hard‑chrome plating that requires current reversal, large‑size component refurbishment and high‑volume industrial surface finishing. Above all else, it acts as integrated power hardware for plating workshops processing industrial rollers, large‑bore hydraulic rams and heavy mining equipment spare parts.
Likewise many large finishing facilities pick this all‑in‑one power supply, rather than combining separate rectifier plus external reversing control boxes. In fact its built‑in commutation function shortens system installation and debugging time significantly.
It also fits hard‑chrome process development with reversal‑cycle testing. Thanks to adjustable commutation timing and precise power output, technicians run groups of contrast process trials conveniently. What is more, Modbus‑compatible data output helps operators archive complete production logs for quality traceability.
We build integrated power‑supply hardware for complex high‑current metal‑finishing lines, and we specialise in water‑cooled units with native electronic commutation for mass‑production hard‑chrome workflows. Most importantly our engineering crew tunes commutation logic, cooling performance and safety thresholds to match your actual on‑site production conditions.
On top of that every finished unit completes full‑load continuous aging test and ripple‑value inspection following ISO quality standards before shipment; hence you receive hardware validated for long‑run high‑current plating with periodic current reversal.
Our full‑lifecycle support includes hands‑on operation guidance, remote fault troubleshooting and spare‑parts provision. If your production capacity expands later, you can enable parallel‑running function without rebuilding existing plating‑tank infrastructure. In short, trust us for integrated power solutions supporting your demanding hard‑chrome plating tasks.

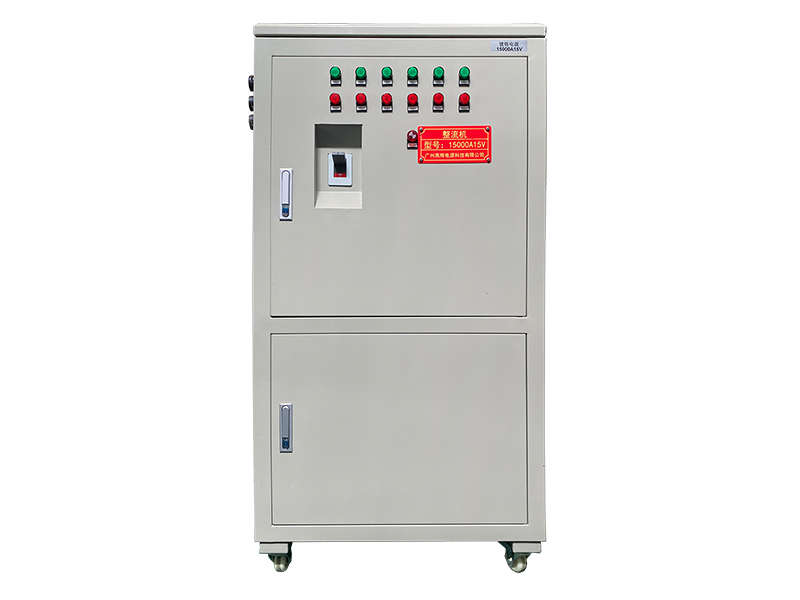

Learn more about related products：15000A 22V Water-cooled chrome plating rectifier
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
