This rectifier delivers regulated high‑current DC output and supports non‑stop production cycles for large‑batch chrome plating workflows.
High‑Current Water‑Cooled Chrome Plating Rectifier targets demanding industrial chrome plating lines that run long‑duration full‑load shifts. Heavy‑duty workpieces such as large‑dimension rollers, hydraulic cylinder assemblies and mining mechanical components require steady high‑current power to build dense, well‑bonded chrome layers. Many conventional power units suffer thermal drift under extended maximum‑current operation, which creates inconsistent coating thickness and raises scrap rates on production floors.

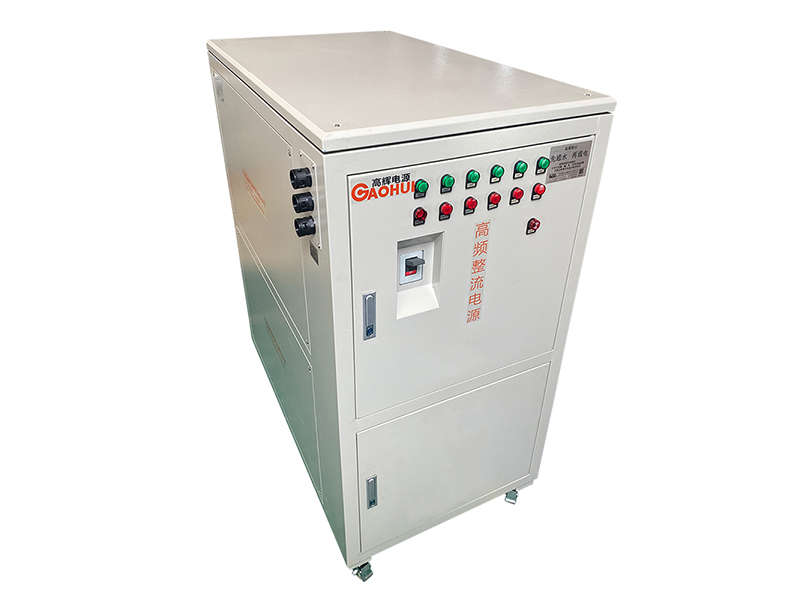

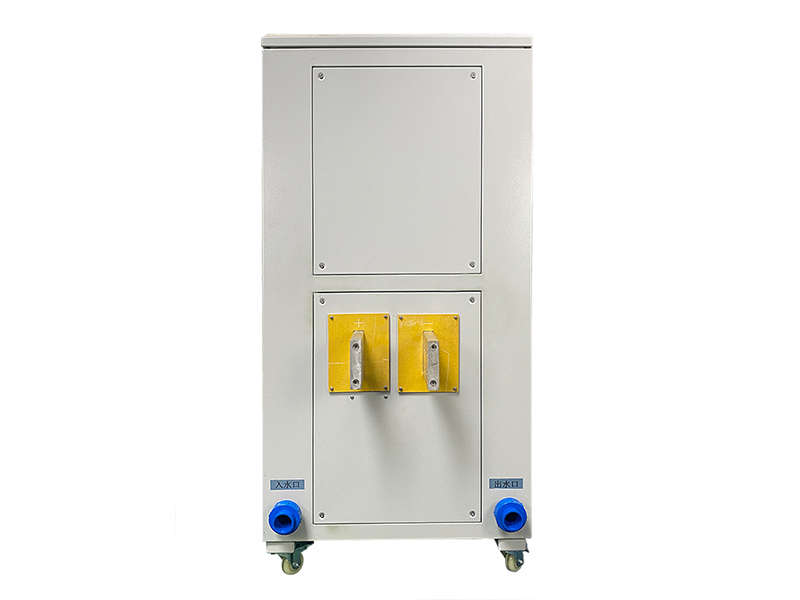

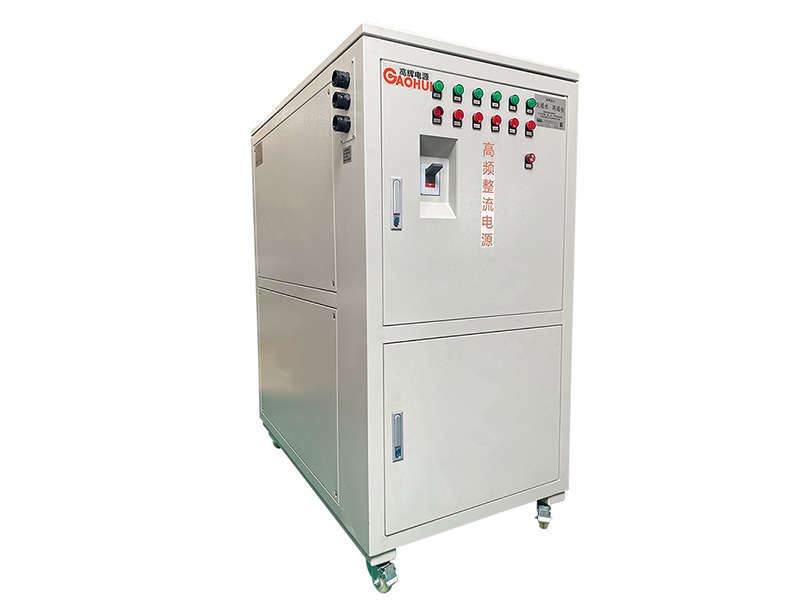

Designed for 15000A maximum output and 22V working range, this water‑cooled chrome plating rectifier integrates high‑frequency IGBT conversion hardware alongside closed‑loop circulating water cooling inside compact cabinet housing. Once technicians complete busbar wiring and cooling water pipeline installation, operators adjust voltage and current setpoints from the front digital panel to match plating bath chemistry and workpiece dimensions. Built‑in water‑flow interlock protection cuts off output whenever cooling conditions go wrong, and this safeguard protects internal power modules against overheating during round‑the‑clock manufacturing.
This high‑current water‑cooled chrome plating rectifier adopts proven IGBT high‑frequency conversion technology and achieves operational efficiency above 92%. Unlike air‑cooled devices limited by ambient temperature and ventilation quality, the independent liquid‑cooled system performs reliably even within corrosive, acid‑mist‑filled plating‑shop environments.
Fast‑response closed‑loop control compensates load changes triggered by loading and unloading workpieces. As a result, plating lines reduce typical coating defects such as edge build‑up and uneven deposition, and overall finished‑part yield improves noticeably. The modular internal layout lets maintenance staff swap defective components rapidly, and this feature shortens production‑line downtime and lowers long‑term operating expenditure.
Calibrated specifically for 15000A high‑current scenarios, internal power circuits and thermal paths keep output ripple low under full‑load conditions. It delivers consistent power foundations for standardized, high‑quality and large‑volume industrial chrome‑plating manufacturing.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Input Parameters | AC Input Power Supply | Three‑phase AC 380V, ±10% tolerance, 50‑60Hz |
| DC Output Parameters | Output Voltage Range | 0‑22V adjustable |
| DC Output Parameters | Output Current Range | 0‑15000A adjustable |
| DC Output Parameters | Rated Output Power | 330kW |
| DC Output Parameters | Voltage Regulation Accuracy | ≤1% |
| DC Output Parameters | Current Regulation Accuracy | ≤1% |
| DC Output Parameters | Ripple Factor | ≤1% |
| Control and Automation Functions | Operating Modes | Constant Current, Constant Voltage |
| Control and Automation Functions | Auxiliary Hardware | Digital control panel, ampere‑hour counter, fault log recorder |
| Control and Automation Functions | Programming Features | Output limit lock, historical alarm storage |
| Physical and Communication Parameters | Cooling Method | Water‑cooled with water‑flow interlock protection |
| Physical and Communication Parameters | Protection Class | IP20 for indoor industrial plating workshop |
| Physical and Communication Parameters | Communication Interface | RS485 Modbus RTU |
| Physical and Communication Parameters | Operating Efficiency | Above 92% |
We can provide：
This high‑current water‑cooled chrome plating rectifier comes with standard factory warranty and reaches over 10‑year service lifespan under compliant operating circumstances. Water‑flow detection and full‑range safety protections belong to standard configuration. Its modular mechanical design supports fast field maintenance without halting whole production lines. Our team delivers customized parameter debugging, process guidance and complete after‑sales support according to your plating‑bath capacity, workpiece varieties and production rhythm.
This high‑current water‑cooled chrome plating rectifier fits high‑volume heavy‑duty chrome plating, large mechanical‑part refurbishment and industrial surface‑hardening treatment. It works excellently for surface finishing and restoration of industrial large‑size rollers, heavy hydraulic cylinders, mining equipment components and other over‑heavy work‑pieces.
It serves as preferred power hardware for large‑scale metal‑finishing factories chasing high efficiency and stable coating performance. Apart from mass manufacturing usage, it also supports chrome‑plating process research, parameter testing and bath‑formula validation, supplying precise power data for process optimization and quality tracking.
We devote ourselves to developing and manufacturing high‑power water‑cooled rectifiers serving harsh metal‑surface‑treatment industries. Every high‑current unit passes strict full‑load continuous aging test and ripple inspection before shipment to secure stable long‑time running under 15000A full‑load condition.
We accept personalized modification for equipment parameters and cabinet layout to match varied workshop layouts and process standards. Relying on full‑life‑cycle service including commissioning guidance, remote fault diagnosis and durable spare‑parts supply, we offer dependable high‑current power solutions for your industrial chrome‑plating production lines.
Learn more about related products：1000A 15V Water-cooled Hard Chrome Plating Rectifier
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
