Output: 160V / 20A DC
Mode: Constant voltage / constant current
Cooling: Air cooled
Control: Digital display with knob adjustment
Applications: Titanium anodizing, oxide coating development
Materials: Commercially pure titanium, Ti-6Al-4V, titanium alloys

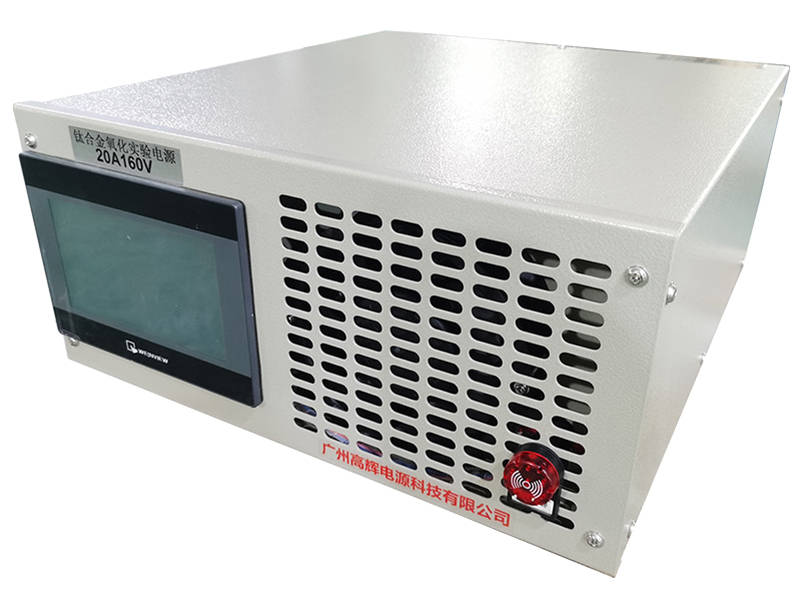

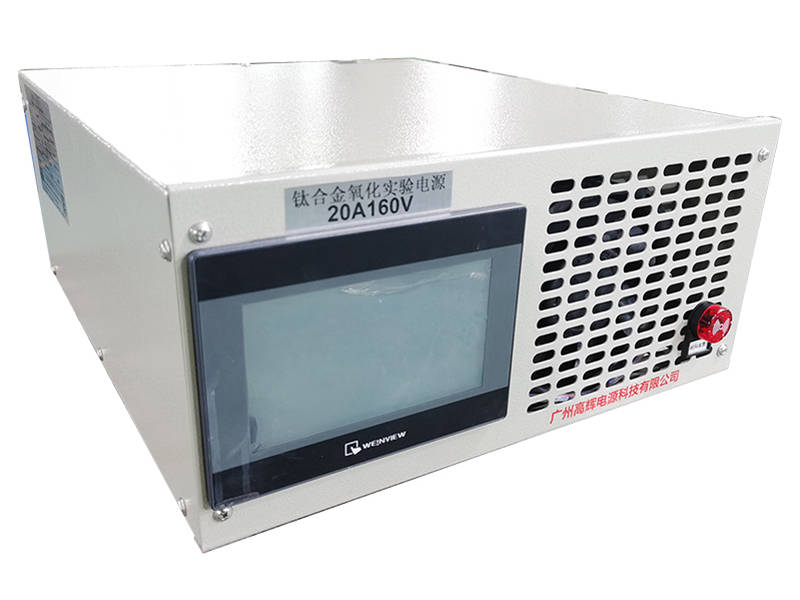

The 20A 160V titanium alloy oxidation rectifier is a precision experimental power supply designed for anodizing and surface treatment research. Specifically, this system generates controlled DC output to create protective and decorative oxide coatings on titanium and its alloys. Consequently, it enables researchers to develop optimized anodizing processes with exceptional control over coating color, thickness, and corrosion resistance.
| Parameter | Specification |
|---|---|
| Input Power | 220VAC Single-Phase, 50/60Hz |
| DC Output | 0-160V / 0-20A |
| Output Mode | Constant Voltage / Constant Current |
| Control Accuracy | ≤ ±1% |
| Ripple Factor | < 3% RMS |
| Control Interface | Digital Display with Knob Adjustment |
| Cooling System | Forced Air Cooling |
| Protections | Overload, Overvoltage, Overtemp, Short Circuit |
| Mounting | Benchtop |
| Anodizing Power Supply Model Selection (Any model can be customized) | |||||||
| General Anodizing Power Supply （Below 30V, with timer control head, for conventional anodizing） | |||||||
| Model | Output Current (A) | Output Voltage (V) | Power (KW) | Input Current (A) | Input Voltage (V) | Weight (KG) | W×L×H (mm) |
| YH200018 | 2000 | 18 | 36 | 60 | 380 | 50 | 400×500×630 |
| YH300018 | 3000 | 18 | 54 | 90 | 380 | 70 | 400×500×630 |
| YH300020 | 3000 | 20 | 60 | 100 | 380 | 100 | 500×620×1150 |
| YH300024 | 3000 | 24 | 72 | 120 | 380 | 120 | 500×620×1150 |
| YH400018 | 4000 | 18 | 72 | 120 | 380 | 120 | 500×620×1150 |
| YH400020 | 4000 | 20 | 80 | 133 | 380 | 120 | 500×620×1150 |
| YH400024 | 4000 | 24 | 96 | 160 | 380 | 120 | 500×620×1150 |
| YH500018 | 5000 | 18 | 90 | 150 | 380 | 120 | 500×620×1150 |
| YH500020 | 5000 | 20 | 100 | 167 | 380 | 120 | 500×620×1150 |
| YH500024 | 5000 | 24 | 120 | 200 | 380 | 130 | 500×620×1150 |
| YH600018 | 6000 | 18 | 108 | 180 | 380 | 130 | 500×620×1150 |
| YH600020 | 6000 | 20 | 120 | 200 | 380 | 130 | 500×620×1150 |
| YH600024 | 6000 | 24 | 144 | 240 | 380 | 180 | 500×620×1150 |
| YH800018 | 8000 | 18 | 144 | 240 | 380 | 180 | 500×670×1450 |
| Advanced Anodizing Power Supply （Above 30V, touch screen PLC control, for hard anodizing） | |||||||
| Model | Output Current (A) | Output Voltage (V) | Power (KW) | Input Current (A) | Input Voltage (V) | Weight (KG) | W×L×H (mm) |
| YY200040 | 2000 | 40 | 80 | 133 | 380 | 135 | 600×750×1300 |
| YY200060 | 2000 | 60 | 120 | 200 | 380 | 150 | 600×750×1300 |
| YY200080 | 2000 | 80 | 160 | 267 | 380 | 180 | 600×750×1300 |
| YY300040 | 3000 | 40 | 120 | 200 | 380 | 200 | 600×750×1300 |
| YY400050 | 4000 | 50 | 200 | 333 | 380 | 250 | 600×750×1300 |
| YY400050 | 4000 | 60 | 240 | 400 | 380 | 250 | 800×1150×1300 |
| YY500050 | 5000 | 50 | 250 | 417 | 380 | 300 | 800×1150×1300 |
| YY500060 | 5000 | 60 | 300 | 500 | 380 | 300 | 800×1150×1300 |
| YY600060 | 6000 | 60 | 360 | 600 | 380 | 300 | 800×1150×1300 |
| YY600080 | 6000 | 80 | 480 | 800 | 380 | 300 | 800×1150×1300 |
| YY5050 | 50 | 150 | 7.5 | 13 | 380 | 40 | 420×500×320 |
Power（KW） = Output Voltage（V） × Output Current（A）
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
1. ID
Process/program number, used to select or switch between different stored recipes.
2. Stage
The current step number in a multi-step ladder process (supports up to 20 stages).
3. Set_U
Target set voltage value (DC 0–160V adjustable).
4. Rise_T./sec
Rise time (soft start time) in seconds, adjustable from 0–999 seconds.
5. Keep_T./min
Hold time in minutes/seconds, adjustable from 1–9999 seconds/minutes.
6. Stage List (Set_I / Set_U / Rise_T / Keep_T)
Parameter table for multi-step processes, supporting up to 20 stages. Each stage can be independently configured with target current, target voltage, ramp-up time, and hold time.
7. RUN
Start button to begin power output according to the selected process.
8. OFF / CV
- `OFF`: Stop button to halt power output.
- `CV`: Constant Voltage mode for steady output voltage control.
9. single stage
Single-step mode, runs only the selected stage without multi-step cycling.
10. U/I curve
Voltage/Current curve mode, controls the process primarily by current profile.
11. Power Good
Power supply ready indicator, lights green when the unit is healthy and ready to start.
12. Menu
Main menu button to access system settings, parameter configuration, fault logs, and stored recipes.
13. AH Reset
Amp-hour reset button to clear the accumulated Act.AH value.
14. AH Show / Alarm Mode
- `AH Show`: Amp-hour display toggle.
- `Alarm Mode`: Configuration for fault response and alarm behavior.
15. Set AH
Target amp-hour value for charge-based automatic stop control.
16. Act.AH
Actual accumulated amp-hours (total charge consumed during the process).
17. Run Time
Elapsed runtime timer for the current process.
18. U (Voltage)
Real-time output voltage display (large digits, unit: V).
19. I (Current)
Real-time output current display (large digits, unit: A).
Firstly, this titanium alloy oxidation rectifier delivers stable voltage output essential for consistent oxide layer formation. Therefore, it enables precise control over anodizing colors from bronze to blue to purple. Additionally, the high voltage capability up to 160V supports thick, wear-resistant coatings. For more details on titanium anodizing techniques, visit our Titanium Surface Treatment Guide.
Secondly, the constant current mode maintains consistent current density regardless of oxide layer growth. Specifically, this ensures uniform coating thickness across complex part geometries. Thus, this titanium alloy oxidation rectifier supports reproducible experimental results. Explore related Anodizing Equipment for complete processing systems.
Moreover, the forced air cooling system eliminates the need for water connections. Specifically, it handles continuous operation in research environments. Therefore, this titanium alloy oxidation rectifier simplifies installation and reduces maintenance requirements. Check our Experimental Power Supplies collection for additional research tools.
Finally, the compact form factor fits standard laboratory benches. Additionally, intuitive controls allow quick parameter adjustment during experiments. Thus, researchers can focus on process development rather than equipment operation.
This titanium alloy oxidation rectifier is ideal for a wide range of research applications. These include, for example:
Aerospace Materials Research
It enables development of corrosion-resistant coatings for aircraft components. Specifically, researchers investigate how anodizing parameters affect fatigue performance and adhesion. Consequently, findings contribute to improved titanium alloy applications in critical aerospace structures.
Biomedical Surface Engineering
This rectifier allows optimization of bioactive coatings for medical implants. Furthermore, it supports development of antibacterial surfaces for orthopedic and dental applications. Therefore, research timelines for new implant technologies are significantly reduced.
Academic Laboratories Utilizing the Rectifier
It serves as a teaching tool for demonstrating anodizing principles. Additionally, it supports graduate student research projects on surface modification. Thus, students gain hands-on experience with advanced titanium processing techniques.
Color Anodizing Research
It enables systematic study of voltage-color relationships for decorative applications. Specifically, researchers can create precise color libraries for architectural and consumer products. Consequently, new aesthetic finishes can be developed with confidence.
Firstly, 160V output enables processing of all titanium grades. Therefore, this rectifier supports commercially pure titanium, Ti-6Al-4V, and other common alloys.
Secondly, ±1% accuracy ensures reproducible coating properties. Specifically, researchers can confidently compare results across experiments. Thus, the system adapts to diverse research objectives.
Moreover, no water connections required. Thus, installation is simple and maintenance minimal for laboratory environments.
Finally, intuitive controls and digital display support systematic experimentation. Consequently, research productivity is maximized. Contact our Technical Support Team for application assistance.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
