Output: 750V / 15A peak pulse
Mode: Single-pulse operation
Cooling: Air cooled
Control: Touchscreen HMI
Applications: MAO research, PEO coating development
Materials: Aluminum, magnesium, titanium alloys

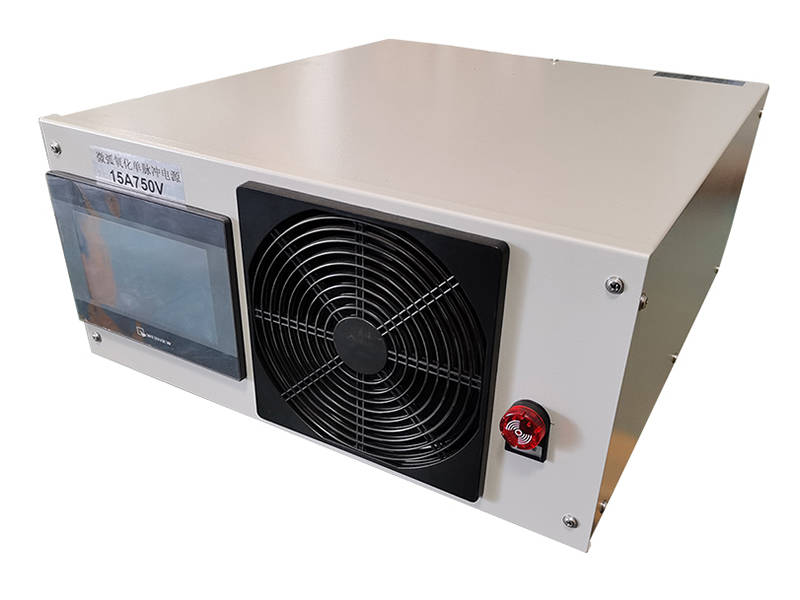

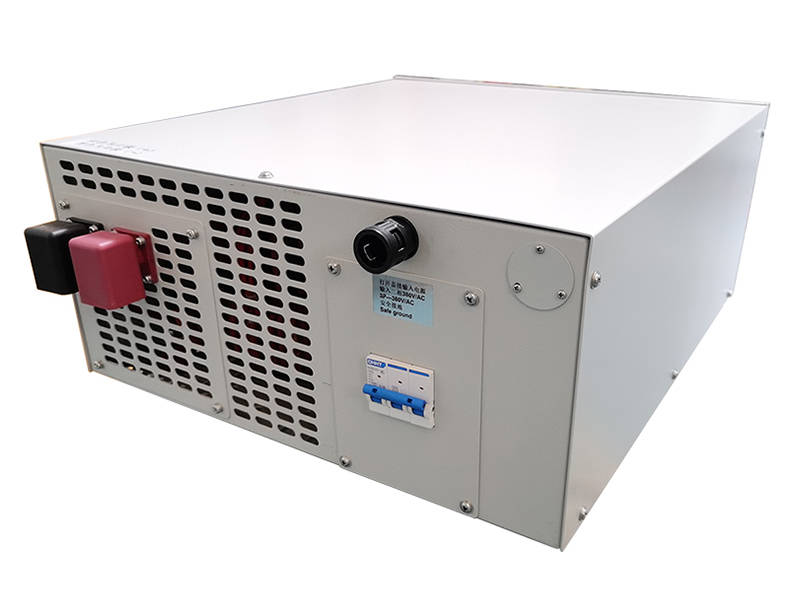

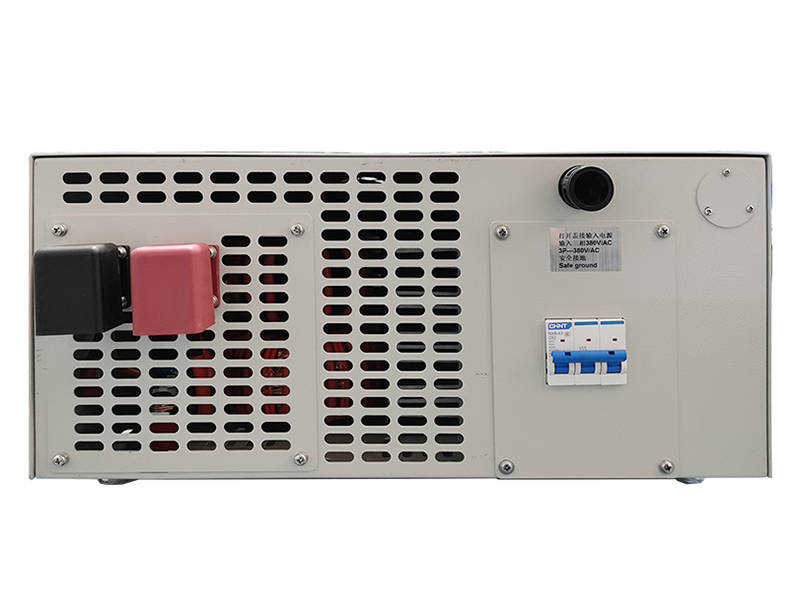

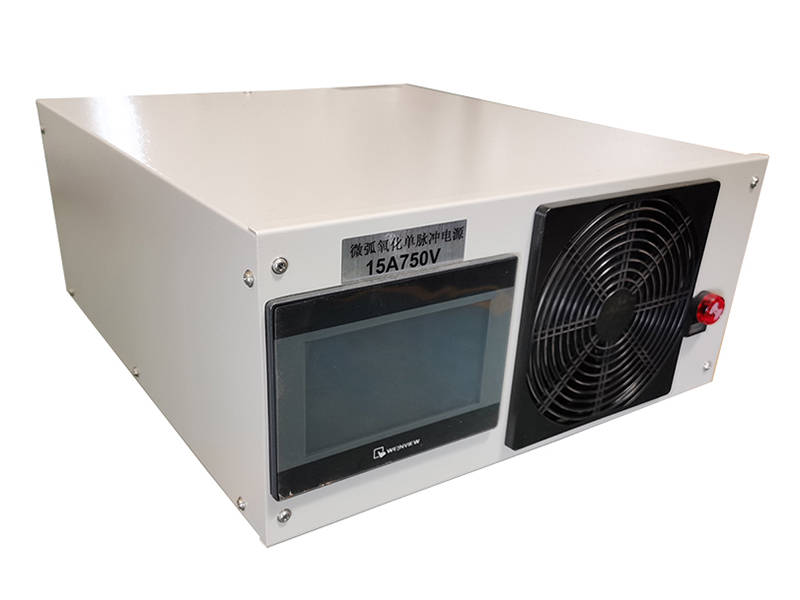

The 15A 750V lab rectifier is a precision power supply designed for micro-arc oxidation research and small-scale coating development. Specifically, this single-pulse system generates controlled high-voltage discharges to create dense ceramic coatings on aluminum, magnesium, and titanium alloys. Consequently, it enables researchers to study Plasma Electrolytic Oxidation processes with exceptional control over coating microstructure and properties.
Input Power 380VAC Three-Phase, 50/60Hz
DC Output 0-750V / 0-15A
Pulse Mode Single-Pulse Operation
Pulse Frequency 10-2000 Hz Adjustable
Duty Cycle 5-80% Adjustable
Rise Time < 50 µs
Control Accuracy ≤ ±1%
Cooling System Air Cooled
Protections Arc Detection, OVP, OCP, OTP, Short Circuit
| Single Pulse | ||||||
| No. | Model | Forward Current (A) | Forward Voltage (V) | Input Voltage (V) | Cooling Method | W×L×H (mm) |
| 1 | 5A750V | 5 | 750 | 220 | Air-cooled | 290×520×190 |
| 2 | 10A750V | 10 | 750 | 380 | Air-cooled | 510×560×230 |
| 3 | 20A750V | 20 | 750 | 380 | Air-cooled | 560×760×320 |
| 4 | 30A750V | 30 | 750 | 380 | Air-cooled | 560×760×320 |
| 5 | 50A750V | 50 | 750 | 380 | Air-cooled | 520×580×930 |
| 6 | 100A750V | 100 | 750 | 380 | Air-cooled | 580×650×1650 |
| 7 | 200A750V | 200 | 750 | 380 | Water-cooled | 850×1130×1630 |
| 8 | 300A750V | 300 | 750 | 380 | Water-cooled | 800×1270×1700 |
| 9 | 500A750V | 500 | 750 | 380 | Water-cooled | 800×1270×1900 |
| Dual Pulse | ||||||||
| No. | Model | Forward Current (A) | Forward Voltage (V) | Reverse Current (A) | Reverse Voltage (V) | Input Voltage (V) | Cooling Method | Dimensions (mm) |
| 1 | 10A750V | 10 | 750 | 3 | 300 | 380 | Air-cooled | 510×560×230 |
| 2 | 30A750V | 30 | 750 | 10 | 300 | 380 | Air-cooled | 560×760×320 |
| 3 | 50A750V | 50 | 750 | 15 | 300 | 380 | Air-cooled | 520×580×930 |
| 4 | 100A750V | 100 | 750 | 30 | 300 | 380 | Air-cooled | 580×650×1650 |
| 5 | 200A750V | 200 | 750 | 50 | 300 | 380 | Water-cooled | 850×1130×1630 |
| 6 | 300A750V | 300 | 750 | 100 | 300 | 380 | Water-cooled | 800×1270×1700 |
| 7 | 500A750V | 500 | 750 | 150 | 300 | 380 | Water-cooled | 800×1270×1900 |
Power（KW） = Output Voltage（V） × Output Current（A）
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Over all, GAOHUI provides complete single-pulse and dual-pulse models with air-cooled and water-cooled options. Accordingly, these units fit different production scales and process requirements.
Shows the peak voltage of the current pulse, a key parameter affecting coating strength.
Displays the average current over the working cycle to monitor reaction stability.
Set total time: Total process duration.
Total running time: Elapsed working time.
Cumulative ampere-minutes: Total current-time value for coating thickness control.
Multi-station ID for managing different workpiece processes.
Indicates disconnection from remote/host system, local control mode.
Constant current mode, the most common for micro-arc oxidation.
Press to immediately terminate the oxidation process.
Process stage: Current running step in multi-step program.
Ramp-up time: Time for voltage/current to rise to set value, avoiding impact.
Peak voltage limit: Maximum pulse voltage to prevent breakdown.
Frequency (Hz): Pulse working frequency, affects coating density.
Current stage: Current process segment number.
Hold time: Duration of current segment.
Average current setting: Target average current value.
Pulse "on" time percentage in one cycle, affects heat input and coating structure.
Button to start or stop the process.
Toggle between CV and CC control modes.
Pause or resume the ongoing process.
Access multi-step program editor for complex recipes.
Choose between single segment or multi-segment process.
Shows currently loaded/running process recipe.
Opens system configuration menu.
Manufacturer/support contact information.
View historical voltage/current trend graphs.
Visualizes real-time/historical voltage/current curve.
Displays the peak current value of the pulse.
Displays the average voltage over the working cycle.
Shows system date and time.
Shows the peak value of the positive pulse voltage.
Displays the average current of the positive pulse over the working cycle.
Shows the average voltage of the positive pulse over the working cycle.
Displays the peak value of the positive pulse current.
Shows the current running process number.
Sets the time for voltage/current to rise slowly from zero to the set value.
Shows the current running segment number in multi-stage processes.
Sets the duration for the current process segment.
Manufacturer/support contact information.
Shows the average voltage of the negative pulse over the working cycle.
Displays the peak value of the negative pulse current.
Shows the peak value of the negative pulse voltage.
Displays the average current of the negative pulse over the working cycle.
Sets the maximum allowed positive pulse voltage to prevent workpiece breakdown.
Sets the target average current value for the positive pulse.
Set total time: Total process duration.
Total running time: Elapsed working time.
Cumulative ampere-minutes: Total current-time value for coating thickness control.
Opens the system configuration menu.
Accesses the multi-step program editor to create complex recipes.
Selects between running a single segment or a multi-segment process.
Displays the currently loaded or running process recipe.
Temporarily pauses or resumes the ongoing process.
Toggles between constant voltage and constant current control modes.
Multi-station ID for managing different workpiece processes.
Indicates disconnection from the remote/host system, local control mode.
Current operating mode: constant current control.
Press to immediately terminate the oxidation process.
Positive: Pulse frequency, duty cycle, number of pulses.
Negative: Pulse frequency, duty cycle, number of pulses.
Main button to start or stop the entire process.
Firstly, this lab rectifier delivers up to 750V pulses to initiate and sustain stable plasma discharges. Therefore, it enables the formation of thick, dense ceramic layers with excellent adhesion. Additionally, the high voltage is essential for processing challenging alloys like titanium and magnesium. For more details on plasma electrolytic oxidation, visit our MAO Process Guide.
Secondly, adjustable frequency and duty cycle allow fine-tuning of discharge energy and distribution. Specifically, researchers can control coating porosity, phase composition, surface roughness, and growth rate. Thus, this lab rectifier supports systematic parameter optimization studies. Explore related Surface Engineering Solutions for complete processing systems.
Moreover, the forced air cooling system eliminates the need for water connections. Specifically, it handles continuous operation in laboratory environments. Therefore, this lab rectifier simplifies installation and reduces maintenance requirements. Check our Laboratory Equipment collection for additional research tools.
Finally, the system offers ≤ ±1% control accuracy with fast response times. Additionally, integrated data logging supports thorough analysis and experiment documentation. Thus, researchers can achieve reproducible results with confidence.
This lab rectifier is ideal for a wide range of research applications. These include, for example:
Materials Science Research
It enables systematic study of coating formation mechanisms. Specifically, researchers investigate how electrical parameters affect microstructure, phase composition, and coating properties. Consequently, findings contribute to fundamental understanding of plasma electrolytic oxidation.
Coating Development
This lab rectifier allows optimization of wear-resistant, corrosion-resistant, and bioactive coatings. Furthermore, it supports parameter screening for industrial scale-up. Therefore, development timelines are significantly reduced.
Academic Laboratories
It serves as a teaching tool for demonstrating PEO principles. Additionally, it supports graduate student research projects. Thus, students gain hands-on experience with advanced surface engineering techniques.
Firstly, 750V output enables processing of all light metals. Therefore, this lab rectifier supports aluminum, magnesium, and titanium alloys.
Secondly, adjustable pulse parameters allow coating engineering. Specifically, researchers can tailor properties for specific applications. Thus, the system adapts to diverse research objectives.
Moreover, no water connections required. Thus, installation is simple and maintenance minimal.
Finally, integrated data logging and recipe storage support systematic experimentation. Consequently, research productivity is maximized. Contact our Technical Support Team for application assistance.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
