Tailored for special high‑potential finishing workflows, the High‑Voltage Air‑Cooled Electropolishing Rectifier delivers adjustable 200A 350V DC output. Furthermore, fan‑driven air‑cooling eliminates water‑circuit infrastructure for flexible workshop layout.
The High‑Voltage Air‑Cooled Electropolishing Rectifier is a specialty power unit built for high‑potential electropolishing applications. Certain alloy finishing processes require elevated voltage to trigger controlled electrochemical dissolution and achieve premium surface textures. However, conventional power hardware often struggles to sustain stable output under combined high‑current and high‑voltage loading. Meanwhile, water‑cooled rectifiers demand plumbing setup and periodic fluid maintenance, adding extra complexity for facilities running mixed‑process production. Even minor power fluctuations can cause uneven etching, surface pitting and ruin finished‑part quality. For this reason, the High‑Voltage Air‑Cooled Electropolishing Rectifier serves as a practical low‑maintenance power choice for non‑standard electropolishing tasks.
This High‑Voltage Air‑Cooled Electropolishing Rectifier supports seamless stepless adjustment from 0‑200A and 0‑350V. In addition, its wide output window fits custom‑formulated electrolytes that call for higher operating potential. It adopts reinforced fan‑driven air‑cooled thermal construction. As a result, workshop operators can place the unit on floors or heavy‑duty workbenches without installing water circulation pipelines. Optimized high‑frequency circuits tightly suppress ripple interference. Moreover, this clean DC supports steady ion migration and generates consistent surface finishes for hard‑to‑treat alloy materials. Real‑time closed‑loop control compensates for dramatic bath impedance shifts during processing cycles. Besides, multi‑layer built‑in protection defends internal circuits against over‑current, over‑voltage and short‑circuit risks caused by operational errors.
Most industrial electropolishing power systems are built for standard‑voltage mass‑production lines. In contrast, this High‑Voltage Air‑Cooled Electropolishing Rectifier is optimized for custom‑recipe, high‑potential finishing jobs with intermittent operation. It maintains stable conversion efficiency through repeated start‑stop load cycles. In fact, this usage pattern is typical for job‑shops handling special alloy orders and process development work. Every unit completes full‑load ageing and ripple performance validation before factory dispatch. Accordingly, technicians obtain repeatable polishing outcomes across different test and production batches.
Dynamic closed‑loop feedback corrects output deviations triggered by sharp electrolyte temperature changes or fluctuating workpiece surface area. As a result, electrochemical reaction rates remain predictable and reject rates for high‑value alloy components drop considerably. Multiple custom electropolishing process presets can be stored locally within the unit. Furthermore, operators can quickly recall saved configurations to cut down formula tuning duration.

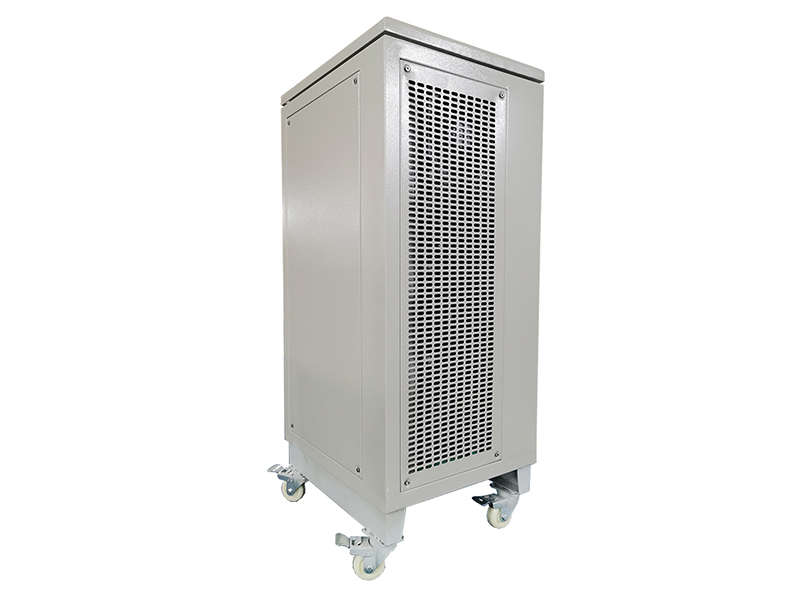

Its reinforced heavy‑duty cabinet occupies reasonable workshop floor space. Without cooling‑water auxiliary assemblies, equipment relocation and routine visual inspections become far less cumbersome. For these reasons, this High‑Voltage Air‑Cooled Electropolishing Rectifier fits specialty metal‑finishing workshops, pilot surface‑treatment stations and electrochemical process‑development laboratories.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Rated Output | Rated Current | 200A |
| Rated Voltage | 350V | |
| Working Mode | Operation Type | Constant Current / Constant Voltage |
| Cooling System | Cooling Method | Air‑cooled Fan Cooling |
| Input Power | Input Voltage | AC 220V Single‑phase |
| Communication Interface | Data Port | RS485 |
| Safety Protection | Protection Functions | Over‑current, Over‑voltage, Over‑temperature, Short‑circuit Protection |
| Applicable Scenarios | Main Applications | High‑potential alloy electropolishing, special‑formula surface finishing, custom electrochemical process trials, high‑value component treatment |
We can provide: The product comes with a one‑year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp‑up function for current or voltage settings. For time‑sensitive applications, you can use the timed operation mode. Moreover, the multi‑segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute‑level timing function. If you need customization, please contact us for further details.
This High‑Voltage Air‑Cooled Electropolishing Rectifier finds practical use in specialty metal‑finishing workshops, alloy component manufacturers and electrochemical R&D labs. Production teams deploy it for surface treatment of exotic alloy parts and mechanical components requiring high‑potential electropolishing. In addition, it runs validation trials for newly developed high‑voltage polishing bath formulations.
It delivers reliable performance for small‑to‑medium batch production as well as hands‑on laboratory process exploration. Meanwhile, its precisely adjustable DC output helps operators stabilise high‑demanding surface‑finishing results. Thus, manufacturing facilities can reduce high‑value defective parts and accelerate custom‑formula optimisation cycles.
We build application‑focused power hardware tailored to special high‑voltage electropolishing requirements. Unlike standard‑voltage industrial rectifiers for common mass‑production, our High‑Voltage Air‑Cooled Electropolishing Rectifier prioritizes stable high‑potential output and convenient maintenance for specialty finishing workloads.
Each unit undergoes waveform calibration and full‑load ageing testing before dispatch. In addition, custom adjustments for output ratings and auxiliary functions are available upon request. Backed by process‑focused technical guidance and complete after‑sales support, we supply dependable power hardware for your special electropolishing projects.
Learn more about related products：24000A 18V (8 Units N+1 Parallel Operation) High-Frequency Energy-Saving Synchronous Rectifier
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
