Built to handle continuous heavy‑duty plating cycles, the High‑Efficiency Synchronous Plating Rectifier outputs adjustable 1500A 15V low‑loss DC power. Meanwhile, robust air‑cooled fan architecture removes water‑cooling needs and simplifies on‑site workshop setup.
The High‑Efficiency Synchronous Plating Rectifier delivers low‑loss DC power purpose‑built for heavy‑current plating and electrochemical production tasks. In contrast to conventional diode‑type power units, this synchronous topology cuts conduction losses and suppresses excess heat under sustained full‑load operation. Particularly, you will encounter non‑stop heavy‑current running, repeated production cycles and minor load shifts as workpiece batch sizes change. Most water‑cooled rectifiers need complete circulating water support systems. For this reason, they add extra capital expenditure for mid‑size manufacturing facilities. Excessive heat output reduces energy performance and accelerates internal component ageing. These downsides raise power costs and shorten overall equipment working lifespan.
The High‑Efficiency Synchronous Plating Rectifier supports full stepless adjustment from 0‑1500A and 0‑15V. It satisfies power requirements for heavy‑load electroplating, metal surface finishing and various low‑voltage high‑current industrial workflows. Besides, its optimized air‑cooled thermal structure dissipates heat efficiently through long heavy‑load operating periods. You require no additional circulating‑water auxiliary hardware. Its synchronous control loop maintains outstanding energy‑saving performance even with changing load conditions. It lowers heat accumulation and helps cut overall operational energy spending. Furthermore, multi‑layer safety safeguards defend internal hardware against overload, over‑temperature and unexpected short‑circuit events across long production shifts.
‑ Provides adjustable 1500A 15V low‑loss DC output, optimized for uninterrupted heavy‑current plating and electrochemical manufacturing
‑ Adopts advanced synchronous circuit topology. It significantly reduces conduction heat loss and saves energy during long‑term full‑load operation

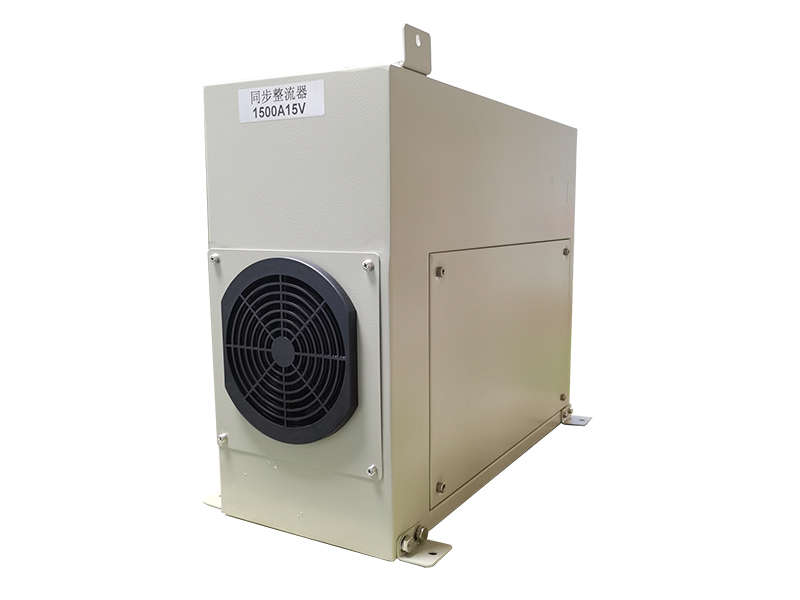

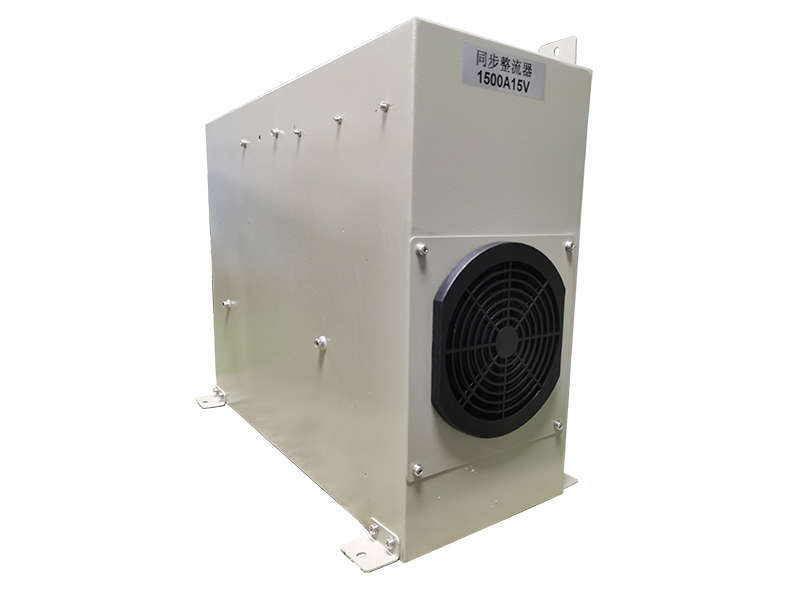

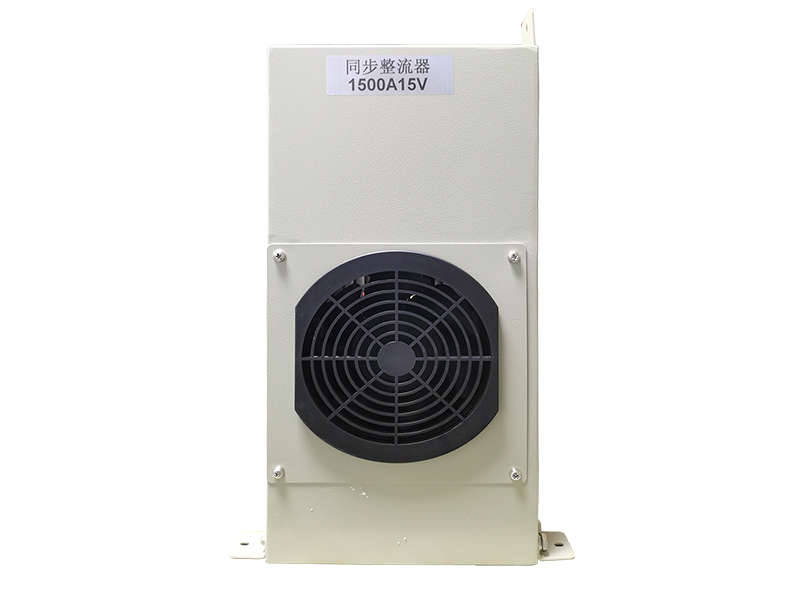

‑ Comes with heavy‑duty air‑cooled fan cooling. It eliminates water‑cooling dependency and lowers installation investment plus routine maintenance workload
‑ Supports CC and CV dual operation modes. Operators switch modes flexibly across pre‑treatment, main processing and post‑processing production phases
‑ Equipped with multi‑layer industrial‑grade protection features. It withstands sudden load surges and improves equipment uptime for round‑the‑clock production lines

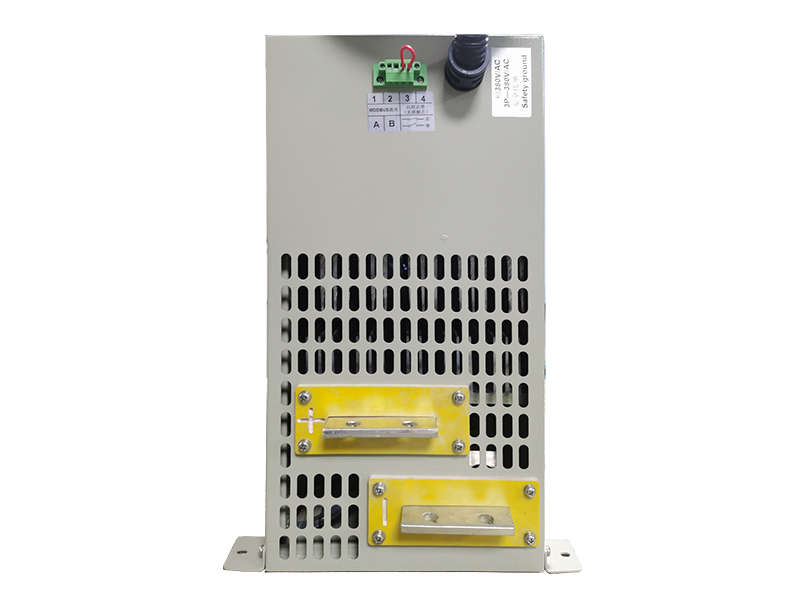

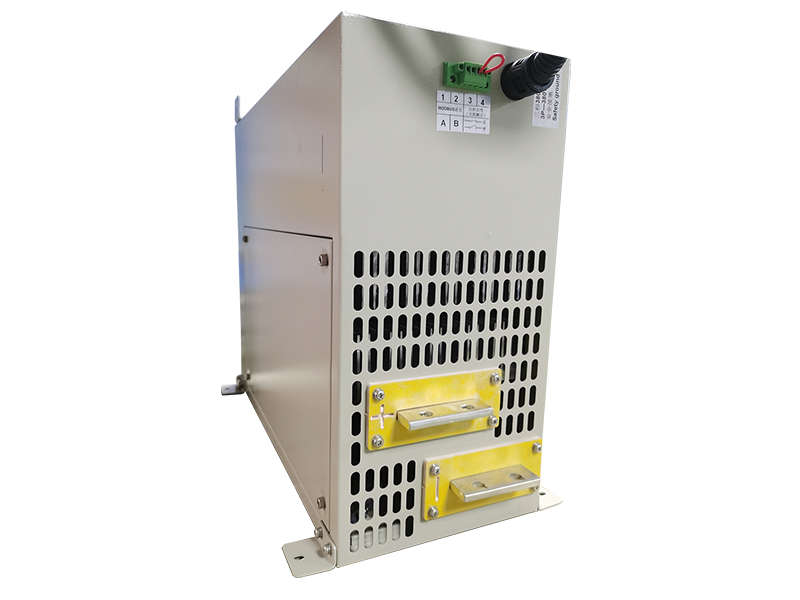

‑ Fitted with standard RS485 communication port. Operators track real‑time process data and archive historical logs to fine‑tune manufacturing parameters
In fact, many high‑current plating rectifiers use traditional diode‑based water‑cooled structures. They serve large‑scale production lines equipped with full circulating water supply infrastructure. Even so, the High‑Efficiency Synchronous Plating Rectifier fits medium‑sized metal‑finishing plants and trial production lines very well. A great number of industrial workshops deal with frequently‑changing load conditions, and this unit adapts perfectly to these real‑world working scenarios. Our testing team carries out full‑load and thermal stress inspections for every unit before dispatch. Therefore, each device maintains stable energy‑saving performance through repeated production batches.
Our closed‑loop regulation system reacts rapidly to small output deviations. Varied workpiece loads and ambient temperature trigger these minor fluctuations. It preserves precise current and voltage output under diverse working states. As a result, you reduce energy waste and bring down long‑term operating expenses. The hardware can store multiple groups of production process parameters. Operators pull up verified process recipes quickly. This action shortens equipment setup cycles and boosts overall workshop productivity.
The heavy‑duty integrated cabinet keeps a compact footprint. It eases workshop layout planning and equipment relocation work. You skip complex water‑pipe installation and water‑quality maintenance procedures. It effectively decreases hardware failure risks. Meanwhile, it runs reliably for extended hours within humid, dust‑filled industrial workshop surroundings.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Rated Output | Rated Current | 1500A |
| Rated Output | Rated Voltage | 0‑15V |
| Working Mode | Operation Type | Constant Current / Constant Voltage |
| Cooling System | Cooling Method | High‑efficiency Air‑cooled Fan Cooling |
| Input Power | Input Voltage | Three‑phase AC Customized |
| Communication Interface | Data Port | RS485 |
| Safety Protection | Protection Functions | Over‑current, Over‑voltage, Over‑temperature, Short‑circuit, Surge Protection |
| Applicable Scenarios | Main Applications | Heavy‑current electroplating, metal surface treatment, general electrochemical processing, low‑voltage industrial DC power supply |
Further, we back this rectifier with a 1‑year warranty and design it for over 10 years of service life. It supports constant‑current and constant‑voltage modes. It also provides programmable current and voltage ramp‑up to fit diverse industrial startup workflows. Notably, multi‑segment parameter settings enable flexible process configuration. Its built‑in RS485 port allows staff to view live data and connect with other workshop equipment. We supply optional custom function upgrades. These options satisfy special industrial process requirements. Reach out to us for tailored custom solutions.
The High‑Efficiency Synchronous Plating Rectifier works for medium‑scale metal‑finishing factories, component producers and electrochemical processing workshops. Operators put it into service for heavy‑current electroplating and metal surface treatment on a wide range of metal substrates. It also supports formula testing for newly‑developed electrochemical bath solutions.
Likewise, the machine operates steadily through long‑time batch cycles and trial‑production runs. Its low‑loss synchronous DC output cuts thermal waste and stabilises production working conditions. For instance, it reduces excessive energy consumption and accelerates process iteration for custom‑built industrial projects.
We create custom power‑supply solutions for heavy‑current electrochemical manufacturing environments. In contrast to regular diode‑driven rectifiers, the High‑Efficiency Synchronous Plating Rectifier gets specialised tuning for low‑loss operation and harsh on‑site workshop conditions. It delivers excellent running stability and environmental compatibility.
Our technicians conduct load‑simulation testing and full‑load ageing verification for every unit before shipment. This procedure guarantees dependable real‑world performance during industrial production work. We accept non‑standard parameter adjustments and custom‑feature development. We also deliver professional process consultation and complete after‑sales support. In short, we supply trustworthy power hardware for your mass‑production and pilot‑scale industrial projects.
