Tailored for large‑scale metal treatment workshops, this heavy‑duty chrome surface treatment rectifier adopts five‑unit N+1 parallel framework and automatic reversing switch to deliver steady DC supply for high‑volume chrome surface treatment workflows.
Heavy‑Duty Chrome Surface Treatment Rectifier serves high‑demand production lines that process extra‑large mechanical components and place high priority on production continuity. In particular, industrial rollers, heavy‑walled hydraulic cylinders and robust mining equipment components require periodic reversed current to form dense, homogeneous chrome surface coatings. Yet many ordinary rectifier systems trigger full‑line shutdown once one module fails; accordingly, unexpected downtime creates significant economic losses for large metal‑treatment facilities.

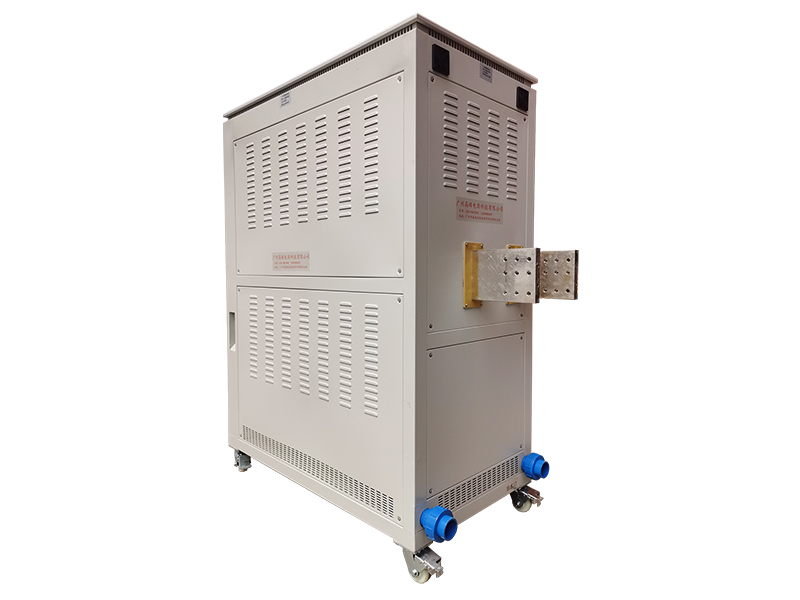

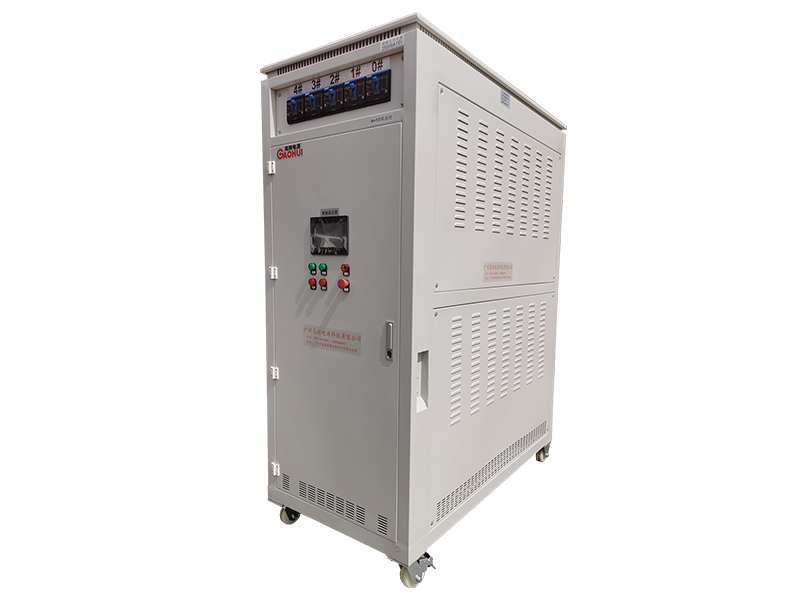

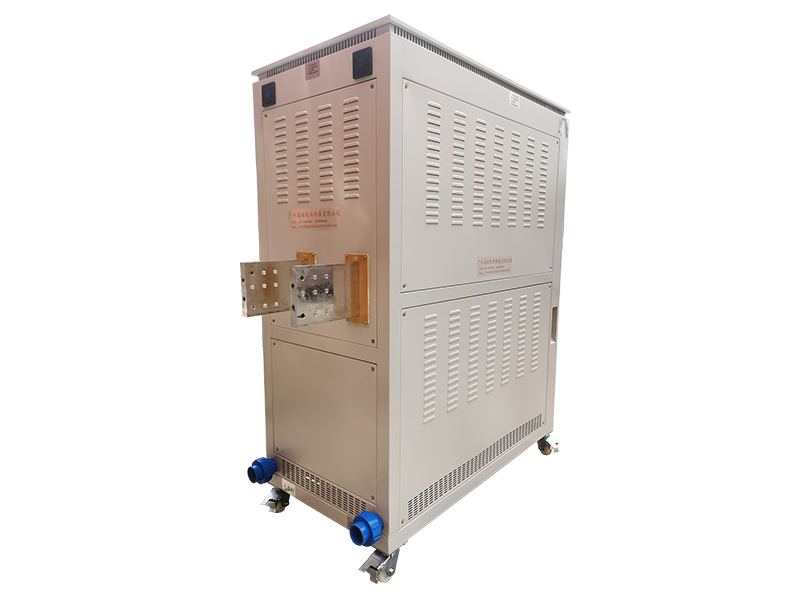

Rated 25000A 15V, this heavy‑duty chrome surface treatment rectifier is built around 5‑unit N+1 parallel configuration paired with an automatic reversing switch. It integrates IGBT high‑frequency conversion, high‑efficiency water‑cooled heat dissipation and native polarity reversal logic for the whole parallel cluster. After field technicians finish busbar connection and cooling‑water pipe assembly, operators adjust reversing cycle parameters and power set‑points via central control panel to fit varied plating bath conditions. Moreover, every individual module is fitted with independent water‑flow interlock protection, and this safeguard allows remaining hardware to keep operating even if one unit malfunctions during non‑stop multi‑shift manufacturing.
This heavy‑duty chrome surface treatment rectifier applies proven IGBT conversion technology, and overall system efficiency stays above 92% under combined parallel operation. Meanwhile, unlike standalone rectifiers vulnerable to single‑point failure, the N+1 redundant design greatly improves operational reliability within humid, corrosive plating‑plant environments.
Quick‑response closed‑loop feedback offsets load changes when operators hang or remove work‑pieces inside plating tanks. As a result, finished parts show fewer typical defects such as edge burning and uneven metal deposition, and overall production yield sees tangible improvement. In addition, each separate module supports on‑site servicing without full‑system shutdown, which cuts production interruption time and reduces long‑term operating expenditure.
Besides, optimised for 25000A combined output, every parallel module uses refined power‑loop and thermal design to supply low‑ripple DC power. Therefore, it delivers reliable reversed‑polarity current for high‑quality large‑batch industrial chrome surface‑treatment tasks.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Input Parameters | AC Input Power Supply | Three‑phase AC 380V, ±10% tolerance, 50‑60Hz |
| DC Output Parameters | Output Voltage Range | 0‑15V adjustable |
| DC Output Parameters | Total Output Current Range | 0‑25000A adjustable |
| DC Output Parameters | Rated Total Output Power | 375kW |
| DC Output Parameters | Voltage Regulation Accuracy | ≤1% |
| DC Output Parameters | Current Regulation Accuracy | ≤1% |
| DC Output Parameters | Ripple Factor | ≤1% |
| Control and Automation Functions | Operating Modes | Constant Current, Constant Voltage, automatic reversing cycle |

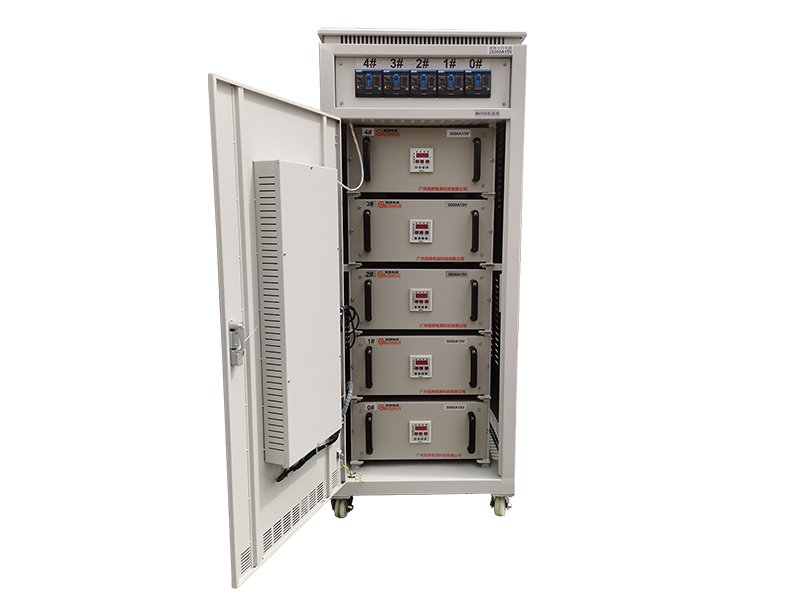

| Control and Automation Functions | System Architecture | 5 Units N+1 Parallel Configuration |
| Control and Automation Functions | Auxiliary Hardware | Central control panel, ampere‑hour counter, multi‑unit fault log recorder |
| Control and Automation Functions | Programming Features | Reversing‑time setting, output limit lock, historical alarm storage |
| Physical and Communication Parameters | Cooling Method | Water‑cooled with independent water‑flow interlock per unit |
| Physical and Communication Parameters | Protection Class | IP20 for indoor industrial plating workshop |
| Physical and Communication Parameters | Communication Interface | RS485 Modbus RTU |
| Physical and Communication Parameters | Operating Efficiency | Above 92% |
The product comes with a one‑year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp‑up function for current or voltage settings. For time‑sensitive applications, you can use the timed operation mode. Moreover, the multi‑segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute‑level timing function. If you need customization, please contact us for further details.
This heavy‑duty chrome surface treatment rectifier suits large‑batch hard‑chrome processing, heavy mechanical component refurbishment and metal surface hardening projects. For example, it completes surface finishing and restoration for large industrial rollers, heavy‑duty hydraulic cylinders, mining machinery assemblies and other oversized work‑pieces that require automatic reversing‑current treatment and high‑reliability rectifier support.
Furthermore, it serves as core rectifier hardware for large‑scale metal‑treatment factories pursuing maximum equipment uptime. Beyond mass‑production work, it also enables plating‑bath formula validation and reversing‑cycle process testing, providing accurate runtime data for process optimisation and quality traceability.
We focus on developing and manufacturing high‑reliability parallel‑cluster rectifier systems built for harsh plating‑plant working conditions. To begin with, the complete 5‑unit N+1 parallel assembly goes through strict continuous full‑load ageing and ripple‑performance testing before shipment, so it guarantees stable 25000A combined output during extended production cycles.
Moreover, we offer custom adjustments for parallel‑module quantity, reversing‑timing logic and cabinet layout to meet various on‑site installation limits and technical specifications. Backed by full‑lifecycle services including on‑site commissioning guidance, remote multi‑unit diagnostic support and stable spare‑parts provision, we deliver trustworthy high‑current power solutions for your industrial hard‑chrome plating production lines.
Learn more about related products：20000A 18V Water-Cooled Hard Chrome Rectifier with Automatic Commutation (N+1)
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
