This high‑current electrolytic hydrogen rectifier delivers stable 150A 5V low‑ripple DC output for PEM electrolyser stacks and industrial hydrogen production systems.
Gaohui Power Supply engineers the 150A 5V High‑Current Electrolytic Hydrogen Rectifier for PEM electrolyser integrators and industrial hydrogen project operators. As PEM water electrolysis technology scales up rapidly, stacks increasingly demand extremely high current at very low voltage; however, conventional power supplies struggle to maintain precision under such heavy‑current conditions. Inadequate current sharing between parallel power modules will cause local overheating inside electrolyser cells, which in turn accelerates membrane degradation and shortens stack lifespan. For this reason, this rectifier adopts advanced multi‑module parallel current‑sharing architecture to guarantee uniform current distribution across every output channel. Beyond continuous base‑load hydrogen production, it also handles dynamic load fluctuations when paired with wind or solar power sources.
This high‑current electrolytic hydrogen rectifier is optimized primarily for proton exchange membrane (PEM) electrolyser stacks, while remaining compatible with small alkaline electrolyser modules. Furthermore, its 0‑5V adjustable output precisely matches the typical single‑stack voltage range of commercial PEM cells. Meanwhile, reinforced busbar design and low‑inductance internal layout minimize voltage drop even at full 150A output, ensuring that every volt reaches the electrolyser stack efficiently.
This high‑current electrolytic hydrogen rectifier utilizes interleaved IGBT power conversion and reaches system efficiency above ninety‑five percent. Under sustained full‑load 150A‑5V operation, its optimized thermal management structure conducts heat away from power devices rapidly; hence it maintains stable output without thermal derating. What is more, the low‑voltage high‑current design eliminates the need for step‑down conversion between the power supply and PEM stack, reducing overall system energy loss.
Its native constant‑current control loop responds within milliseconds to load changes. Accordingly, the rectifier automatically adjusts output when renewable energy input fluctuates, preventing sudden current spikes that could damage delicate PEM membranes. Besides, programmable multi‑segment ramp profiles allow operators to define custom startup sequences for different stack chemistries, which is particularly valuable during commissioning and formula switching.

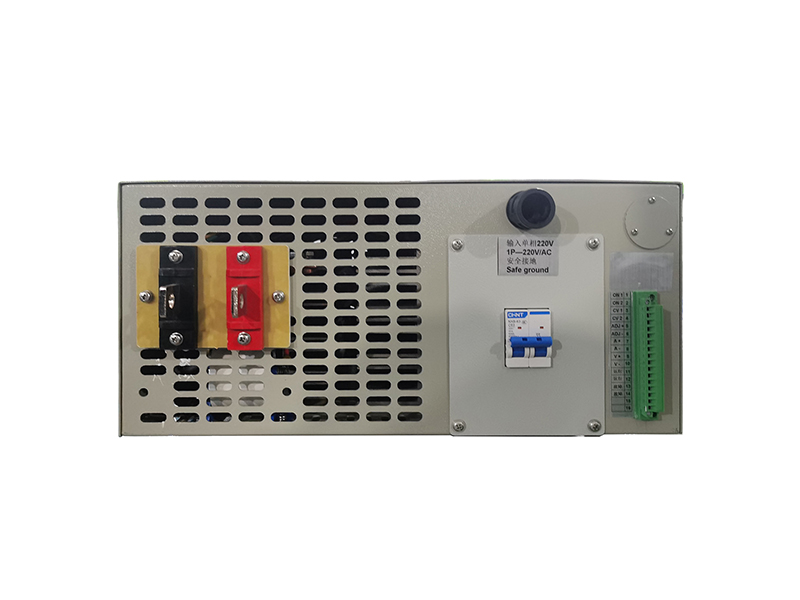

Our engineering team equips the output stage with heavy‑grade copper busbars and high‑precision current sensors. Consequently, voltage drop at full load remains below one percent of rated output, and current measurement stays accurate across the entire operating range. In turn, this high precision translates directly into consistent hydrogen yield and predictable gas purity for end users.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Input Parameters | AC Input Power Supply | Three‑phase AC 380V, ±10% tolerance, 50‑60Hz |
| DC Output Parameters | Output Voltage Range | Zero to 5V adjustable |
| DC Output Parameters | Output Current Range | Zero to 150A adjustable |
| DC Output Parameters | Voltage Regulation Accuracy | Within one percent |
| DC Output Parameters | Current Regulation Accuracy | Within one percent |
| DC Output Parameters | Ripple Factor | Within one percent |
| Control and Automation Functions | Operation Modes | Constant Current (priority), Constant Voltage |
| Control and Automation Functions | Auxiliary Control Devices | Digital ampere‑hour meter, programmable timer, multi‑stage soft‑start |
| Control and Automation Functions | Programming Functions | Programmable current ramp‑up, multi‑segment parameter setting |
| Physical and Communication Parameters | Cooling Mode | Air‑cooled |
| Physical and Communication Parameters | Protection Grade | IP21 for indoor application |
| Physical and Communication Parameters | Communication Protocol | RS485 Modbus RTU |
| Physical and Communication Parameters | Working Efficiency | Above ninety‑five percent |
| Physical and Communication Parameters | Size and Weight | Fully customizable based on customer demands |
We can provide:
This rectifier is backed by one‑year warranty and expected service life exceeding 10 years. To begin with, constant‑current priority control and multi‑stage soft‑start come as standard configuration. Furthermore, heavy‑grade copper busbars and high‑precision current sensing are built into every unit. In addition, RS485 communication and over‑temperature / over‑current protection are pre‑installed. Therefore, feel free to send us your PEM stack specifications for a tailored proposal.
This high‑current electrolytic hydrogen rectifier targets low‑voltage, high‑current water electrolysis applications. First and foremost, it serves as the ideal power source for PEM electrolyser stacks that operators deploy in containerized hydrogen production stations and fuel cell refuelling facilities.
In addition, industrial operators place this unit into on‑site hydrogen generation setups at chemical plants, metal refining facilities and semiconductor fabs. As a matter of fact, its compact footprint and high efficiency make it well‑suited for retrofitting existing hydrogen generation infrastructure.
It also pairs seamlessly with photovoltaic arrays and wind turbines for off‑grid or grid‑tied green hydrogen projects. Thanks to its fast dynamic response, it tracks renewable energy output curves and maximizes hydrogen yield under variable input conditions. What's more, it functions as a reliable power source for PEM stack testing platforms and hydrogen technology research laboratories.
Gaohui Power Supply develops custom‑optimized High‑Current Electrolytic Hydrogen Rectifier for PEM electrolyser manufacturers and green hydrogen project developers, and deep technical customization stands as our core competitive strength. Above all, our engineering team fine‑tunes output current levels, ripple specifications, busbar configurations and control algorithms to match your specific PEM stack electrical characteristics.
Apart from that, we validate every unit against CE safety standards under ISO 9001 quality‑management protocols. Each finished 150A 5V rectifier undergoes 100% continuous full‑load ageing testing plus current‑sharing balance verification before shipment; as a result, customers receive hardware that delivers long‑term reliability in demanding hydrogen production environments.
Our full‑lifecycle service includes remote commissioning support, spare‑parts provision and on‑site operator training. Whenever you scale up stack capacity or migrate to next‑generation PEM cell designs, our team can reconfigure power supply parameters without full hardware replacement. In short, partner with Gaohui Power Supply for high‑performance electrolytic hydrogen rectifier solutions that fit your project needs.
Learn more about related products:500A 50V Electrolytic Hydrogen Generation Rectifier
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
