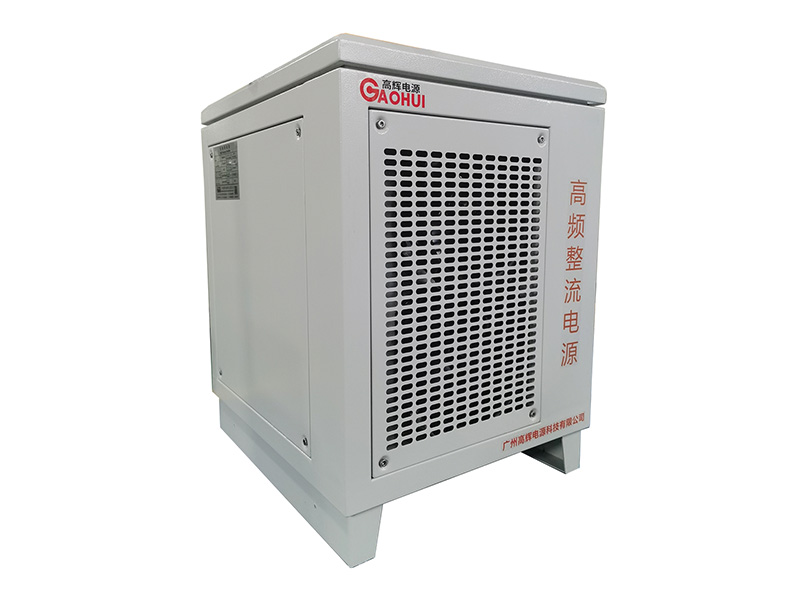

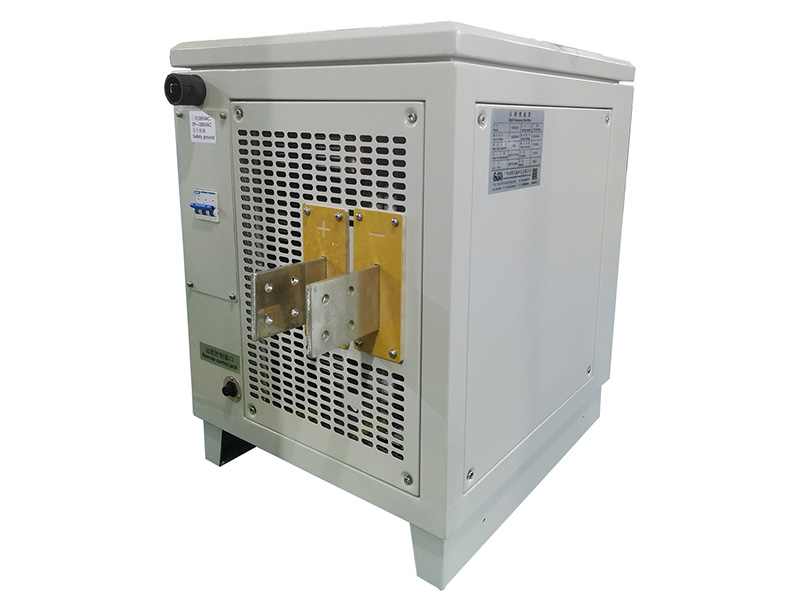

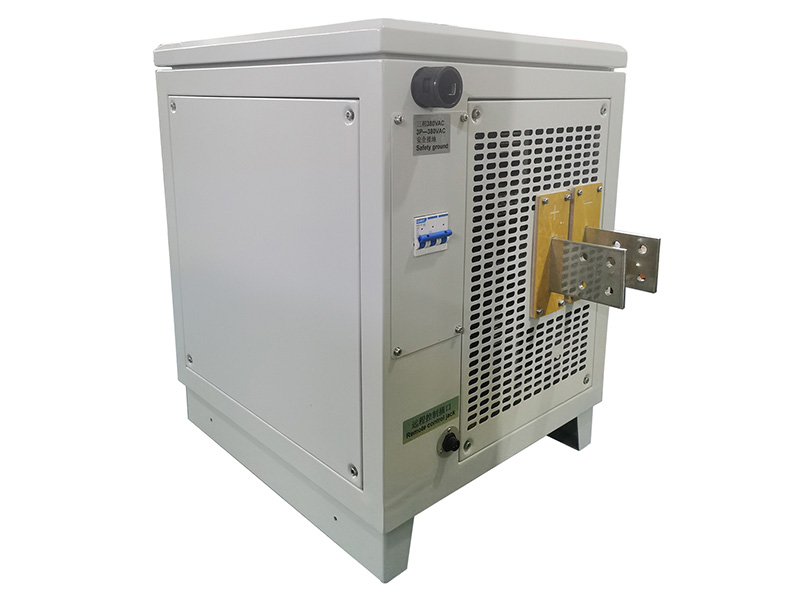

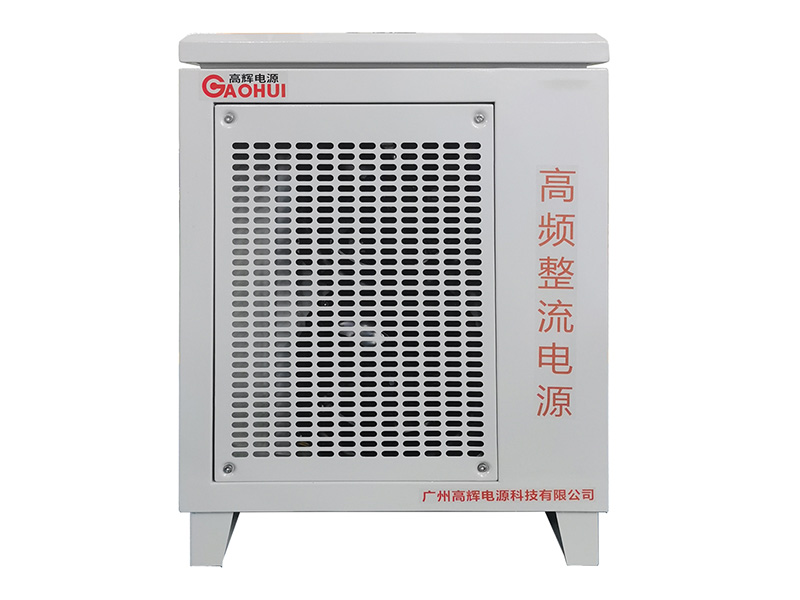

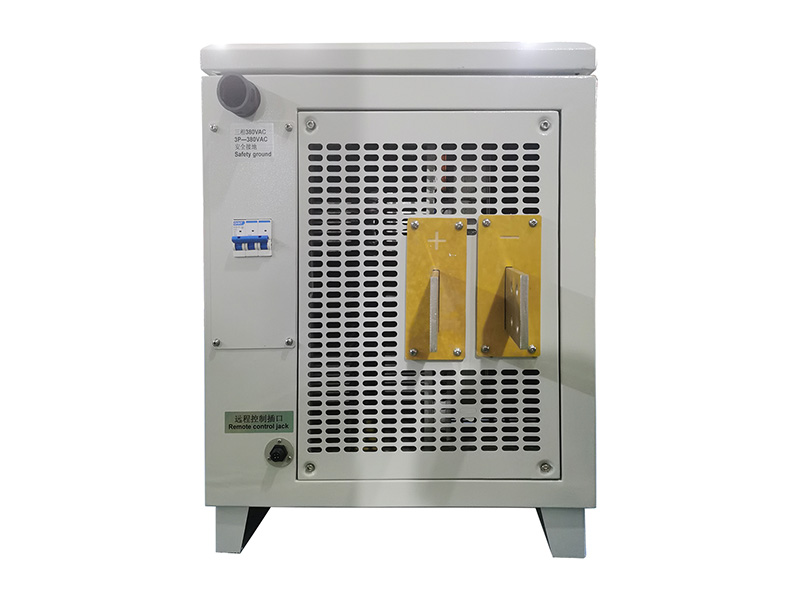

Built for high‑quality metal surface finishing, the High‑Current Electrolytic Finishing Rectifier supplies adjustable 1000A 24V DC power for consistent electrolytic polishing results. Furthermore, it minimises output ripple to achieve smooth, bright workpiece surfaces.
High‑Current Electrolytic Finishing Rectifier provides dedicated DC power for industrial electrolytic polishing and metal surface brightening processes. Even so, ordinary power supplies generate obvious ripple under heavy continuous high‑current load. This drawback causes uneven surface brightness, micro‑pitting and unstable finishing quality on metal parts. Electrolytic polishing requires smooth, steady current‑voltage output to precisely control metal dissolution and surface gloss. Therefore, a specialised High‑Current Electrolytic Finishing Rectifier is essential to obtain repeatable, high‑grade finishing outcomes.
This High‑Current Electrolytic Finishing Rectifier adopts high‑frequency IGBT conversion architecture to suppress output ripple, with rated parameters of 1000A and 24V. Operators adjust current and voltage across full 0‑1000A and 0‑24V range to match different electrolyte formulas and workpiece materials. As a result, production teams run electrolytic polishing operations without frequent parameter modifications. Meanwhile, multi‑layer electronic protection defends against over‑voltage, over‑current and over‑temperature risks during extended continuous production cycles.
This High‑Current Electrolytic Finishing Rectifier features waveform optimisation specially tuned for electrolytic polishing reactions. As a result, it maintains high conversion efficiency under long‑duration heavy‑load operating conditions. Many general‑purpose power supplies lack polishing‑oriented waveform optimisation. By contrast, every unit passes strict ripple inspection and waveform calibration before leaving our factory. Manufacturers gain uniform surface gloss across large batches of finished components.
Fast‑response closed‑loop control holds current and voltage within narrow tolerance throughout polishing cycles. Accordingly, metal dissolution rate stays stable and lowers finished‑part reject rates. In addition, onboard memory stores multiple groups of custom process parameters. Operators can recall saved parameter profiles directly instead of manual reset before each production batch.
Engineers optimise internal hardware layout for real‑world electrolytic finishing production environments. It offers stable DC performance for stainless steel polishing, non‑ferrous metal brightening and electrolytic process research. This rectifier works reliably for formula testing and medium‑scale production validation.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Main Output | Rated Current | 1000A |
| Rated Voltage | 24V | |
| Output Mode | Constant Current, Constant Voltage | |
| Cooling System | Cooling Type | Water‑cooled |
| Power Input | Input Power | AC 380V Three‑phase |
| Communication | Data Interface | RS485 |
| Safety Settings | Protection Items | Over‑voltage, Over‑current, Over‑temperature, Short‑circuit Protection |
| Application Scope | Typical Use | Electrolytic polishing, metal surface brightening, electro‑finishing process research |
We can provide: The product comes with a one‑year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp‑up function for current or voltage settings. For time‑sensitive applications, you can use the timed operation mode. Moreover, the multi‑segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute‑level timing function. If you need customization, please contact us for further details.
Surface‑treatment factories, electroplating workshops and material‑science labs widely deploy this High‑Current Electrolytic Finishing Rectifier. For instance, production operators carry out electrolytic brightening for stainless steel and alloy components. They test different electrolyte recipes to adjust surface gloss and material removal efficiency.
Apart from mass workpiece finishing jobs, it acts as a dependable test platform for new electrolytic polishing‑process feasibility verification. Furthermore, it completes batches of parameter screening work. It generates credible operation records for process optimisation and laboratory research projects.
We design and manufacture professional rectifier equipment for electrolytic finishing and metal surface‑finishing scenarios. Our technicians conduct full‑load ageing testing and ripple calibration on every High‑Current Electrolytic Finishing Rectifier before shipment. It guarantees stable output performance for repeated long‑hour production cycles.
Furthermore, we support custom adjustments for output range and auxiliary functional modules. We supply professional technical after‑sales guidance and spare‑part support, and we deliver trustworthy power solutions for your electrolytic finishing projects.
Learn more about related products：1000A 12V Air-Cooled Synchronous Rectifier
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
