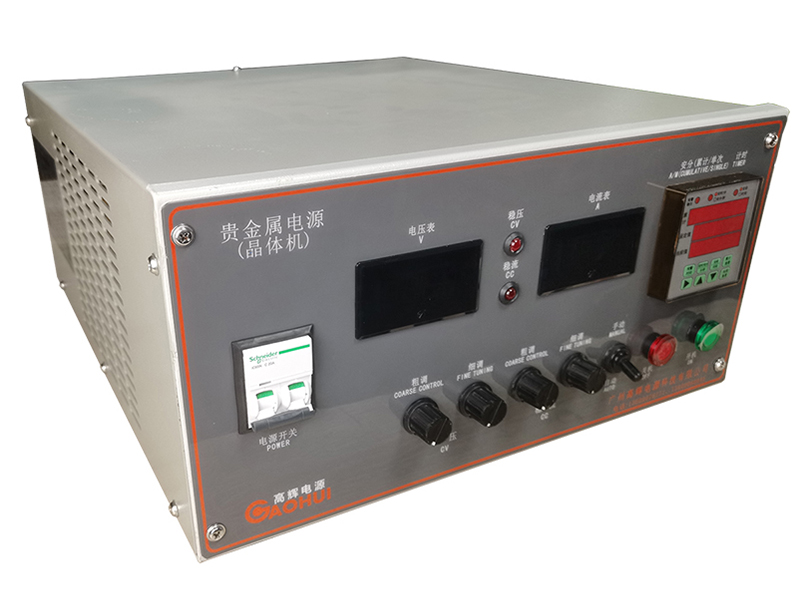

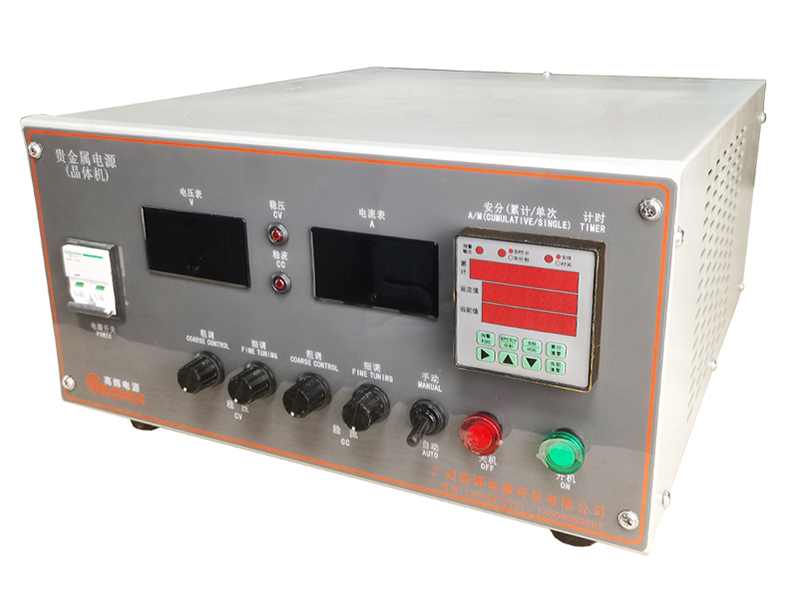

Transistor‑Type Precious‑Metal Rectifier 100A 12V for high‑value precious‑metal electroplating processes
Overview Copy: Built for high‑value metal finishing workflows, the Transistor‑Type Precious‑Metal Rectifier outputs stable adjustable 100A 12V DC. Furthermore, its transistor‑based control maintains clean waveform to cut costly precious‑metal electrolyte waste.
The Transistor‑Type Precious‑Metal Rectifier is a precision regulated power unit engineered for precious‑metal electroplating production. In particular, jewelry workshops and electronic component finishing shops require highly consistent DC output for gold and silver deposition. However, ordinary power supplies tend to generate obvious waveform ripple under continuous running cycles. Meanwhile, many high‑current rectifiers lack fine‑grained current tuning for expensive plating baths. Even minor output fluctuation can trigger uneven coating thickness and raise scrap rates of high‑value workpieces. For this reason, the Transistor‑Type Precious‑Metal Rectifier serves as a reliable power solution for precious‑metal finishing jobs.
This Transistor‑Type Precious‑Metal Rectifier supports smooth stepless adjustment ranging from 0‑100A and 0‑12V. In addition, it perfectly matches typical bath parameters for gold, silver and other noble‑metal plating recipes. It adopts mature transistor‑type control architecture. As a result, it achieves superior waveform performance for sensitive precious‑metal deposition processes. Optimized circuit design keeps output ripple at a low level. Moreover, this stable waveform helps form uniform, dense metal layers on different substrate surfaces. Real‑time closed‑loop regulation stabilizes output against load changes. Besides, comprehensive multi‑layer protection defends hardware against over‑current, over‑voltage and short‑circuit risks caused by mis‑operation.
Most standard plating rectifiers prioritize heavy‑duty base‑metal production. In contrast, this Transistor‑Type Precious‑Metal Rectifier gets waveform fine‑tuned for high‑value metal deposition. It maintains stable conversion efficiency under intermittent and semi‑continuous operating cycles. In fact, these represent typical working patterns for jewelry and component precious‑metal plating. Every unit passes full‑load ageing and ripple testing before shipment. Accordingly, operators gain repeatable plating quality across different production batches.
Dynamic closed‑loop feedback compensates small output deviations brought by bath temperature shifts or changing workpiece surface‑area. As a result, metal deposition speed stays predictable and reject rates drop significantly. Multiple groups of plating process parameters can be stored locally. Furthermore, technicians can quickly recall saved profiles to shorten formula debugging cycles.

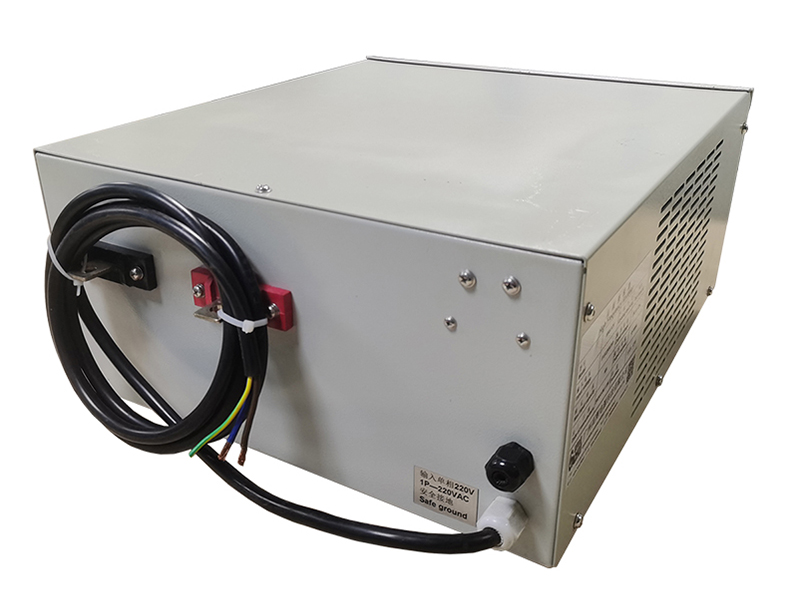

Its solid compact cabinet fits workshop benches and finishing‑station layouts. The transistor‑type power architecture delivers steady performance without excessive heat generation. For these reasons, this Transistor‑Type Precious‑Metal Rectifier fits both small‑batch production and precious‑metal plating process R&D.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Rated Output | Rated Current | 100A |
| Rated Voltage | 12V | |
| Working Mode | Operation Type | Constant Current / Constant Voltage |
| Power Architecture | Power Structure | Transistor‑type |

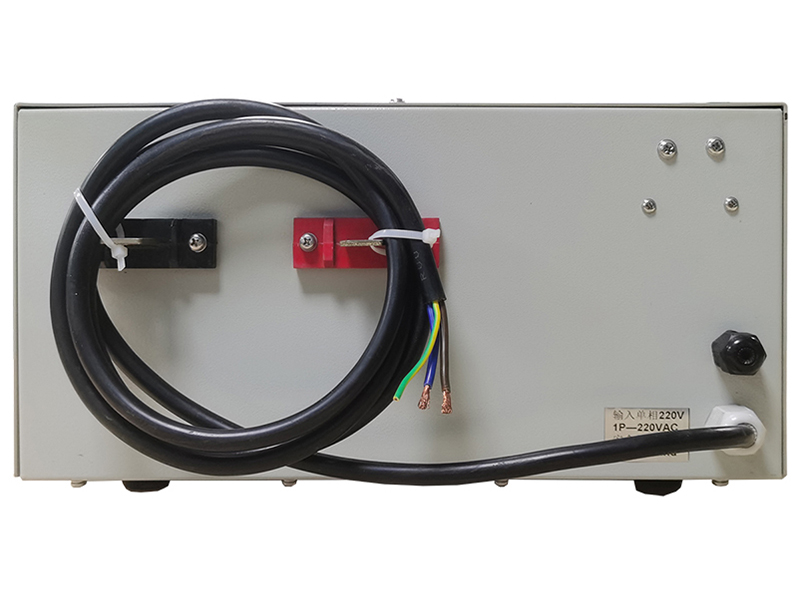

| Input Power | Input Voltage | AC 220V Single‑phase |
| Communication Interface | Data Port | RS485 |
| Safety Protection | Protection Functions | Over‑current, Over‑voltage, Over‑temperature, Short‑circuit Protection |
| Applicable Scenarios | Main Applications | Gold & silver electroplating, jewelry finishing, electronic precious‑metal coating, plating‑formula lab testing |
We can provide: The product comes with a one‑year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp‑up function for current or voltage settings. For time‑sensitive applications, you can use the timed operation mode. Moreover, the multi‑segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute‑level timing function. If you need customization, please contact us for further details.
This Transistor‑Type Precious‑Metal Rectifier sees wide deployment in jewelry manufacturing workshops, electronics surface‑treatment departments and material‑research laboratories. Production teams apply it for gold plating, silver plating and other noble‑metal coating tasks. In addition, it supports trial validation for newly‑developed precious‑metal plating formulas.
It performs reliably for semi‑continuous small‑batch production as well as laboratory process exploration. Meanwhile, its precise adjustable DC output helps operators stabilise coating quality. Thus, facilities can cut raw‑material losses and accelerate process optimization.
We develop precision power supplies focused on demanding precious‑metal finishing workflows. Unlike general‑purpose electroplating rectifiers, our Transistor‑Type Precious‑Metal Rectifier is fully calibrated for high‑value metal deposition requirements.
Each unit completes waveform calibration and full‑load ageing before dispatch. In addition, custom adjustments for output ratings and auxiliary features are available upon request. Supported by process‑oriented technical guidance and complete after‑sales service, we supply dependable power hardware for your precious‑metal plating projects.
