Built to handle continuous heavy-load electrochemical operations, the Heavy-Duty Water-Cooled Synchronous Rectifier delivers adjustable 4000A 12V low-loss DC power. Meanwhile, robust water cooling dissipates massive heat during non-stop full-load operation.
The Heavy-Duty Water-Cooled Synchronous Rectifier supplies efficient DC power built for large tank electroplating, metal electrowinning and heavy-duty metal surface treatment. Unlike conventional diode rectifier units, this synchronous design cuts conduction losses and slows thermal degradation under continuous peak-current operation. For example, it can maintain stable performance when workpiece batches or bath ion concentrations keep changing. Many air-cooled power supplies cannot dissipate heat fast enough under such extreme high-current conditions. As a result, they will trigger thermal shutdown and cannot support round-the-clock industrial manufacturing. Unnecessary power loss increases electricity cost and accelerates aging of internal components. These issues raise ongoing operation expenses and shorten the total service life of the machine.
The Synchronous Rectifier supports full stepless adjustment ranging from 0‑4000A and 0‑12V. It fits power requirements for oversized plating tanks, metal electrowinning and other low-voltage ultra-high-current electrochemical workflows. In addition, its high-efficiency water-cooled thermal system removes heat steadily during extended full-load cycles. It maintains ideal operating temperature even under continuous peak-current running. Its closed-loop synchronous control holds precise DC output despite variable load changes. It reduces power consumption and stabilizes bath working status. Furthermore, multi-layer safety safeguards protect internal hardware against overload, over-temperature and unexpected short-circuit events throughout long production shifts.
‑ Offers adjustable 4000A 12V low-loss DC output, engineered for heavy-duty large tank electroplating and metal electrowinning processes ‑ Adopts advanced synchronous circuit topology. It greatly reduces conduction heat loss and saves energy during long-term full-load operation
‑ Equipped with heavy-duty water-cooled heat dissipation. It removes large volumes of heat efficiently and supports 24-hour non-stop ultra-high-current production
‑ Supports CC and CV dual operation modes. Operators switch modes flexibly for pre-treatment, metal deposition and post-processing production stages
‑ Built with complete industrial-grade multi-protection system. It withstands sudden current surges and maximizes uptime for continuous heavy-duty production lines
‑ Fitted with standard RS485 communication port. Operators track real-time process data and store historical logs to optimize electrochemical production parameters
In fact, many high-current industrial rectifiers adopt traditional diode circuit designs. They generate excessive heat and waste more energy during continuous heavy-load operation. Even so, the Synchronous Rectifier works perfectly for large metal finishing factories and metal recovery plants. Many industrial facilities run non-stop production with changing load conditions, and this unit adapts well to these real working scenarios. Our testing team carries out full-load and thermal stress testing for every unit before delivery. Therefore, each unit maintains stable energy-saving performance across repeated production batches.
Our closed-loop regulation system reacts rapidly to minor output deviations. Changing workpiece loads and cooling water inlet temperature create these small fluctuations. It keeps highly accurate current and voltage output under diverse working states. As a result, you cut energy waste and reduce long-term operating costs. The unit can store multiple groups of production process parameters. Operators pull up verified process recipes quickly. This action shortens equipment setup cycles and improves overall workshop productivity.

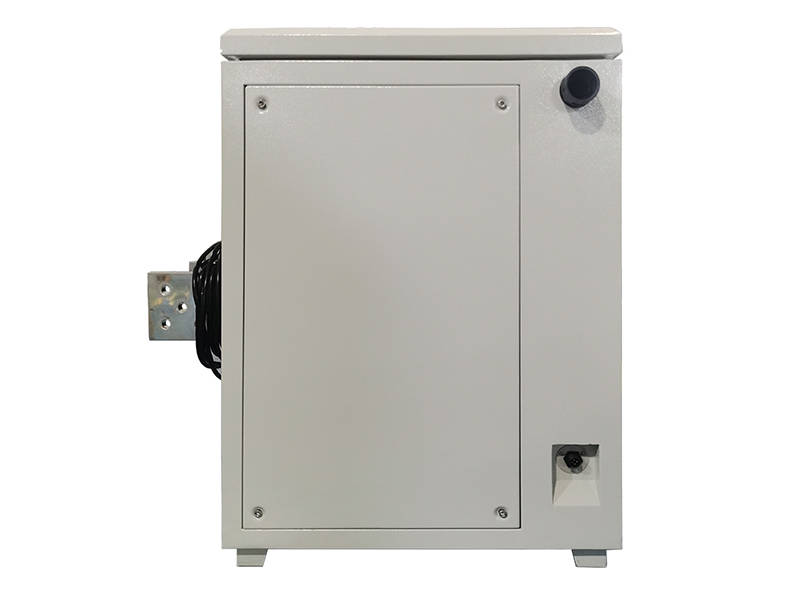

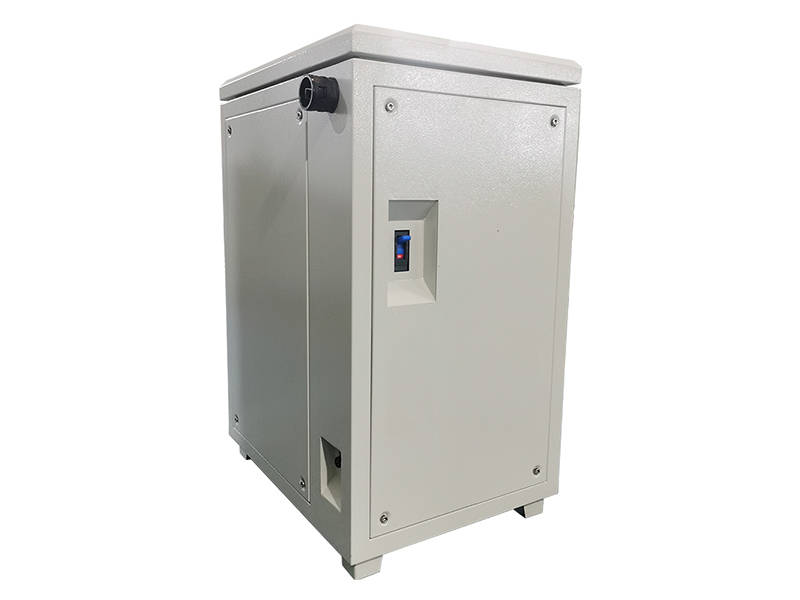

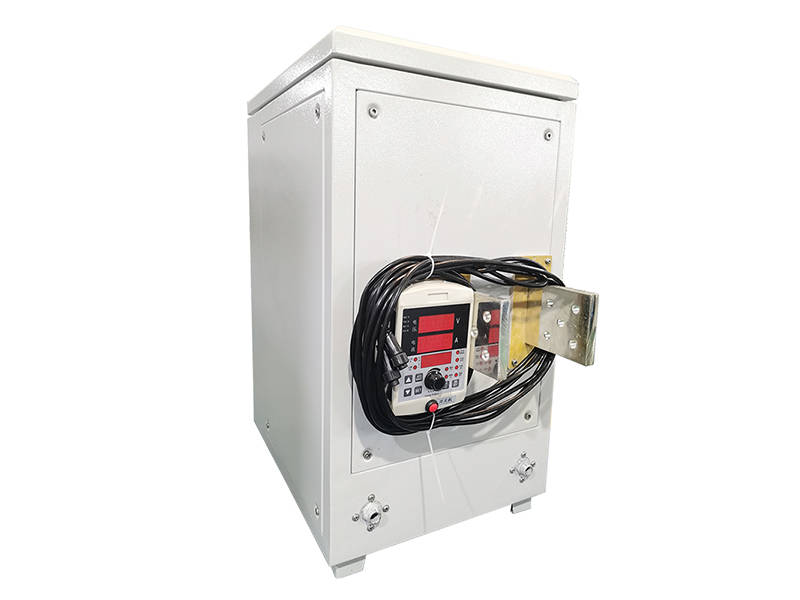

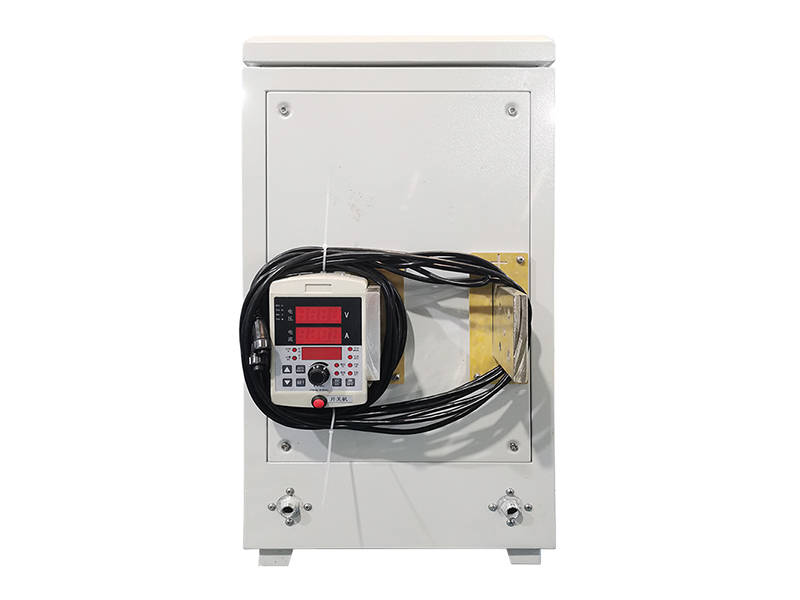

The reinforced integrated cabinet reserves dedicated ports for water pipeline installation. It suits fixed-installation mass-production workshop environments. You only need to arrange standard water inlet and outlet pipelines for regular operation. It effectively lowers hardware failure risks caused by overheating. Meanwhile, it operates reliably for long hours inside humid, corrosive industrial workshop surroundings.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Rated Output | Rated Current | 4000A |
| Rated Output | Rated Voltage | 0‑12V |
| Working Mode | Operation Type | Constant Current / Constant Voltage |
| Cooling System | Cooling Method | High‑efficiency Water‑Cooled |
| Input Power | Input Voltage | Three‑phase AC Customized |
| Communication Interface | Data Port | RS485 |
| Safety Protection | Protection Functions | Over‑current, Over‑voltage, Over‑temperature, Short‑circuit, Surge Protection |
| Applicable Scenarios | Main Applications | Large-tank heavy-current electroplating, metal electrowinning, industrial metal recovery, low-voltage high-current electrochemical processing |
Further, we back this rectifier with a 1‑year warranty and design it for over 10 years of service life. It supports constant-current and constant-voltage modes. It also provides programmable current and voltage ramp-up to suit different industrial startup workflows. Notably, multi-segment parameter settings enable flexible process configuration. Its built-in RS485 port allows staff to view live data and connect with other workshop equipment. We supply optional custom function upgrades. These options satisfy special heavy-current electrochemical process requirements. Reach out to us for tailored custom solutions.
The Heavy-Duty Water-Cooled Synchronous Rectifier serves large-scale metal finishing plants, metal recycling manufacturers and high-volume electrochemical workshops. Operators deploy it for large-tank heavy-current electroplating and metal electrowinning on various metal substrates. It also supports process testing for newly developed electrochemistry bath formulas.
Moreover, the machine runs reliably through long-duration batch cycles and round-the-clock production runs. Its low-loss synchronous DC output cuts energy waste and stabilizes production working conditions. For instance, it reduces power operating costs and speeds up process iteration for custom heavy-duty industrial projects.
We develop custom power-supply solutions for ultra heavy-current electrochemical scenarios. In contrast to ordinary diode-based rectifiers, the Heavy-Duty Water-Cooled Synchronous Rectifier receives specialized tuning for low energy loss and continuous water-cooled mass-production conditions. It delivers excellent operational stability and environmental adaptability.
Our technicians complete load-simulation testing and full-load ageing checks for every unit before shipment. This step guarantees dependable real-world performance during continuous heavy-current production. We accept non-standard parameter adjustments and custom-feature development. We also provide professional process guidance and complete after-sales support. In short, we deliver trustworthy power hardware for your mass-production and pilot-scale industrial projects.
Learn more about related products：50A 24V Air-cooled Electrolytic Rectifier
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
