Electron Commutator Rectifier Overview

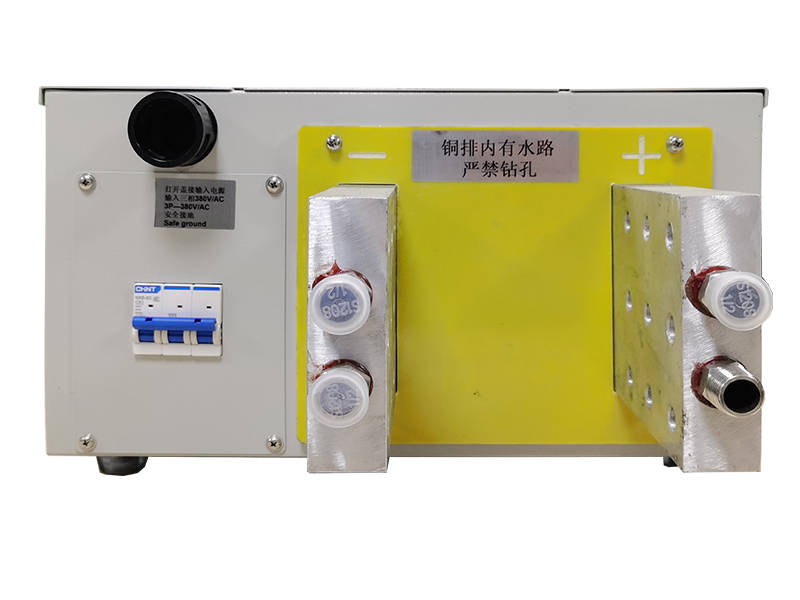

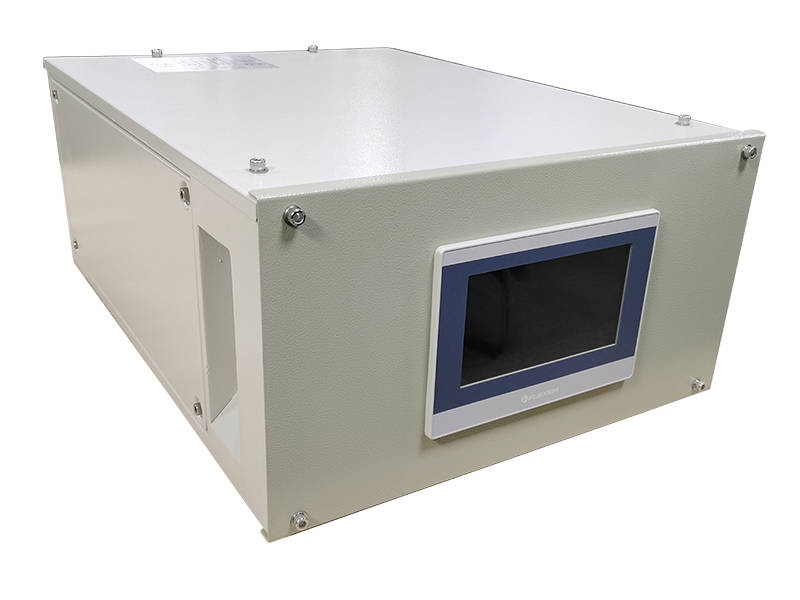

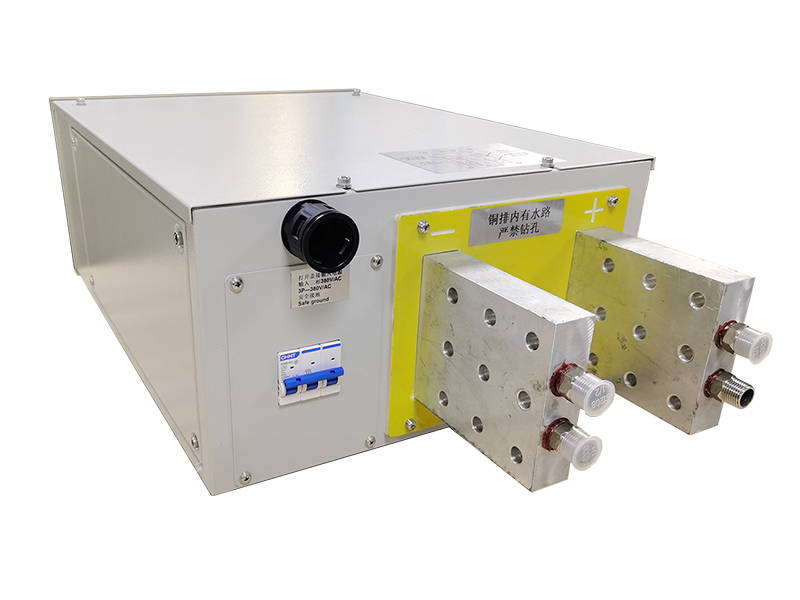

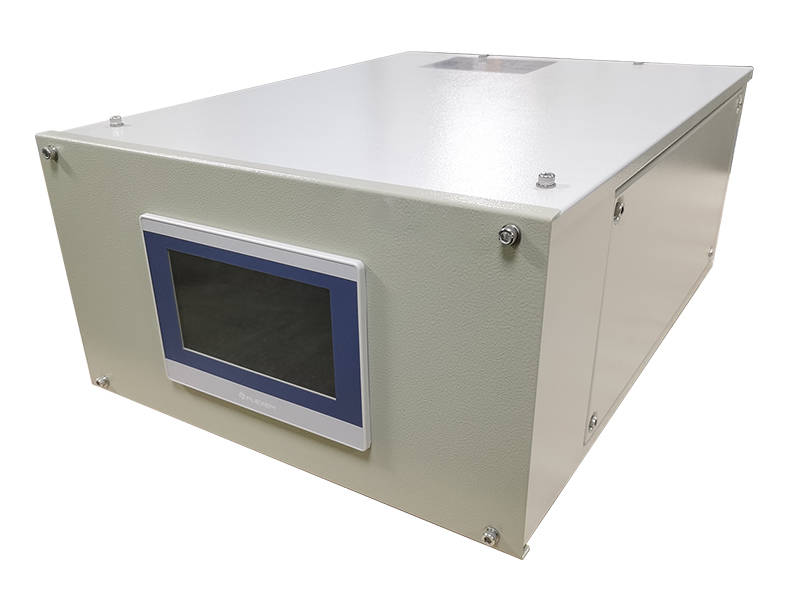

This 500A 18V water cooled electron commutator rectifier delivers precise DC power for specialized industrial applications. It utilizes advanced electron commutation technology for superior switching performance and reliability. Consequently, this rectifier ensures stable output for demanding processes requiring precise power control.

Advanced Electron Commutation Technology

This electron commutator rectifier employs sophisticated commutation circuitry for clean, efficient power conversion. Therefore, it achieves excellent performance characteristics with minimal electrical noise. Moreover, the water cooled design enables continuous operation in demanding industrial environments. Additionally, electron commutation technology provides faster response times compared to conventional designs.

Key Features

• Advanced electron commutation technology
• Fully sealed water cooling system
• Precision digital control with high accuracy
• Low ripple output for sensitive applications
• Comprehensive safety protection
• Compact industrial design

Performance Specifications

• DC Output: 18V / 500A continuous duty
• Output Control: 0-100% adjustable voltage and current
• Control Precision: ±1% for both parameters
• Ripple Factor: < 3% RMS
• Cooling System: water cooling
• Protection: Overload, overvoltage, overtemp, short circuit
• Enclosure: IP54 rated for industrial environments

Designed for Precision Applications

This electron commutator rectifier is specifically optimized for applications requiring clean, precise DC power. The advanced commutation technology ensures minimal electrical interference with sensitive equipment. Consequently, it delivers reliable performance where power quality is critical.

Industrial Applications

Specialized electroplating processes use this rectifier for precision coating requirements. Research laboratories employ it for electrochemical experiments requiring stable power. Semiconductor facilities utilize it for wafer processing applications. Medical device manufacturers apply it for precision surface finishing.

Process Control Benefits

Precise current and voltage control ensures consistent results for sensitive processes. Low ripple output prevents artifacts in precision electrodeposition. Fast response time maintains stability during dynamic load changes. These features result in higher quality output and reduced reject rates.

Reliability for Continuous Operation

Industrial grade components ensure dependable performance year after year. The water cooling system eliminates dust-related failures common with air cooled units. This electron commutator rectifier is engineered for continuous operation in demanding environments.
