This 100A 12V air-cooled jewelry plating rectifier is a core piece of equipment designed specifically for jewelers and small workshops. It utilizes an efficient air-cooling system to maintain low temperatures and quiet operation during continuous use, ensuring stability and consistency in the electroplating process.
This Jewelry Electroplating Rectifier is a professional core power source for industrial electroplating. Firstly, it converts AC power into stable DC or pulse power, solving common issues like uneven coating and poor adhesion. Moreover, as a custom-focused product, it supports flexible parameter adjustment to fit decorative, functional, and precision plating needs. Additionally, its rugged industrial design ensures stable long-term operation, suitable for all-scale electroplating workshops and easy integration into existing lines.
- Stable output for uniform, dense coatings
- High efficiency to reduce operational costs
- Fully customizable for diverse plating processes
- Comprehensive protection to avoid production interruption
- Easy to operate and maintain
Firstly, this Jewelry Electroplating Rectifier adopts advanced high-frequency IGBT technology, achieving ≥90% efficiency and minimizing energy waste. Meanwhile, its precise control ensures stable output with ≤3% ripple, improving coating quality. Furthermore, it supports DC/pulse mode switching, and customization is our core strength—we adjust parameters, cooling, and interfaces per customer needs. In addition, full protection functions and industrial-grade components ensure durability in harsh workshop environments.
| Model | Output Current (A) | Output Voltage (V) | Power (kW) | Input Current (A) | Input Voltage (V) | Weight (kg) | W×L×H (mm) |
|---|---|---|---|---|---|---|---|
| ZJ100015 | 1000 | 15 | 15 | 25 | 380 | 60 | 390×480×250 |
| ZJ200015 | 2000 | 15 | 30 | 50 | 380 | 60 | 430×480×250 |
| ZJ300015 | 3000 | 15 | 45 | 75 | 380 | 60 | 520×730×300 |
| ZJ400015 | 4000 | 15 | 60 | 100 | 380 | 100 | 570×730×300 |
| ZJ500012 | 5000 | 12 | 60 | 100 | 380 | 120 | 570×770×250 |
| ZJ600015 | 6000 | 15 | 90 | 150 | 380 | 130 | 550×880×250 |
| ZJ800015 | 8000 | 15 | 120 | 200 | 380 | 180 | 500×670×1450 |
| ZJ1000015 | 10000 | 15 | 150 | 252 | 380 | 250 | 600×800×1750 |
| ZJ1200015 | 12000 | 15 | 180 | 303 | 380 | 300 | 800×1350×1500 |
| ZJ1500018 | 15000 | 18 | 270 | 454 | 380 | 350 | 860×1450×1550 |
| ZJ1800020 | 18000 | 20 | 360 | 606 | 380 | 350 | 860×1450×1850 |
| ZJ2000015 | 20000 | 15 | 300 | 505 | 380 | 400 | 860×1450×1850 |
| ZJ2500015 | 25000 | 15 | 375 | 631 | 380 | 450 | 880×1530×2150 |
| ZJ3000015 | 30000 | 15 | 450 | 757 | 380 | 350 | 880×1530×2540 |
| ZJ8000015 | 80000 | 15 | 1200 | 2020 | 380 | 491 | 880×1530×2540 |
| ZJ1000001 | 100000 | 15 | 1500 | 2525 | 380 | 650 | 880×1530×2650 |
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.

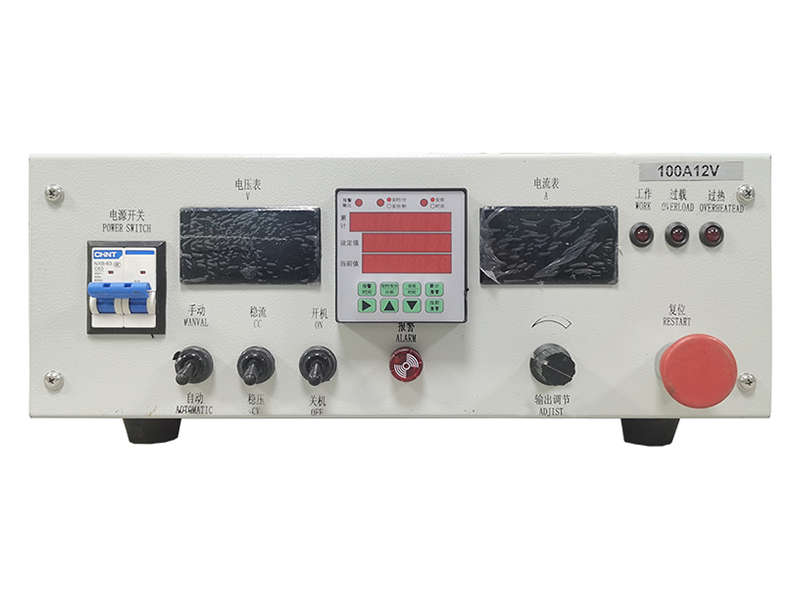

1. Power Switch
Main power control switch for the whole power supply.
2. Voltmeter (V)
Shows real-time output voltage.
3. Manual / Auto Switch
Switches between manual and automatic operation mode.
4. CC / CV Switch
Switches between constant current (CC) and constant voltage (CV) modes.
5. ON / OFF Switch
Controls the power supply output start and stop.
6. Digital Control Panel
Used for setting parameters and displaying working data.
7. Alarm (ALARM)
Audible and visual alert for faults, overload or overheat.
8. Adjust Knob
Adjusts the output voltage or current level.
9. Restart Button
Resets faults and restarts the system.
10. Work Indicator
Lights when the power supply is operating normally.
11. Overload Indicator
Lights when output current exceeds the rated limit.
12. Overheat Indicator
Lights when internal temperature exceeds the safety threshold.
13. Rated Specification
Rated output parameters of the power supply.
This Jewelry Electroplating Rectifier is widely used in decorative, functional, and precision electroplating for hardware, electronics, automotive, and aerospace industries. Moreover, it fits all-scale workshops and automated lines, and is suitable for special processes like electroforming and electrolytic polishing. Additionally, its customizability ensures adaptability to new technologies and laboratory R&D.
Firstly, we have rich experience in Jewelry Electroplating Rectifier R&D and focus on custom solutions. Secondly, our professional team designs exclusive products per customer needs, with strict quality tests and CE/ISO certifications. Moreover, we provide fast delivery, on-site commissioning, and comprehensive after-sales support, making us a trusted partner for electroplating enterprises.
Learn more about related products:Plating Power Supply
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
