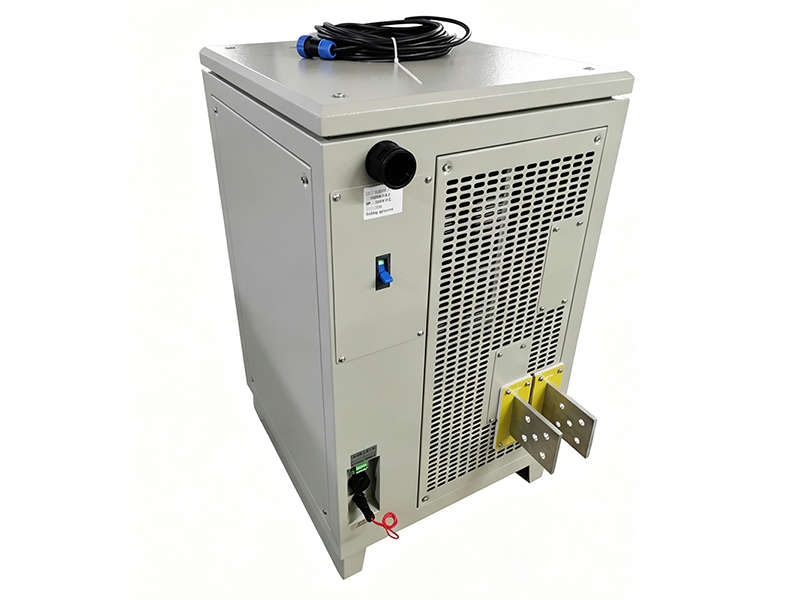

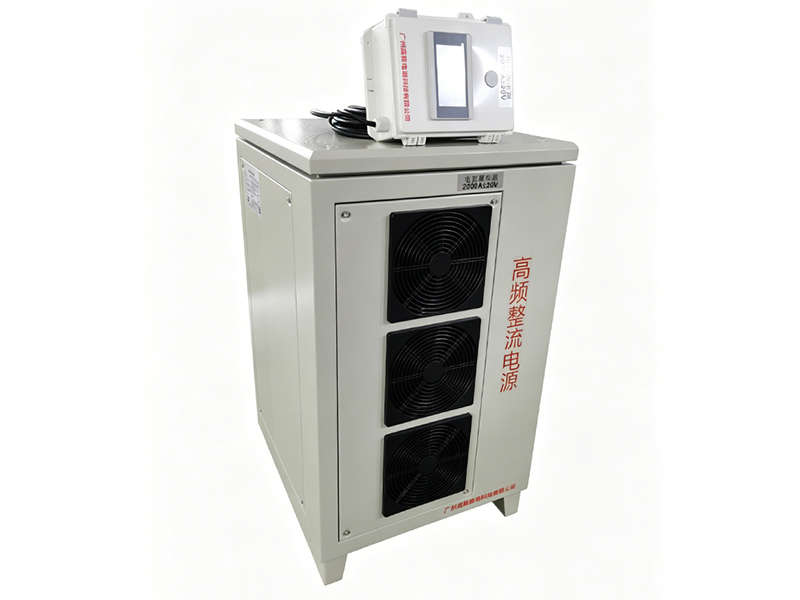

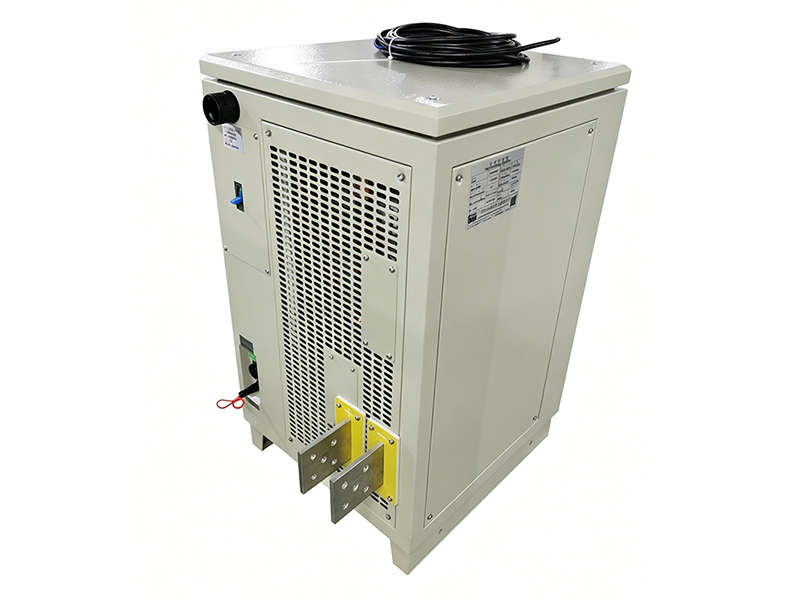

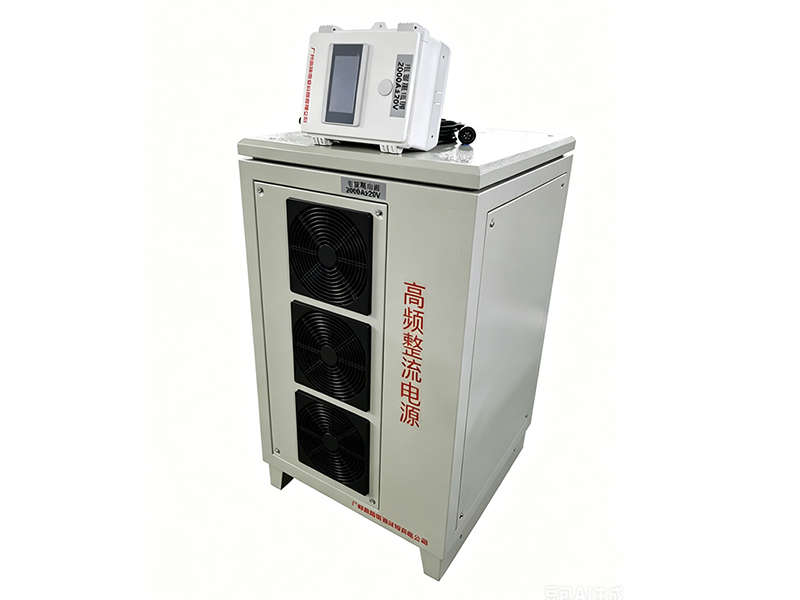

This 2000A 20V air-cooled DC power unit is dedicated to industrial electrocoagulation processes.
Electrocoagulation DC Power Unit is a heavy-duty industrial DC device with 2000A rated current and 20V rated voltage. Firstly, it adopts an efficient air-cooled structure to support long-term continuous operation. Besides, we provide full customization to satisfy diverse on-site production demands. Stable and adjustable power output maintains high processing efficiency and steady running status. Furthermore, it uses industrial-grade circuits, so the equipment can work reliably in harsh workshop environments. In addition, we tailor functions, parameters and overall structure according to actual working conditions to deliver targeted solutions.
Electrocoagulation DC Power Unit delivers reliable performance, great durability and outstanding operational stability. To begin with, it is assembled with premium electronic components to keep a low failure rate during prolonged use. Meanwhile, the optimized circuit reduces output ripple for precise power supply in electrocoagulation reactions. Moreover, reserved expansion interfaces support convenient function upgrades. Therefore, we can adjust output parameters and equipment dimensions freely as required. The high-performance air cooling system stabilizes internal temperature and extends overall service life. Lastly, it supports constant current, constant voltage, timed operation and multi-segment control to handle complex production needs.
| Parameter Item | Technical Specification |
|---|---|
| Rated Output Voltage | 0 ~ 20VDC (Adjustable) |
| Rated Output Current | 0 ~ 2000ADC (Adjustable) |
| Input Power | Three-phase AC 380V, 50/60Hz |
| Control Precision | ≤1% Full Scale |
| Protection Function | Over voltage, over current, short circuit, over temperature |
| Cooling Mode | Forced Air Cooling |
| Communication Interface | RS485 |
| Operation Mode | Constant Current, Constant Voltage, Timed Operation |
| Additional Functions | Programmable ramp-up, multi-segment control, minute-level timing |
| Custom Item | Appearance, size, function, control logic |
Power（W） = Output Voltage（V） × Output Current（A）
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It also supports both Constant Current and Constant Voltage modes, and it includes a programmable ramp-up function for current or voltage settings. For this reason, you can use the timed operation mode for time-sensitive applications. In addition, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface and a minute-level timing function. Hence, please contact us for further details if you need customization.
Electrocoagulation DC Power Unit is widely used in wastewater treatment and related industrial fields. For one thing, it works perfectly for sewage purification, pollutant removal and standard electrocoagulation projects. For another, it is also applicable to industrial wastewater treatment and related electrochemical experiments. Even if you use it for small-scale tests or large-scale continuous production, this customized unit can adapt to different loads and operation cycles. Accordingly, we can adjust relevant parameters to fit your actual production conditions.
We are a professional manufacturer focusing on customized industrial power products. First of all, our experienced R&D team completes customized design and production efficiently. Secondly, all products pass strict quality inspections to meet industrial safety standards. What’s more, we accept flexible orders and ensure timely delivery. Apart from that, we also offer complete after-sales guidance and technical support to solve operational problems in a timely manner. Customization is our core advantage, and we keep creating stable power solutions for different industries. In conclusion, our products feature long service life and consistent performance.
Learn more about related products:1300A 26V Dedicated Power Supply for Electrocatalysis
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
