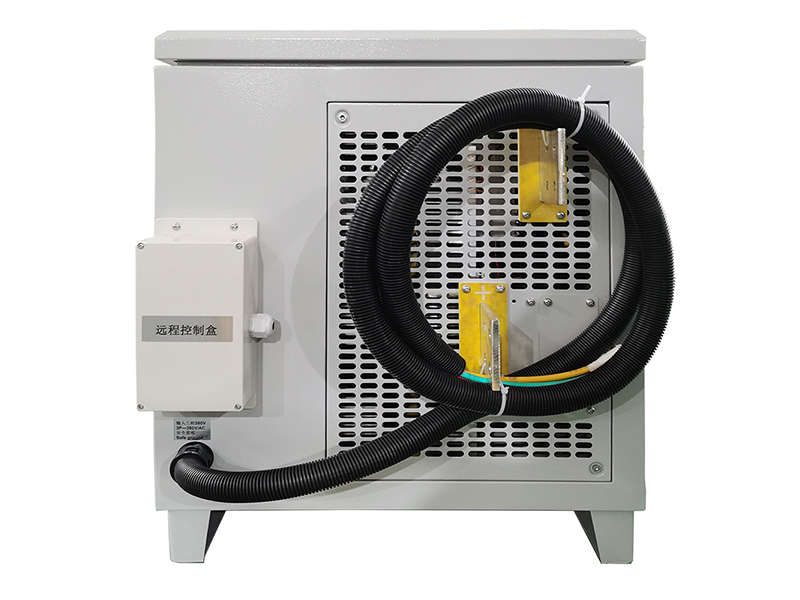

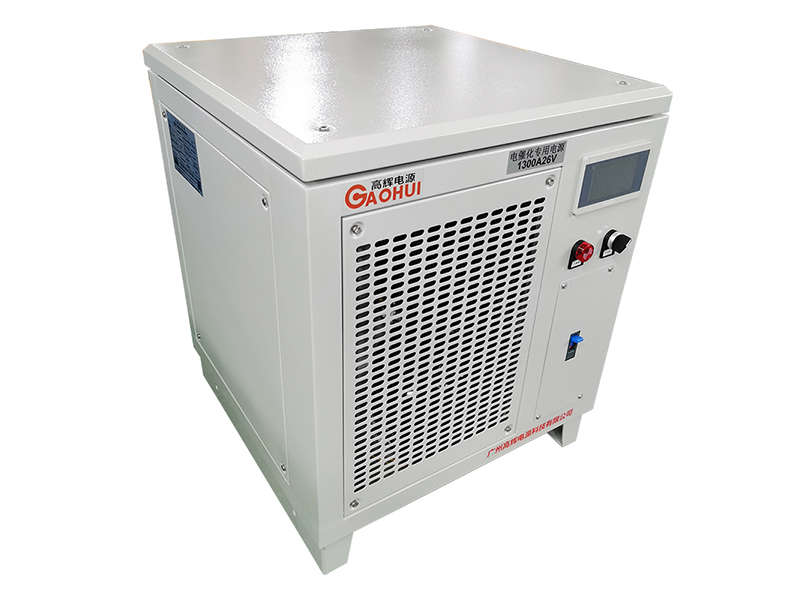

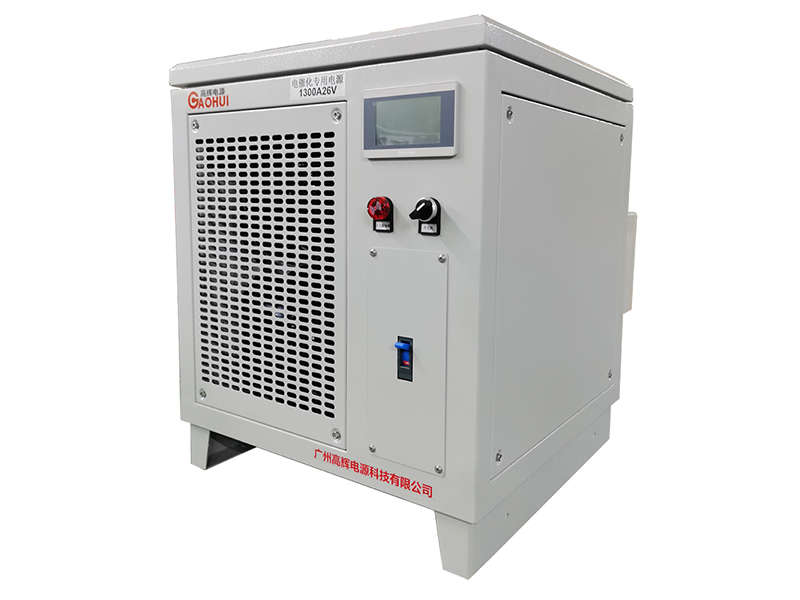

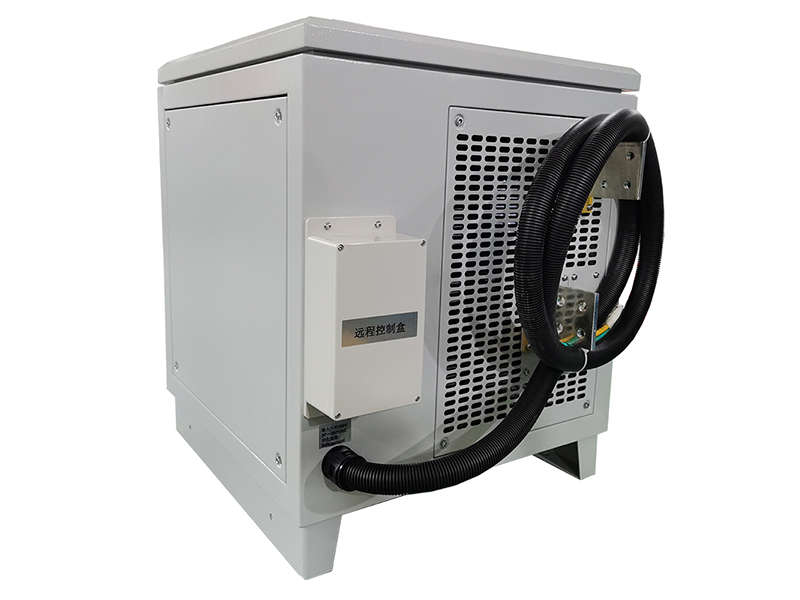

This 1300A 26V dedicated power unit is designed exclusively for industrial electrocatalysis work.
Industrial Electrocatalysis Power Unit is a professional industrial DC device rated at 1300A and 26V. Firstly, it is specially developed as a dedicated power source for all kinds of electrocatalysis applications. Besides, we provide comprehensive customization to match diverse on-site production requirements. Stable and adjustable power output keeps high reaction efficiency and steady running status. Furthermore, it adopts industrial-grade circuits, so the equipment can operate continuously under harsh working conditions. In addition, we tailor functions, parameters and overall structure according to actual scenarios to deliver targeted solutions.
Industrial Electrocatalysis Power Unit features reliable performance, excellent durability and stable operation. To begin with, it is assembled with high-quality electronic components to maintain a low failure rate during long-term operation. Meanwhile, the optimized circuit reduces output ripple to support precise power supply for electrochemical reactions. Moreover, reserved expansion interfaces allow convenient function upgrades. Therefore, we can freely adjust output parameters and equipment dimensions as requested. The well-designed structure effectively controls operating temperature and extends service life. Lastly, it supports constant current, constant voltage, timed operation and multi-segment control to handle complex production demands.
| Parameter Item | Technical Specification |
|---|---|
| Rated Output Voltage | 0 ~ 26VDC (Adjustable) |
| Rated Output Current | 0 ~ 1300ADC (Adjustable) |
| Input Power | Three-phase AC 380V, 50/60Hz |
| Control Precision | ≤1% Full Scale |
| Protection Function | Over voltage, over current, short circuit, over temperature |
| Cooling Mode | Forced Air Cooling |
| Communication Interface | RS485 |
| Operation Mode | Constant Current, Constant Voltage, Timed Operation |
| Additional Functions | Programmable ramp-up, multi-segment control, minute-level timing |
| Custom Item | Appearance, size, function, control logic |
Power（W） = Output Voltage（V） × Output Current（A）
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It also supports both Constant Current and Constant Voltage modes, and it includes a programmable ramp-up function for current or voltage settings. For this reason, you can use the timed operation mode for time-sensitive applications. In addition, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface and a minute-level timing function. Hence, please contact us for further details if you need customization.
Industrial Electrocatalysis Power Unit is widely applied in fields requiring professional electrocatalysis treatment. For one thing, it works well for wastewater treatment, organic pollutant degradation, electrochemical tests and industrial electrolysis lines. For another, it is also suitable for chemical processing and new material development projects. Even if you use it for laboratory tests or large-scale continuous production, this customized unit can adapt to different loads and operation cycles. Accordingly, we can adjust relevant parameters to fit your actual production conditions.
We are a professional manufacturer focusing on customized industrial power products. First of all, our experienced R&D team completes customized design and production efficiently. Secondly, all products pass strict quality inspections to meet industrial safety standards. What’s more, we accept flexible orders and ensure timely delivery. Apart from that, we also offer complete after-sales guidance and technical support to solve operational problems in a timely manner. Customization is our core advantage, and we keep creating stable power solutions for different industries. In conclusion, our products feature long service life and consistent performance.
Learn more about related products:500A 30V Air-Cooled Automatic Periodic Polarity Reversal Electrocatalytic Rectifier
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
