Total Output: 18V / 18000A DC
Configuration: 4 units N+1 parallel
Individual Unit: 18V / 4500A each
Redundancy: Full output with any 3 units
Cooling: Water cooled per unit
Technology: High frequency rectification
Control: Master-slave digital
Applications: Continuous galvanizing, steel coil coating

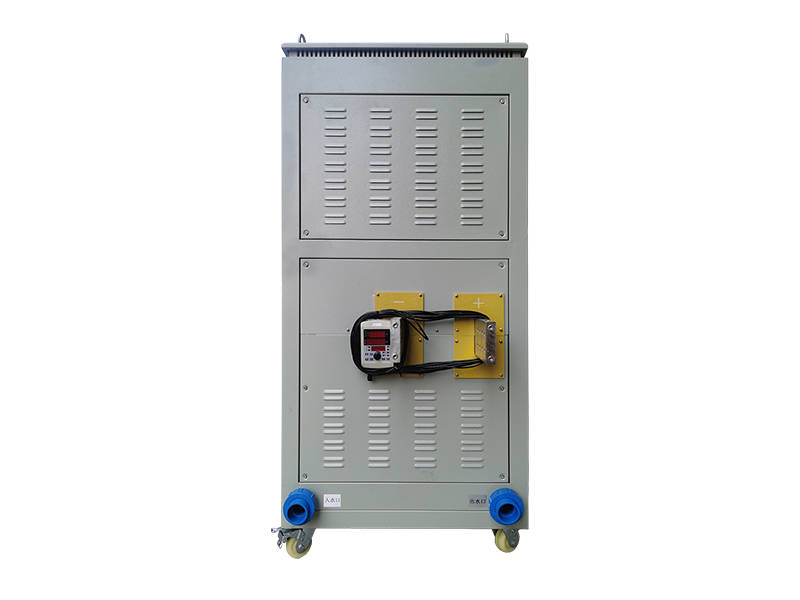

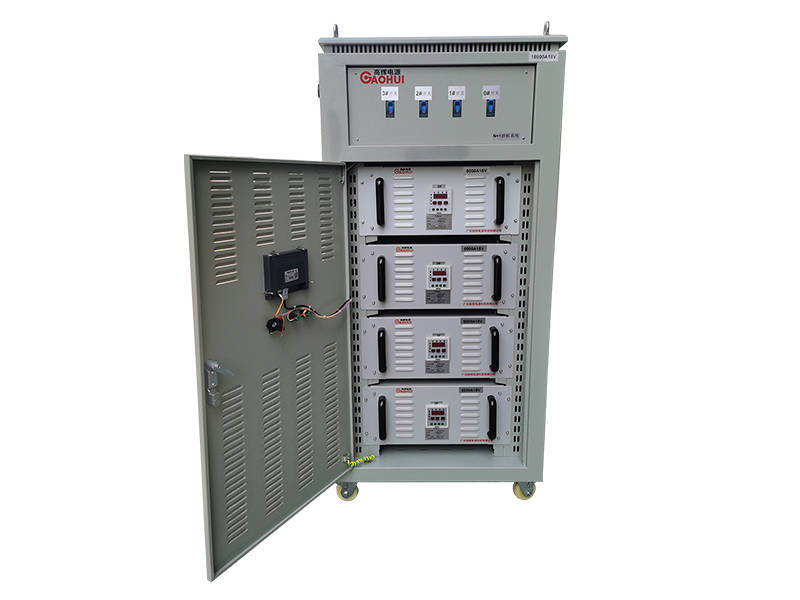

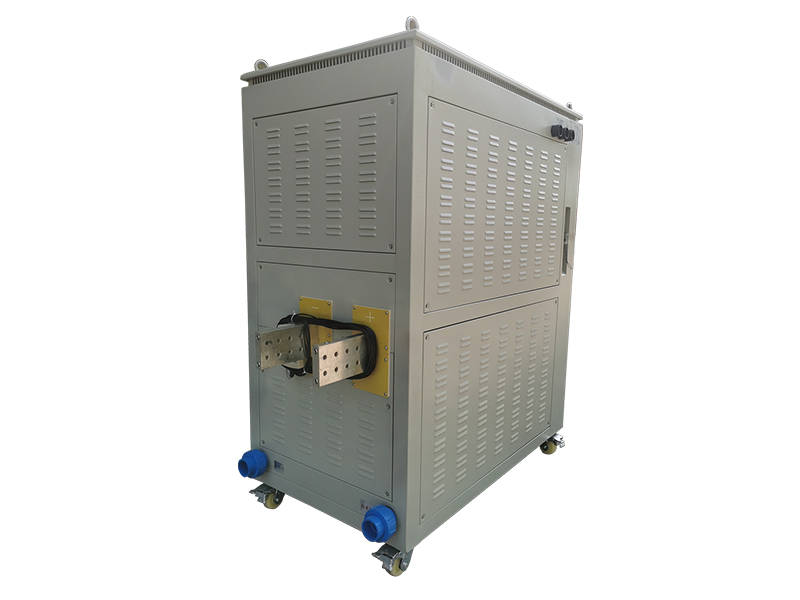

This 18000A 18V water cooled continuous galvanizing rectifier system features four units configured for N+1 parallel operation. It is specifically engineered for non-stop steel coil galvanizing lines requiring maximum uptime and consistent zinc coating quality. Consequently, this redundant power supply ensures uninterrupted production even if one unit requires maintenance.
This continuous galvanizing rectifier system utilizes advanced parallel operation technology with true N+1 redundancy. Therefore, if any single unit goes offline, the remaining three units continue delivering full 18000A output. Moreover, the master-slave control architecture ensures perfect load sharing between all four units. Additionally, hot-swap capability allows unit replacement without production shutdown.
This continuous galvanizing rectifier system is specifically optimized for steel coil galvanizing facilities where production stoppages are unacceptable. The N+1 redundant architecture ensures continuous operation during unit maintenance or unexpected failures. Consequently, galvanizing lines achieve 99.9% power availability for their electrolytic cleaning and coating cells.
Steel coil galvanizing lines use this system for continuous hot dip and electrogalvanizing processes. Automotive steel suppliers employ it for corrosion-resistant coating of body panels. Construction material manufacturers utilize it for galvanized structural components. Appliance producers apply it for coated steel sheets. Infrastructure projects use galvanized steel from these lines.
The N+1 configuration eliminates single points of failure in the power delivery system. Therefore, scheduled maintenance no longer requires production shutdowns. Unscheduled unit failures do not impact coating line output. This architecture dramatically improves overall equipment effectiveness and reduces operational risk for continuous processes.
Precise current control across all four units ensures consistent zinc coating weight across the full coil width. Low ripple output promotes uniform deposit structure and adhesion. Fast response time maintains stability during strip speed changes and coil transitions. These features result in higher quality galvanized steel and reduced zinc consumption.
Each unit features closed-loop water cooling for reliable 24/7 operation at maximum output. The cooling system maintains optimal temperatures during extended production runs. Consequently, component life is extended and maintenance requirements are minimized. The water cooled design also allows compact unit footprint.
Each unit achieves over 94% efficiency, and the parallel architecture maintains high efficiency across the operating range. Consequently, total energy costs are minimized for this energy-intensive process. Reduced heat generation also lowers facility cooling requirements.
Individual units feature industrial grade components for long service life in demanding environments. The modular design allows easy replacement and maintenance. Hot-swap capability means units can be exchanged while production continues. Spare units can be kept on hand for immediate deployment.
The master controller manages all four units for seamless parallel operation. Digital communication between units ensures perfect load sharing. System-level monitoring provides complete visibility of all parameters. Remote diagnostics allow proactive maintenance planning for continuous lines
