High Stability Power for Anodizing & Micro-Arc Oxidation Process

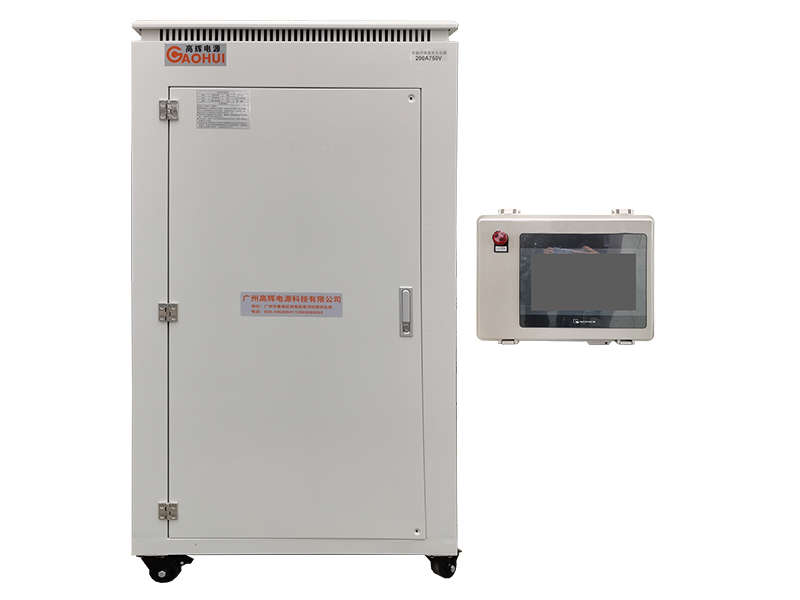

Introduction to Anodizing Rectifier

Anodizing Rectifier is a high-stability industrial device for metal oxidation treatment. Firstly, it provides accurate DC and pulse output for standard anodizing, hard anodizing and micro-arc oxidation. In addition, it creates uniform, high-hardness oxide films for aluminum, magnesium and titanium alloys. Furthermore, it adapts to both laboratory research and large-scale industrial production lines for consistent finishing quality.

Compared with ordinary industrial equipment, the GAOHUI Anodizing Rectifier adopts advanced IGBT PWM technology. Specifically, it supports full parameter customization for different alloy materials and process standards. As a result, it effectively reduces surface defects and improves finished product stability for long-term batch production.

Core Functions of Anodizing Rectifier in Oxidation Treatment

Anodizing Rectifier serves as the core power control unit for oxidation processes. Therefore, its stability and precision directly determine coating quality and production efficiency. In particular, every functional design targets modern industrial surface treatment requirements for higher qualification rates.

The Anodizing Rectifier supports DC, single pulse and dual pulse output modes. For this reason, it flexibly matches decorative anodizing, hard anodizing and micro-arc oxidation scenarios. Meanwhile, users can store multiple process recipes for quick mode switching during production.

It features adjustable frequency and duty cycle for ultra-fine power tuning. As such, the equipment maintains stable current and voltage output. In turn, it guarantees uniform oxide film thickness and smooth surface texture for all metal workpieces.

Equipped with multi-dimensional safety protection, the Anodizing Rectifier prevents overcurrent, overvoltage and overheating faults. Consequently, it avoids unexpected shutdowns and workpiece damage. Ultimately, these reliable protections extend the equipment’s overall service life.

Anodizing Rectifier Technical Specifications

GAOHUI Anodizing Rectifier supports full personalized customization for diverse oxidation scenarios. Notably, all core parameters can be adjusted to meet unique production demands. Hence, it requires no major modification to existing production lines.

Parameter	Specification
Model	Customized per customer requirements
Circuit Type	IGBT/PWM
Input Voltage	3-Phase AC380V ±10% (other voltages customizable)
Input Frequency	50Hz/60Hz (other frequencies customizable)
Output Voltage	DC 0-3000V (customizable)
Output Current	0-100000A (customizable)
Output Accuracy	≤1% (current & voltage stability)
Output Display	Digital voltage/current meter (split display optional)
Adjustment Range	0 to max current/voltage
Output Waveform	DC square wave (frequency customizable)
Efficiency	≥95% (overall machine)
Communication Interface	Standard RS485, 4-20mA optional
Insulation Resistance	≥5MΩ (input-output, input-case, output-case)
Insulation Strength	AC1500V (input-output), AC1000V (input-case)
Operating Temperature	-15℃ to 40℃
Storage Temperature	-20℃ to 50℃
Protection Class	IP20
Insulation Class	Class B

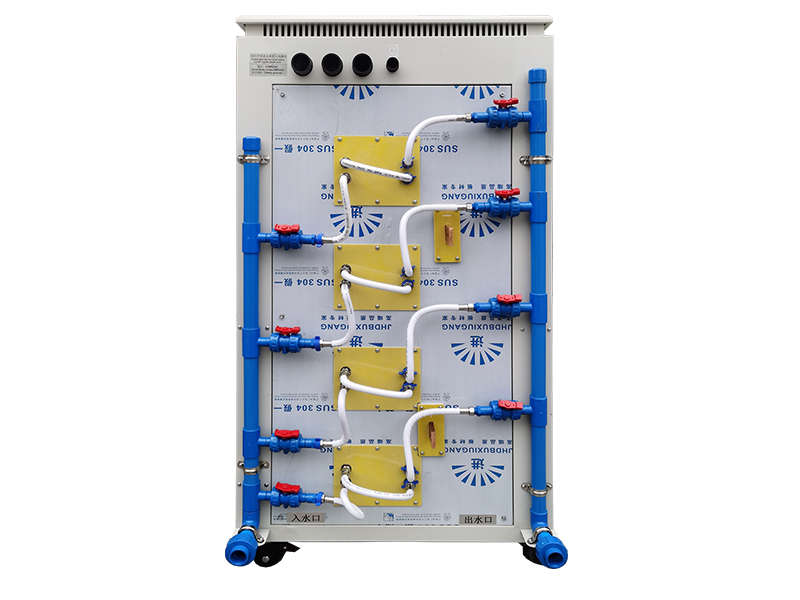

Cooling Method	Water-cooled / Air-cooled
Operation Status	Long-term continuous operation
Protection Functions	Phase loss, overheat, overcurrent, short circuit, undervoltage, overvoltage

Available Standard Models (Customizable)

Anodizing Power Supply Model Selection (Any model can be customized)
General Anodizing Power Supply （Below 30V, with timer control head, for conventional anodizing）
Model	Output Current (A)	Output Voltage (V)	Power (KW)	Input Current (A)	Input Voltage (V)	Weight (KG)	W×L×H (mm)
YH200018	2000	18	36	60	380	50	400×500×630
YH300018	3000	18	54	90	380	70	400×500×630
YH300020	3000	20	60	100	380	100	500×620×1150
YH300024	3000	24	72	120	380	120	500×620×1150
YH400018	4000	18	72	120	380	120	500×620×1150
YH400020	4000	20	80	133	380	120	500×620×1150
YH400024	4000	24	96	160	380	120	500×620×1150

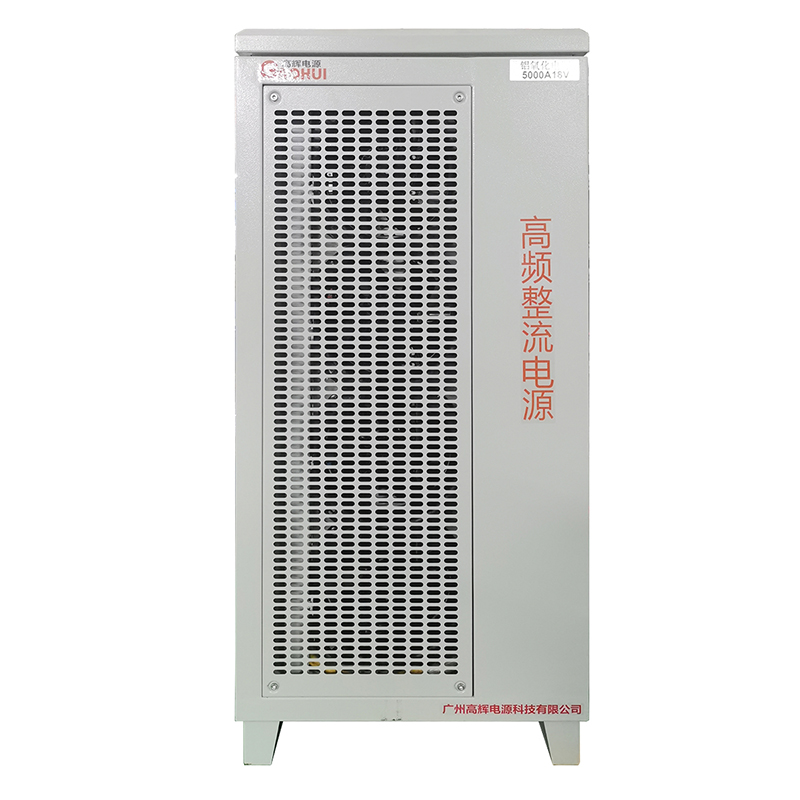

YH500018	5000	18	90	150	380	120	500×620×1150
YH500020	5000	20	100	167	380	120	500×620×1150
YH500024	5000	24	120	200	380	130	500×620×1150
YH600018	6000	18	108	180	380	130	500×620×1150
YH600020	6000	20	120	200	380	130	500×620×1150
YH600024	6000	24	144	240	380	180	500×620×1150
YH800018	8000	18	144	240	380	180	500×670×1450
Advanced Anodizing Power Supply （Above 30V, touch screen PLC control, for hard anodizing）
Model	Output Current (A)	Output Voltage (V)	Power (KW)	Input Current (A)	Input Voltage (V)	Weight (KG)	W×L×H (mm)
YY200040	2000	40	80	133	380	135	600×750×1300
YY200060	2000	60	120	200	380	150	600×750×1300
YY200080	2000	80	160	267	380	180	600×750×1300
YY300040	3000	40	120	200	380	200	600×750×1300
YY400050	4000	50	200	333	380	250	600×750×1300
YY400050	4000	60	240	400	380	250	800×1150×1300
YY500050	5000	50	250	417	380	300	800×1150×1300
YY500060	5000	60	300	500	380	300	800×1150×1300
YY600060	6000	60	360	600	380	300	800×1150×1300
YY600080	6000	80	480	800	380	300	800×1150×1300
YY5050	50	150	7.5	13	380	40	420×500×320

Power（KW） = Output Voltage（V） × Output Current（A）

We can provide:

The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.

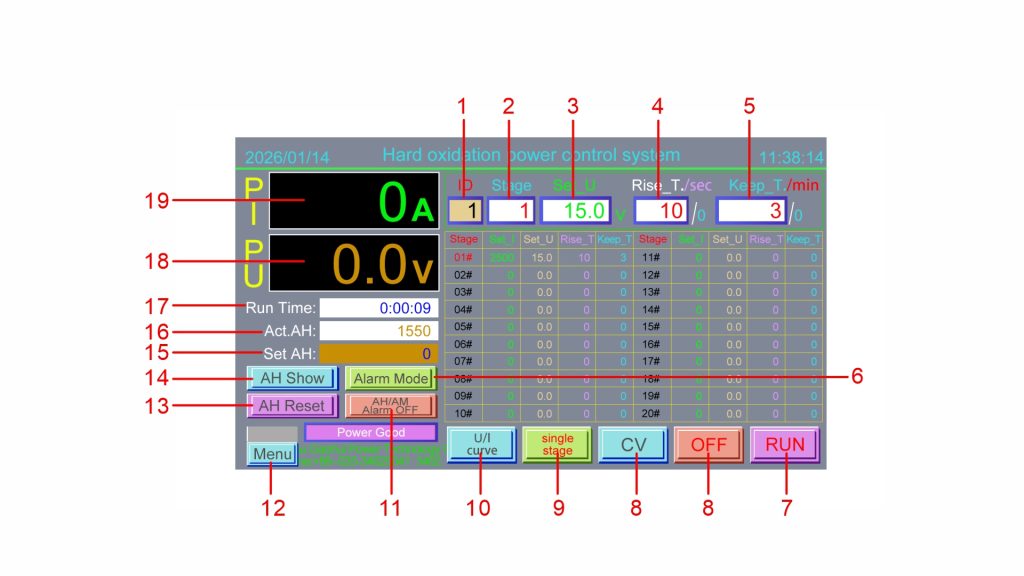

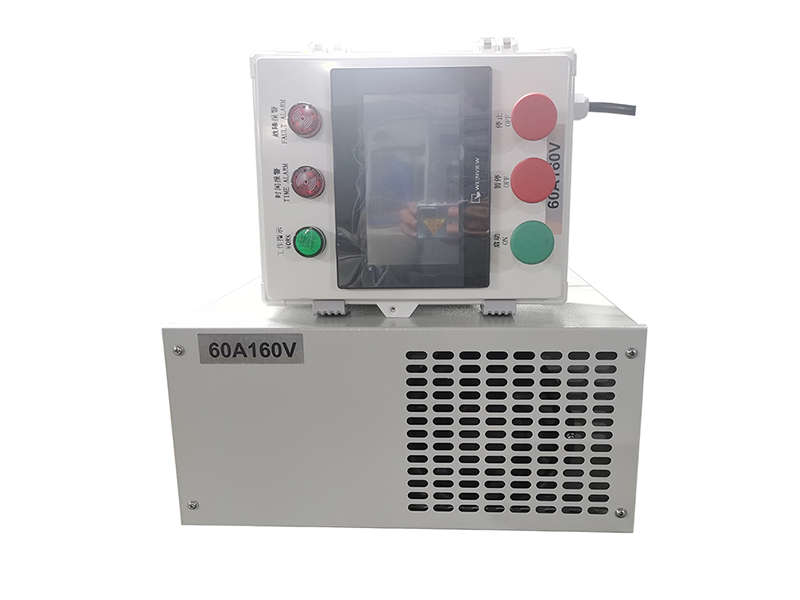

Hard Anodizing Rectifier — Touchscreen Control Unit

1.  ID

    Process/program number, used to select or switch between different stored recipes.

2.  Stage

    The current step number in a multi-step ladder process (supports up to 20 stages).

3.  Set_U

    Target set voltage value (DC 0–160V adjustable).

4.  Rise_T./sec

    Rise time (soft start time) in seconds, adjustable from 0–999 seconds.

5.  Keep_T./min

    Hold time in minutes/seconds, adjustable from 1–9999 seconds/minutes.

6.  Stage List (Set_I / Set_U / Rise_T / Keep_T)

    Parameter table for multi-step processes, supporting up to 20 stages. Each stage can be independently configured with target current, target voltage, ramp-up time, and hold time.

7.  RUN

    Start button to begin power output according to the selected process.

8.  OFF / CV

    - `OFF`: Stop button to halt power output.

    - `CV`: Constant Voltage mode for steady output voltage control.

9.  single stage

    Single-step mode, runs only the selected stage without multi-step cycling.

10. U/I curve

    Voltage/Current curve mode, controls the process primarily by current profile.

11. Power Good

    Power supply ready indicator, lights green when the unit is healthy and ready to start.

12. Menu

    Main menu button to access system settings, parameter configuration, fault logs, and stored recipes.

13. AH Reset

    Amp-hour reset button to clear the accumulated Act.AH value.

14. AH Show / Alarm Mode

    - `AH Show`: Amp-hour display toggle.

    - `Alarm Mode`: Configuration for fault response and alarm behavior.

15. Set AH

    Target amp-hour value for charge-based automatic stop control.

16. Act.AH

    Actual accumulated amp-hours (total charge consumed during the process).

17. Run Time

    Elapsed runtime timer for the current process.

18. U (Voltage)

    Real-time output voltage display (large digits, unit: V).

19. I (Current)

    Real-time output current display (large digits, unit: A).

Key Features of Anodizing Rectifier

The Anodizing Rectifier integrates multiple output modes. As a result, it covers conventional anodizing, hard anodizing and micro-arc oxidation. Therefore, it achieves universal application for various metal surface treatment projects.

It supports precise frequency and duty cycle adjustment. For this reason, users can fine-tune power output for different alloys. Consequently, the equipment significantly improves oxide film uniformity and surface finish quality.

Designed with dustproof, waterproof and anti-corrosion structures, the Anodizing Rectifier adapts to harsh workshops. In turn, it reduces daily maintenance work. Thus, it lowers overall operational costs for long-term production.

Built-in multi-protection systems avoid equipment overload damage. In this way, it guarantees safe and continuous operation. Meanwhile, the RS485 communication supports intelligent automated production line docking.

Advantages of GAOHUI Anodizing Power Supply

• Ultra-Stable Output Performance: The Anodizing Rectifier maintains ultra-low fluctuation output during operation. In turn, it ensures consistent oxide film thickness and avoids defective products caused by power instability.
• High Energy-Saving Efficiency: Optimized high-frequency circuit design reduces invalid power loss. Over time, it saves substantial electricity costs for long-term continuous oxidation production.
• Simple & Intelligent Operation: The intuitive touch screen interface and automatic program control lower operation thresholds. Furthermore, it shortens staff training cycles and improves production efficiency.
• Full Customization Compatibility: All voltage, current, cooling modes and control functions of the Anodizing Rectifier can be customized. In other words, it perfectly matches personalized laboratory and industrial production needs.
• Professional Global Support: GAOHUI provides 24/7 technical consultation and after-sales service. Thus, global customers can obtain timely technical support and stable equipment operation guarantee.

Applications of Anodizing Rectifier

The Anodizing Rectifier delivers ultra-stable output with tiny voltage and current fluctuation. In turn, it keeps consistent coating thickness and reduces defective products. Furthermore, the high-efficiency design saves long-term power consumption.

Equipped with intuitive touch control, the equipment lowers operation difficulty. Besides, it requires minimal staff training. Additionally, full parameter customization meets personalized laboratory and industrial production needs perfectly.

GAOHUI provides 24/7 global technical support. Thus, customers can obtain timely after-sales service. Consequently, every Anodizing Rectifier can maintain stable working status throughout its service cycle.

Why Choose GAOHUI as Your Anodizing Rectifier Manufacturer

GAOHUI owns 27+ years of rectifier manufacturing experience. Firstly, all Anodizing Rectifier products pass strict quality testing. In addition, we provide full power range models and custom services for diverse demands.

We supply one-stop solutions from design, production to after-sales maintenance. Consequently, our Anodizing Rectifier ensures stable quality, high efficiency and cost savings for global customers.

If you need customized Anodizing Rectifier parameters for your oxidation process, please contact our team for professional technical solutions.
