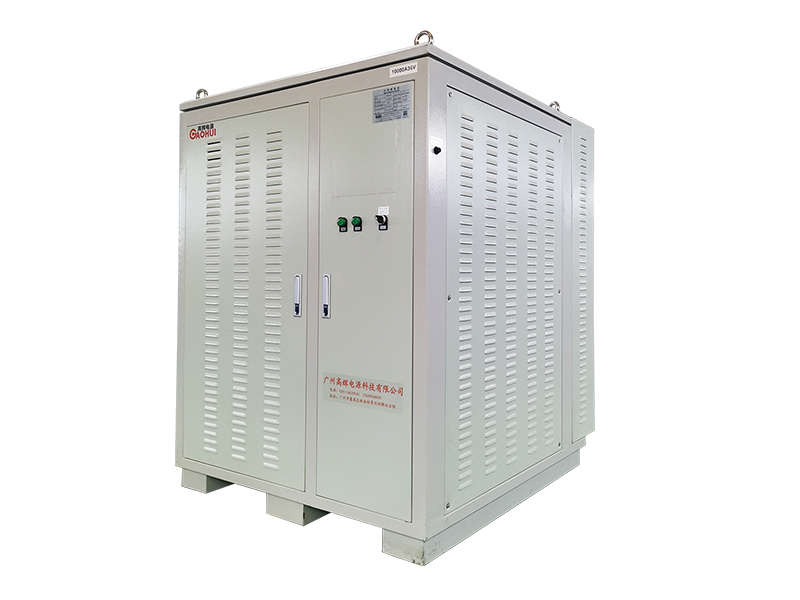

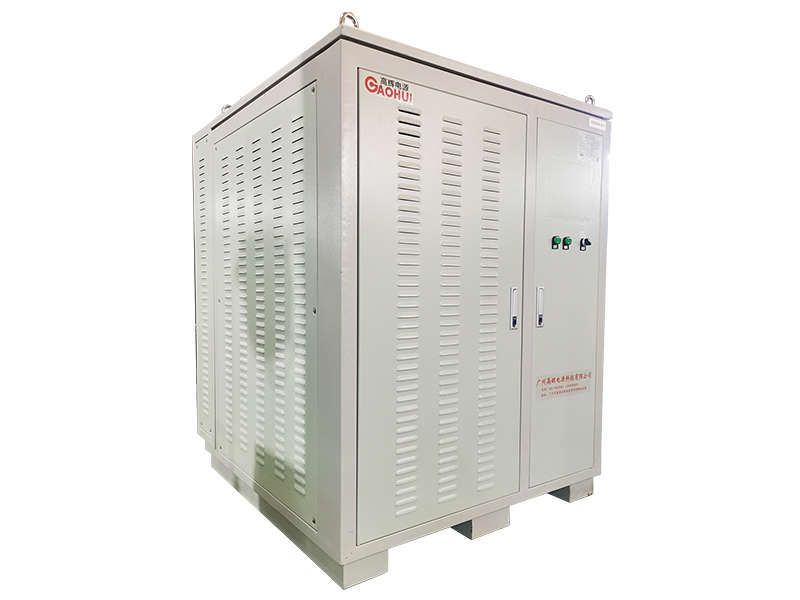

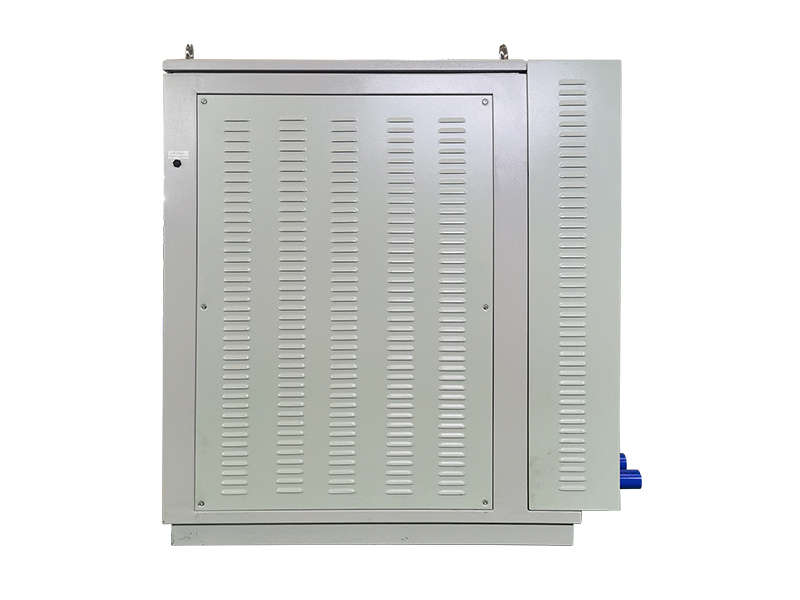

Built upon four‑cabinet N+1 redundant parallel architecture, this 4‑Unit N+1 Redundant Chrome Plating Power Supply outputs 10000A total current at 36V with water‑cooled design to sustain continuous heavy‑load chrome plating operations.
4‑Unit N+1 Redundant Chrome Plating Power Supply addresses reliability risks for high‑volume chrome‑plating lines where extended plating cycles cannot afford unplanned shutdowns. Many large component workshops process heavy hydraulic parts, printing rollers and mining castings that demand stable high‑current power over multiple shifts. Traditional single‑cabinet high‑current hardware forces full production halt once internal faults emerge. For that reason, this 10000A 36V water‑cooled chrome plating rectifier adopts four‑unit N+1 parallel layout to spread power burden across separate cabinets. After busbar assembly and cooling water pipe installation, operators adjust total output targets on central control panel before launching large‑batch plating runs.

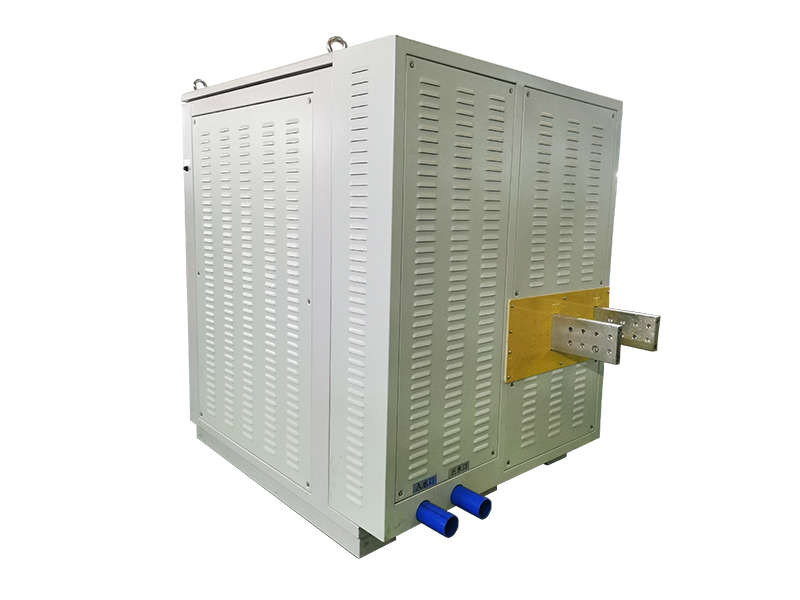

This 4‑Unit N+1 Redundant Chrome Plating Power Supply fits refurbishment for oversized industrial rollers, heavy hydraulic cylinder assemblies and rebuilt mining mechanical components. Each cabinet carries standalone water‑cooled cooling circuit. Should one cabinet trigger fault alarms, remaining three cabinets keep production running without full‑line stop. Every cabinet also features independent water‑flow interlock to protect power modules once coolant flow drops below safe thresholds.
Each cabinet within this 4‑Unit N+1 Redundant Chrome Plating Power Supply applies mature IGBT high‑frequency conversion technology and maintains operational efficiency above 92 percent. Since total high‑current load splits among four separate cabinets, thermal stress on each power module drops greatly compared with monolithic high‑current rectifier units. Accordingly, hardware service life extends significantly under long continuous production shifts.
Dynamic load‑sharing algorithms redistribute output automatically when one cabinet exits operation for maintenance work. Production continues instead of sudden interruption, which brings tangible benefits for factories running non‑stop chrome‑plating processes. Modular cabinet layout also simplifies field troubleshooting; technicians can isolate one faulty cabinet without disconnecting the whole plating system.
Our engineering team fine‑tunes multi‑unit parallel synchronization logic and independent water‑cooling pathways specially for this 10000A combined‑output scenario. Current drift stays minimal over long runtime, and this four‑cabinet redundant setup effectively lowers operational risks for large‑scale metal‑finishing facilities.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Input Parameters | AC Input Power Supply | Three‑phase AC 380V, ±10% tolerance, 50‑60Hz |
| DC Output Parameters | Total Output Voltage Range | 0‑36V adjustable |
| DC Output Parameters | Total Output Current Range | 0‑10000A combined (4 units N+1 parallel) |
| DC Output Parameters | Total Rated Output Power | 360kW |
| DC Output Parameters | Voltage Regulation Accuracy | ≤1% |
| DC Output Parameters | Current Regulation Accuracy | ≤1% |
| DC Output Parameters | Ripple Factor | ≤1% |
| Control and Automation Functions | Operating Modes | Constant Current, Constant Voltage, N+1 redundant multi‑unit load‑sharing mode |
| Control and Automation Functions | Auxiliary Hardware | Central digital control panel, ampere‑hour counter, independent fault recorder for each cabinet |
| Control and Automation Functions | Programming Features | Total output setting, multi‑unit load‑share monitoring, per‑cabinet alarm logging |
| Physical and Communication Parameters | Cooling Method | Water‑cooled, each cabinet fitted with independent water‑flow interlock protection |
| Physical and Communication Parameters | Protection Class | IP20 for indoor industrial plating workshop |
| Physical and Communication Parameters | Communication Interface | RS485 Modbus RTU, real‑time data accessible per cabinet |
| Physical and Communication Parameters | Operating Efficiency | Above 92% |
We can provide:
This 4‑Unit N+1 Redundant Chrome Plating Power Supply comes with standard factory warranty and reaches more than 10‑year service life under compliant operating conditions. N+1 multi‑unit redundant function plus independent water‑flow sensors for every cabinet belong to standard delivery scope. Its modular assembly supports separate cabinet maintenance without shutting down the complete plating system. Multi‑layer alarm responses react rapidly against all abnormal runtime states. Simply share your plating‑bath size and continuous‑production requirements, and we deliver practical configuration guidance.
This 4‑Unit N+1 Redundant Chrome Plating Power Supply fits ultra‑high‑current chrome‑plating production demanding maximum uptime, large‑size component refurbishment and heavy‑duty continuous industrial surface finishing. It works especially well for plating workshops handling oversized press rolls, large‑bore mining hydraulic cylinders and heavy rebuilt mechanical assemblies, where process interruption leads to heavy economic losses.
Many large‑scale finishing plants select this four‑cabinet redundant modular system instead of single high‑current rectifier units. Its fault‑tolerant parallel architecture greatly cuts risks of unexpected full‑production stops.
Besides mass production work, this power supply fits long‑duration chrome‑plating process validation trials. Adjustable combined output and real‑time multi‑unit load‑share data help technicians observe system performance under sustained heavy‑load conditions. Moreover, Modbus‑compatible multi‑unit data output allows operators to archive full equipment logs for quality traceability.
We develop high‑reliability modular parallel power‑supply hardware for demanding metal‑finishing production lines, and we focus on water‑cooled N+1 redundant systems built for continuous chrome‑plating workflows. Our engineering crew adjusts multi‑unit parallel synchronization logic, cooling capacity and safety thresholds to match your real‑world on‑site production environment.
Every individual cabinet finishes full‑load continuous aging test and ripple‑value inspection according to industry quality standards before shipment. You obtain hardware validated for long‑run 10000A combined output operating under four‑unit N+1 redundant parallel mode.
Our full‑lifecycle support package includes hands‑on operational guidance, remote multi‑unit fault troubleshooting and long‑term spare‑parts provision. When future production capacity expands, extra cabinets can join existing parallel groups. In short, trust our robust redundant power solutions to support your non‑stop heavy‑duty chrome‑plating tasks.
