This air‑cooled mid‑heavy electrophoresis rectifier delivers ample DC output for higher‑volume electrophoretic jobs. Furthermore, it eliminates water‑cool pipe networks for simplified site installation.

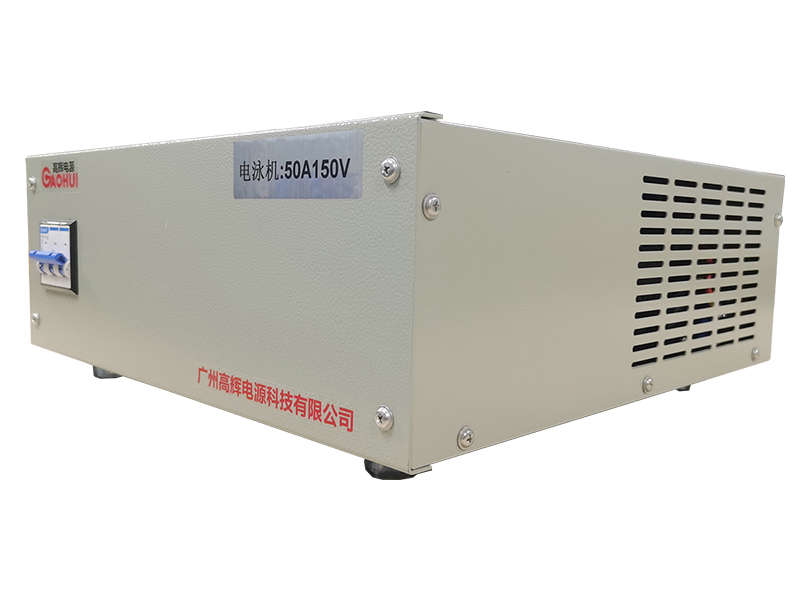

Gaohui Power Supply manufactures the 50A 150V Air‑Cooled Mid‑Heavy Electrophoresis Rectifier for mid‑heavy‑duty electrophoretic finishing lines. To begin with, many expanding coating workshops face larger batch volumes yet wish to skip complex water‑cool plumbing setup. Traditional water‑cooled rectifiers bring pipe laying, circulating fluid maintenance and extra space occupation. Fluctuating power output will cause inconsistent film build‑up and cosmetic defects across large‑batch workpieces. This rectifier maintains stable output to mitigate those process risks. Moreover, it performs steadily for long continuous production shifts as well as variable‑volume production cycles.
This air‑cooled mid‑heavy electrophoresis rectifier supports both cathodic and anodic electrophoresis treatments. Apart from that, its 0‑150V adjustable output satisfies mainstream coating specifications for various metal components. Meanwhile, upgraded air convection cooling architecture preserves stable performance under sustained mid‑heavy‑current load inside chemically‑laden workshop atmospheres.
We build this air‑cooled mid‑heavy electrophoresis rectifier with robust IGBT power topology, securing power conversion efficiency above ninety percent. When operating continuously at full 50A‑150V rated load, its enhanced air‑cool assembly controls internal temperature effectively and avoids unplanned thermal shutdown. In addition, pipe‑free cooling cuts installation labour and lowers daily maintenance workload for on‑site operators.
Its native automatic polarity reversal streamlines bath cleaning and electrode upkeep routines. As a result, operators can switch process polarities without manual hardware rewiring. Besides, multi‑segment parameter programming enables multi‑stage voltage‑current sequences, matching diverse paint formulations and widening coating material compatibility.
Our engineering team outfits internal circuitry with corrosion‑resistant, anti‑interference electronic assemblies. Accordingly, the rectifier sustains reliable output within damp workshops filled with chemical vapours. It greatly reduces surface flaws and uneven coating thickness induced by external electromagnetic disturbance.
| Parameter Category | Specific Item | Specification |
|---|---|---|

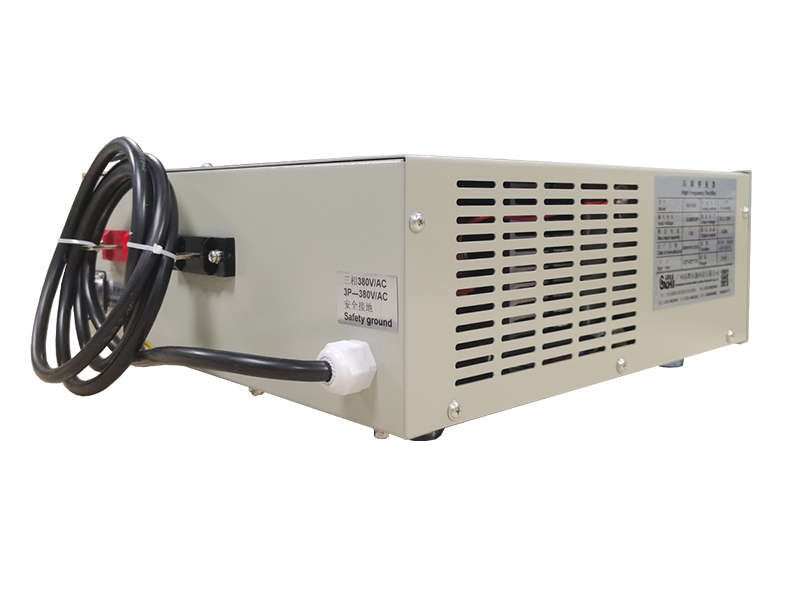

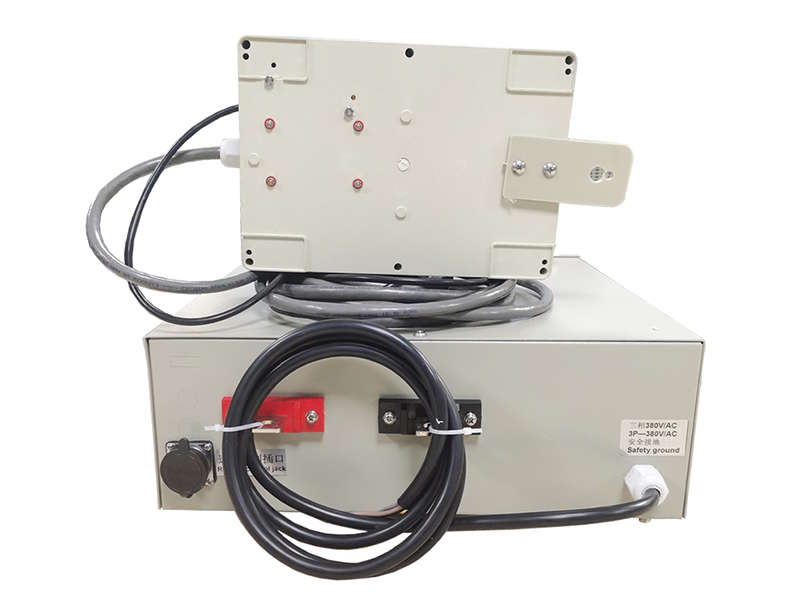

| Input Parameters | AC Input Power Supply | Three‑phase AC 380V, ±10% tolerance, 50‑60Hz |
| DC Output Parameters | Output Voltage Range | Zero to 150V adjustable |
| DC Output Parameters | Output Current Range | Zero to 50A adjustable |
| DC Output Parameters | Voltage Regulation Accuracy | Within one percent |
| DC Output Parameters | Current Regulation Accuracy | Within one percent |
| DC Output Parameters | Ripple Factor | Within two percent |
| Control and Automation Functions | Operation Modes | Constant Current, Constant Voltage |

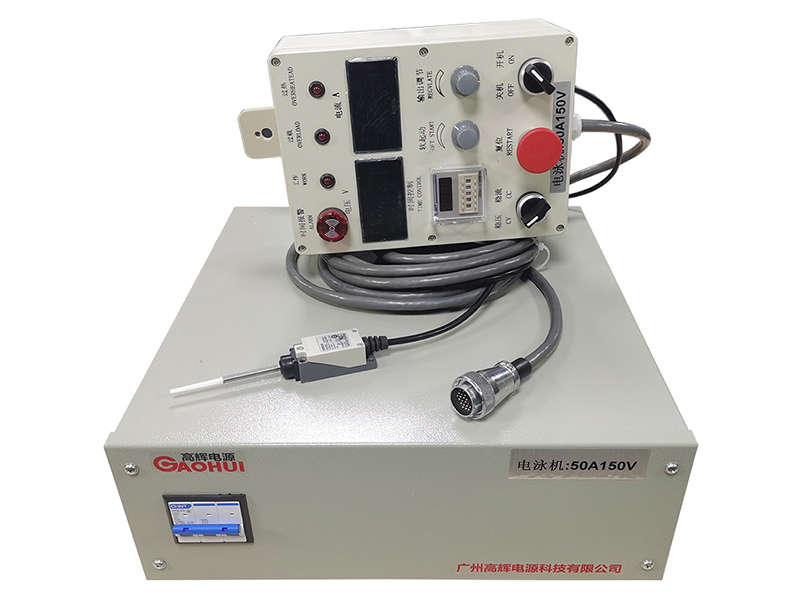

| Control and Automation Functions | Auxiliary Control Devices | Digital ampere‑hour meter, minute‑level programmable timer, automatic polarity reversal |
| Control and Automation Functions | Programming Functions | Programmable current‑voltage ramp‑up, multi‑segment parameter setting |
| Physical and Communication Parameters | Cooling Mode | Air‑cooled |
| Physical and Communication Parameters | Protection Grade | IP21 for indoor application |
| Physical and Communication Parameters | Communication Protocol | RS485 Modbus RTU |
| Physical and Communication Parameters | Working Efficiency | Above ninety percent |
| Physical and Communication Parameters | Size and Weight | Fully customizable based on customer demands |
We can provide:
This rectifier includes a one‑year warranty with an expected service lifespan exceeding 10 years. Constant‑current / constant‑voltage modes and ramp‑up fine‑tuning belong to standard configurations. Furthermore, timed operation cycles and multi‑segment parameter profiles fit mid‑heavy‑duty large‑batch coating assignments. The unit is pre‑fitted with RS485 communication port and automatic polarity reversal. Feel free to submit your custom project specifications.
This air‑cooled mid‑heavy electrophoresis rectifier applies to mid‑heavy‑current high‑volume metal‑finishing workflows. Above all, it fits medium‑large hardware components and expanded‑size batches that demand consistent anti‑corrosion protective coatings.
Moreover, production facilities adopt this compact rectifier for growing production workshops without pre‑laid water‑cool infrastructure. Manufacturers select this model when they require higher processing capacity yet hope to avoid complicated water‑cool auxiliary hardware.
It delivers good compatibility with epoxy, acrylic and polyurethane electrophoresis paints for cathodic and anodic process workflows. Thanks to its stable 50A mid‑heavy‑current capability, it delivers homogeneous coating results for volume‑produced metal components. Likewise, it maintains trustworthy performance for continuous mass production and periodic trial‑run testing.
Gaohui Power Supply develops custom‑adapted Air‑Cooled Mid‑Heavy Electrophoresis Rectifier for expanding surface‑treatment manufacturers, and practical scenario‑oriented customisation constitutes our core competitive strength. First of all, our engineering group revises output parameters, pulse waveforms, cabinet dimensions and control logic to match your real‑world shop‑floor operating conditions.
We run performance verification according to CE safety standards under ISO 9001 quality‑management protocols. Our technicians perform 100% continuous full‑load ageing testing for every finished 50A 150V rectifier before shipment; therefore customers receive field‑proven hardware for stable long‑term operation.
Our full‑lifecycle service package covers remote commissioning guidance, spare‑parts supply and on‑site operational training. Should you modify coating recipes or upgrade production‑line hardware, our team can adjust control logic without full‑unit replacement. Cooperate with Gaohui Power Supply for dependable air‑cooled electrophoresis rectifier solutions.
