Built for light‑duty electrolytic operations, the Air‑Cooled Electrolytic Rectifier delivers adjustable 50A 24V DC output. Furthermore, its fan‑assisted cooling removes water‑circuit dependencies for flexible lab and workshop placement.
The Air‑Cooled Electrolytic Rectifier is a compact power solution built for laboratory‑scale and small‑batch electrolytic workflows. In particular, material labs and small processing workshops frequently run electrolytic metal extraction, electrolytic cleaning and oxidation trials. However, many budget‑oriented power supplies struggle to hold steady output amid prolonged electrolytic cell loading. Meanwhile, water‑cooled rectifiers add plumbing overhead that brings extra setup work for simple test stations. Even minor power drift can shift reaction rates and compromise the repeatability of electrolytic test results. For this reason, the Air‑Cooled Electrolytic Rectifier offers a practical, space‑saving alternative for non‑heavy‑duty electrolytic tasks.

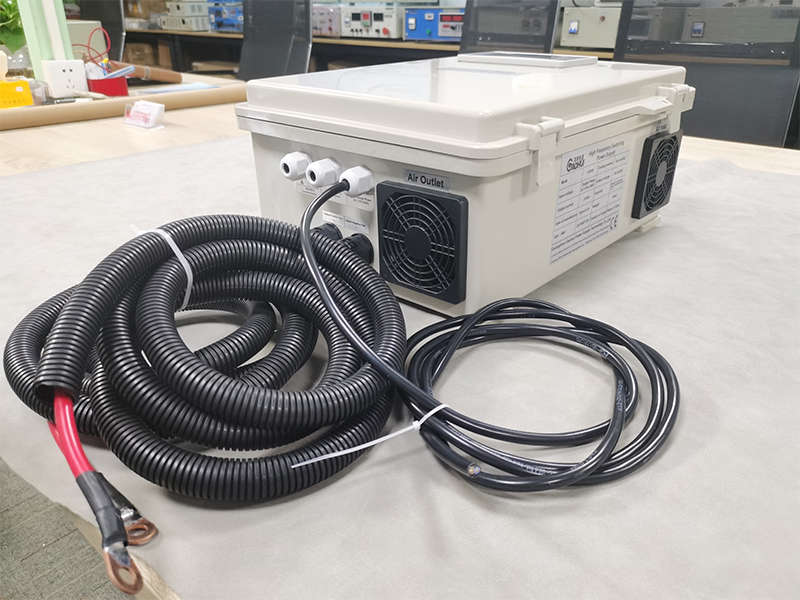

This Air‑Cooled Electrolytic Rectifier supports seamless stepless adjustment across 0‑50A and 0‑24V. In addition, its output window fits most common operating parameters for aqueous electrolytic reaction systems. It relies on efficient air‑cooled fan heat dissipation. As a result, users can position the unit on ordinary workbenches without installing water circulation pipelines. Refined high‑frequency conversion circuitry keeps output ripple well contained. Moreover, this clean DC output supports steady ion migration inside electrolytic cells and delivers more predictable reaction outcomes. Real‑time closed‑loop control compensates for changing cell impedance. Besides, multi‑layer built‑in protection guards against over‑current, over‑voltage and short‑circuit incidents caused by cell‑side accidents.
Numerous industrial electrolytic rectifiers focus on continuous large‑scale production lines. In contrast, this Air‑Cooled Electrolytic Rectifier caters to intermittent test runs and low‑volume electrolytic processing. It sustains good conversion efficiency under stop‑start operating cycles. In fact, this intermittent usage is typical for university labs and pilot‑scale processing workshops. Every unit undergoes full‑load ageing and ripple performance verification prior to delivery. Accordingly, researchers and workshop operators obtain consistent electrolytic performance across repeated test cycles.
Dynamic closed‑loop feedback offsets output variations triggered by electrolyte temperature change or electrode surface condition shifts. As a result, electrolytic reaction speed stays consistent and invalid test sample rates go down. Multiple sets of operating parameters can be stored locally within the unit. Furthermore, operators can retrieve saved settings quickly and cut down experimental debugging duration.

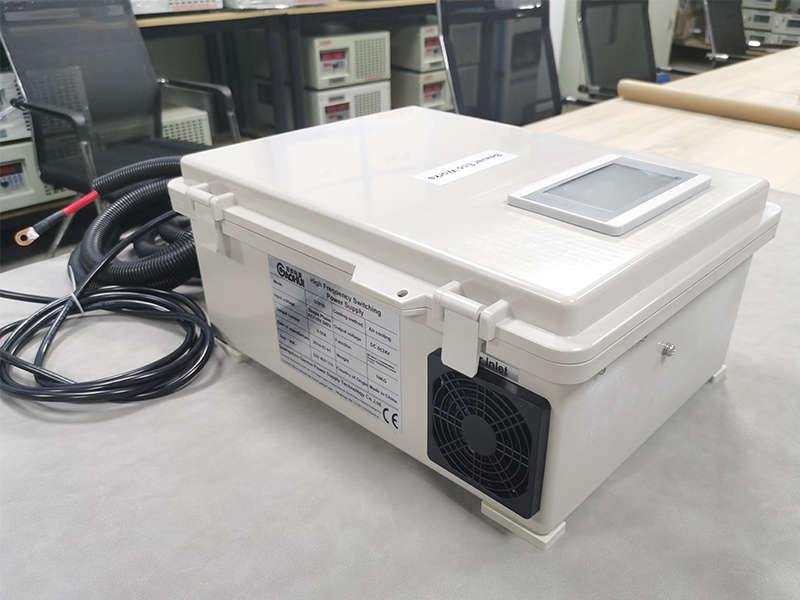

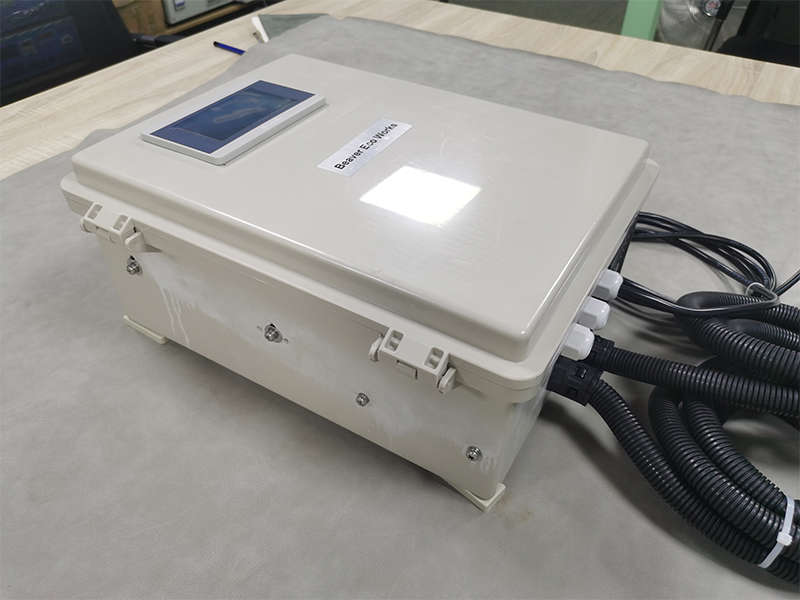

Its compact metal cabinet occupies limited bench footprint. Without cooling‑water auxiliary components, routine inspection and equipment relocation become far simpler. For these reasons, this Air‑Cooled Electrolytic Rectifier suits university material labs, pilot metal‑recovery workshops and electrochemical process development projects.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Rated Output | Rated Current | 50A |
| Rated Voltage | 24V | |
| Working Mode | Operation Type | Constant Current / Constant Voltage |
| Cooling System | Cooling Method | Air‑cooled Fan Cooling |
| Input Power | Input Voltage | AC 220V Single‑phase |
| Communication Interface | Data Port | RS485 |
| Safety Protection | Protection Functions | Over‑current, Over‑voltage, Over‑temperature, Short‑circuit Protection |
| Applicable Scenarios | Main Applications | Lab‑scale electrolysis, small‑volume metal electro‑extraction, electrolytic cleaning, electrochemical process R&D |

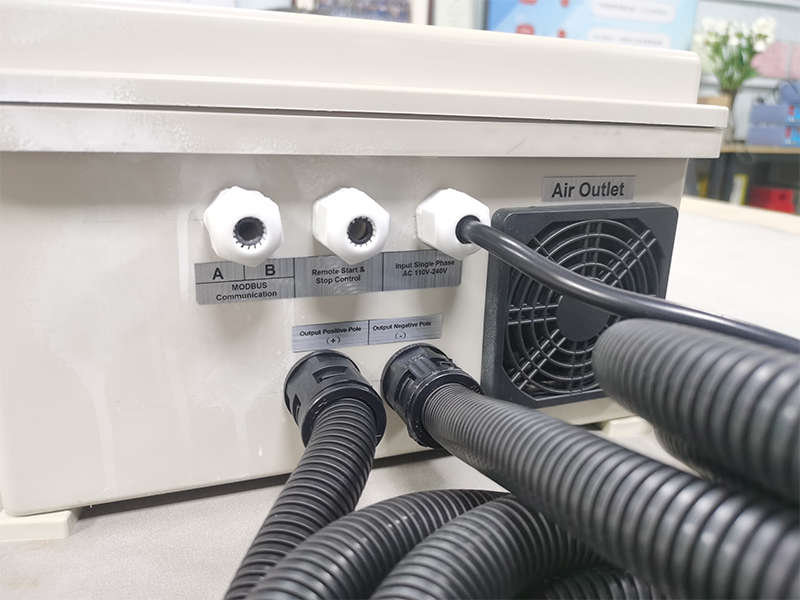

We can provide: The product comes with a one‑year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp‑up function for current or voltage settings. For time‑sensitive applications, you can use the timed operation mode. Moreover, the multi‑segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute‑level timing function. If you need customization, please contact us for further details.
This Air‑Cooled Electrolytic Rectifier finds widespread use within university research labs, electrochemical pilot workshops and small‑scale metal‑processing facilities. Teams deploy it for electrolytic metal recovery, electrolytic surface cleaning and a wide range of electrochemical exploratory tests. In addition, it supports verification work for newly formulated electrolytic solution systems.
It runs reliably for intermittent lab tests as well as light‑duty small‑batch processing tasks. Meanwhile, its finely adjustable DC output helps operators keep electrolytic reaction conditions stable. Thus, research groups can lower invalid sample rates and accelerate electrochemical process iteration.
We build practical power supplies targeting lab‑level and light‑duty electrolytic scenarios. Unlike bulky water‑cooled industrial rectifiers built for mass production, our Air‑Cooled Electrolytic Rectifier prioritizes ease‑of‑use and compact layout for experimental environments.
Each unit passes waveform calibration and full‑load ageing tests before dispatch. In addition, custom adjustments for output ratings and auxiliary functions are available upon request. Supported by process‑focused technical guidance and complete after‑sales service, we supply dependable power hardware for your electrolytic projects.

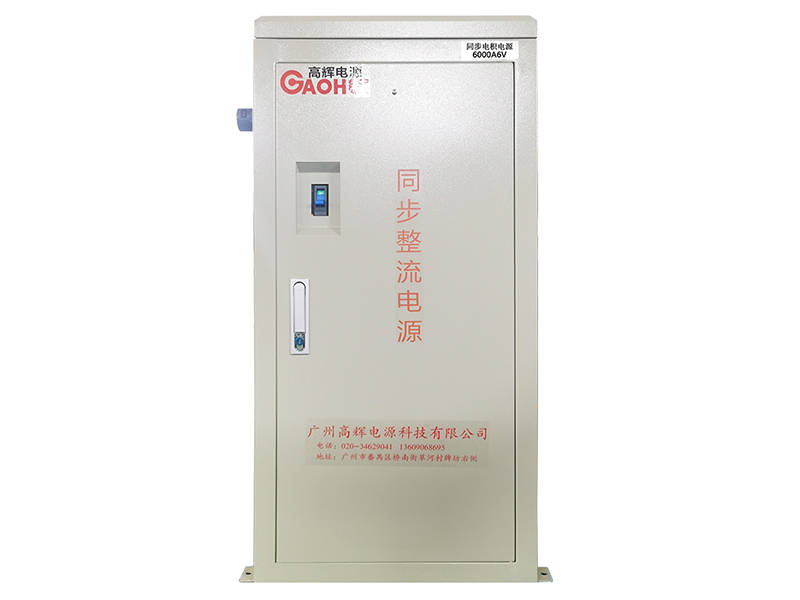

Learn more about related products：3000A 12V Water-cooled Synchronous Rectifier
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
