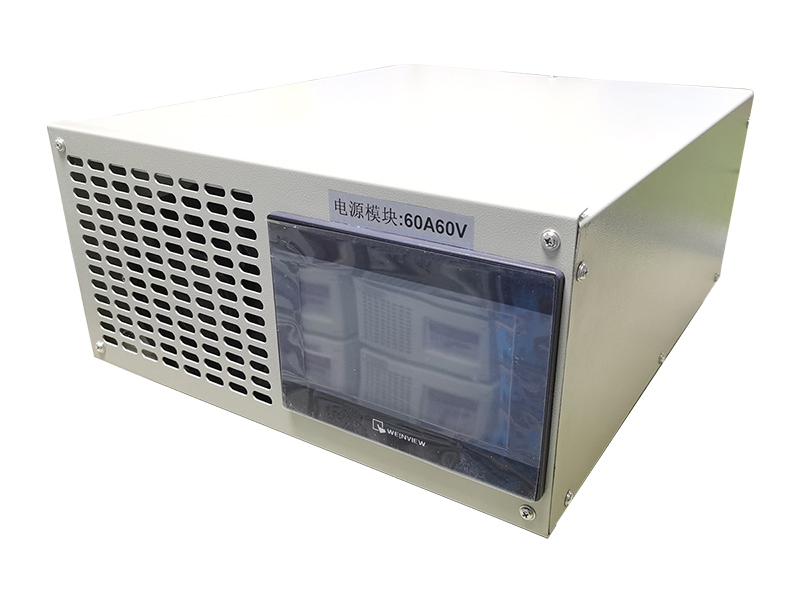

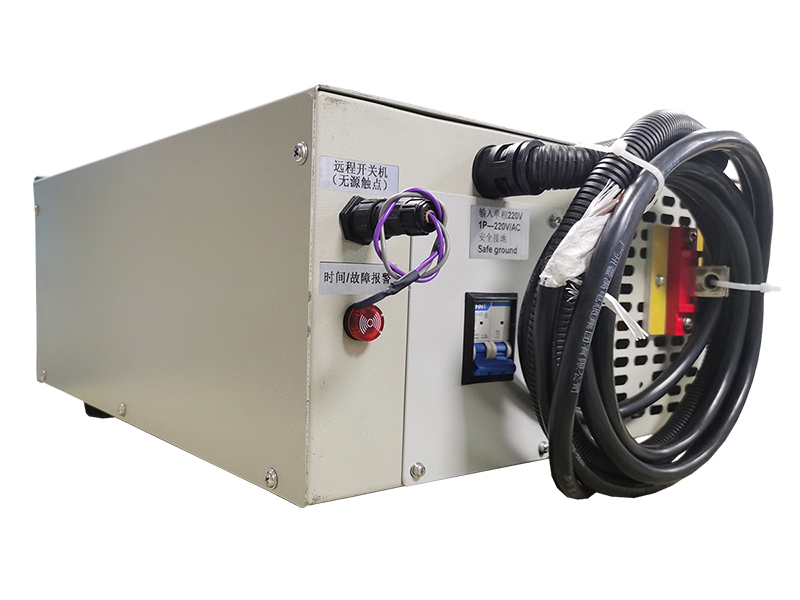

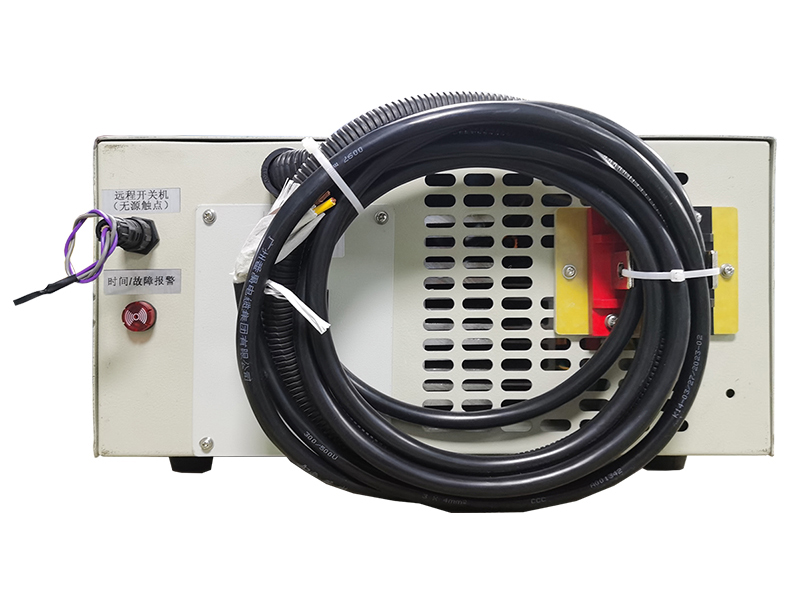

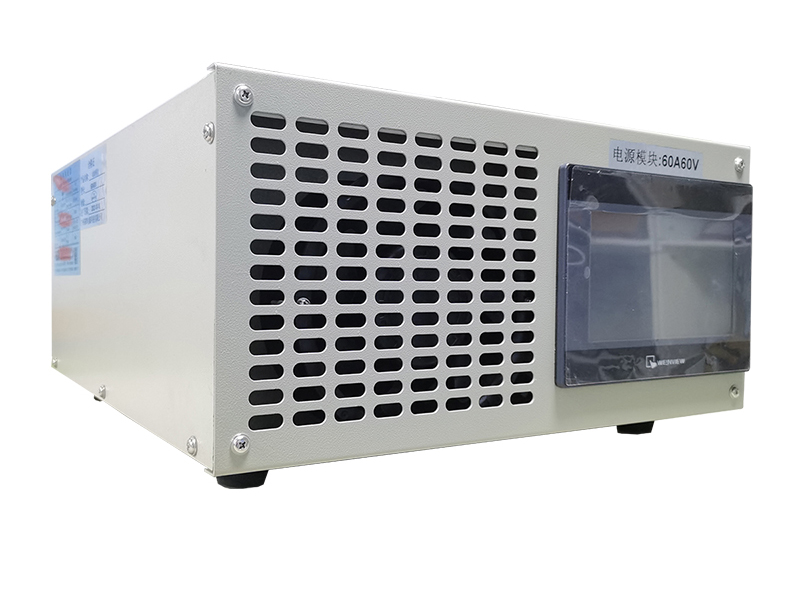

Designed for system integration and equipment upgrade projects, the 60A 60V Rectifier Module supplies steady adjustable DC power. Furthermore, its modular form enables flexible stacking and combination for custom power‑system layouts.
The 60A 60V Rectifier Module is a compact standalone power core built for custom industrial power assemblies and equipment retrofitting. In particular, many system integrators and plating‑equipment manufacturers need individual power cores instead of complete finished cabinets. However, conventional all‑in‑one rectifiers lack layout flexibility for bespoke machine designs. Meanwhile, generic power modules often suffer unstable output under continuous full‑load operation. Even small waveform deviations can degrade the performance of finished electroplating or electrolysis devices. For this reason, a reliable 60A 60V Rectifier Module serves as a solid foundation for custom power‑equipment development.
This Rectifier Module supports stepless output adjustment ranging from 0‑60A and 0‑60V. In addition, it matches common parameter requirements for medium‑current electroplating and electrochemical process hardware. It adopts built‑in air‑cooled thermal structure. As a result, it can be installed inside user‑defined cabinets without complex external cooling piping. Optimized high‑frequency conversion circuitry keeps output ripple low. Moreover, this characteristic maintains stable processing performance after integration into end‑user systems. Real‑time closed‑loop control stabilizes output against load fluctuations. Besides, integrated protection circuits guard against over‑current, over‑voltage and short‑circuit risks during integrated operation.
Most industrial rectifier products come as fully assembled complete cabinets. In contrast, this 60A 60V Rectifier Module focuses on component‑level supply for system builders. It keeps stable conversion efficiency under continuous and intermittent working cycles. In fact, those are the typical working states for integrated industrial equipment. Every module undergoes full‑load ageing and ripple testing before delivery. Accordingly, integrators obtain consistent baseline performance across batch assemblies.
Dynamic closed‑loop feedback compensates minor output shifts caused by ambient temperature changes or load variations. As a result, the finished power system maintains steady output quality. Multiple sets of process parameters can be saved via external control terminals. Furthermore, operators can quickly switch working conditions for different production tasks.
Its space‑saving modular structure supports single‑unit use or multi‑module combined layouts. For these reasons, this 60A 60V Rectifier Module fits original‑equipment manufacturing, equipment upgrading and laboratory custom power‑station construction.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Rated Output | Rated Current | 60A |
| Rated Voltage | 60V | |
| Working Mode | Operation Type | Constant Current / Constant Voltage |
| Cooling System | Cooling Method | Built‑in Air‑cooled |
| Input Power | Input Voltage | AC 220V Single‑phase |
| Communication Interface | Data Port | Reserved RS485 |
| Safety Protection | Protection Functions | Over‑current, Over‑voltage, Over‑temperature, Short‑circuit Protection |
| Applicable Scenarios | Main Applications | Power system integration, electroplating equipment retrofit, custom power‑supply assembly, electrochemical pilot‑equipment development |
We can provide: The product comes with a one‑year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp‑up function for current or voltage settings. For time‑sensitive applications, you can use the timed operation mode. Moreover, the multi‑segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute‑level timing function. If you need customization, please contact us for further details.
This 60A 60V Rectifier Module is widely adopted by automation integrators, electroplating‑equipment factories and material‑research labs. Engineers deploy it to build custom electroplating power cabinets and upgrade outdated surface‑treatment equipment. In addition, it supports the development of special‑purpose electrochemical test platforms.
It works reliably for independent use or multi‑module combined systems. Meanwhile, its standardized modular design shortens equipment development cycles. Thus, manufacturers can lower R&D costs for new power‑equipment projects.
We develop modular power cores tailored for industrial system‑integration scenarios. Unlike complete cabinet‑type rectifiers, our 60A 60V Rectifier Module offers flexible embedding capability for bespoke equipment designs.
Each unit completes waveform calibration and full‑load ageing before dispatch. In addition, custom adjustments for interfaces and auxiliary functions are available upon request. Supported by technical documentation and complete after‑sales service, we supply dependable modular power cores for your equipment‑building projects.
Learn more about related products：1000A 15V Water-cooled Synchronous Rectifier
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
