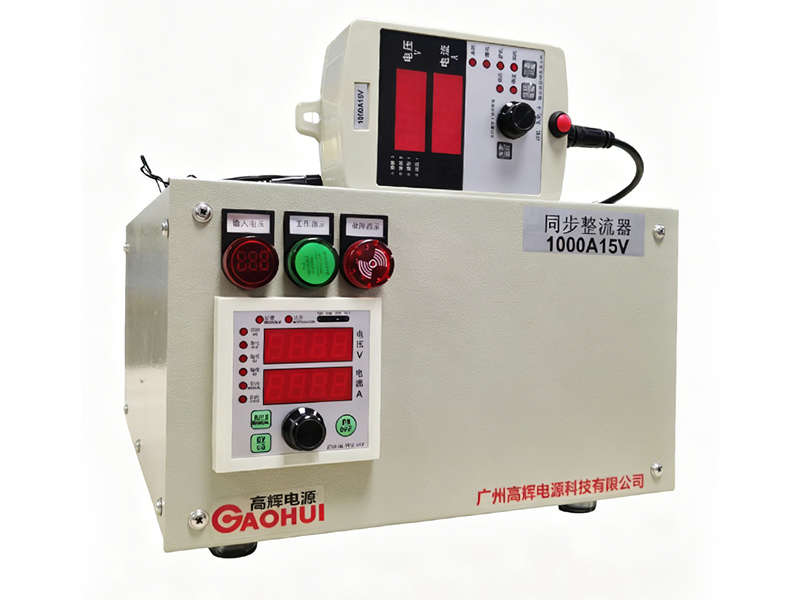

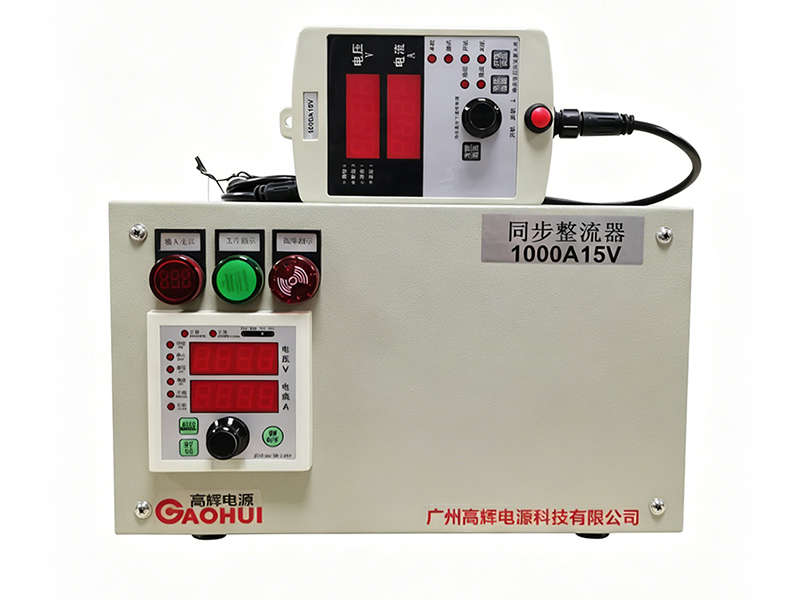

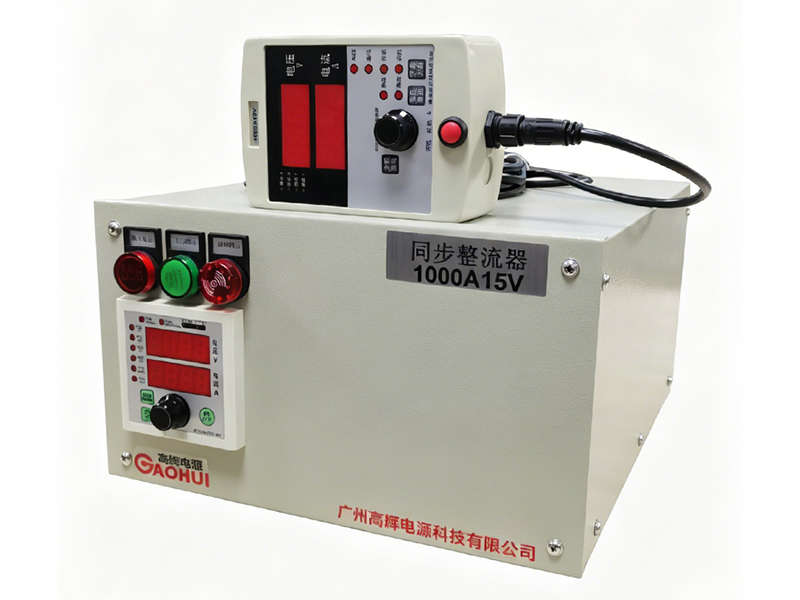

Built for heavy-duty round-the-clock metal finishing, the 1000A 15V Water-cooled Synchronous Plating Rectifier provides precise stepless DC output with efficient water cooling for stable long-term production.
The 1000A 15V Water-cooled Synchronous Plating Rectifier is a professional low-ripple DC power supply customized for high-current industrial plating and electrolytic treatment. Adopting advanced synchronous rectification technology, it effectively minimizes conduction loss and heat generation compared with traditional diode rectifiers. It perfectly solves common production pain points including high power consumption, thermal drift and unstable output during long-hour full-load continuous operation.
The 1000A 15V Water-cooled Synchronous Plating Rectifier supports full stepless adjustment of 0-1000A current and 0-15V voltage, fully meeting the process demands of rack plating, barrel plating, electrolytic degreasing and metal oxide removal. Equipped with a closed-loop circulating water cooling system, the unit achieves rapid and uniform heat dissipation, maintaining constant temperature and stable output under 24/7 non-stop full-load operation. The high-precision closed-loop control system ensures ultra-low ripple DC power, greatly improving metal coating uniformity and stabilizing electrolyte bath conditions for consistent batch quality.
Delivers precise 1000A 15V stepless adjustable DC output, professionally tailored for high-current industrial plating and heavy electrolysis processes.
Features advanced synchronous rectification design, effectively reducing power conduction loss and lowering long-term workshop energy consumption costs.

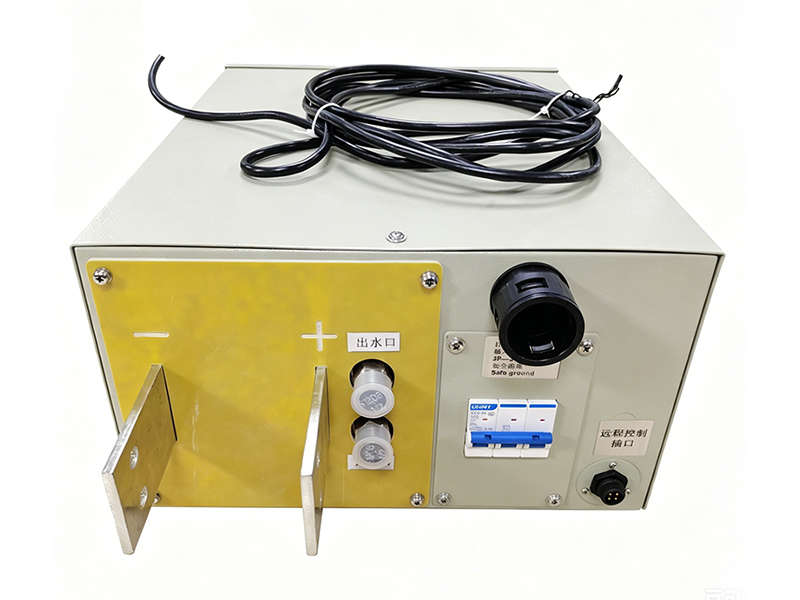

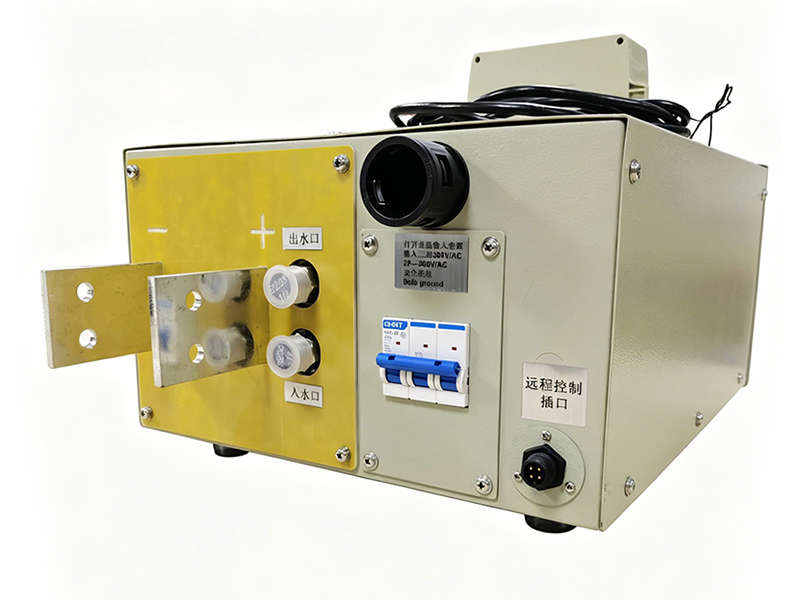

Equipped with sealed closed-loop water cooling system, supporting efficient heat dissipation and stable 24-hour full-load continuous batch production.
Dual CC/CV working modes optional, enabling flexible switching to adapt to workpiece activation, formal plating and post-production quality inspection.
Built-in full industrial-grade protection mechanism against over-current, over-voltage, over-temperature and short circuit, protecting equipment and workpieces safely.
Standard RS485 communication port reserved for real-time data monitoring, historical log recording and intelligent plating process recipe optimization.
Most traditional plating rectifiers build excessive heat and waste energy under sustained high‑current operation. They also drift output, which creates uneven coatings and raises reject rates. On the contrary, the 1000A 15V Water‑cooled Synchronous Plating Rectifier targets continuous heavy‑duty plating use cases. It outputs low‑ripple power, saves energy and runs reliably. For this reason, large electroplating plants and metal‑finishing workshops benefit greatly from this unit.
This synchronous plating rectifier responds very fast to shifting load conditions. When workpiece size, cooling‑water temperature or electrolyte concentration change, it offsets current and voltage swings automatically. Therefore, it maintains highly accurate DC output amid complex workshop variables. Operators see fewer rejected parts and spend less on rework. What is more, it saves multiple process parameter groups for one‑click recall. This cuts equipment setup time and lifts overall workshop throughput.
Its reinforced sealed cabinet pairs with anti‑corrosion water circulation pipelines. The whole unit resists dust, moisture and corrosion very well. Accordingly, it performs reliably within the humid, corrosive atmosphere common in plating shops. Moreover, it accepts stable three‑phase AC input and uses rugged mechanical construction. The rectifier rarely breaks down and serves for many years, so it satisfies non‑stop mass‑production demands.
| Parameter Category | Specific Item | Specification |
| Rated Output | Rated Current | 1000A |
| Rated Output | Rated Voltage | 0‑15V |
| Working Mode | Operation Type | Constant Current / Constant Voltage, Low Ripple DC |
| Cooling System | Cooling Method | Water‑Cooled |
| Input Power | Input Voltage | Three-phase AC Customized |
| Communication Interface | Data Port | RS485 |
| Safety Protection | Protection Functions | Over‑current, Over‑voltage, Over‑temperature, Short‑circuit, Surge Protection |
| Applicable Scenarios | Main Applications | Rack electroplating, barrel electroplating, industrial electrolysis, metal surface finishing |
We provide 1-year professional warranty for the 1000A 15V Water-cooled Synchronous Plating Rectifier, with a designed service life of more than 10 years. The equipment supports flexible current and voltage ramp-up setting and multi-segment process parameter configuration, which can meet the startup and operation requirements of different electroplating processes. The built-in RS485 communication port supports real-time data viewing and equipment interconnection. We also support personalized function upgrades and non-standard customization to meet diverse high-efficiency electrolysis and electroplating production needs.
The 1000A 15V Water‑cooled Synchronous Plating Rectifier works well inside electroplating factories, metal‑finishing facilities and industrial electrolysis workshops. Plant staff deploy it for large‑scale rack plating and barrel plating on steel, copper and alloy components. Besides regular manufacturing work, it also aids trial runs and formula testing for brand‑new electroplating bath mixes.
Thanks to its low‑loss power architecture and solid output stability, this synchronous plating rectifier holds steady through round‑the‑clock batch cycles. In effect, it improves electroplating‑bath status and delivers flatter, more uniform metal coatings. It also limits surface flaws such as pitting and uneven thickness, and as a result raises finished‑part yield rates.
Traditional low‑frequency and generic high‑frequency rectifiers cannot match this unit’s performance. The 1000A 15V Water‑cooled Synchronous Plating Rectifier uses proprietary synchronous‑rectification tuning. It consumes less energy, generates smaller output ripple and sustains longer continuous runs. Furthermore, we design it specifically for high‑current long‑cycle electroplating, so it tolerates humid, dusty and tough workshop surroundings.
Before every shipment, our team runs full‑load ageing plus stability simulation on each 1000A 15V Water‑cooled Synchronous Plating Rectifier. These pre‑delivery checks guarantee drift‑free stable output under real‑world production conditions. In addition, we accept custom process modification requests. Our specialists share practical process guidance alongside complete after‑sales support. Whether you run full‑scale production lines or small pilot process trials, our synchronous plating rectifiers supply dependable power.
Learn more about related products：1200A 15V Air-Cooled Synchronous Rectifier
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
