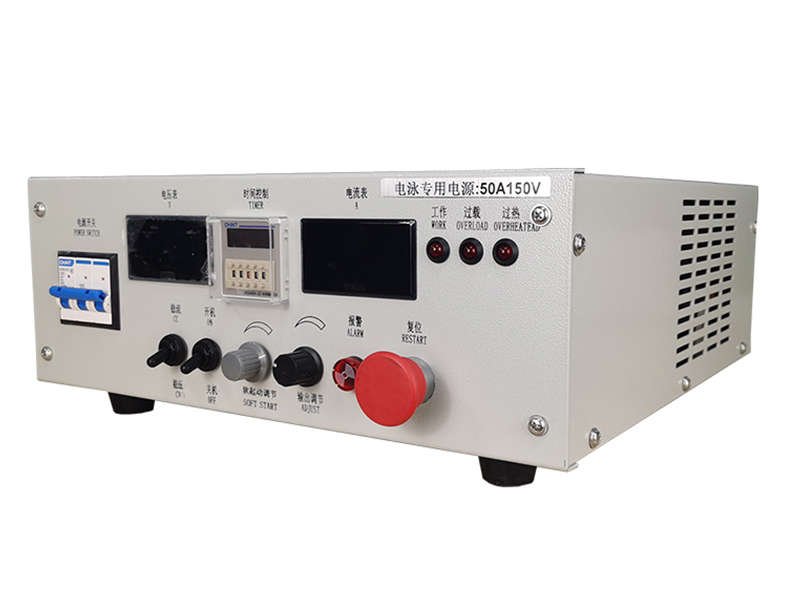

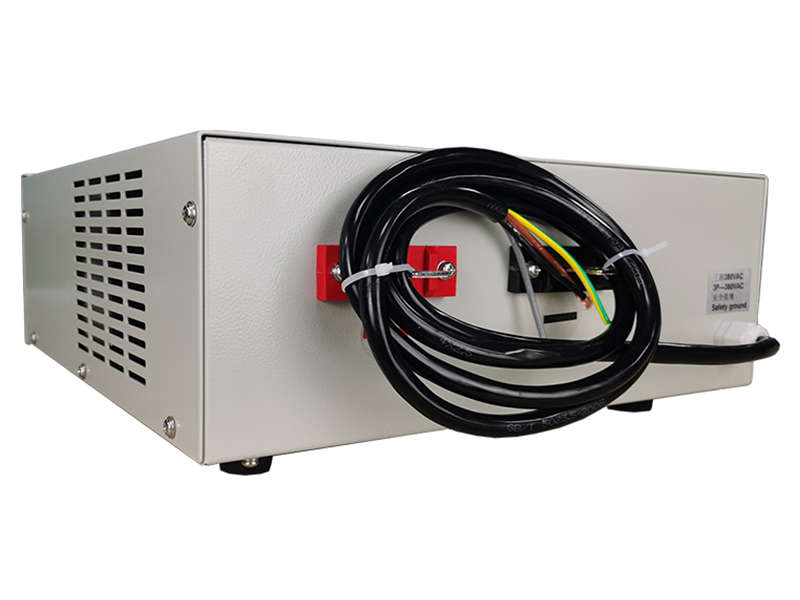

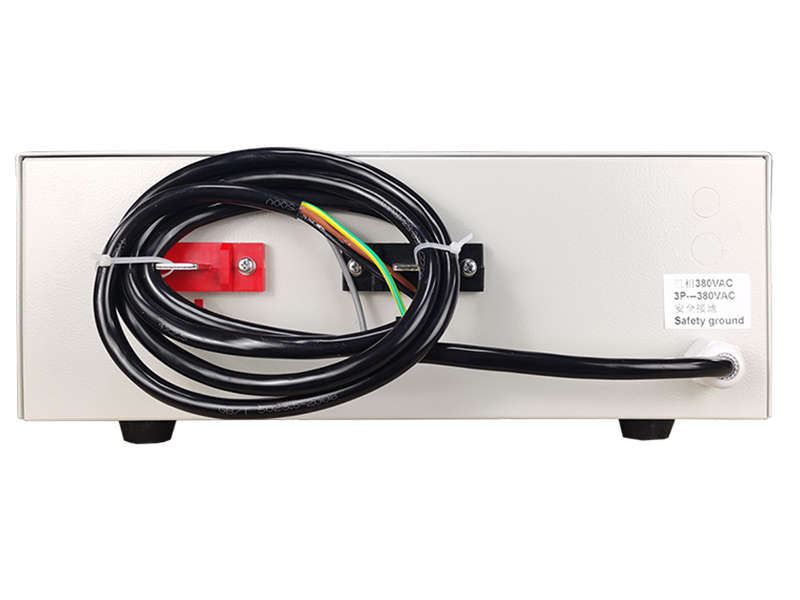

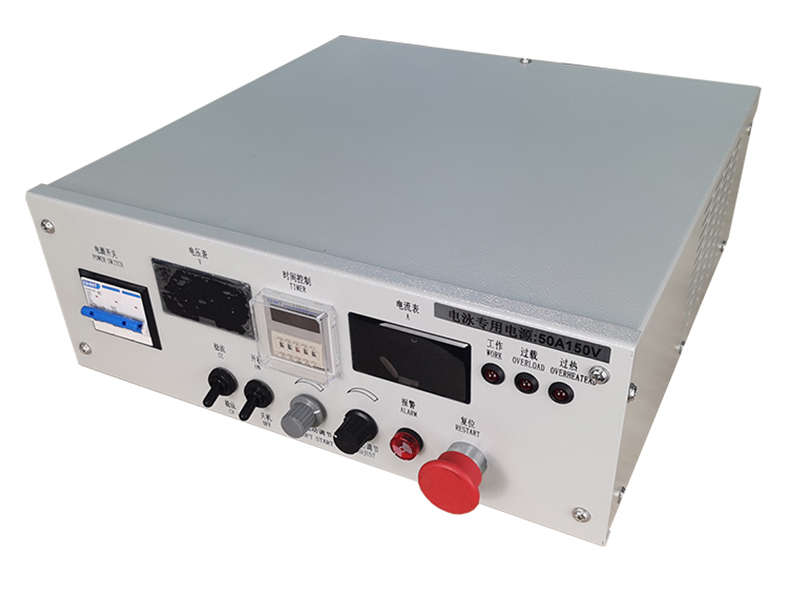

The E-Coat Finishing Rectifier from Gaohui Rectifier delivers 50A at 150V for topcoat and clearcoat. This E-Coat Finishing Rectifier powers a wide range of e-coating racks with stable DC output. Furthermore, the E-Coat Finishing Rectifier uses air cooled IGBT stages that hold tight output stability under full load. Consequently, e-coating shops rely on it for uniform, repeatable films. Moreover, finishing facilities select this E-Coat Finishing Rectifier for its air cooled design and 50A 150V capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Air cooled | Application: Topcoat / Clearcoat | Ripple: ≤5% | Interface: RS485/PLC
The 50A 150V rectifier is tuned for topcoat and clearcoat stages that define final finish quality. Low ripple matters most here, where surface smoothness and gloss are judged. For example, a two-coat line uses it after the primer stage. Furthermore, stable 150V builds a uniform topcoat without streaks or spikes. Moreover, it pairs with a primer stage to complete a full finish system. In addition, synchronized dual-coat control simplifies recipe handling.
Moreover, this rectifier keeps output ripple extra-low for mirror-smooth final films. In addition, air-cooled installation fits finishing cells without water. Consequently, part finicky jobs where gloss is critical run on it. Moreover, finish inspectors trust the even film on this E-Coat Finishing Rectifier. Finally, Gaohui Rectifier tunes it to the customer's topcoat chemistry.
| Parameter | Value |
|---|---|
| DC Output Current | 0–50A adjustable |
| DC Output Voltage | 0–150V adjustable |
| Cooling Method | Air cooled |
| Ripple Factor | ≤5% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | RS485, optional PLC |
| Dimensions | Customized to tank layout |
| Weight | Customized |
| Special Feature | Ultra-low ripple finish stage |
Specifications subject to change. Custom designs available upon request.
We can provide: The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Furthermore, Gaohui Rectifier supports parallel N+1 expansion when line capacity grows. We provide remote commissioning and spare-part support worldwide. Consequently, you can scale from one tank to a full e-coating department without replacing the rectifier.
Moreover, Gaohui Rectifier includes commissioning support and a documented maintenance plan with every E-Coat Finishing Rectifier. Consequently, your engineers can schedule service without guessing intervals.
Related Models:
Need more current? Check the 200A 200V Production Air Cooled E-Coat Rectifier.
Need lower voltage? View the 30A 150V Compact Air Cooled E-Coat Rectifier.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
