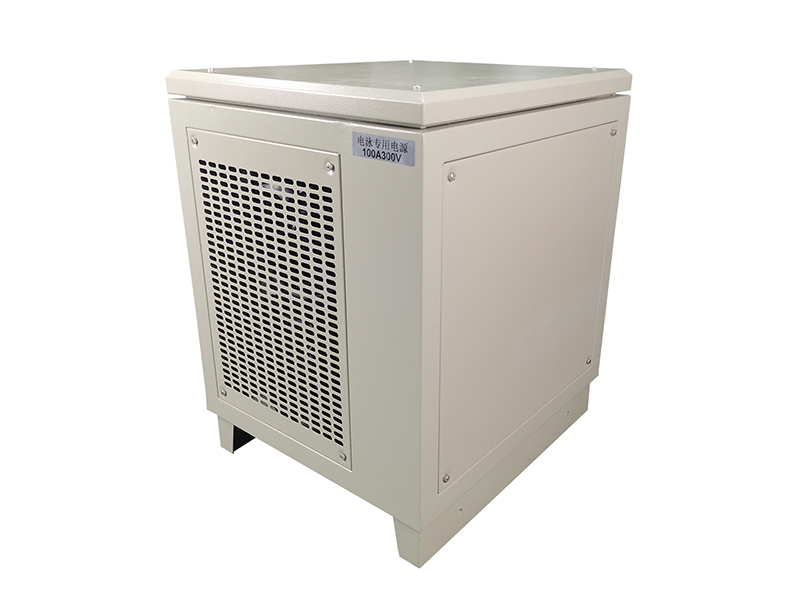

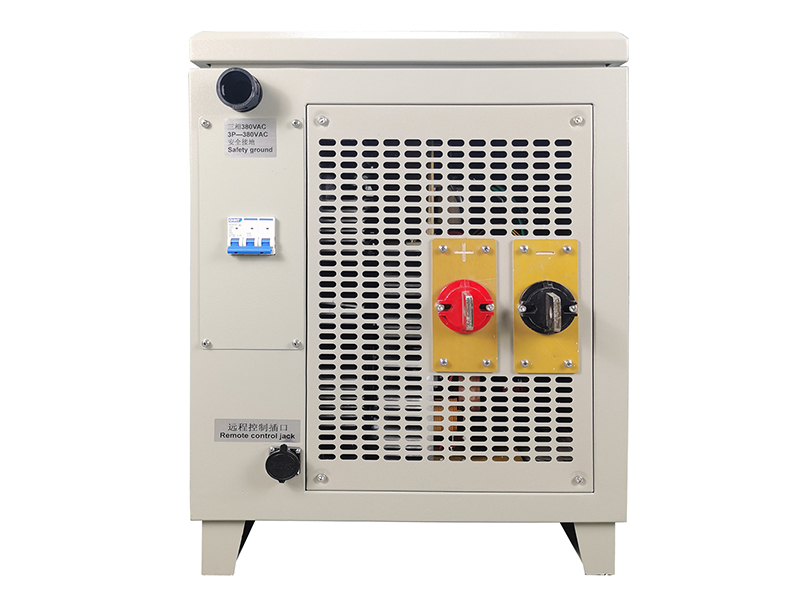

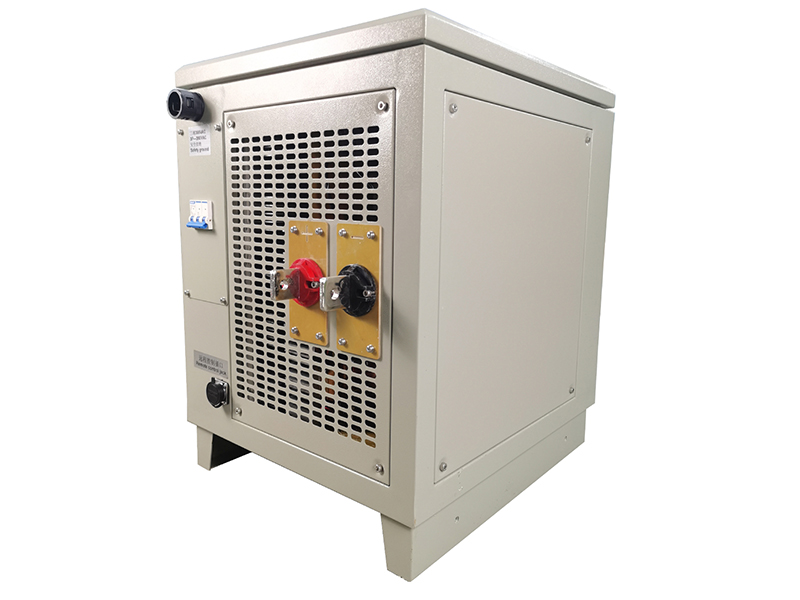

The Mid Power E-Coat Rectifier from Gaohui Rectifier delivers 100A at 300V for heavier e-coating loads. This Mid Power E-Coat Rectifier powers a wide range of e-coating racks with stable DC output. Furthermore, the Mid Power E-Coat Rectifier uses water cooled IGBT stages that hold tight output stability under full load. Consequently, e-coating shops rely on it for uniform, repeatable films. Moreover, finishing facilities select this Mid Power E-Coat Rectifier for its water cooled design and 100A 300V capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Water cooled | Application: Heavy E-Coating Loads | Ripple: ≤5% | Interface: RS485/PLC
The 100A 300V rectifier steps up voltage for larger tanks and longer racks. The 300V class output drives current into deep parts and extended series, boosting throwing power. For example, wheel rims and large brackets receive even film on shadowed surfaces. Furthermore, robust IGBT cooling prevents drift when the line runs near-rated all day. Moreover, multi-stage cycles support build-coat then finish-coat recipes. In addition, event logging records every run for traceability.
Moreover, this rectifier is offered with higher current tiers for future expansion. In addition, water-flow and inlet-temperature monitoring protect the cooling loop. Consequently, engineers choose it when parts demand thicker, more even films than a standard 150V unit can deliver. Moreover, maintenance teams rely on the diagnostics log on this Mid Power E-Coat Rectifier. Finally, Gaohui Rectifier provides remote diagnostics to cut troubleshooting time.
| Parameter | Value |
|---|---|
| DC Output Current | 0–100A adjustable |
| DC Output Voltage | 0–300V adjustable |
| Cooling Method | Water cooled |
| Ripple Factor | ≤5% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | RS485, optional PLC |
| Dimensions | Customized to tank layout |
| Weight | Customized |
| Special Feature | Multi-segment coating cycles |
Specifications subject to change. Custom designs available upon request.

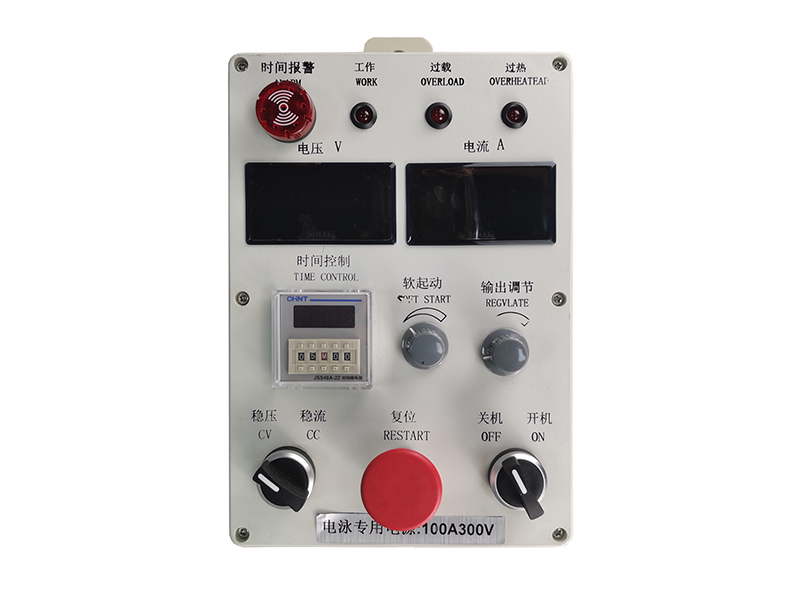

We can provide: The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Furthermore, Gaohui Rectifier supports parallel N+1 expansion when line capacity grows. We provide remote commissioning and spare-part support worldwide. Consequently, you can scale from one tank to a full e-coating department without replacing the rectifier.
Moreover, Gaohui Rectifier includes commissioning support and a documented maintenance plan with every Mid Power E-Coat Rectifier. Consequently, your engineers can schedule service without guessing intervals.
Related Models:
Need more current? Check the 300A 200V Heavy Duty E-Coat Rectifier.
Need lower voltage? View the 100A 150V Standard E-Coat Rectifier.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
