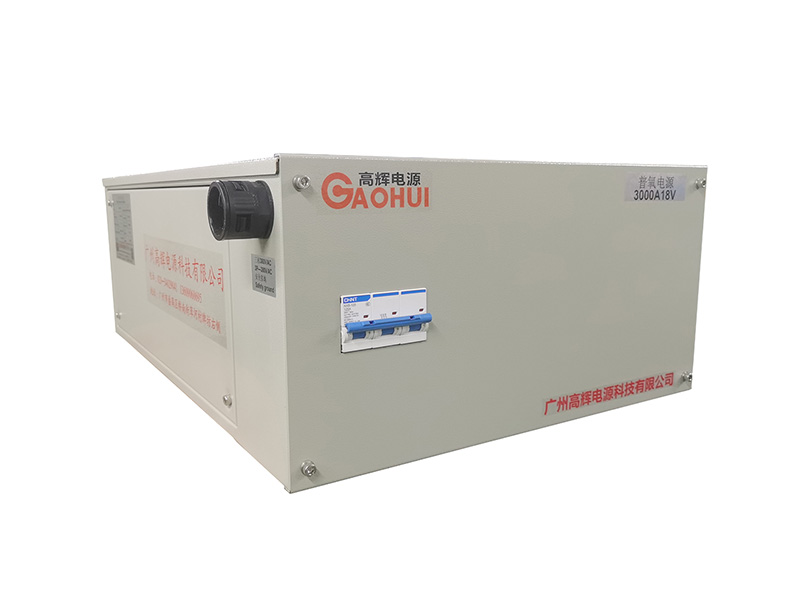

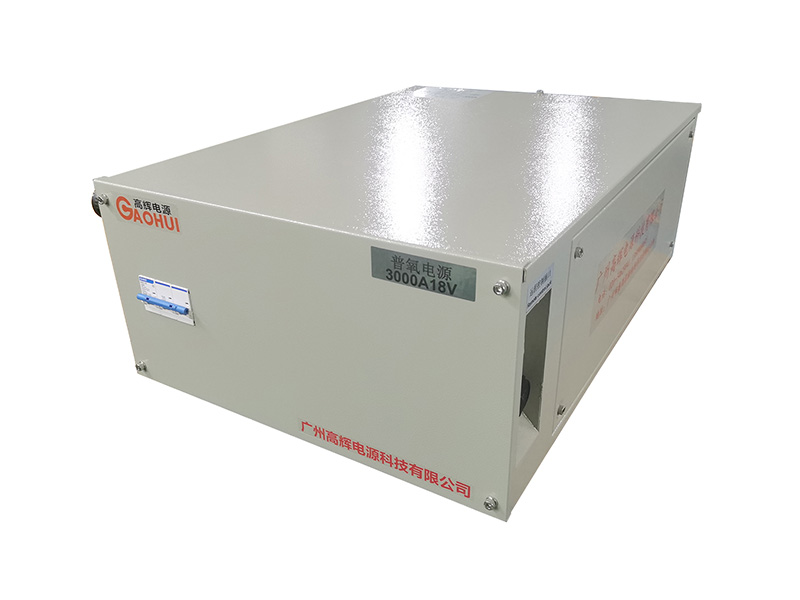

The Water-Cooled Anodizing Rectifier from Gaohui Rectifier delivers 3000A at 18V for water-cooled aluminum anodizing. This Water-Cooled Anodizing Rectifier powers a wide range of oxidation racks with stable DC or pulsed output. Furthermore, the Water-Cooled Anodizing Rectifier uses water cooled IGBT stages that hold tight output stability under full load. Consequently, oxidation shops rely on it for uniform, repeatable coatings. Moreover, surface-finishing facilities select this Water-Cooled Anodizing Rectifier for its water cooled design and 3000A 18V capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Water cooled | Application: Water-Cooled Aluminum Anodizing | Ripple: ≤5% | Interface: RS485/PLC
The 3000A 18V rectifier is a workhorse for general aluminum anodizing lines. It coats architectural parts, cookware, electronics housings and extrusions. For example, a rack of extrusions receives even decorative oxide ready for dyeing. Furthermore, stable output supports dyeing and sealing downstream. Moreover, water cooling sustains high-volume shifts. In addition, the PLC interface ties it to the anodizing line.
Moreover, this rectifier offers load-tracking DC metering for quality records. In addition, overcurrent foldback protects parts and unit on shorts. Consequently, anodizing plants depend on it for repeatable daily throughput. Moreover, process engineers value the fieldbus integration. Finally, Gaohui supports energy recording for cost-per-part analysis.
| Parameter | Value |
|---|---|
| DC Output Current | 0–3000A adjustable |
| DC Output Voltage | 0–18V adjustable |
| Cooling Method | Water cooled |
| Ripple Factor | ≤5% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | RS485, optional PLC |
| Dimensions | Customized to tank layout |
| Weight | Customized |
| Special Feature | High-current anodizing |
Specifications subject to change. Custom designs available upon request.
We can provide: The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Furthermore, Gaohui Rectifier supports parallel N+1 expansion when line capacity grows. We provide remote commissioning and spare-part support worldwide. Consequently, you can scale from one tank to a full oxidation department without replacing the rectifier.
Moreover, Gaohui Rectifier includes commissioning support and a documented maintenance plan with every Water-Cooled Anodizing Rectifier. Consequently, your engineers can schedule service without guessing intervals.
Related Models:
Need more current? Check the 100A 750V Water-Cooled MAO Rectifier.
Need lower voltage? View the 8000A 70V Heavy Duty Hard Anodizing Rectifier.
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
