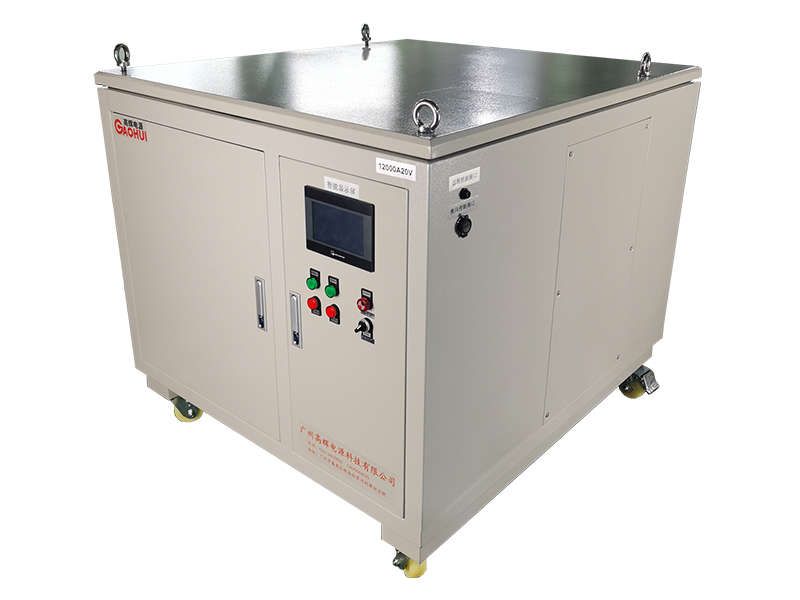

Assembled with three parallel cabinets, this 3‑Unit Automatic Commutation Chrome Rectifier delivers total 12000A at 20V and runs programmable polarity cycles to boost chrome‑plated surface consistency.
3‑Unit Automatic Commutation Chrome Rectifier targets high‑output chrome‑plating workshops that require both huge current capacity and programmable forward‑reverse current cycles. Many large work‑pieces such as industrial rollers and heavy hydraulic components suffer from edge over‑deposit without periodic polarity reversal. Traditional solutions often pair separate rectifier banks with external reversing hardware, which brings extra wiring work and raises potential fault points. This 12000A 20V chrome plating rectifier with automatic commutation adopts three‑unit parallel architecture and embeds commutation control inside the system. After busbar connection and water piping installation, operators adjust total output values and reversal timing directly from central control panel to match different plating recipes.

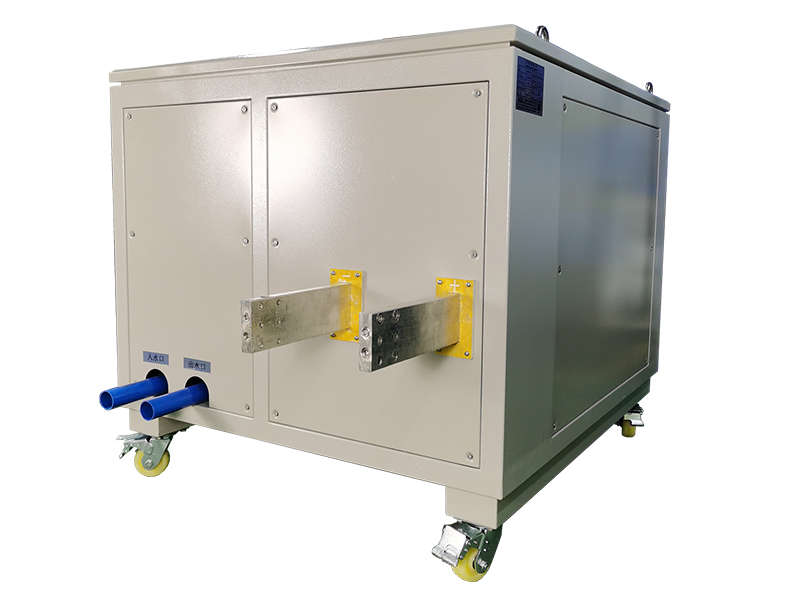

Each cabinet owns independent water‑cooled heat dissipation. Meanwhile built‑in automatic commutation logic executes smooth polarity switching under high‑current working status. It avoids voltage surges during commutation and keeps stable running state for long‑time batch production.
Every cabinet of this 3‑Unit Automatic Commutation Chrome Rectifier uses mature IGBT high‑frequency conversion technology and keeps efficiency above 92 percent. Since total high‑current load distributes over three separate cabinets, thermal pressure on each power module decreases obviously when compared against single high‑power cabinet equipment. Therefore the whole system gains longer service life under continuous production conditions.

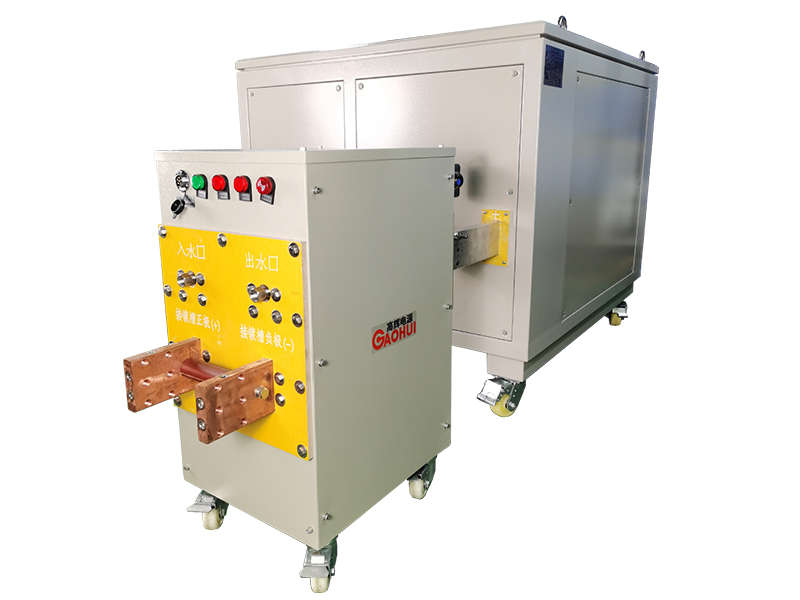

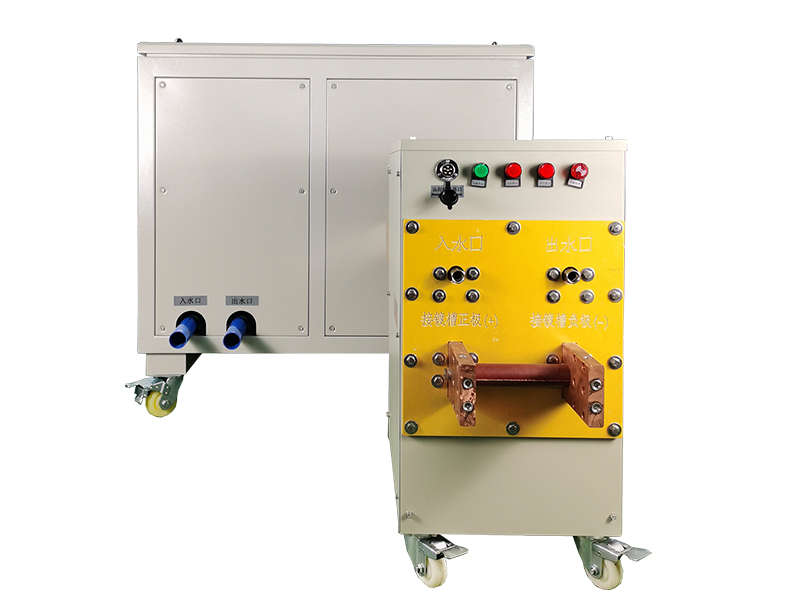

Its embedded automatic commutation module completes polarity transition gently without sharp current spikes. As a result, finished work‑pieces show reduced edge build‑up and better coating adhesion. Modular cabinet design also brings convenience for on‑site maintenance; technicians can handle inspection for one unit without shutting down the whole system.
Our engineering group tunes parallel synchronization together with commutation logic specifically for this 12000A combined output scenario. Current imbalance stays low in long‑hour running, and the whole parallel‑commutation system delivers reliable power support for demanding chrome‑plating workshops.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Input Parameters | AC Input Power Supply | Three‑phase AC 380V, ±10% tolerance, 50‑60Hz |
| DC Output Parameters | Total Output Voltage Range | 0‑20V adjustable |
| DC Output Parameters | Total Output Current Range | 0‑12000A combined (3 units parallel) |
| DC Output Parameters | Total Rated Output Power | 240kW |
| DC Output Parameters | Voltage Regulation Accuracy | ≤1% |
| DC Output Parameters | Current Regulation Accuracy | ≤1% |
| DC Output Parameters | Ripple Factor | ≤1% |
| Control and Automation Functions | Operating Modes | Constant Current, Constant Voltage, Automatic Commutation Mode |
| Control and Automation Functions | Auxiliary Hardware | Central digital control panel, ampere‑hour counter, independent fault recorder for each cabinet |
| Control and Automation Functions | Programming Features | Total output setting, commutation time adjustment, per‑cabinet alarm logging |
| Physical and Communication Parameters | Cooling Method | Water‑cooled, each cabinet fitted with independent water‑flow interlock protection |
| Physical and Communication Parameters | Protection Class | IP20 for indoor industrial plating workshop |
| Physical and Communication Parameters | Communication Interface | RS485 Modbus RTU, real‑time data accessible per cabinet |
| Physical and Communication Parameters | Operating Efficiency | Above 92% |
We can provide:
This 3‑Unit Automatic Commutation Chrome Rectifier comes with standard factory warranty and can run more than 10 years under qualified operating conditions. Three‑unit parallel load‑sharing and automatic commutation function belong to standard supply scope. Independent water‑flow sensor for each cabinet provides reliable thermal protection. Multi‑layer alarm system responds quickly to all abnormal runtime conditions. Just share your plating‑bath parameters and workpiece types, we will offer targeted configuration advice.
This 3‑Unit Automatic Commutation Chrome Rectifier fits large‑scale chrome‑plating production needing high total current plus periodic polarity reversal. It works well for refurbishing industrial rollers, heavy‑wall hydraulic cylinders and large mining mechanical components. Automatic commutation helps optimise coating quality and lower reject rate for work‑pieces prone to edge over‑plating.
Many metal‑finishing plants pick this three‑cabinet parallel solution instead of single high‑current rectifier plus separate reversing gear. Combined parallel‑commutation design simplifies workshop layout and reduces extra failure sources. Besides mass production, it also suits process testing; operators tweak commutation cycles and power parameters to validate new plating formulas, while Modbus data output supports complete production log archiving for quality traceability.
We develop high‑performance parallel rectifier hardware built for heavy‑duty chrome‑plating lines, with rich experience on integrating automatic commutation into multi‑cabinet parallel systems. Our engineering team calibrates load‑sharing performance, commutation transition curve and safety thresholds according to real‑world workshop operating environment.
Each cabinet passes full‑load aging test and ripple inspection before shipment, so the complete 12000A parallel‑commutation system delivers proven stability for continuous plating tasks.
Our full‑lifecycle support includes on‑site operation guidance, remote multi‑unit fault diagnosis and stable spare‑parts supply. When your production capacity expands later, extra cabinets can join the existing parallel group. Count on us for robust rectifier solutions for your high‑quality chrome‑plating workflows.
