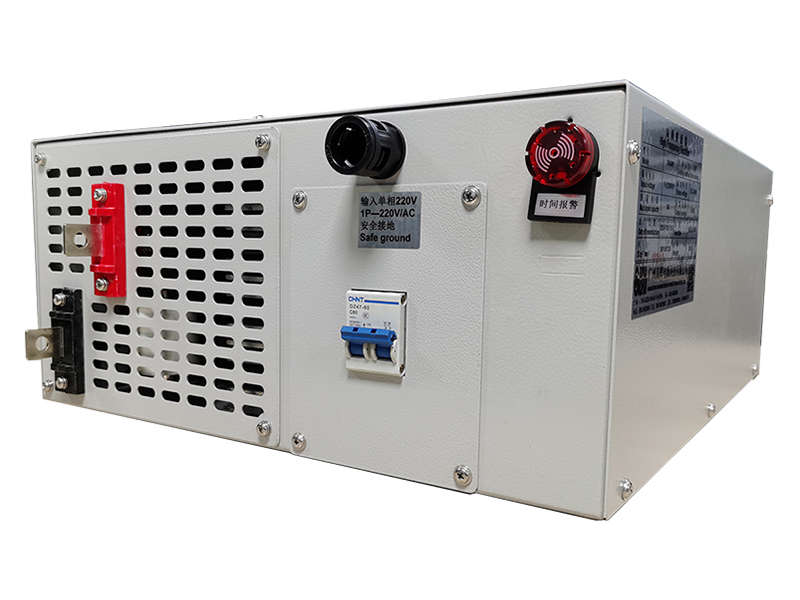

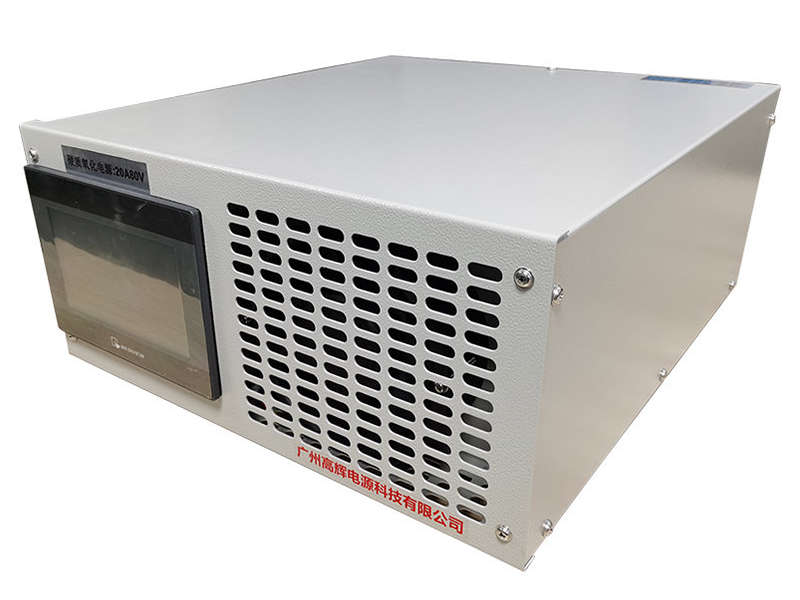

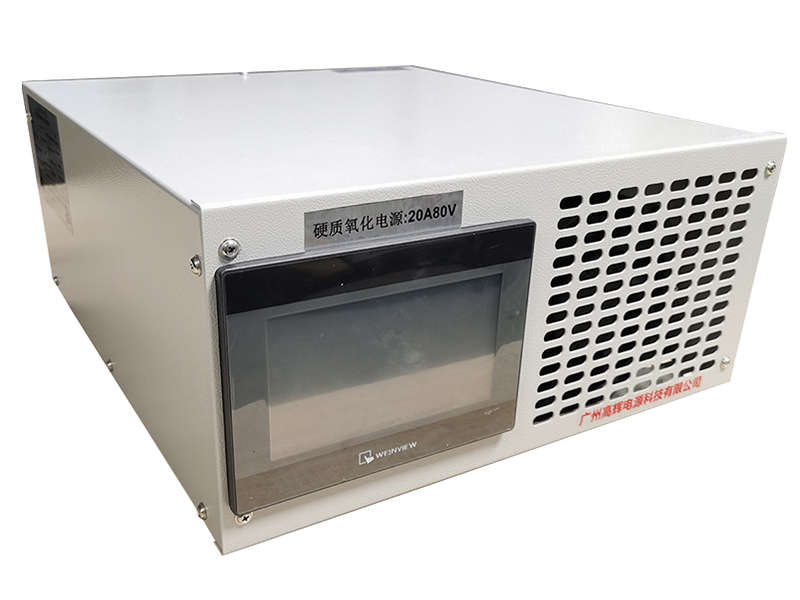

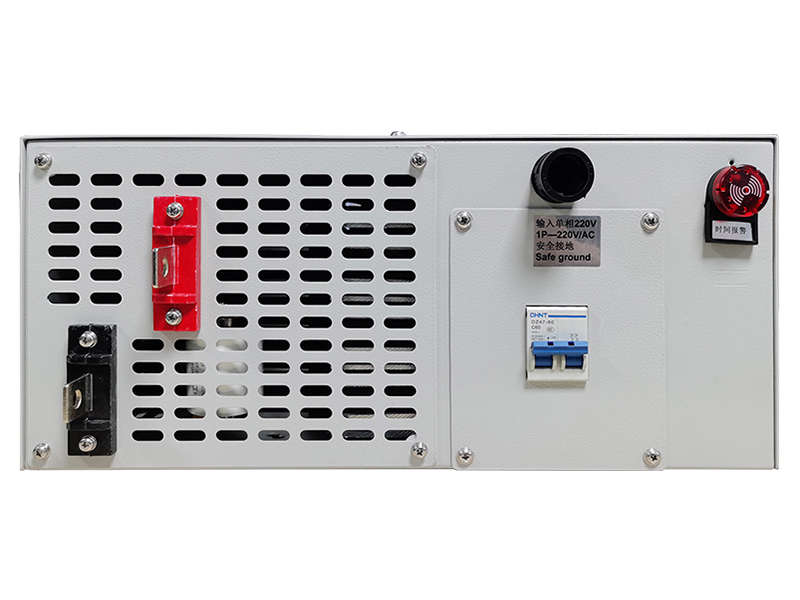

The Air-Cooled Hard Anodizing Rectifier from Gaohui Rectifier delivers 20A at 80V for air-cooled hard anodizing. This Air-Cooled Hard Anodizing Rectifier powers a wide range of oxidation racks with stable DC or pulsed output. Furthermore, the Air-Cooled Hard Anodizing Rectifier uses air cooled IGBT stages that hold tight output stability under full load. Consequently, oxidation shops rely on it for uniform, repeatable coatings. Moreover, surface-finishing facilities select this Air-Cooled Hard Anodizing Rectifier for its air cooled design and 20A 80V capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Air cooled | Application: Air-Cooled Hard Anodizing | Ripple: ≤5% | Interface: RS485/PLC
The 20A 80V rectifier is engineered for hard anodizing of aluminum, producing thick wear-resistant anodic films. It serves jigs, hydraulic cylinders and automotive parts requiring 20–100 micron hard coat. For example, a line can anodize piston rods and guide rollers in a single pass. Furthermore, tight current control holds coating thickness steady across racks. Moreover, low ripple promotes a hard, dense film. In addition, the RS485, optional PLC interface ties it to line automation.
Moreover, this rectifier supports timed cycles for repeatable film build. In addition, water-cooled cooling sustains high-volume shifts without derating. Consequently, plants rely on it for hard chrome-free wear coatings. Moreover, maintenance teams value the accessible IGBT modules. Finally, Gaohui tunes the ramp and current limits to each customer's tank.
| Parameter | Value |
|---|---|
| DC Output Current | 0–20A adjustable |
| DC Output Voltage | 0–80V adjustable |
| Cooling Method | Air cooled |
| Ripple Factor | ≤5% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | RS485, optional PLC |
| Dimensions | Customized to tank layout |
| Weight | Customized |
| Special Feature | No-chiller hard anodizing |
Specifications subject to change. Custom designs available upon request.
We can provide: The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Furthermore, Gaohui Rectifier supports parallel N+1 expansion when line capacity grows. We provide remote commissioning and spare-part support worldwide. Consequently, you can scale from one tank to a full oxidation department without replacing the rectifier.
Moreover, Gaohui Rectifier includes commissioning support and a documented maintenance plan with every Air-Cooled Hard Anodizing Rectifier. Consequently, your engineers can schedule service without guessing intervals.
