Product Introduction

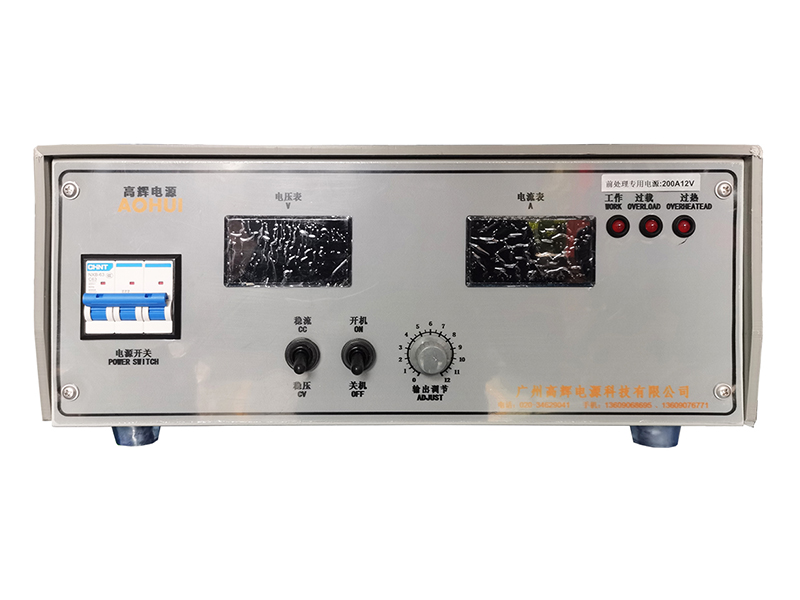

The 200A 12V pretreatment rectifier is a robust power supply designed specifically for surface preparation stages in electroplating lines. This unit delivers high-current DC power to drive electrochemical cleaning, activation, and pickling processes. Consequently, it ensures optimal surface conditions for subsequent plating, which is fundamental to achieving strong adhesion and a flawless final finish.

Product Parameters

Input Voltage: AC Three-phase 220-380V ±10% / 50Hz (or customized according to customer requirements)

Rated Output: DC Voltage 0-12V / Current 0-200A (steplessly adjustable)

Voltage and Current Regulation: Automatic switching between constant voltage (CV) and constant current (CC) modes, supports constant voltage/constant current operation

Cooling Method: Air-cooled

Protection Functions: Overcurrent protection, overvoltage protection, short circuit protection, overheat protection

Key Features & Benefits

• High-Current, Low-Voltage Design: Optimized for the typical voltage range (6-12V) and high current demands of pretreatment baths. This ensures effective charge transfer and thorough surface treatment, even on large or heavily soiled parts.
• Robust & Corrosion-Resistant Build: Specifically engineered to withstand the harsh chemical environments of acid and alkaline pretreatment tanks. Key components are protected against fumes and splashes for extended service life.
• Simple & Reliable Operation: Focuses on delivering stable, adjustable power without unnecessary complexity. This makes it easy to integrate into automated lines or for manual operation, ensuring consistent process parameters.
• Improved Plating Quality & Yield: By providing reliable power for key preparatory steps like electrocleaning (removing oils) and activation (removing oxides), this rectifier directly contributes to better plating adhesion and fewer defects like blistering or peeling.

Application Advantages

This pretreatment rectifier is crucial for establishing a quality foundation in any plating operation.

In electrocleaning tanks, it provides the current needed for effective saponification and emulsification of oils. A properly cleaned surface is essential, as any residual contamination will lead to poor adhesion in the subsequent plating layer.

For acid activation or pickling, the rectifier drives the removal of light rust or scale and activates the base metal surface. This creates a perfectly receptive substrate, ensuring the plating metal forms a strong metallurgical bond.

In zincate or other immersion coating processes (common for plating on aluminum), controlled current can improve the uniformity and quality of the conversion coating, which is critical for the success of the final electroplate.
