This 10A 18V fully automatic electroplating equipment is a professional experimental setup designed for precise and automated electroplating processes. It provides reliable performance and user-friendly operation for laboratory applications.
This Automatic Electroplating Experimental Equipment is a professional core power source for industrial electroplating. Firstly, it converts AC power into stable DC or pulse power, solving common issues like uneven coating and poor adhesion. Moreover, as a custom-focused product, it supports flexible parameter adjustment to fit decorative, functional, and precision plating needs. Additionally, its rugged industrial design ensures stable long-term operation, suitable for all-scale electroplating workshops and easy integration into existing lines.
- Stable output for uniform, dense coatings
- High efficiency to reduce operational costs
- Fully customizable for diverse plating processes
- Comprehensive protection to avoid production interruption
- Easy to operate and maintain
Firstly, this Automatic Electroplating Experimental Equipment adopts advanced high-frequency IGBT technology, achieving ≥90% efficiency and minimizing energy waste. Meanwhile, its precise control ensures stable output with ≤3% ripple, improving coating quality. Furthermore, it supports DC/pulse mode switching, and customization is our core strength—we adjust parameters, cooling, and interfaces per customer needs. In addition, full protection functions and industrial-grade components ensure durability in harsh workshop environments.
| Model | Output Current (A) | Output Voltage (V) | Power (kW) | Input Current (A) | Input Voltage (V) | Weight (kg) | W×L×H (mm) |
|---|---|---|---|---|---|---|---|
| ZJ100015 | 1000 | 15 | 15 | 25 | 380 | 60 | 390×480×250 |
| ZJ200015 | 2000 | 15 | 30 | 50 | 380 | 60 | 430×480×250 |
| ZJ300015 | 3000 | 15 | 45 | 75 | 380 | 60 | 520×730×300 |
| ZJ400015 | 4000 | 15 | 60 | 100 | 380 | 100 | 570×730×300 |
| ZJ500012 | 5000 | 12 | 60 | 100 | 380 | 120 | 570×770×250 |
| ZJ600015 | 6000 | 15 | 90 | 150 | 380 | 130 | 550×880×250 |
| ZJ800015 | 8000 | 15 | 120 | 200 | 380 | 180 | 500×670×1450 |
| ZJ1000015 | 10000 | 15 | 150 | 252 | 380 | 250 | 600×800×1750 |
| ZJ1200015 | 12000 | 15 | 180 | 303 | 380 | 300 | 800×1350×1500 |
| ZJ1500018 | 15000 | 18 | 270 | 454 | 380 | 350 | 860×1450×1550 |
| ZJ1800020 | 18000 | 20 | 360 | 606 | 380 | 350 | 860×1450×1850 |
| ZJ2000015 | 20000 | 15 | 300 | 505 | 380 | 400 | 860×1450×1850 |
| ZJ2500015 | 25000 | 15 | 375 | 631 | 380 | 450 | 880×1530×2150 |
| ZJ3000015 | 30000 | 15 | 450 | 757 | 380 | 350 | 880×1530×2540 |
| ZJ8000015 | 80000 | 15 | 1200 | 2020 | 380 | 491 | 880×1530×2540 |
| ZJ1000001 | 100000 | 15 | 1500 | 2525 | 380 | 650 | 880×1530×2650 |
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.

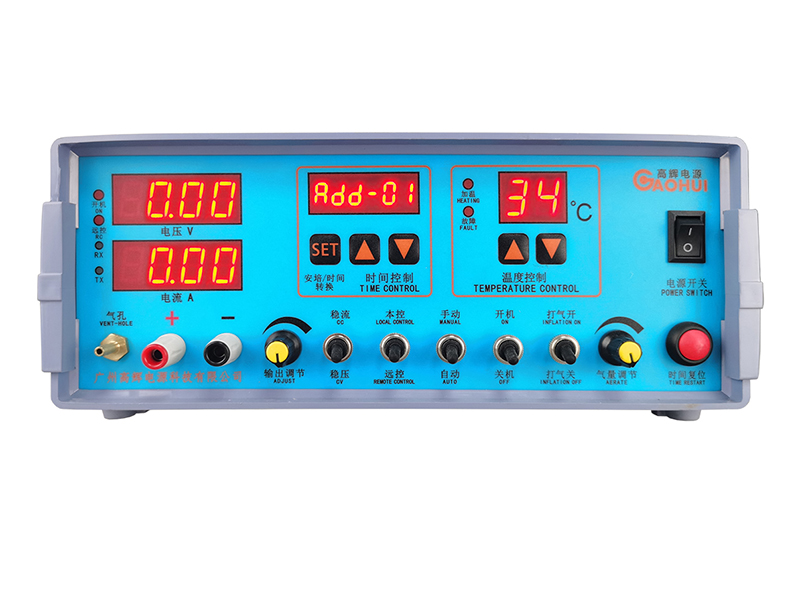

1. Voltage Display
Shows real-time output voltage of the power supply (V).
2. Current Display
Shows real-time output current of the power supply (A).
3. Timer Control Display
Shows set/remaining working time, for process duration control.
4. Temperature Control Display
Shows real-time system/heating element temperature (°C).
5. Vent Hole
Air outlet for aeration/purging function.
6. Positive Output Terminal (+)
Positive pole connection for power output.
7. Negative Output Terminal (-)
Negative pole connection for power output.
8. Output Adjust Knob
Adjusts output voltage or current level.
9. CC/CV Mode Switch
Selects between constant current (CC) or constant voltage (CV) mode.
10. Local/Remote Control Switch
Switches between manual local control and remote control.
11. Manual/Auto Switch
Selects between manual operation or automatic program operation.
12. ON/OFF Switch
Controls power supply output start/stop.
13. Inflation ON/OFF Switch
Controls aeration/purging function on/off.
14. Aerate Adjust Knob
Adjusts air flow rate of the aeration/purging function.
15. Time Restart Button
Resets the timer function to zero.
16. Power Switch
Main power switch for the entire device.
17. Timer Control Buttons (SET / ▲ / ▼)
Set and adjust working time and ampere-minute parameters.
18. Temperature Control Buttons (▲ / ▼)
Set and adjust the target temperature.
19. Heating/Fault Indicator Lights
- Heating: Lights when heating function is active.
- Fault: Lights when system detects an error/abnormal condition.
20. Communication Indicator Lights (RX / TX)
Shows data transmission/reception status for remote control communication.
This Automatic Electroplating Experimental Equipment is widely used in decorative, functional, and precision electroplating for hardware, electronics, automotive, and aerospace industries. Moreover, it fits all-scale workshops and automated lines, and is suitable for special processes like electroforming and electrolytic polishing. Additionally, its customizability ensures adaptability to new technologies and laboratory R&D.
Firstly, we have rich experience in Automatic Electroplating Experimental Equipment R&D and focus on custom solutions. Secondly, our professional team designs exclusive products per customer needs, with strict quality tests and CE/ISO certifications. Moreover, we provide fast delivery, on-site commissioning, and comprehensive after-sales support, making us a trusted partner for electroplating enterprises.
Learn more about related products:Plating Power Supply
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
