Output: 16V DC / 1500A (24kW)
Core Purpose: Optimized for Hard Chrome Plating
Ripple: ≤ 2.5% RMS
Cooling: High-Capacity Water Cooling System
Best For: Industrial Hard Chromium Electroplating, Heavy-Duty Cylinder & Roller Repair, Aerospace Component Coating
| InputOutput | Voltage | Single-phase 220V/Three-phase 380V±10%, other options available upon request |
| Frequency | 50Hz/60Hz, other options available upon request | |
| Frequency ModeInputOutputFrequency ModeInputOutput | Current | 0-Maximum value (A) adjustable (customizable up to 100,000A) |
| Voltage | 0-Maximum value (V) adjustable (customizable up to 10,000V) | |
| Power | Output rated voltage x rated current = Power | |
| Waveform | Square wave (standard), positive pulse, positive/negative pulse, smooth wave | |
| Voltage Regulation Accuracy | ≤±0.1% (measurement range 10-100%) | |
| Current Regulation Accuracy | ≤±0.1% (measurement range 10-100%) | |
| Frequency Mode | Frequency | Low, medium, and high frequency modes, 100-9900Hz (customer selectable within this range) |
| Duty Cycle | 10-100% (customer selectable within this range) | |
| Operating Mode | Switchable current or voltage regulation function | |
| Ripple Coefficient | <1% | |
| Overall Efficiency | ≥92% (rated operating conditions) | |
| Cooling Method | Water-cooled/air-cooled type (customizable) | |
| Timing Function | Cumulative ampere-hour, ampere-hour, and time control | |
| Operating Status | Capable of long-term full-load operation | |
| Protection Functions | Overcurrent, overheat, undervoltage, and overvoltage protection | |
| Optional Functions | RS485 communication/analog input 4-20mA/remote start/stop interface, etc. | |
| Control Program Customization | Examples include multi-stage process settings, multi-stage time control, and automatic polarity reversal. | |
This product is based on a standard high-frequency rectified electroplating power supply with a special power output voltage of 6-18V. It possesses the functions of a standard electroplating power supply and is ideal for special electroplating surface treatments such as hard chrome plating. It features multi-step stepped power supply, multi-step soft-start time setting, automatic reset, and other functions to meet various process requirements. The power supply has voltage and current regulation or current and voltage regulation functions, with control and display accuracy <1%. The equipment has multiple protection functions such as output overcurrent, over-temperature, and input phase loss. The product is stable and reliable, with a reasonable internal structure and all electronic components sealed to reduce the impact of the external environment on the internal components. The control system can be selected from digital control, analog control, or RS485 communication control, and can also be equipped with a 4-20mA, 0-10V standard control signal interface.
Since its inception, the company has adhered to a market-oriented approach, with technological innovation as the core of its development. Through continuous innovation and upgrading, and by improving its scientific research and technology, it has successively obtained software copyright, software product, patent certificates, and CE certification, and has been recognized as a high-tech enterprise, one of China's top ten power supply brands, and a science and technology-based SME. Simultaneously, the company's domestically developed and innovative products have gradually replaced imported products.

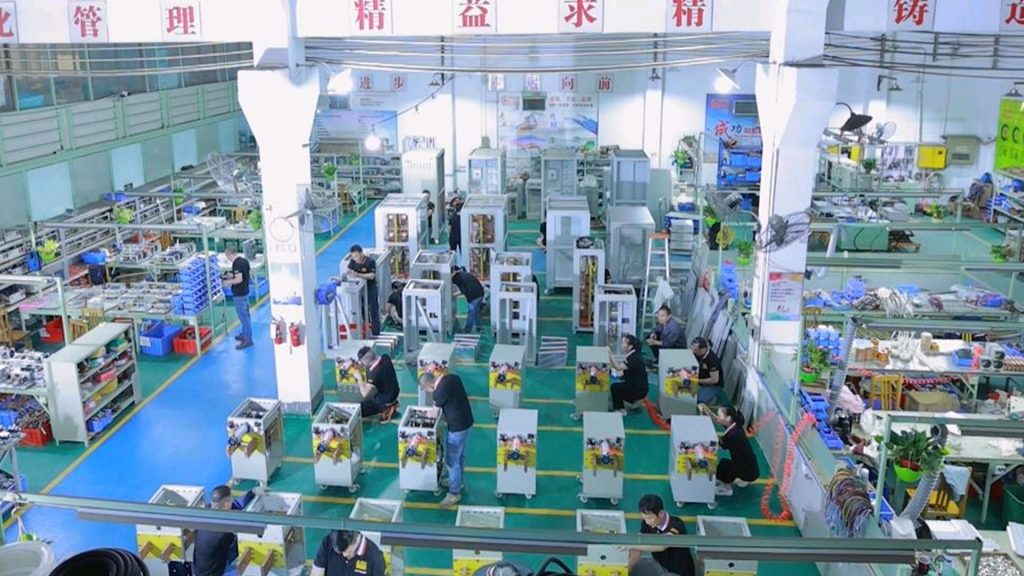

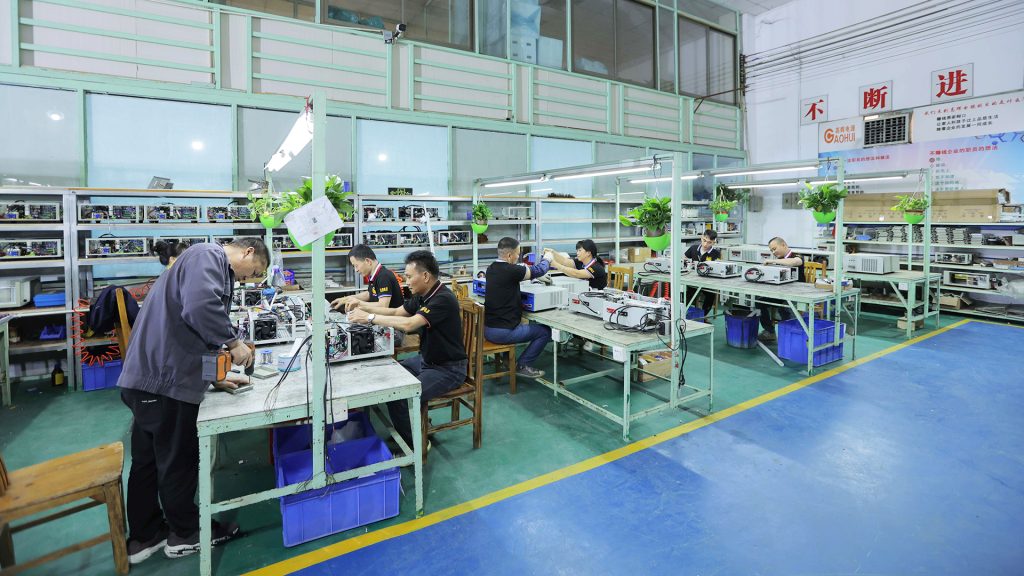

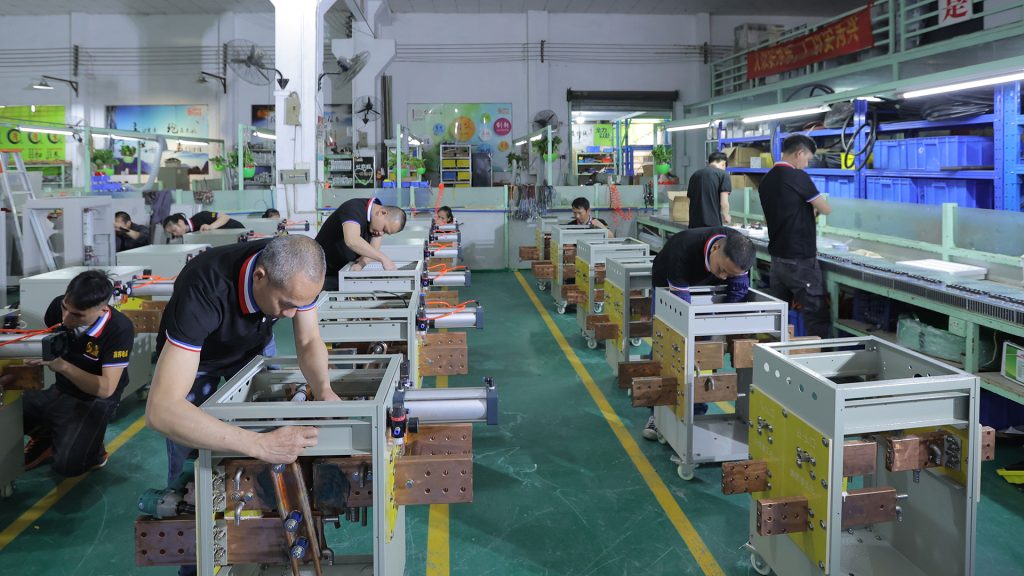

Gao Hui Power Factory Showcase
