Output: 16V DC / 6000A (96kW)
Core Purpose: Dedicated to Hard Chrome Plating
Ripple: ≤ 3% RMS
Best For: Large Hydraulic Cylinders, Industrial Rolls, Marine Components, Heavy Machinery Repair
This 6000A 16V hard chrome rectifier is a high-power industrial DC power supply dedicated to hard chrome plating processes. It delivers stable high-current, low-voltage output to deposit dense, wear-resistant, and uniform chrome coatings on metal workpieces. As we focus on customized solutions, we designed this rectifier to solve core pain points in industrial plating—such as unstable coating quality, excessive output ripple, poor adaptability to large workpieces, and mismatched parameters with production lines. We position it as a reliable power core for heavy-duty industrial plating, supporting long-term continuous operation in harsh workshop environments.
First and foremost, the rectifier adopts advanced high-frequency IGBT technology, which achieves ≥92% energy efficiency and significantly reduces daily operating costs. This technology also ensures high output accuracy, so current and voltage stay stable even under full 6000A load, greatly improving coating consistency and cutting down defects like porosity or uneven thickness.
Moreover, the whole machine features a corrosion-resistant chassis and components, which we specifically designed to withstand acid mist and high humidity in plating workshops. Its efficient cooling system—available in water-cooled or air-cooled options—effectively controls temperature rise during long-term operation, extending the equipment’s service life and reducing maintenance frequency.
In addition, the control system is user-friendly and flexible. It supports both manual parameter adjustment and automatic linkage with production lines via RS485/PLC, helping users boost production efficiency and cut labor costs. Unlike standard models, we can tailor every unit to match specific process needs, making it adaptable to diverse plating scenarios.
| Item | Specification |
|---|---|
| Input Power | 3-phase 380V AC, 50/60Hz |
| Output Voltage | 0–16V DC, continuously adjustable |
| Output Current | 0–6000A DC, continuously adjustable |
| Control Mode | Constant Current (CC) / Constant Voltage (CV) |
| Ripple Factor | ≤1% |
| Efficiency | ≥92% |
| Cooling Method | Water cooling / Air cooling (customizable) |
| Protection Functions | Overcurrent, overvoltage, overheat, short circuit, phase loss |
| Communication Interface | RS485 / PLC compatible |
Custom models available. Input Voltage: 380V
| Hard Chrome Plating Rectifier Model Selection (Any Model Customizable) | |||||
| Air-Cooled | |||||
| Model | Output Current (A) | Output Voltage (V) | Input Voltage (V) | Weight (KG) | W×L×H (mm) |
| YG500 | 500 | 12/15/18 | 380 | 50 | 510×580×230 |
| YG800 | 800 | 12/15/18 | 380 | 70 | 510×580×690 |
| YG1000 | 1000 | 12/15/18 | 380 | 70 | 510×580×690 |
| YG1500 | 1500 | 12/15/18 | 380 | 80 | 510×580×690 |
| YG2000 | 2000 | 12/15/18 | 380 | 105 | 510×580×920 |
| YG3000 | 3000 | 12/15/18 | 380 | 130 | 510×580×920 |
| YG4000 | 4000 | 12/15/18 | 380 | 160 | 510×580×1160 |
| YG5000 | 5000 | 12/15/18 | 380 | 200 | 510×580×1620 |
| YG6000 | 6000 | 12/15/18 | 380 | 215 | 510×580×1620 |
| YG8000 | 8000 | 12/15/18 | 380 | 450 | 700×900×1780 |
| YG12000 | 12000 | 12/15/18 | 380 | 560 | 570×830×2010 |
| Water-Cooled | |||||
| Model | Output Current (A) | Output Voltage (V) | Input Voltage (V) | Weight (KG) | W×L×H (mm) |
| YG1000 | 1000 | 12/15/18 | 380 | 65 | 480×730×270 |
| YG2000 | 2000 | 12/15/18 | 380 | 100 | 660×1320×370 |
| YG3000 | 3000 | 12/15/18 | 380 | 110 | 660×1320×370 |
| YG4000 | 4000 | 12/15/18 | 380 | 120 | 660×1320×370 |
| YG5000 | 5000 | 12/15/18 | 380 | 150 | 500×640×1130 |
| YG6000 | 6000 | 12/15/18 | 380 | 165 | 500×670×1450 |
| YG8000 | 8000 | 12/15/18 | 380 | 290 | 500×670×1450 |
| YG10000 | 10000 | 12/15/18 | 380 | 320 | 600×800×1750 |
| YG12000 | 12000 | 12/15/18 | 380 | 330 | 600×800×1750 |
| YG15000 | 15000 | 12/15/18 | 380 | 450 | 800×1350×1620 |
| YG18000 | 18000 | 12/15/18 | 380 | 800 | 860×1480×1850 |
| YG20000 | 20000 | 12/15/18 | 380 | 900 | 860×1480×1850 |
| YG30000 | 30000 | 12/15/18 | 380 | 1000 | 860×1480×1850 |
| YG40000 | 40000 | 15/18 | 380 | 1450 | 860×1480×1850 |
| YG50000 | 50000 | 15/18 | 380 | 1700 | 860×1480×1850 |
| YG60000 | 60000 | 15/18 | 380 | 2100 | 860×1480×1850 |
| YG80000 | 80000 | 18 | 380 | 2600 | 860×1480×1850 |
| Item | Details |
| Function Selection | Single timer, Dual timer, Triple timer, Multi‑segment timer, Automatic reverse polarity |
| Control Mode | Equipped with remote control box, RS485 |
Power（W） = Output Voltage（V） × Output Current（A）
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
This hard chrome rectifier is widely used in industrial hard chrome plating scenarios, especially for hydraulic cylinders, rolls, molds, automotive parts, and engineering machinery components that need wear-resistant and corrosion-resistant surfaces. It suits continuous automatic plating lines, semi-automatic production lines, and single-station processing equipment. Additionally, it can stably operate under high-load, long-cycle working conditions, and we can customize it to meet the specific process requirements of different plating workshops—whether for large workpieces or special plating standards.
We specialize in customized industrial power supply solutions, with mature design and production capabilities for high-current hard chrome rectifiers. Our professional technical team can adjust parameters, dimensions, interfaces, and functions according to your actual working conditions, ensuring the equipment perfectly matches your production line.

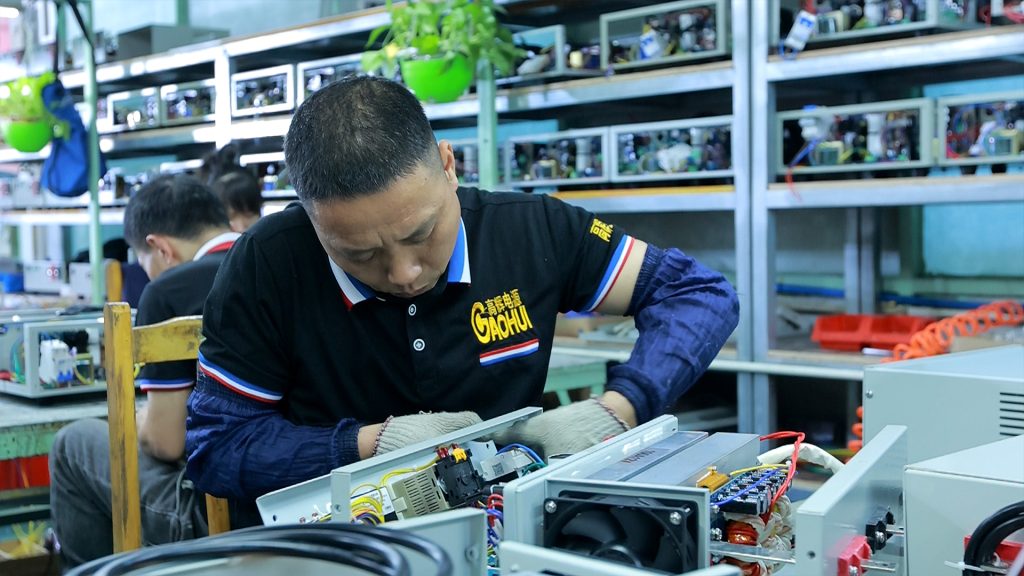

Our team subjects all products to strict aging and performance testing before delivery, guaranteeing stability and reliability in industrial environments. We provide a one-year warranty and long-term technical support, ensuring timely solutions for any operational issues.

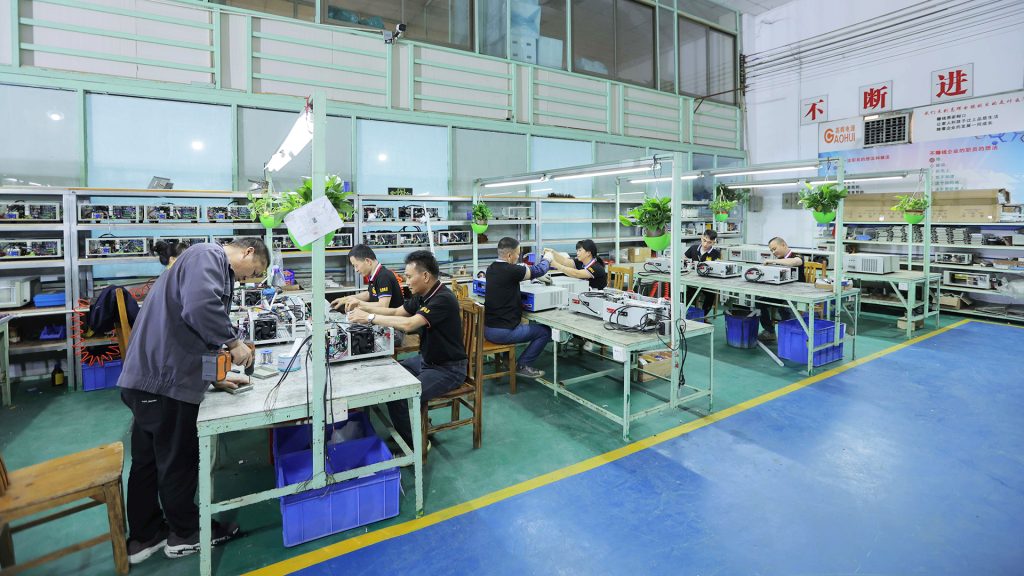

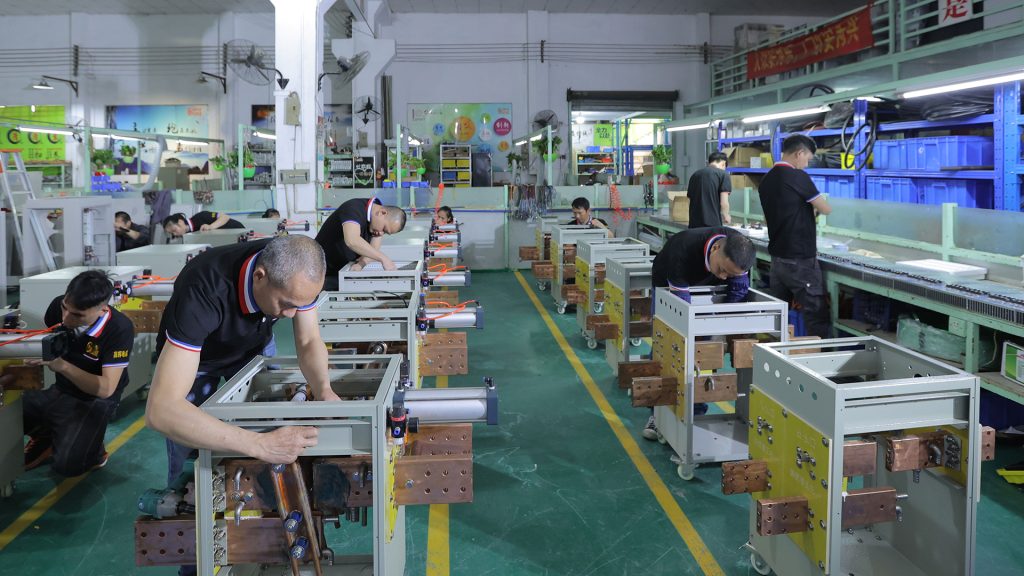

Our complete production line and efficient supply chain allow us to maintain a short delivery cycle, helping you quickly put the equipment into use and achieve stable production. Our focus on customization and quality makes us a trusted partner for industrial plating power supply needs.
Since its inception, the company has adhered to a market-oriented approach, with technological innovation as the core of its development. Through continuous innovation and upgrading, and by improving its scientific research and technology, it has successively obtained software copyright, software product, patent certificates, and CE certification, and has been recognized as a high-tech enterprise, one of China's top ten power supply brands, and a science and technology-based SME. Simultaneously, the company's domestically developed and innovative products have gradually replaced imported products.
Learn more about related products:Decorative Chrome Rectifier
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
