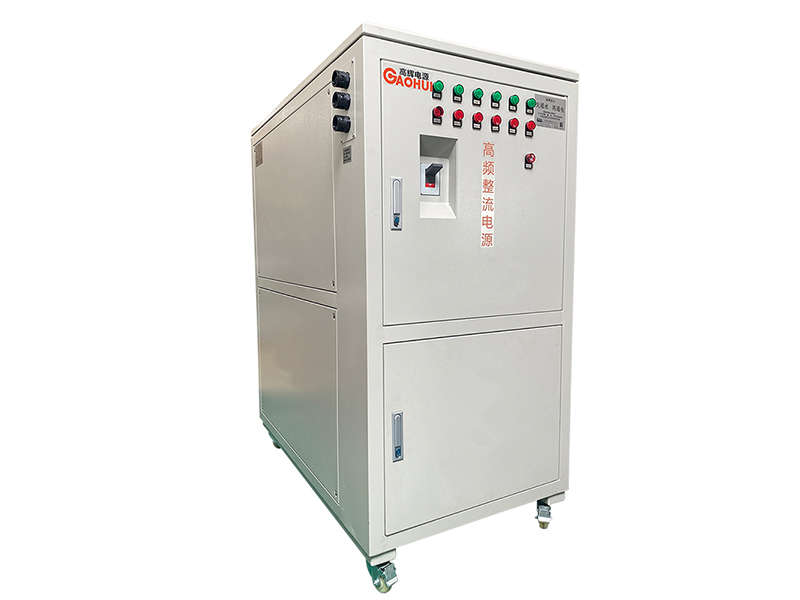

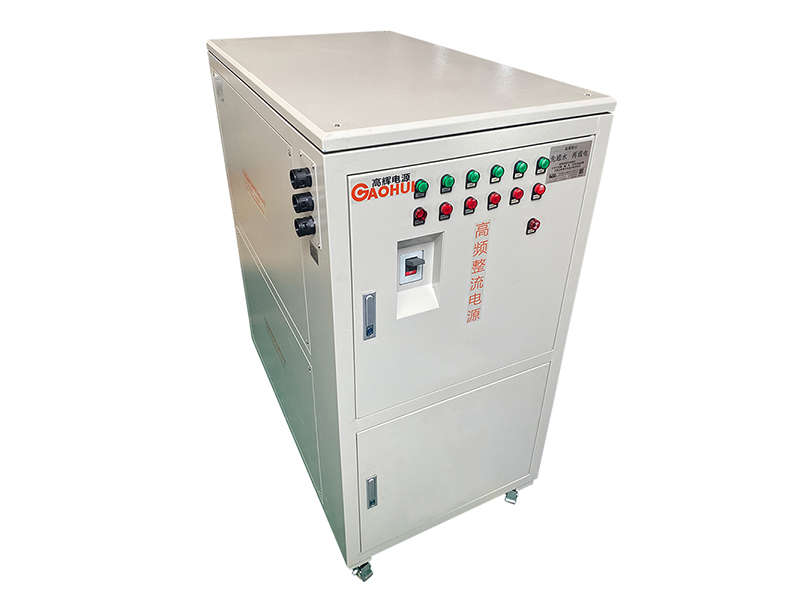

The Large Tank Chrome Rectifier from Gaohui Rectifier provides 15000A at 22V for deep and wide chrome baths. This Large Tank Chrome Rectifier overcomes the voltage losses of long anodes and large racks. Furthermore, the Large Tank Chrome Rectifier is water-cooled and built for continuous service. Consequently, facilities plating very large parts gain both current and voltage headroom. Moreover, large tank plating facilities select this Large Tank Chrome Rectifier for its water cooled design and 15000A capacity that keeps deposition rates predictable. Consequently, production planners factor it into daily schedules without derating concerns.
Cooling: Water Cooled | Application: Large Tank Plating | Ripple: ≤5% | Interface: RS485
The 15000A 22V rectifier is engineered for chrome tanks above 9000L, especially deep tanks for long parts. It is ideal for marine shafts, press columns, large molds and deep cylinder assemblies. For example, a heavy-equipment shop can plate a 5-meter press column without voltage starvation. Furthermore, the 22V output drives current through long anode buses and deep racks. Moreover, the 380V output range provides useful headroom for bus-bar losses, contact resistance and cooler electrolytes. In addition, the RS485 standard port allows remote monitoring.
Moreover, high voltage headroom prevents current roll-off at the far end of large workpieces. In addition, water cooling sustains the elevated output during long plating cycles. Consequently, this rectifier suits specialty large-tank chrome operations. Moreover, operators appreciate the straightforward layout and clearly marked controls on this Large Tank Chrome Rectifier. Finally, the service team at Gaohui Rectifier responds to spare-part requests quickly, which keeps the line running.
| Parameter | Value |
|---|---|
| AC Input Voltage | AC 380V ±10%, three phase |
| DC Output Current | 0–15000A adjustable |
| DC Output Voltage | 0–22V adjustable |
| Cooling Method | Water cooled |
| Ripple Factor | ≤5% RMS |
| Control Mode | IGBT/PWM, CV/CC |
| Communication | RS485 standard |
| Dimensions | 1400 × 900 × 1800 mm |
| Weight | 1120 kg |
| Special Feature | High-voltage headroom |
| Specifications subject to change. Custom designs available upon request. | |
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp-up function for current or voltage settings. For time-sensitive applications, you can use the timed operation mode. Moreover, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute-level timing function. If you need customization, please contact us for further details.
Related Models:
Need less power? View the 15000A 15V Production Chrome Rectifier.
Need higher voltage? Check the 10000A 36V High Voltage Chrome Rectifier.
