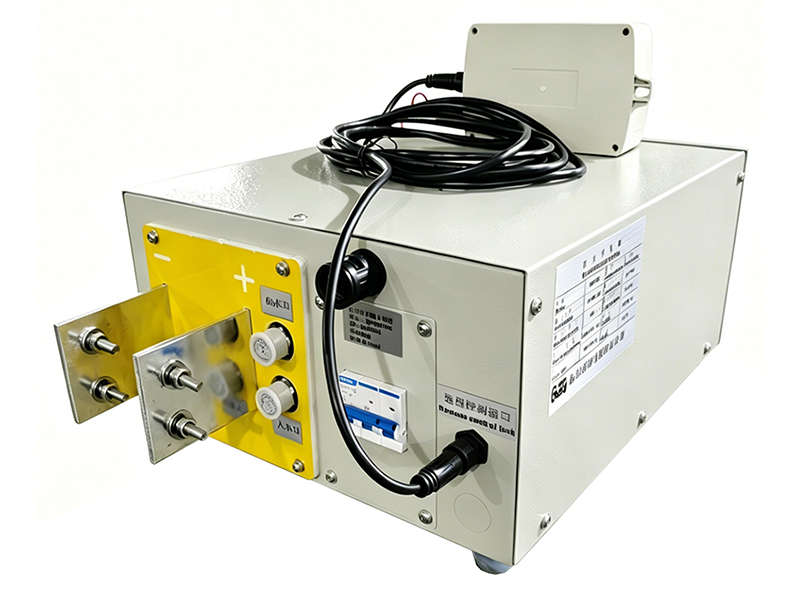

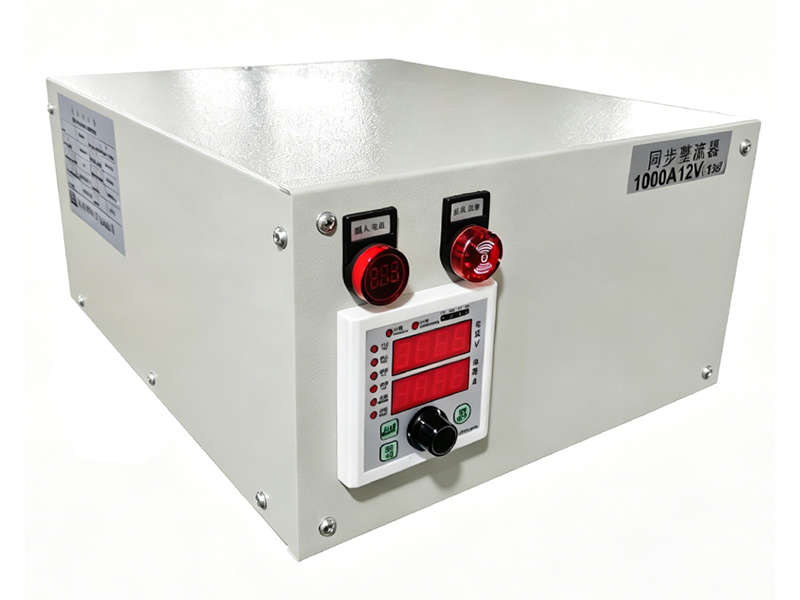

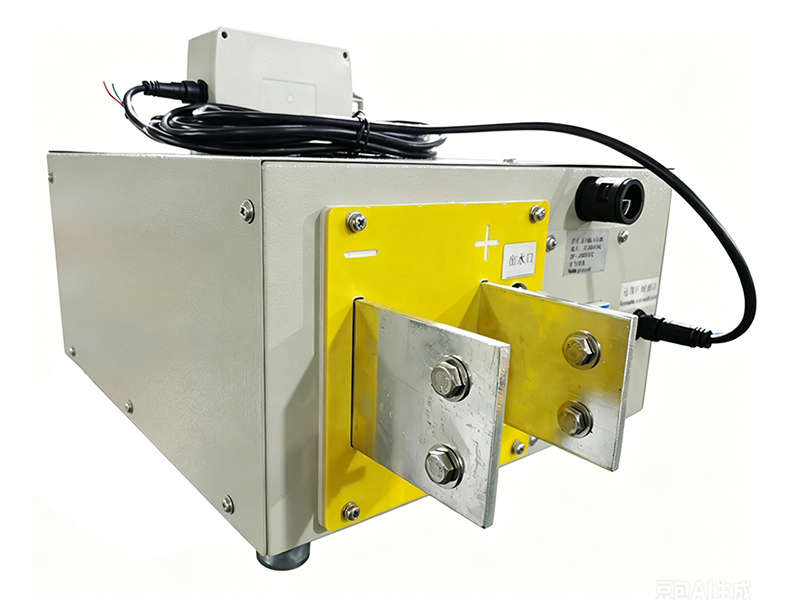

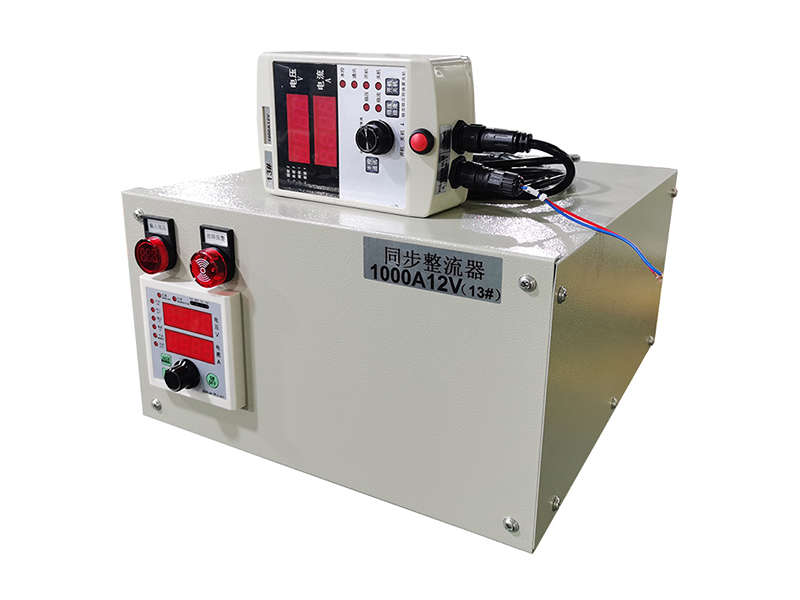

1000A 12V water-cooled synchronous rectifier designed for heavy-duty industrial electrochemical operations.
1000A 12V Water-cooled Synchronous Rectifier is a high-power industrial DC device. Firstly, it adopts a professional water-cooled structure to deliver excellent heat dissipation. Besides, we provide full customization to meet diverse on-site production requirements. Stable and low-loss power output maintains consistent working efficiency all the time. Furthermore, it is equipped with advanced synchronous rectifier circuits, so the unit can operate reliably under long-term heavy loads. In addition, we tailor functions, parameters and overall structure according to actual working conditions to deliver targeted solutions.
1000A 12V Water-cooled Synchronous Rectifier features reliable performance, great durability and high operational stability. To begin with, it is assembled with premium electronic components to keep a low failure rate during prolonged use. Meanwhile, the advanced synchronous circuit reduces power loss and output ripple for precise power supply. Moreover, reserved expansion interfaces support convenient function upgrades. Therefore, we can adjust output parameters and equipment dimensions freely as required. The high-efficiency water cooling system stabilizes internal temperature and extends service life. Lastly, it supports constant current, constant voltage, timed operation and multi-segment control to handle complex production needs.
| Parameter Item | Technical Specification |
|---|---|
| Rated Output Voltage | 0 ~ 12VDC (Adjustable) |
| Rated Output Current | 0 ~ 1000ADC (Adjustable) |
| Input Power | Three-phase AC 380V, 50/60Hz |
| Control Precision | ≤1% Full Scale |
| Protection Function | Over voltage, over current, short circuit, over temperature |
| Cooling Mode | Water Cooling |
| Communication Interface | RS485 |
| Operation Mode | Constant Current, Constant Voltage, Timed Operation |
| Additional Functions | Programmable ramp-up, multi-segment control, minute-level timing |
| Custom Item | Appearance, size, function, control logic |
Power（W） = Output Voltage（V） × Output Current（A）
We can provide:
The product comes with a one-year warranty and boasts a service life of over 10 years. It also supports both Constant Current and Constant Voltage modes, and it includes a programmable ramp-up function for current or voltage settings. For this reason, you can use the timed operation mode for time-sensitive applications. In addition, the multi-segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface and minute-level timing function. Hence, please contact us for further details if you need customization.
1000A 12V Water-cooled Synchronous Rectifier is widely applied in high-power electrochemical and metal surface treatment industries. For one thing, it works perfectly for industrial electrolysis, electroplating and large-scale metal processing. For another, it is also suitable for round-the-clock production lines and high-load industrial equipment. Even if you run the unit continuously for long cycles, this customized rectifier can adapt to various loads and operation modes. Accordingly, we can adjust relevant parameters to fit your actual production conditions.
We are a professional manufacturer focusing on customized industrial power products. First of all, our experienced R&D team completes customized design and production efficiently. Secondly, all products pass strict quality tests to meet industrial safety standards. What’s more, we support flexible orders and ensure timely delivery. Apart from that, we also provide comprehensive after-sales guidance and technical support to solve operational issues promptly. Customization is our core strength, and we create stable and reliable power solutions for all industries. In conclusion, our products enjoy long service life and consistent performance.
Learn more about related products:Commutating Rectifier
A: Products with the same nominal specifications often serve different industries, and they may carry different detailed parameter requirements. These differences directly affect production costs and technical solutions, so final prices will vary accordingly. For this reason, we recommend you contact us directly to receive a precise and tailored quotation.
A: We assign specialized consultants to support each industry sector. If you need further information, simply reach out to us. After we confirm your request, we will immediately send you the full technical datasheets and product images you need.
A: We focus on custom non-standard industrial power supplies, so we can fully adjust output current and voltage to match your exact needs. The products shown on our website only represent part of our actual range, as we do not list every model online. If you cannot find your desired specifications, please contact us directly. We will work with you to confirm your exact requirements, or we can guide you to select the most suitable parameters based on your industry standards. We will provide complete technical specifications and dimension drawings so you can fully understand the product.
