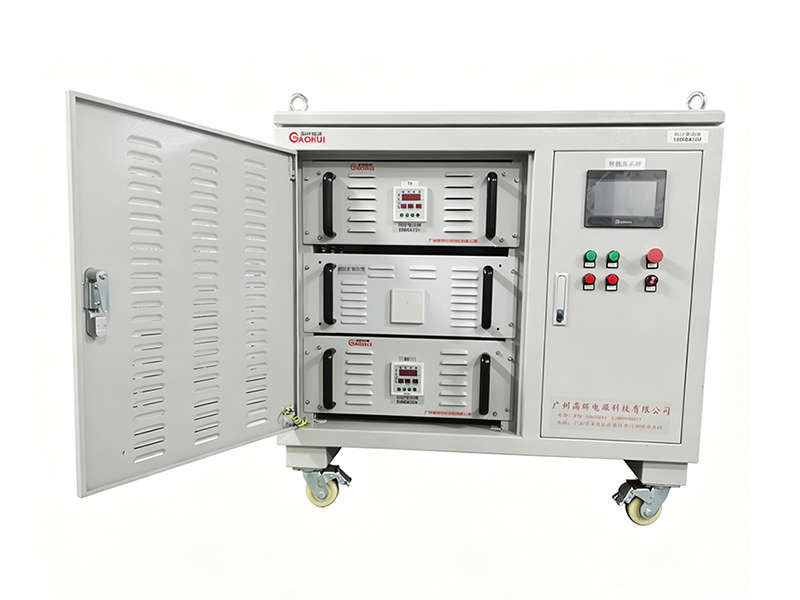

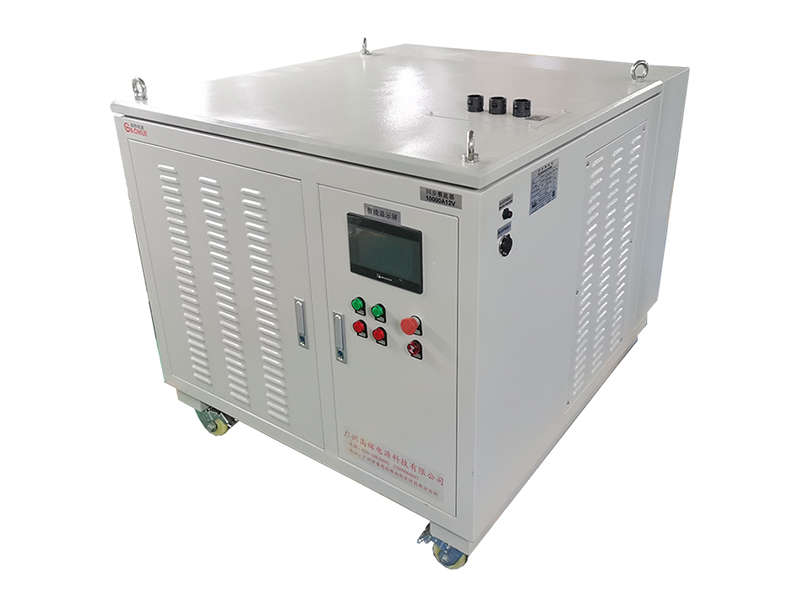

The 10000A 12V Water-cooled Synchronous Rectifier (N+1 Parallel Configuration: 3 Units) delivers ultra-stable, massive DC current. Its redundant 3-module parallel design keeps production running even when one module fails.
The 10000A 12V Water-cooled Synchronous Rectifier (N+1 Parallel Configuration: 3 Units) is an ultra-high current industrial rectifier engineered for non-stop heavy-duty electroplating and electrolytic extraction. Unlike traditional single-unit high-current rectifiers, this system relies on three independent modules working in N+1 parallel redundancy. For example, if one module develops a minor fault, the remaining two modules will continue operating, so your production line avoids full shutdown. Many old single rectifier units will halt the whole process once they malfunction. As a result, factories face expensive downtime and scrapped batches. Severe thermal accumulation also causes output drift, which leads to inconsistent coating quality or unstable electrolytic reactions.
The 10000A 12V Water-cooled Synchronous Rectifier (N+1 Parallel Configuration: 3 Units) supports seamless stepless adjustment ranging from 0 to 10000A current and 0 to 12V voltage. It fits large rack plating, bulk metal electrolysis and heavy metal surface finishing processes. In addition, every individual module adopts closed-loop circulating water cooling. It rapidly dissipates heat accumulated during long continuous production cycles and keeps the full system within safe operating temperatures around the clock. High-precision closed-loop control balances current sharing across all three modules. It automatically stabilizes DC output as load conditions change, maintains even current distribution and preserves stable electrolyte bath conditions. Furthermore, each module is equipped with independent multi-layer safety protection to protect internal hardware against overload, over-temperature and sudden short-circuit events.
· Delivers 10000A 12V stepless adjustable DC output, built with 3 modules in N+1 parallel redundancy for ultra-high current industrial applications.
· Leverages synchronous rectification topology with intelligent current sharing. In turn, it cuts power consumption and reduces heat generation during long production cycles.
· Equipped with standalone water cooling for each module. Hence, the complete system handles heavy thermal loads and supports 24-hour uninterrupted batch manufacturing.
· Supports both CC and CV working modes. Operators can switch smoothly for bath activation, formal electrolytic processing and post-run quality inspection.
· Features independent protection circuits for every module. It limits the impact of single-module faults and prevents total production shutdown.
· Comes with RS485 communication port on each unit. With it, operators monitor real-time data of each module and store operation logs to optimize production recipes.
In fact, many large metal finishing and electrolytic extraction plants still use single high-current rectifiers. Any failure on those standalone devices will stop the whole production line. Even so, the 10000A 12V Water-cooled Synchronous Rectifier (N+1 Parallel Configuration: 3 Units) perfectly matches factories that cannot afford unexpected downtime. Many production lines run continuous batches with changing workpiece surface area or electrolyte conductivity, and this modular system adapts well to these real-world working conditions. Our team carries out full-load ageing and current balance testing for every module before shipment. Therefore, the whole system maintains reliable performance through repeated long production runs.
The built-in current balance algorithm evenly distributes load across three modules. Changing working temperature and bath parameters often trigger small output deviations. This system compensates in real time to keep current and voltage output accurate. As a result, you can reduce scrap rates and prevent financial losses caused by sudden equipment outage. The system can store multiple groups of process parameters. Operators can quickly recall saved process presets. This action shortens equipment setup time and improves overall workshop productivity.

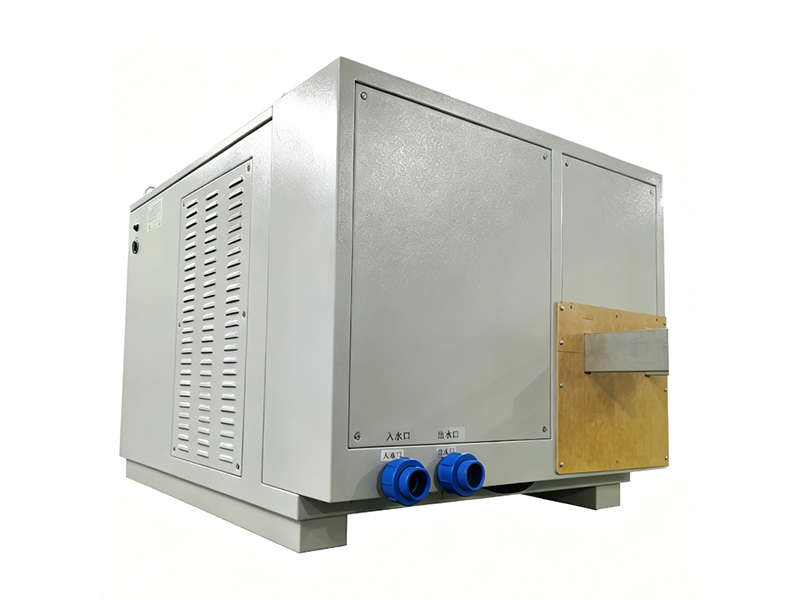

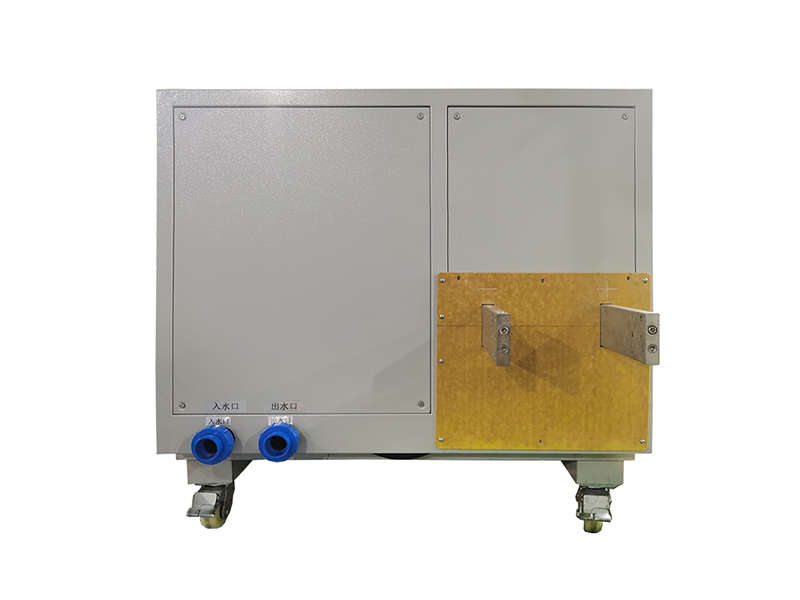

Each module adopts a reinforced sealed cabinet paired with anti-corrosion water circulation pipelines. This modular assembly offers excellent dust-proof, moisture-proof and anti-corrosion performance. Accordingly, it operates reliably in humid and corrosive environments inside plating and electrolysis workshops. Moreover, three-phase AC input remains stable and each module uses rugged mechanical construction. This parallel rectifier system has low failure risk and long service life to satisfy strict uninterrupted mass production requirements.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Rated Output | Total Rated Current | 10000A |
| Rated Output | Rated Voltage | 0‑12V |
| System Structure | Configuration | N+1 Parallel, 3 Modules |
| Working Mode | Operation Type | Constant Current / Constant Voltage, Low Ripple DC |
| Cooling System | Cooling Method | Water‑Cooled for each module |
| Input Power | Input Voltage | Three‑phase AC Customized |
| Communication Interface | Data Port | RS485 per module |
| Safety Protection | Protection Functions | Over‑current, Over‑voltage, Over‑temperature, Short‑circuit, Surge Protection (individual per module) |
| Applicable Scenarios | Main Applications | Large rack electroplating, industrial electrolysis, metal electrolytic extraction, heavy metal surface finishing |
Further, we back this rectifier system with a 1-year warranty and design it for over 10 years of service life. It supports constant-current and constant-voltage modes. Programmable current and voltage ramp-up also comes standard to suit different electrolysis and plating startup workflows. Notably, multi-segment parameter settings enable flexible process configuration. Its RS485 ports allow staff to view live module data and connect with other workshop control equipment. We supply optional custom function upgrades. These options satisfy special ultra-high-current process requirements. Reach out to us for tailored custom solutions.
The 10000A 12V Water-cooled Synchronous Rectifier (N+1 Parallel Configuration: 3 Units) serves large electrolysis manufacturers, heavy-duty electroplating plants and industrial metal extraction workshops. Operators deploy it for continuous large-batch electroplating and electrolytic processing on steel, copper and alloy workpieces. It also supports trial testing for newly developed electrolyte bath formulations.
Moreover, the system runs reliably through long-duration batch cycles and round-the-clock production runs. Its balanced multi-module DC output stabilizes electrolytic reactions and plating coating uniformity. For instance, it reduces coating defects and inconsistent metal extraction results, and as a result raises finished-part yield rates and avoids costly downtime.
We develop modular redundant power solutions for ultra-high-current industrial electrolysis and plating scenarios. In contrast to traditional single rectifier units, the 10000A 12V Water-cooled Synchronous Rectifier (N+1 Parallel Configuration: 3 Units) is built with N+1 redundancy to minimize production interruption risks. It maintains stable operation under harsh corrosive workshop conditions.
Our technicians complete stability simulation, current sharing testing and full-load ageing checks for every module before shipment. This step guarantees dependable real-world performance during continuous production. We accept non-standard parameter adjustments and custom-feature development. Professional process setup guidance and complete after-sales support also come with every purchase. In short, we deliver trustworthy modular rectifier hardware for your mass-production and pilot-scale metal finishing projects.
