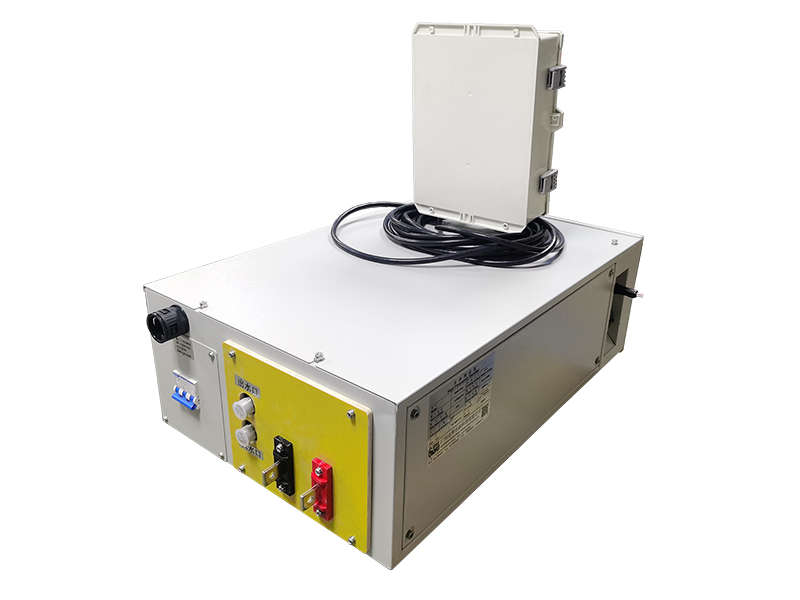

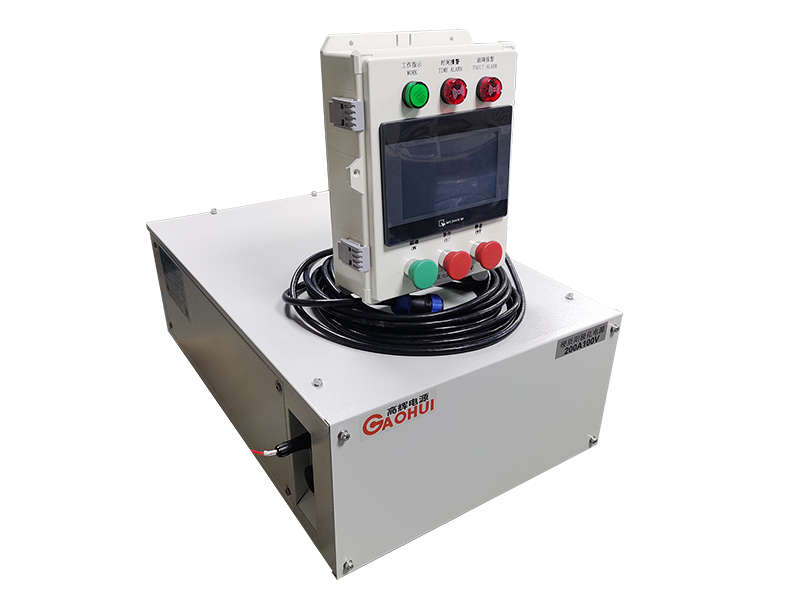

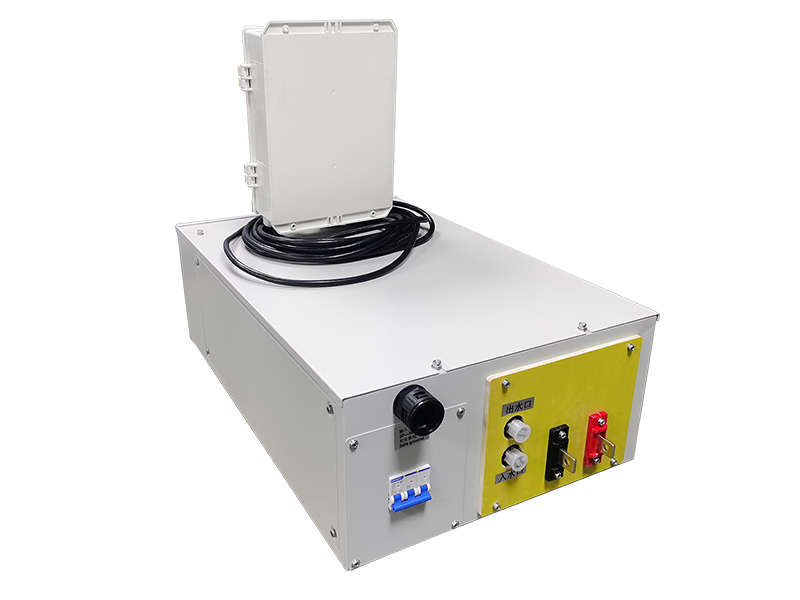

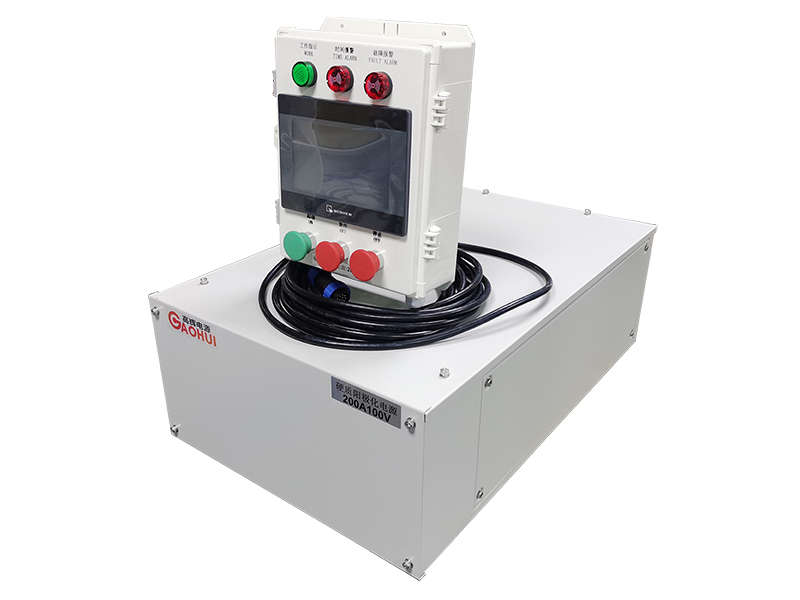

Optimised for rigorous titanium alloy hard anodizing workflows, this water‑cooled dual‑pulse anodizing rectifier outputs adjustable dual‑pulse energy to achieve uniform, high‑performance anodic films on titanium‑based work‑pieces during continuous pilot‑batch runs.
Water‑Cooled Dual‑Pulse Anodizing Rectifier addresses the strict power requirements for titanium alloy hard anodizing, where precise pulse control directly decides final coating quality. In fact, standard single‑pulse rectifiers struggle to balance film thickness uniformity and surface finish when processing complex‑shaped titanium components. Meanwhile, high‑current continuous operation generates substantial heat; therefore, effective thermal dissipation becomes essential to avoid performance drift during extended batch cycles.
Rated for 200A 100V operating specification, this water‑cooled dual‑pulse anodizing rectifier adopts reinforced dual‑pulse IGBT conversion architecture tailored for titanium alloy hard anodizing environments. Operators tune forward‑reverse pulse parameters, current and voltage set‑points from the local control panel to match varied titanium grades and target anodized layer properties. After technicians complete power connection and cooling water pipeline installation, workshop staff carry out uninterrupted pilot‑batch processing for medium‑to‑large titanium alloy parts. Meanwhile, multi‑layer electronic protection together with pulse‑arc suppression reacts quickly against current spikes, and this safeguard protects precision titanium work‑pieces and internal power assemblies throughout long‑duration production cycles.
This water‑cooled dual‑pulse anodizing rectifier applies robust dual‑pulse IGBT power conversion hardware, and operational efficiency stays above 88% under typical titanium hard‑anodizing pilot‑load conditions. Unlike conventional single‑pulse power supplies, its dual‑pulse topology improves current distribution across part surfaces; as a result, titanium alloy work‑pieces gain more consistent anodized layers even for intricate geometries.
Fast‑response closed‑loop feedback offsets minor electrolyte property variations as hard anodized films build on titanium surfaces. Consequently, finished titanium components show fewer surface defects, and process teams obtain repeatable results for scaling hard‑anodizing recipes. Furthermore, onboard memory stores multiple process presets, and operators can recall validated parameter profiles instantly rather than manually configuring every new batch.
Optimised for heavy‑duty titanium hard anodizing scenarios, internal power circuits maintain low output ripple across the full adjustment range. Accordingly, it supplies reliable dual‑pulse energy to form dense, wear‑resistant hard‑anodized coatings for diverse titanium alloy work‑pieces.
| Parameter Category | Specific Item | Specification |
|---|---|---|
| Input Parameters | AC Input Power Supply | Three‑phase AC 380V, ±10% tolerance, 50‑60Hz |
| DC Output Parameters | Output Voltage Range | 0‑100V adjustable |
| DC Output Parameters | Output Current Range | 0‑200A adjustable |
| DC Output Parameters | Rated Total Output Power | 20kW |
| DC Output Parameters | Voltage Regulation Accuracy | ≤1% |
| DC Output Parameters | Current Regulation Accuracy | ≤1% |
| DC Output Parameters | Ripple Factor | ≤1% |
| Control and Automation Functions | Operating Modes | Constant Current, Constant Voltage, dual‑pulse mode |
| Control and Automation Functions | Pulse Settings | Frequency 100‑3000Hz, duty cycle 5‑100% stepless adjustable |
| Control and Automation Functions | Auxiliary Hardware | Local control panel, multi‑group recipe storage, process‑data log recorder |
| Control and Automation Functions | Programming Features | Parameter recall, output limit lock, historical alarm storage |
| Physical and Communication Parameters | Cooling Method | Water‑cooled |
| Physical and Communication Parameters | Protection Class | IP20 for indoor pilot‑workshop environment |
| Physical and Communication Parameters | Communication Interface | RS485 Modbus RTU |
| Physical and Communication Parameters | Operating Efficiency | Above 88% |
The product comes with a one‑year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp‑up function for current or voltage settings. For time‑sensitive applications, you can use the timed operation mode. Moreover, the multi‑segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute‑level timing function. If you need customization, please contact us for further details.
This water‑cooled dual‑pulse anodizing rectifier fits pilot surface‑treatment workshops, material‑science research institutes and titanium alloy hard‑anodizing process‑development projects. For instance, it conducts hard anodizing processing for medium‑size titanium alloy mechanical parts and test coupons to improve surface hardness, wear‑resistance and anti‑corrosion performance.
In addition, it acts as dedicated dual‑pulse power hardware for teams developing and optimising titanium hard‑anodizing technical workflows. Apart from component processing, it supports pulse‑parameter comparative testing and process‑validation work, delivering practical runtime records for process formulation and technical documentation.
We specialise in manufacturing water‑cooled dual‑pulse rectifier hardware built for demanding titanium alloy hard‑anodizing pilot‑scale scenarios. Most importantly, every finished unit completes dual‑pulse waveform calibration and full‑load ageing testing before shipment, ensuring stable 200A 100V performance throughout long‑time continuous processing cycles.
Furthermore, we provide customisable adjustments for pulse‑parameter boundaries, control‑panel layout and communication protocols to satisfy varied pilot‑workshop requirements. Backed by remote technical guidance and stable spare‑parts supply, we deliver dependable rectifier solutions for your titanium alloy hard‑anodizing projects.
