Tailored for metal‑finishing workflows targeting titanium substrates, this titanium alloy high‑frequency rectifier supplies consistent high‑frequency DC output to support reliable surface treatment on titanium alloy components.
Titanium Alloy High‑Frequency Rectifier addresses the unique power‑supply requirements of titanium alloy surface‑treatment operations. In fact, titanium material demands tightly stabilised current and voltage to form uniform, defect‑free conversion coatings during anodising or finishing cycles. Even so, general‑purpose rectifiers often struggle to maintain steady output under dynamic tank‑condition shifts; consequently, users encounter inconsistent surface quality and higher reject rates on precision titanium parts.

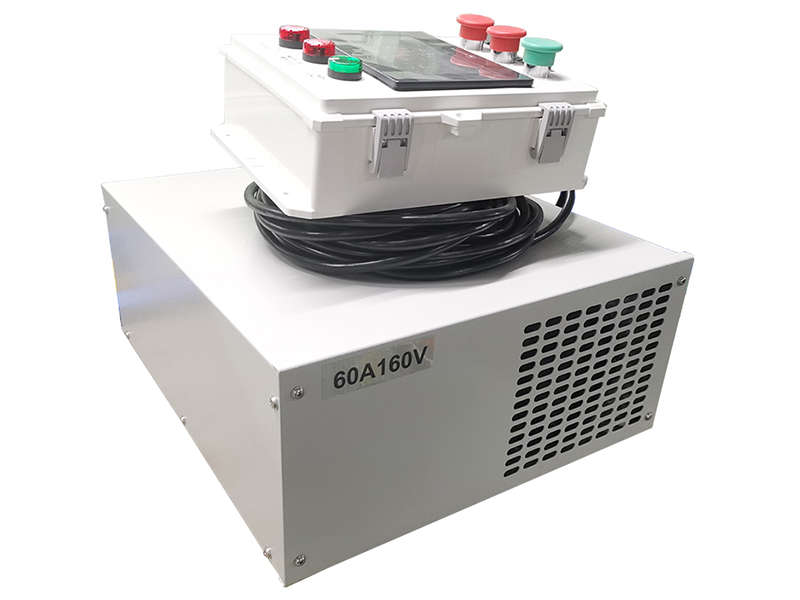

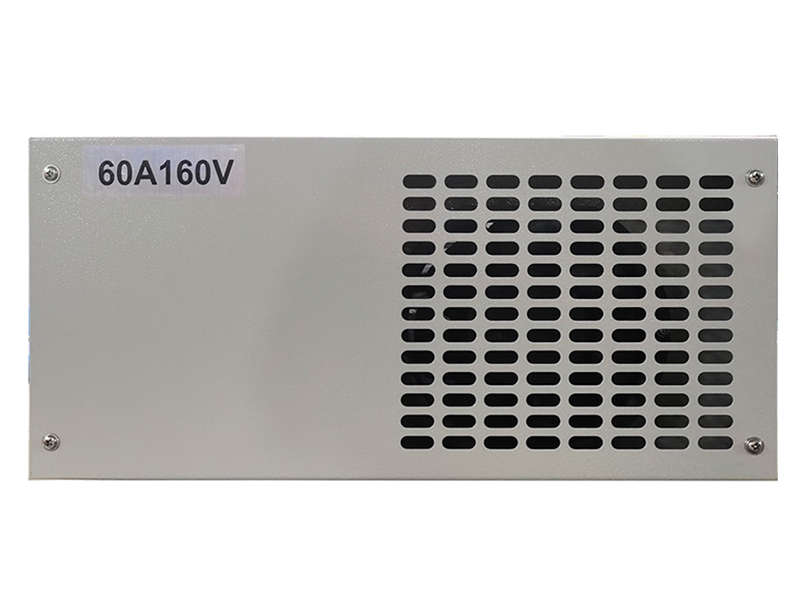

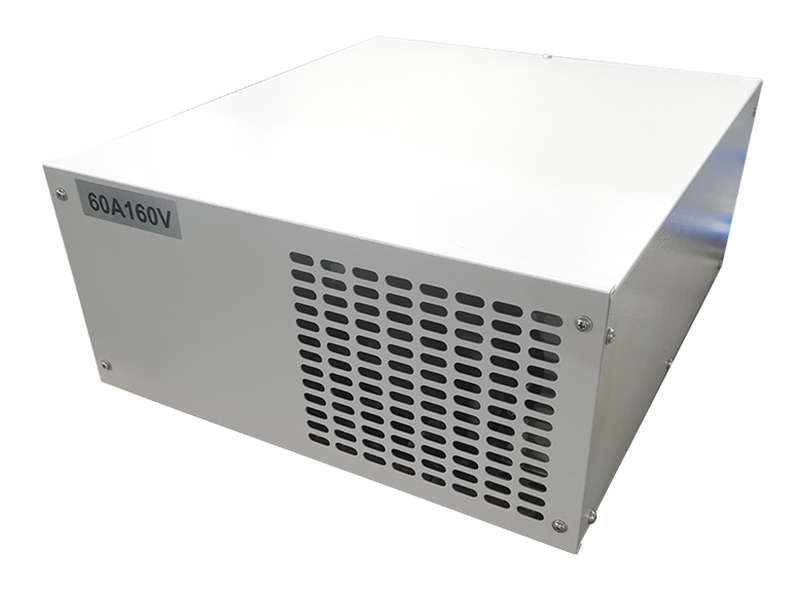

Rated for 60A 160V operating specification, this titanium alloy high‑frequency rectifier adopts advanced high‑frequency IGBT conversion architecture optimised for titanium alloy processing environments. Operators adjust current and voltage set‑points through the local control panel to match distinct titanium‑alloy grades and target surface‑finish indicators. After technicians complete wiring and tank assembly, production‑lab staff run continuous treatment cycles with minimal manual intervention. Meanwhile, multi‑layer electronic protection responds rapidly against current surges and over‑heating risks, and this safeguard protects both valuable titanium work‑pieces and internal power hardware during long‑run processing cycles.
This titanium alloy high‑frequency rectifier utilises premium high‑frequency IGBT power conversion hardware, and operational efficiency stays above 90% under typical titanium‑treatment load. Unlike conventional low‑frequency rectifier models, its high‑frequency topology suppresses output ripple, so titanium substrates achieve more homogeneous surface conversion effects.
Fast‑acting closed‑loop feedback offsets minor electrolyte property shifts as surface films build on titanium alloy surfaces. As a result, finished titanium parts show fewer surface blemishes, and processing teams achieve higher pass rates for precision‑component batches. Furthermore, onboard memory stores multiple process‑recipe presets, and operators can recall proven parameter profiles instantly instead of reconfiguring settings for every new titanium‑alloy batch.
Optimised for titanium‑alloy surface‑treatment scenarios, internal power circuits keep ripple tightly controlled across the full adjustment range. Accordingly, it provides dependable high‑frequency DC energy to generate consistent, high‑quality surface layers for various titanium alloy work‑pieces.
| Parameter Category | Specific Item | Specification |
|---|---|---|

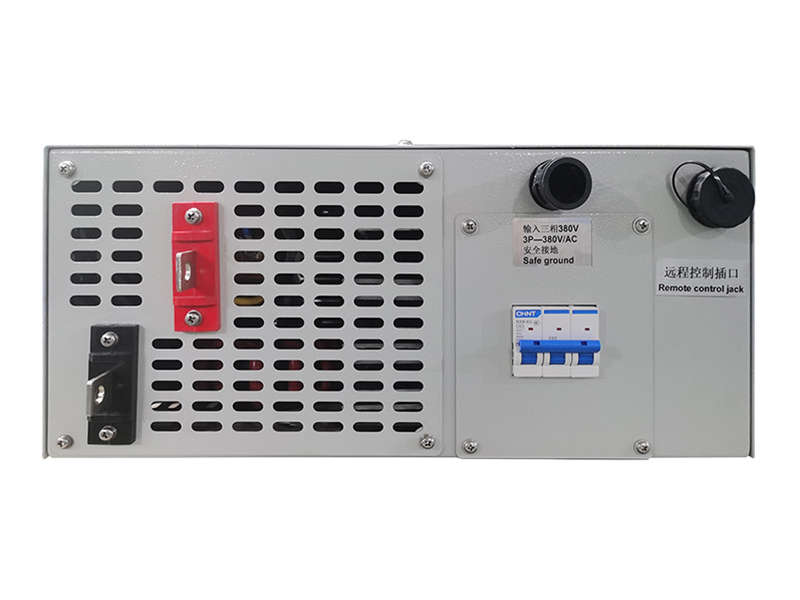

| Input Parameters | AC Input Power Supply | Three‑phase AC 380V, ±10% tolerance, 50‑60Hz |
| DC Output Parameters | Output Voltage Range | 0‑160V adjustable |
| DC Output Parameters | Output Current Range | 0‑60A adjustable |
| DC Output Parameters | Rated Total Output Power | 9.6kW |
| DC Output Parameters | Voltage Regulation Accuracy | ≤1% |
| DC Output Parameters | Current Regulation Accuracy | ≤1% |
| DC Output Parameters | Ripple Factor | ≤1% |
| Control and Automation Functions | Operating Modes | Constant Current, Constant Voltage |
| Control and Automation Functions | Auxiliary Hardware | Local control panel, multi‑group recipe storage, process‑data log recorder |
| Control and Automation Functions | Programming Features | Parameter recall, output limit lock, historical alarm storage |
| Physical and Communication Parameters | Cooling Method | Air‑cooled |
| Physical and Communication Parameters | Protection Class | IP20 for indoor laboratory and pilot‑workshop environment |
| Physical and Communication Parameters | Communication Interface | RS485 Modbus RTU |
| Physical and Communication Parameters | Operating Efficiency | Above 90% |
The product comes with a one‑year warranty and boasts a service life of over 10 years. It supports both Constant Current and Constant Voltage modes, and it also includes a programmable ramp‑up function for current or voltage settings. For time‑sensitive applications, you can use the timed operation mode. Moreover, the multi‑segment function allows you to vary constant current or voltage levels over time. The device further offers an RS485 communication interface, automatic polarity reversal, and a minute‑level timing function. If you need customization, please contact us for further details.
This titanium alloy high‑frequency rectifier suits material‑research laboratories, prototype‑processing workshops and small‑batch surface‑treatment stations focused on titanium‑based components. For instance, it carries out anodising and surface‑modification processing for titanium alloy test coupons and precision mechanical parts to enhance surface hardness and anti‑corrosion performance.
Besides, it acts as dedicated test‑and‑process power hardware for teams developing titanium‑alloy surface‑treatment workflows. Apart from specimen finishing, it supports process‑parameter exploration and formula validation, supplying practical runtime records for formal process‑specification formulation.
We specialise in developing application‑specific high‑frequency rectifier hardware built for titanium‑alloy surface‑treatment requirements. Most importantly, every finished unit completes high‑frequency waveform calibration and full‑load ageing testing before shipment, delivering stable 60A 160V performance during repeated processing cycles.
Moreover, we provide customisable adjustments for output limits, control‑panel functions and communication protocols to match varied lab‑workshop operational needs. Backed by remote technical guidance and stable spare‑parts supply, we deliver reliable rectifier solutions for your titanium‑alloy surface‑finishing projects.
