Output: 6V / 6000A DC
Technology: IGBT synchronous
Efficiency: >94%
Ripple: <3%
Cooling: Water cooled
Mounting: Heavy duty bracket included
Control: Digital CV/CC
Applications: Electrowinning, electrorefining, metal extraction

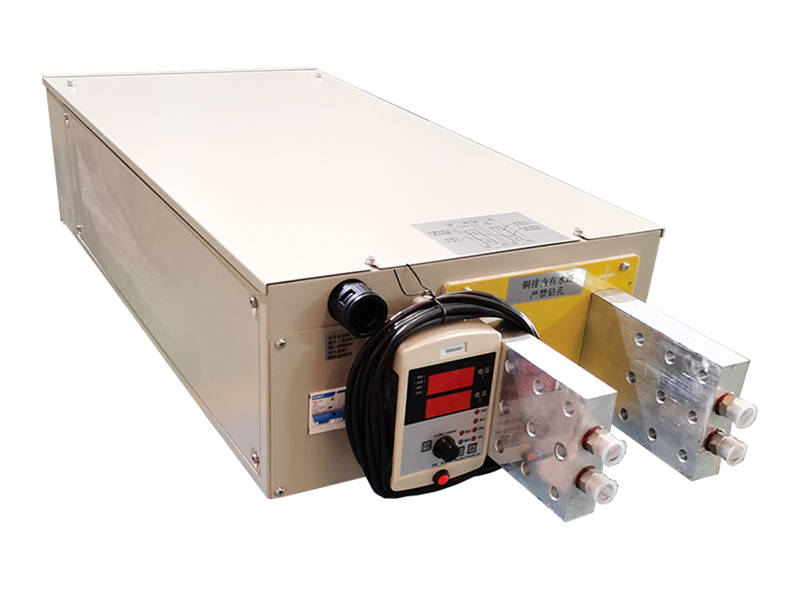

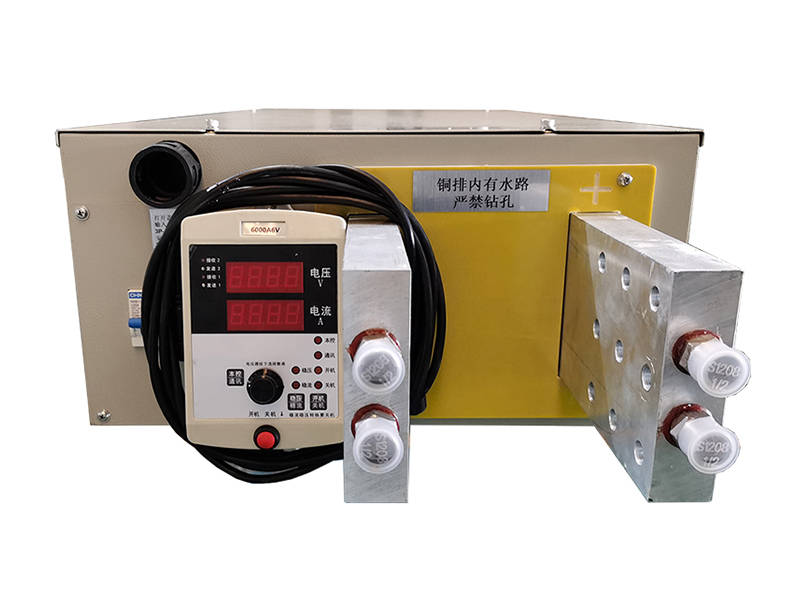

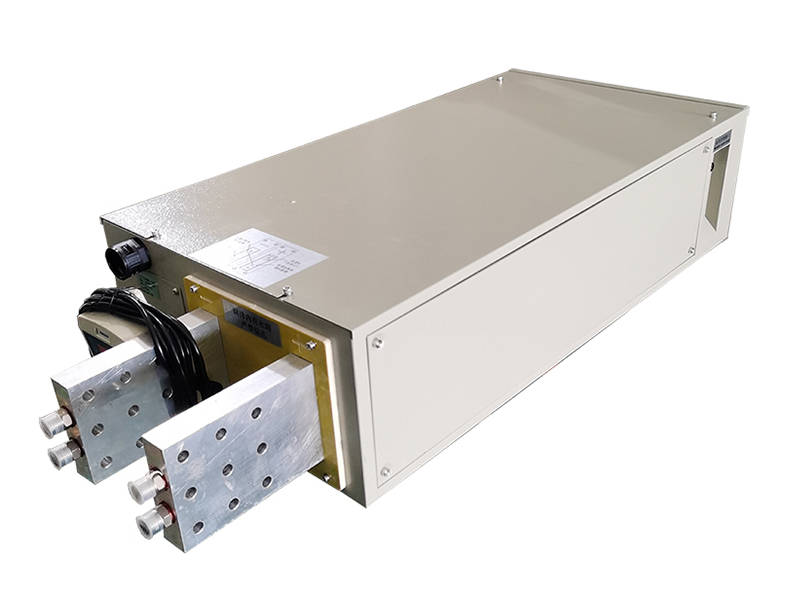

This 6000A 6V water cooled synchronous rectifier includes a heavy duty mounting bracket for secure installation. It delivers massive DC power for industrial electrolytic processes including electrowinning, electrorefining, and metal extraction. Consequently, this complete solution ensures optimal current density for consistent metal recovery and high purity output.
This synchronous rectifier employs IGBT-based high frequency switching with synchronous rectification circuitry. Therefore, it achieves over 94% efficiency even at maximum current output, dramatically reducing energy costs. Moreover, the fully sealed water cooling system protects critical components from corrosive environments. The integrated mounting bracket simplifies installation and ensures stable positioning.

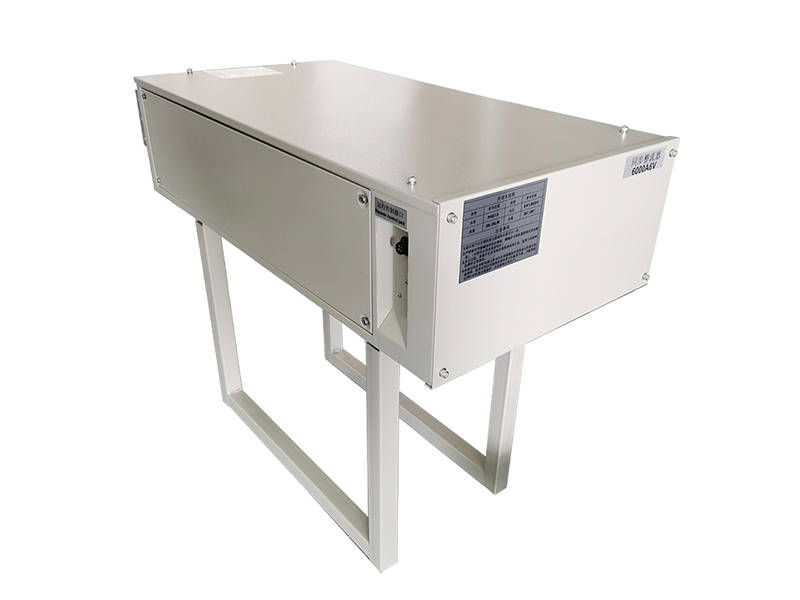

The included mounting bracket allows for secure attachment to floors, walls, or equipment frames. This simplifies installation and ensures the rectifier remains stable during operation. Consequently, facilities can integrate this power supply quickly and safely. The bracket is constructed from heavy duty steel with corrosion-resistant coating.
Copper refineries use this synchronous rectifier for electrowinning and electrorefining. Zinc production facilities employ it for electrolytic extraction. Nickel and cobalt processing plants utilize it for metal recovery. Precious metal refineries apply it for gold and silver refining. The mounting bracket allows flexible positioning in crowded plant environments.
Precise current density control ensures consistent metal quality and higher purity levels. Low ripple output improves current efficiency and prevents passivation issues. Fast response time maintains stable performance during load changes. These features result in reduced energy consumption and lower operational costs.
The synchronous design reduces electricity consumption significantly compared to conventional rectifiers. At 6000A continuous output, efficiency gains translate to substantial annual savings. Consequently, it lowers production costs while maintaining high throughput. Reduced heat generation also minimizes facility cooling requirements.
Industrial grade components ensure dependable performance year after year. The water cooling system eliminates dust-related failures common with air cooled units. This synchronous rectifier with mounting bracket is engineered for 24/7 continuous operation.
