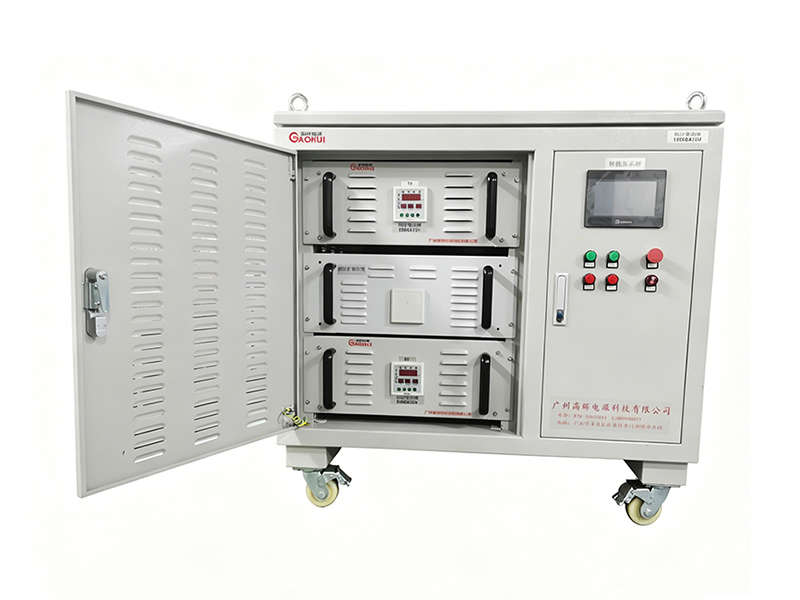

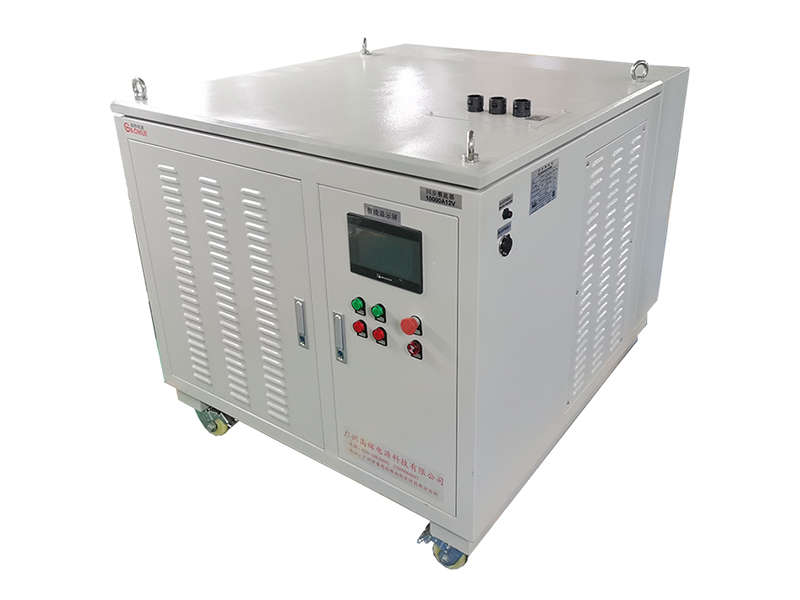

10000A 12V water-cooled synchronous rectifier with 3 sets N+1 parallel design for ultra high-current industrial operation.
Water-cooled Synchronous Rectifier is an ultra high-current industrial DC device with rated output of 10000A and 12V. First of all, it adopts a 3-units N+1 parallel configuration, so it distributes current evenly and delivers outstanding operational redundancy. Meanwhile, we equip the whole system with a professional water cooling system, and this reliable cooling solution supports non-stop 24-hour operation. Besides, we integrate advanced synchronous rectifier circuits inside each unit, as a result, the system maintains low power loss and ultra-stable output with minimal ripple. Finally, we deliver all-round customization services, so we can adjust functions and structures to meet diverse on-site technical requirements.
To start with, we assemble every unit with premium electronic components, so the whole system keeps a low failure rate even under extreme heavy loads. In addition, the N+1 redundant parallel structure helps users sustain normal production, even if one single unit needs routine inspection or maintenance. Furthermore, our optimized synchronous circuits cut down power consumption and output ripple effectively, and they also supply precise power for stable production. Apart from that, the high-performance water cooling system stabilizes internal temperature continuously, and it extends the overall service life of the equipment. What’s more, we reserve dedicated expansion interfaces, so users can add and upgrade extra functions conveniently. In the end, the system supports constant current, constant voltage, timing and multi-segment control to satisfy complicated production demands.
| Parameter Item | Technical Specification |
|---|---|
| Rated Output Voltage | 0 ~ 12VDC (Adjustable) |
| Rated Output Current | 0 ~ 10000ADC (Adjustable) |
| Parallel Mode | 3 Units, N+1 Redundant Parallel |
| Input Power | Three-phase AC 380V, 50/60Hz |
| Control Precision | ≤1% Full Scale |
| Protection Function | Over voltage, over current, short circuit, over temperature |

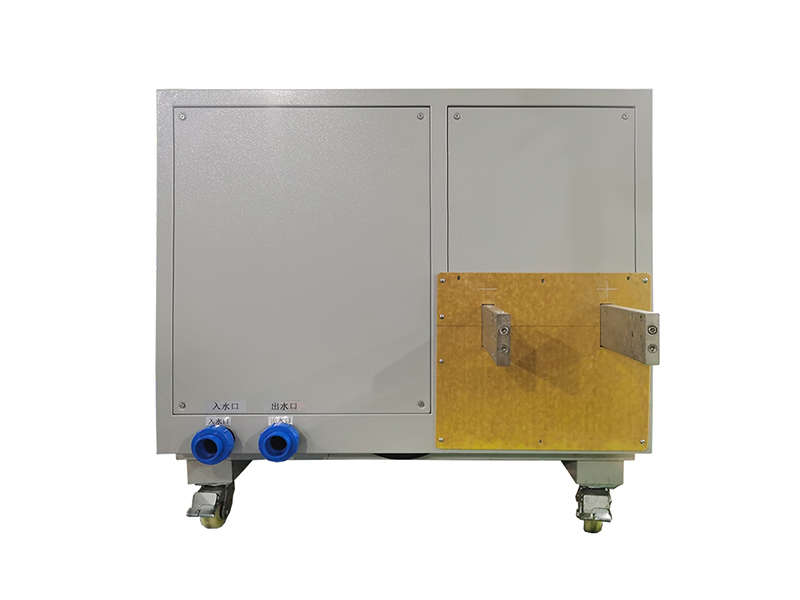

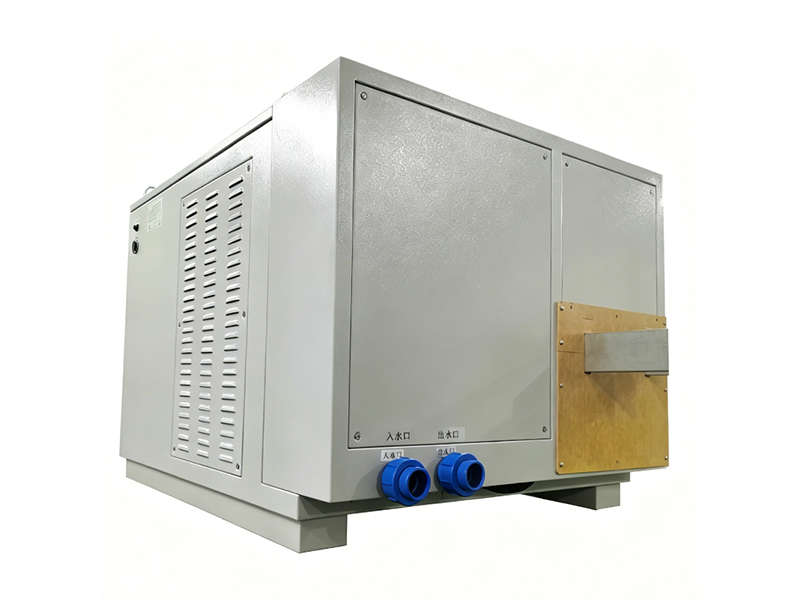

| Cooling Mode | Water Cooling |
| Communication Interface | RS485 |
| Operation Mode | Constant Current, Constant Voltage, Timed Operation |
| Additional Functions | Programmable ramp-up, multi-segment control, minute-level timing |
| Custom Item | Appearance, size, function, control logic |
Power（W） = Output Voltage（V） × Output Current（A）
In general, this product carries a one-year warranty, and it can serve stable operation for more than 10 years. Not only does it support constant current and constant voltage modes, but it also works well with programmable ramp-up and multi-segment control functions. Thanks to the N+1 parallel layout, the system owns strong redundancy to guarantee uninterrupted production. Meanwhile, it builds in an RS485 communication port, so staff can complete remote monitoring and control with ease. If you have special technical demands, we can also provide targeted customization; please contact us for more details.
First and foremost, this water-cooled synchronous rectifier serves widely in ultra high-current electrochemical industries. For example, it works perfectly for large-scale industrial electrolysis, heavy-duty electroplating and metal surface treatment production lines. Moreover, the N+1 redundant structure fits factories that require round-the-clock mass production. Even when the system runs under long-term full load, it still maintains stable performance and adapts to various working cycles. Accordingly, we can adjust all relevant parameters to match your actual on-site production conditions.
Above all, we are a professional manufacturer focusing on high-power industrial rectifier products. Since we maintain an experienced R&D team, we can finish customized design for N+1 parallel power systems efficiently. In addition, all our products go through strict quality tests, so they fully comply with standard industrial safety regulations. Besides, we arrange flexible order plans.
