Output ±24V DC 0-6000A Bidirectional
Power 144kW
Application Industrial Symmetrical Pulse Processes
Best For Electrochemical Research Industrial Synthesis Large-Scale Material Processing

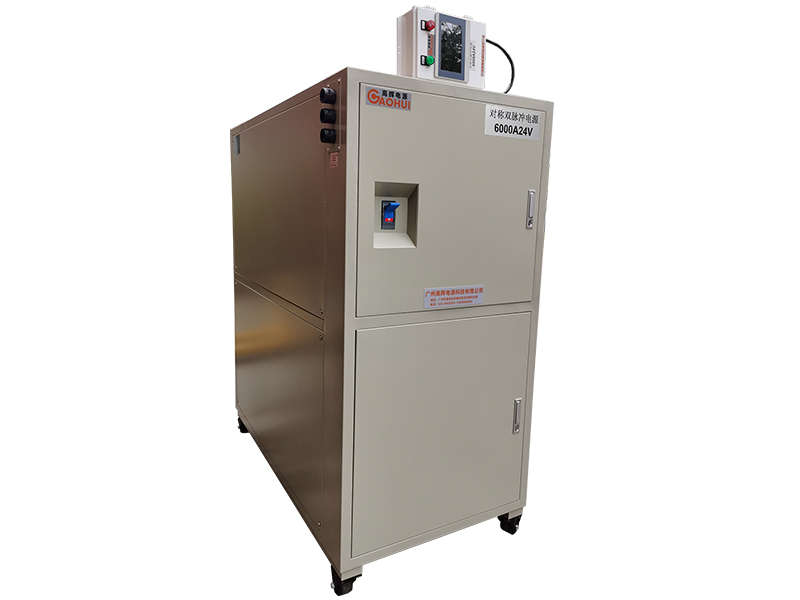

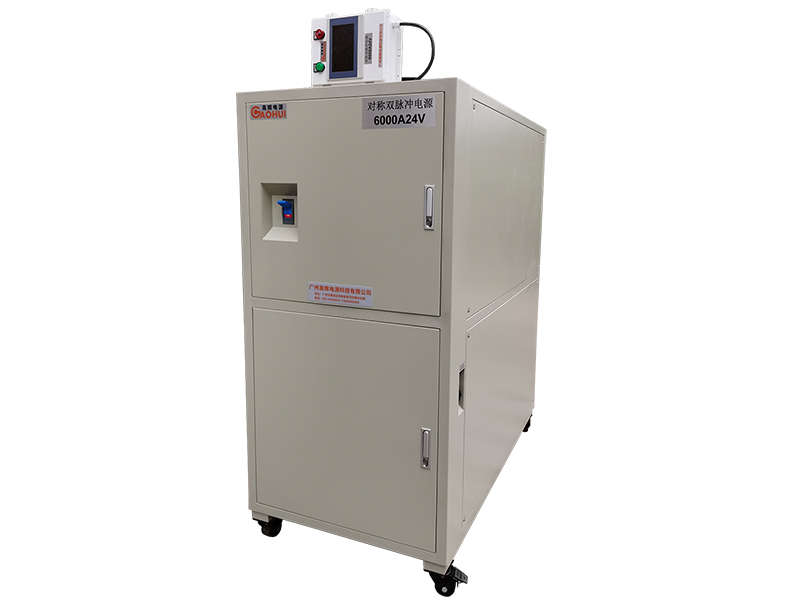

This symmetrical pulse rectifier delivers balanced bidirectional pulses at industrial scale. It provides 6000A at 24V with precise symmetry control. Consequently, advanced electrochemical processes achieve superior results consistently.
Parameter Specification
Input Power 480VAC/690VAC Three-Phase
DC Output ±24V DC 0-6000A Symmetrical
Pulse Symmetry ≤ ±0.5% Balance
Pulse Frequency 0.1-200 Hz Adjustable
Pulse Width 5-500 ms Adjustable
Control Interface Industrial HMI with Waveform Analysis
Special Features Symmetry Calibration Charge Balance Control Process Monitoring

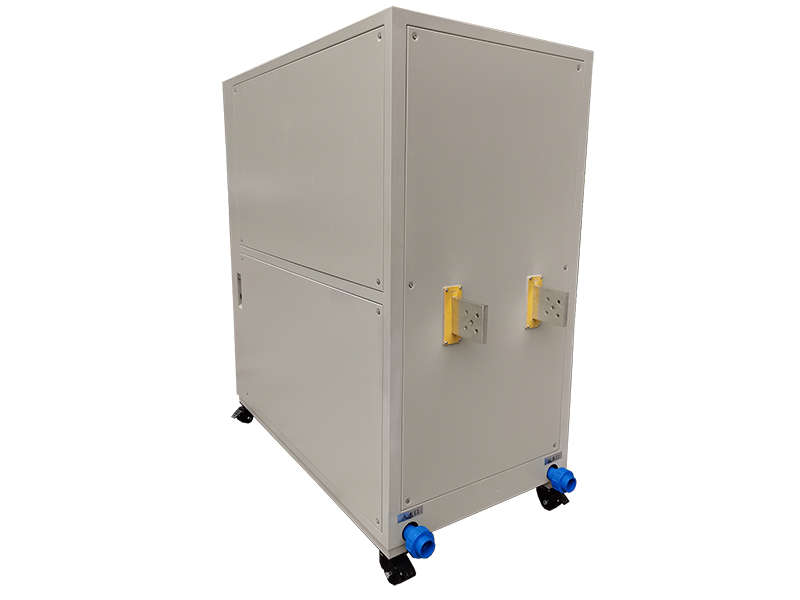

Cooling System Water Cooling
Protections OCP OVP Symmetry Fault Protection Thermal Overload
Perfect Symmetry at High Power
This symmetrical pulse rectifier maintains precise balance. Therefore, net zero charge transfer is achieved reliably. Moreover, experimental conditions remain controlled.
Industrial-Scale Performance
6000A capacity supports large processes. Specifically, industrial production volumes are accommodated. Thus, research scales to manufacturing effectively.
Advanced Waveform Control
Clean symmetrical pulses are generated consistently. Furthermore, waveform distortion is minimized. Consequently, process accuracy improves significantly.
Comprehensive Process Monitoring
Real-time symmetry verification ensures quality. Additionally, data logging tracks performance. Hence, process validation is thorough.
This symmetrical pulse rectifier serves industrial and research applications requiring precise pulse control.
In Advanced Material Synthesis
The system produces nanomaterials at scale. Importantly, symmetry controls particle characteristics. Additionally, production volumes increase substantially.
For Industrial Electrochemical Processing
It performs specialized manufacturing processes. Similarly, symmetrical pulses enable unique methods. Consequently, product quality enhances.
In Large-Scale Research Facilities
The rectifier supports collaborative projects. Ultimately, industrial-capacity enables meaningful experimentation. Therefore, research impact increases.
For Energy Storage Development
It tests battery materials under realistic conditions. Specifically, symmetrical pulses simulate cycling. Thus, performance predictions become accurate.
Process quality improves with precise symmetry. Moreover, reproducibility enhances significantly. Consequently, research validity strengthens.
Production scalability is facilitated by high capacity. Furthermore, laboratory results translate effectively. Therefore, technology transfer accelerates.
Energy efficiency optimizes through controlled operation. Additionally, balanced pulses minimize waste. Thus, operational costs reduce.
System reliability ensures continuous operation. Specifically, water cooling maintains stable temperatures. Hence, experimental consistency is maintained.
In summary, this symmetrical pulse rectifier provides advanced electrochemical capabilities. For this reason, it serves facilities where precise pulse control, industrial capacity, and process reliability are essential requirements for both research and production applications.
