Output ±48V DC 0-5000A (Single Pulse)
Power 240kW
Application High-Power Pulsed Electrochemical Processes
Best For Industrial Electropolishing Electroforming Large-Scale Surface Treatment

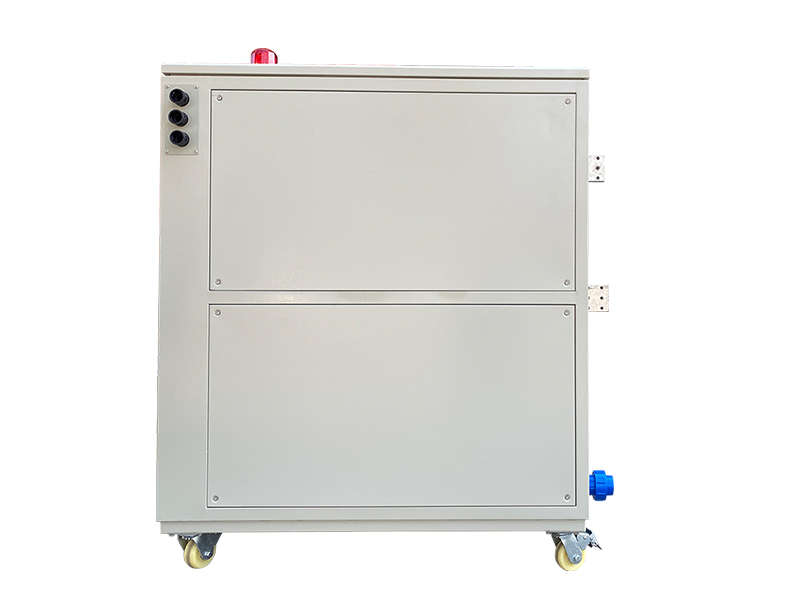

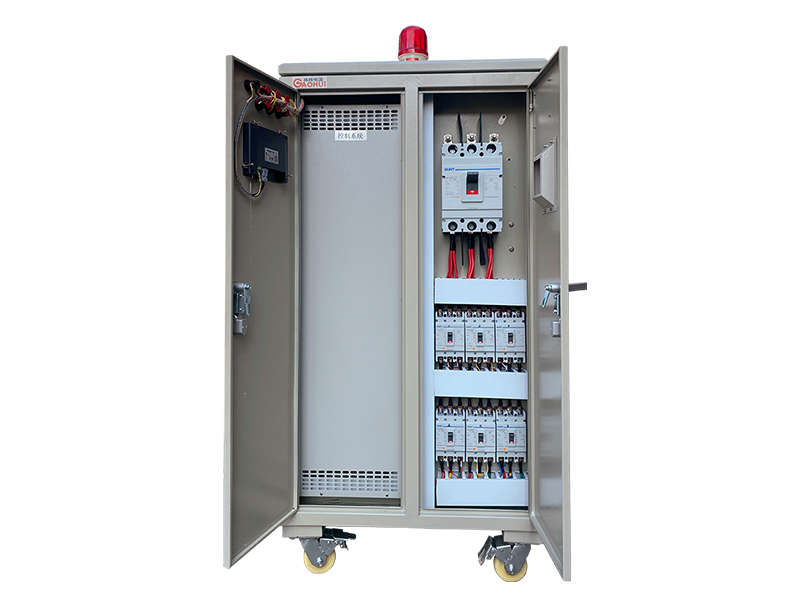

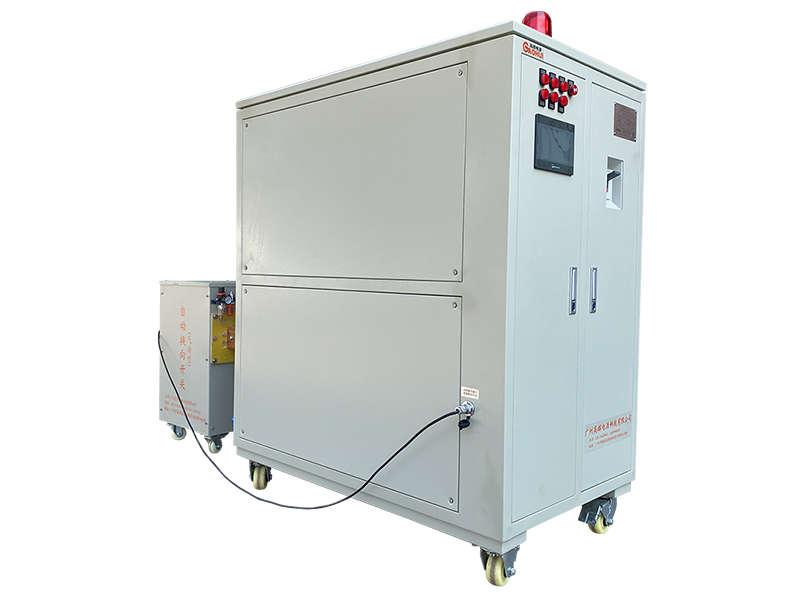

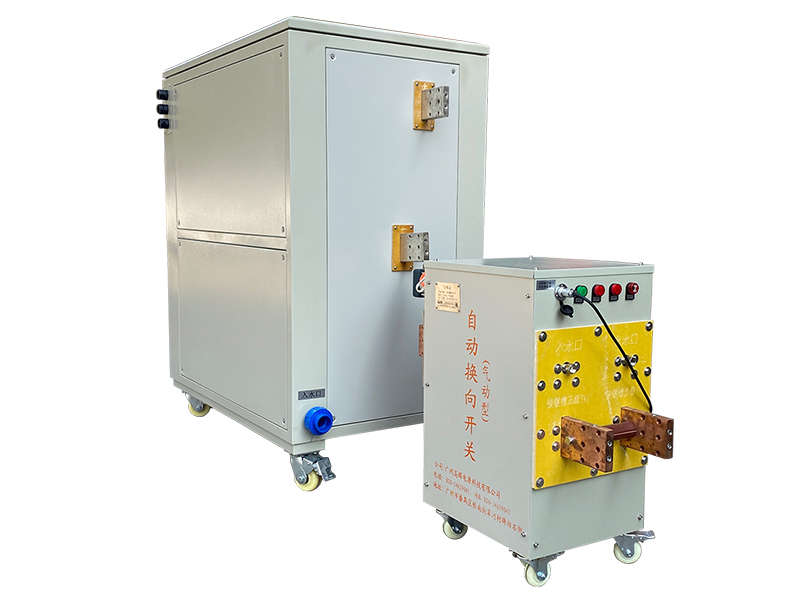

This single pulse rectifier delivers 5000A at 48V for industrial-scale pulsed processes. It features an automatic reversing switch for polarity management. Consequently, complex electrochemical procedures are automated efficiently.
Parameter Specification
Input Power 480VAC/690VAC Three-Phase
DC Output ±48V DC 0-5000A
Pulse Frequency 1-500 Hz Adjustable
Pulse Width 1-100 ms Adjustable
Reversing Switch Automatic Programmable
Switching Time < 100 ms
Control Interface Industrial HMI with Process Sequencing
Special Features Automatic Polarity Sequencing Process Optimization Advanced Cooling Control
Cooling System Water Cooling
Protections OCP OVP Polarity Fault Detection Thermal Management
High-Power Pulse Delivery
This single pulse rectifier provides substantial 5000A capacity. Therefore, large-scale industrial processes are supported effectively. Moreover, production throughput increases significantly.
Automatic Polarity Management
The integrated reversing switch automates polarity changes. Specifically, it eliminates manual intervention during processes. Thus, operational efficiency improves consistently.
Advanced Process Control
Programmable sequences enable complex procedures. Furthermore, parameters adjust automatically during reversal. Consequently, process quality enhances noticeably.
Robust Thermal Management
Water cooling handles high power densities. Additionally, temperature control maintains optimal conditions. Hence, system reliability is ensured.
This pulse rectifier serves large-scale industrial electrochemical applications.
In Industrial Electropolishing
The system processes large metal surfaces. Importantly, automatic reversing optimizes surface quality. Additionally, production rates increase substantially.
For Large-Scale Electroforming
It supports manufacturing of sizable components. Similarly, pulse technology improves deposit characteristics. Consequently, product quality meets stringent standards.
In Industrial Surface Treatment
The rectifier treats large-area substrates. Ultimately, automatic polarity management enhances treatment uniformity. Therefore, process consistency improves.
For High-Power Research Applications
It enables large-scale experimental processes. Specifically, automated reversing facilitates complex procedures. Thus, research capabilities expand.
Process automation reduces manual intervention. Moreover, labor requirements decrease significantly. Consequently, operational costs are optimized.
Production efficiency increases with high power output. Furthermore, processing times reduce effectively. Therefore, throughput capacity expands.
Process quality improves through precise control. Additionally, automated reversing ensures consistency. Hence, product reliability enhances.
Equipment protection is comprehensive with advanced cooling. Specifically, water cooling prevents thermal issues. Thus, system longevity extends.
In summary, this single pulse rectifier provides advanced industrial solutions. For this reason, it serves applications where high-power pulsed processes, automated control, and reliable operation are essential requirements for modern industrial production.
